Octane Fitness - Q47 Base (2010) (Discontinued) - 2010

Repair Parts for Octane Fitness Q47 Base (2010) (Discontinued) Q47 Base (2010) (Discontinued)

Brand: Octane Fitness

Category: Residential Ellipticals

Type: Elliptical

Model Name: Q47 Base (2010) (Discontinued)

Color: Grey

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
# 600018 100265-001 ADJUSTABLE ROCKER SCREW, M2 X 0.4 X 10, PAN HEAD, TYPE 1 CROSS RECESSED, CZ No Model Compatibility List $4.68 / Each

2
# 600027 100366-001 MAIN FRAME BEARING, BALL, 6004Z No Model Compatibility List $5.83 / Each

8
# 600029 100375-001 STABILITY LINK BEARING, FLANGED, 18 X 22 X 9.5 No Model Compatibility List $3.13 / Each

8
# 600035 100396-001 CONSOLE MAST GRIP, STATIONARY, DIPPED No Model Compatibility List $3.75 / Each

11
BELT, POLY V 600042 100405-001 PRO310 BELT, POLY V Yes Model Compatibility List $45.00 / Each

15
# 600043 100406-001 RIGHT 3P LINK AXLE, 3P TOP No Model Compatibility List $4.38 / Each

8
AXLE, TRANSPORT WHEEL 600044 100411-001 MAIN FRAME COMPONENTS AXLE, TRANSPORT WHEEL No Model Compatibility List $4.68 / Each

8
# 600049 100429-001 LOWER FRAME COMPONENTS SCREW, M4.8 X 1.6 X 13 TYPE AB, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ No Model Compatibility List $4.68 / Each

2
# 600053 100450-001 TENSIONER RING, EXT RETAINING, 20MM No Model Compatibility List $4.68 / Each

2
SPACER, FLANGE TENSIONER 600054 100457-001 #22-ASSY SPACER, FLANGE TENSIONER No Model Compatibility List $4.68 / Each

2,3,4,5,6
# 600057 100464-001 FAN MAGNET, RPM PULLEY No Model Compatibility List $4.68 / Each

8
# 600074 100602-001 TOUCH SCREEN MAST SCREW, M5 X 0.8 X 10, PAN HEAD, TYPE 1, No Model Compatibility List $4.68 / Each

2
BOLT, M10 X 1.5 X 55, HEX HEAD, 12.9 STL, CZ 600085 100715-001 BOLT, M10 X 1.5 X 55, HEX HEAD, 12.9 STL, CZ No Model Compatibility List $2.50 / Each

2
# 600086 100716-001 BRACED PEDAL LEVER BOLT, M10 X 1.5 X 20, HEX HEAD, GR 8.8, CZ No Model Compatibility List $4.68 / Each

2
# 600087 100717-001 MULTI-AXIS BEARING LINK WASHER, 10 X 23 X 2, STEEL, CZ No Model Compatibility List $4.68 / Each

2
SCREW, M8 X 1.25 X 90 HHCS, 8.8 ST, BZ 600107 100753-001 PRO310 SCREW, M8 X 1.25 X 90 HHCS, 8.8 ST, BZ No Model Compatibility List $4.68 / Each

2
# 600108 100754-001 #26-ASSEMBLY SCREW, M8x1.25x16 SHCS, STL, BZ No Model Compatibility List $4.68 / Each

2
# 600121 100787-001 #40-ASSY SCREW, M5 X 0.8 X 18, PAN HEAD, TYPE 1 CROSS RECESSED, BZ No Model Compatibility List $4.68 / Each

1
ACTUATOR MOTOR, EDDY CURRENT BRAKE, Q45 600138 100840-001 ACTUATOR MOTOR, EDDY CURRENT BRAKE, Q45 Yes Model Compatibility List $75.00 / Each

8,10
# 600158 100882-001 CONSOLE MAST DECAL, LARGE OCTANE No Model Compatibility List $5.00 / Each

7,3
600164 100896-001 CONSOLE MAST CABLE ASSEMBLY, KEYPAD-CONSOLE Yes Model Compatibility List $39.00 / Each

7,9,3,4,5,6,12,13,14
# 600171 100913-001 FAN SCREW, M3.5 X 1.3 X 10 TYPE B, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ No Model Compatibility List $4.68 / Each

2
# 600179 100924-001 BAGGED HARDWARE WRENCH, HEX, M6 No Model Compatibility List $4.68 / Each

2
# 600211 101013-001 CONSOLE MAST SCREW, M5 X 0.8 X 6, PAN HEAD, TYPE 1 CROSS RECESSED, CZ No Model Compatibility List $4.68 / Each

2
# 600212 101014-001 LOWER FRAME COMPONENTS WASHER, M5, EXTERNAL TOOTH, STEEL, CZ No Model Compatibility List $4.68 / Each

2
# 600227 101040-001 SHROUD FRONT TOP DECAL, 65 DIA BUG No Model Compatibility List $3.75 / Each

7,3
# 600228 101041-001 ACCESS PANEL DECAL, MEDIUM OCTANE No Model Compatibility List $7.50 / Each

7,3
# 600254 101200-001 MOVING ARM SCREW, M2.5 X 0.45 X 8 SHCS, ST BZ No Model Compatibility List $2.50 / Each

2
ANCHOR, 8.1 CABLE TIE, 6.2 HOLE 600256 101202-001 #38-ASSEMBLY ANCHOR, 8.1 CABLE TIE, 6.2 HOLE No Model Compatibility List $4.68 / Each

2,4,5,6
WASHER, PIVOT SHAFT, Q35 - 25MM 600260 101243-001 #5-ASSEMBLY KIT WASHER, PIVOT SHAFT, Q35 - 25MM No Model Compatibility List $4.68 / Each

2,8,3
# 600261 101245-001 HOOD SHROUD DECAL, 80 DIA BUG No Model Compatibility List $4.38 / Each

7,3
WASHER, WAVE, 26.2 X 33.9 X 0.4 600263 101277-001 #11-HARDWARE XR6000 BASE WASHER, WAVE, 26.2 X 33.9 X 0.4 No Model Compatibility List $4.68 / Each

2,4,5,6
SCREW, M8 X 1.25 X 20.0L SHCS, BLACK ZINC, 12.9 STL 600268 101295-001 #16-ASSY SCREW, M8 X 1.25 X 20.0L SHCS, BLACK ZINC, 12.9 STL No Model Compatibility List $4.68 / Each

2,4,5,6
SCREW, M8 X 1.25 X 45.0L SHCS, BLACK ZIN, 12.9 STL 600269 101296-001 #7-ASSEMBLY SCREW, M8 X 1.25 X 45.0L SHCS, BLACK ZIN, 12.9 STL No Model Compatibility List $4.68 / Each

2,4,5,6
SCREW, M5 X 0.8 X 16.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER 600270 101297-001 PRO310 SCREW, M5 X 0.8 X 16.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER No Model Compatibility List $4.68 / Each

2,4,5,6
# 600271 101298-001 #8-ASSEMBLY SCREW, M5 X 0.8 X 10.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER No Model Compatibility List $4.68 / Each

2,4,5,6
# 600274 101309-001 ROD END LINK NUT, HEX, 5/16-24, CLEAR ZINC, STL No Model Compatibility List $4.68 / Each

2
# 600287 101354-001 PRO310 SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1 CROSS RECESSED, BZ, SPRING WSHR-FLAT WSHR No Model Compatibility List $4.68 / Each

7,2,12,13,14
# 600295 101416-001 LOWER FRAME COMPONENTS CABLE TIE, SCREW MOUNT, M5 No Model Compatibility List $4.68 / Each

2,4,5,6
600296 101436-001 Q47 PULLEY WELDMENT, CRANK SHAFT Yes Model Compatibility List $47.50 / Each

8,3
# 600298 101443-001 MOVING ARM LABEL, LEVEL No Model Compatibility List $4.68 / Each

3
ASSEMBLY, TENSIONER 600299 101448-001 ASSEMBLY, TENSIONER No Model Compatibility List $30.00 / Each

3
COVER, PLASTIC BOTTOM 600302 101456-001 MAIN FRAME COMPONENTS COVER, PLASTIC BOTTOM No Model Compatibility List $18.75 / Each

9
# 600303 101461-001 LH MOVING ARM LABEL, STRIDE No Model Compatibility List $4.68 / Each

10
# 600307 101561-001 #6-ASSEMBLY BOLT, M10 X 1.5 X 50, HEX HEAD, GR 8.8, CZ No Model Compatibility List $4.68 / Each

2
# 600308 101565-001 RIGHT 3P LINK BUSHING, NUT, SHAFT ACTUATOR, Q47 Yes Model Compatibility List $2.50 / Each

2,8,3,4,5,6
BEARING, BALL, 6005, C2 600323 101646-001 ADJUSTABLE ROCKER BEARING, BALL, 6005, C2 No Model Compatibility List $6.88 / Each

8
WELDMENT, LEFT CRANK ARM 600327 101658-001 WELDMENT, LEFT CRANK ARM No Model Compatibility List $55.00 / Each

8,3
WELDMENT, RIGHT CRANK ARM 600328 101659-001 WELDMENT, RIGHT CRANK ARM No Model Compatibility List $55.00 / Each

8,3
CRANK, OFFSET 600329 101660-001 CRANK, OFFSET No Model Compatibility List $30.00 / Each

8
WELDMENT, LEFT ROCKER 600330 101665-001 WELDMENT, LEFT ROCKER No Model Compatibility List $55.00 / Each

3
WELDMENT, RIGHT ROCKER 600331 101666-001 WELDMENT, RIGHT ROCKER No Model Compatibility List $55.00 / Each

3
ASSEMBLY, ACCESS PANEL 600332 101668-001 ASSEMBLY, ACCESS PANEL Yes Model Compatibility List $75.00 / Each

7,3,4,5,6
600333 101670-001 REPLACED BY: 109748-001 ASSEMBLY, ROD END LINK No Model Compatibility List $110.00 / Each

# 600345 101711-001 RIGHT 3P LINK SWINGARM MOUNTING SLEEVE, ACTUATOR LINK No Model Compatibility List $3.13 / Each

2,3,4,5,6
# 600347 101713-001 RIGHT 3P LINK RETAINING RING, 14MM No Model Compatibility List $4.68 / Each

2
# 600348 101714-001 RIGHT 3P LINK WASHER 14 X 22 X 1.0, STEEL, CZ No Model Compatibility List $4.68 / Each

2
# 600349 101715-001 RIGHT 3P LINK BOLT, M8 X 1.25 X 35 HCS, 8.8 ST, BZ No Model Compatibility List $4.68 / Each

2
SPACER, ARM PIVOT TUBE 600350 101718-001 MOVING ARM SPACER, ARM PIVOT TUBE No Model Compatibility List $2.50 / Each

2,8,3,4,5,6
ASSEMBLY, REAR UPPER SHROUD 600351 101719-001 ASSEMBLY, REAR UPPER SHROUD No Model Compatibility List $35.00 / Each

7,9,3,12,13,14
WASHER, 10 X 30 X 2, STEEL, CZ 600352 101720-001 #10-ASSY WASHER, 10 X 30 X 2, STEEL, CZ No Model Compatibility List $4.68 / Each

2
ASSEMBLY, BRAKE CABLE 600354 101722-001 ASSEMBLY, BRAKE CABLE No Model Compatibility List $8.75 / Each

8,3,4,5,6
SCREW, M8 X 1.25 X 35.0L SHCS, BLACK ZINC, 12.9 STL 600355 101723-001 SCREW, M8 X 1.25 X 35.0L SHCS, BLACK ZINC, 12.9 STL No Model Compatibility List $4.68 / Each

2,4,5,6
# 600365 101772-001 RIGHT 3P LINK B18.3.1M, M5 X 0.8 X 35.0L SHCS, BLACK ZINC, STL No Model Compatibility List $4.68 / Each

4,5,6
SCREW, M8 X 1.25 X 16.0L SHCS, BLACK ZINC, 12.9 STL 600389 101862-001 #11-ASSEMBLY SCREW, M8 X 1.25 X 16.0L SHCS, BLACK ZINC, 12.9 STL No Model Compatibility List $4.68 / Each

2,4,5,6
600390 101863-001 #1-ASSY SHROUD, RIGHT Yes Model Compatibility List $130.00 / Each

7,9,12,13,14
# 600391 101864-001 #1-ASSY SHROUD, LEFT Yes Model Compatibility List $132.50 / Each

7,9,12,13,14
# 600392 101865-001 TOP SHROUD CLASSIC SHROUD, TOP No Model Compatibility List $65.00 / Each

7,9,12,13,14
# 600393 101866-001 TOP SHROUD SHROUD, FRONT No Model Compatibility List $65.00 / Each

7,9,12,13,14
# 600394 101867-001 REAR UPPER SHROUD SHROUD, UPPER REAR Yes Model Compatibility List $23.75 / Each

7,9,12,13,14
SHROUD, LOWER REAR 600395 101868-001 SHROUD, LOWER REAR Yes Model Compatibility List $27.50 / Each

7,9,12,13,14
600396 101870-001 COVER, MAST BOOT Yes Model Compatibility List $27.50 / Each

9,3
600398 101878-001 MOVING ARM CONTACT, SS, BACK W/ ADHESIVE Yes Model Compatibility List $25.00 / Each

4,5,6
600399 101879-001 MOVING ARM CONTACT, SS, FRONT W/ ADHESIVE Yes Model Compatibility List $30.00 / Each

4,5,6
# 600400 101881-001 MOVING ARM SCREW, M3 X 0.5 X 16 BHCS, SS No Model Compatibility List $4.68 / Each

2

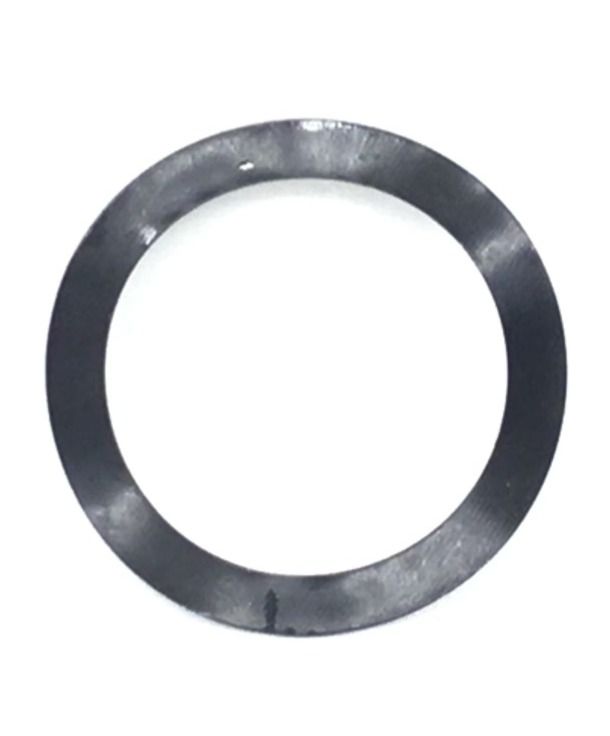

WASHER, WAVE, 16.7 X 22.5 X .3 600410 101920-001 MAIN FRAME COMPONENTS WASHER, WAVE, 16.7 X 22.5 X .3 No Model Compatibility List $4.68 / Each

2,4,5,6
CABLE, OUTPUT, POWER SUPPLY, Q47 600414 101930-001 CABLE, OUTPUT, POWER SUPPLY, Q47 No Model Compatibility List $8.85 / Each

4,5,6
# 600415 101931-001 MULTI-GRIP HR ARM CABLE ASSEMBLY, MOVING HANDLE BAR CONTROLS, Q47, UPPER No Model Compatibility List $13.75 / Each

7,3,4,5,6,11
# 600416 101933-001 CONSOLE MAST CABLE ASSEMBLY, MAST, HR, PRO3700(XL) Yes Model Compatibility List $13.75 / Each

7,3,4,5,6,12,13,14
CABLE ASSEMBLY, BASE, HR, PRO3700(XL) 600417 101934-001 MAIN FRAME COMPONENTS CABLE ASSEMBLY, BASE, HR, PRO3700(XL) No Model Compatibility List $13.75 / Each

7,3,4,5,6,12,13,14
# 600420 101939-001 BRACED PEDAL LEVER PEDAL, SOFT DESIGN, PLASTIC No Model Compatibility List $37.50 / Each

8,9
# 600421 101940-001 BRACED PEDAL LEVER PEDAL INSERT Yes Model Compatibility List $30.00 / Each

8,9
600428 101979-001 COVER, HANDLE BAR, NO DUAL LOCK Yes Model Compatibility List $5.63 / Each

9,11
WHEEL, TRANSPORT, 80MM, RIB 600430 101982-001 MAIN FRAME COMPONENTS WHEEL, TRANSPORT, 80MM, RIB No Model Compatibility List $3.75 / Each

8
# 600431 101986-001 RIGHT 3P LINK CABLE ASSEMBLY, LIMIT SWITCH Yes Model Compatibility List $16.25 / Each

1
ASSEMBLY, TOP SHROUD 600432 101987-001 ASSEMBLY, TOP SHROUD No Model Compatibility List $145.00 / Each

7,9,3,12,13,14
CABLE ASSEMBLY, BASE, Q47 600436 102015-001 CABLE ASSEMBLY, BASE, Q47 No Model Compatibility List $23.75 / Each

3,4,5,6
# 600437 102017-001 CONSOLE MAST CABLE ASSEMBLY, MAST, Q47 No Model Compatibility List $27.50 / Each

3,4,5,6
# 600439 102020-001 MOVING ARM KEYPAD, MOVING HANDLEBAR, Q47 No Model Compatibility List $10.63 / Each

9,12,13,14,11
# 600440 102021-001 MOVING ARM PLATE, KEYPAD BACKER No Model Compatibility List $4.68 / Each

9,3,4,5,6,12,13,14
600441 102022-001 MOVING ARM CAP, MOVING HB BUTTONS, FRONT Yes Model Compatibility List $4.38 / Each

9
600442 102023-001 MOVING ARM CAP, MOVING HB BUTTONS, BACK Yes Model Compatibility List $4.38 / Each

9,4,5,6
# 600443 102024-001 MOVING ARM CLIP, GROUNDING, MOVING HANDLEBAR No Model Compatibility List $4.68 / Each

2,11
# 600444 102025-001 MOVING ARM BUTTON, MOVING HANDLEBAR No Model Compatibility List $3.13 / Each

11
SENSOR, HALLEFFECT, Q47 600445 102026-001 SENSOR, HALLEFFECT, Q47 No Model Compatibility List $16.25 / Each

4,5,6
SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1, CROSS RECESSED, BZ, FLAT WASHER 600492 102304-001 LOWER FRAME COMPONENTS SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1, CROSS RECESSED, BZ, FLAT WASHER No Model Compatibility List $4.68 / Each

2
# 600494 102306-001 PRO310 SCREW, M5 X 0.8 X 18, PAN HEAD, TYPE 1, CROSS RECESSED, BZ, FLAT WASHER No Model Compatibility List $4.68 / Each

2
# 600495 102312-001 RIGHT 3P LINK ASSEMBLY, ACTUATOR SWINGARM Yes Model Compatibility List $35.00 / Each

3,4,5,6
# 600496 102316-001 ADJUSTABLE ROCKER TIE, CABLE, W3.6 X L310 No Model Compatibility List $4.68 / Each

2,4,5,6
# 600497 102317-001 MULTI-GRIP HR ARM DECAL, STRIDE MEASUREMENT No Model Compatibility List $3.13 / Each

7,3,10
ASSEMBLY, RIGHT SHROUD 600498 102318-001 ASSEMBLY, RIGHT SHROUD No Model Compatibility List $132.50 / Each

7,9,3,12,13,14
ASSEMBLY, LEFT SHROUD 600499 102319-001 ASSEMBLY, LEFT SHROUD No Model Compatibility List $132.50 / Each

7,9,3,12,13,14
# 600503 102338-001 Q47 MAST CABLE ASSEMBLY, HR-CONSOLE No Model Compatibility List $5.63 / Each

7,3,4,5,6,12,13,14
STAND-OFF, BOARD, 4.8MM 600525 102533-001 MAIN FRAME COMPONENTS STAND-OFF, BOARD, 4.8MM No Model Compatibility List $4.68 / Each

2
# 600622 103171-001 ADJUSTABLE ROCKER ACTUATOR NUT, 3G, DELRIN No Model Compatibility List $8.13 / Each

2,4,5,6
# 600664 103323-001 MULTI-GRIP HR ARM CABLE ASSEMBLY, HEART RATE GRIPS, PRO370 No Model Compatibility List $8.13 / Each

3,4,5,6,12,13,14,11
# 600669 103393-001 #23-ASSEMBLY NUT, HEX, NYLON INSERT, M8 X 1.25, CZ CLASS 10 No Model Compatibility List $4.68 / Each

2
# 600670 103395-001 #6-ASSY NUT, HEX, NYLON INSERT, M10 X 1.5, CZ CLASS 10 No Model Compatibility List $4.68 / Each

2
# 600678 103435-001 RIGHT 3P LINK ASSEMBLY, ACUTATOR LINK WITH BUSHINGS Yes Model Compatibility List $152.50 / Each

8,3,4,5,6
# 600679 103440-001 RIGHT 3P LINK ACTUATOR MOTOR MOUNTING SLEEVE, 3P No Model Compatibility List $3.13 / Each

2,3,4,5,6,10
# 600680 103441-001 RIGHT 3P LINK O-RING, 8 X 13 X 2.5 No Model Compatibility List $4.68 / Each

2
# 600681 103442-001 RIGHT 3P LINK O-RING, 24 X 29 X 2.5 No Model Compatibility List $4.68 / Each

2
ASSY, STABILITY LINK, CABLE MOUNT 600697 103516-001 ASSY, STABILITY LINK, CABLE MOUNT No Model Compatibility List $32.50 / Each

2,3,4,5,6
# 600722 103656-001 BRACED PEDAL LEVER COVER, LEFT WHEEL No Model Compatibility List $7.50 / Each

8,9
# 600723 103657-001 BRACED PEDAL LEVER COVER, RIGHT WHEEL Yes Model Compatibility List $7.50 / Each

8,9
600743 103717-001 REPLACED BY: 107889-001 BRACED PEDAL LEVER ASSEMBLY, CONVEX WHEEL No Model Compatibility List $77.50 / Each

ASSY, Q47 PEDAL LEVER 600787 103999-001 ASSY, Q47 PEDAL LEVER No Model Compatibility List $420.00 / Each

8,9,3
WLDMT, Q47 ROLLER TRACK, RH 600789 104025-001 WLDMT, Q47 ROLLER TRACK, RH No Model Compatibility List $180.00 / Each

8,15,3,4,5,6
WLDMT, Q47 ROLLER TRACK, LH 600790 104026-001 WLDMT, Q47 ROLLER TRACK, LH No Model Compatibility List $180.00 / Each

8,15,3,4,5,6
SCREW, M12x1.75x15L SHCS, STL, BZ 600793 104040-001 SCREW, M12x1.75x15L SHCS, STL, BZ No Model Compatibility List $4.68 / Each

2
COVER, REAR Q47 TRACK 600794 104045-001 COVER, REAR Q47 TRACK No Model Compatibility List $22.50 / Each

9,15,3,4,5,6
# 600802 104089-001 CONSOLE MAST BOTTLE HOLDER Yes Model Compatibility List $16.25 / Each

9
COVER, CONSOLE ACCESS 600803 104090-001 COVER, CONSOLE ACCESS Yes Model Compatibility List $12.50 / Each

7,9,4,5,6
ASSY, Q47 MAST 600805 104114-001 ASSY, Q47 MAST No Model Compatibility List $397.50 / Each

3
# 600893 104589-001 SHROUD LABEL, WARNING, ENG & DEU & FRC No Model Compatibility List $3.75 / Each

1
CABLE, T-MOTION STRIDE MOTOR, 750N 600897 104644-001 CABLE, T-MOTION STRIDE MOTOR, 750N No Model Compatibility List $22.00 / Each

4,5,6,10
# 600898 104647-001 RIGHT 3P LINK ACTUATOR, T-MOTION MOTOR, 750N, RoHS Yes Model Compatibility List $257.50 / Each

4,5,6,10
ASSY, RIGHT 3P LINK, T-MOTION 600901 104653-001 ASSY, RIGHT 3P LINK, T-MOTION No Model Compatibility List $427.50 / Each

3
600902 104654-001 ASSY, LEFT 3P LINK, T-MOTION No Model Compatibility List $427.50 / Each

3
# 600915 104764-001 292OD BRAKE, INT ASSY, 5 PERM MAGNETS, SS No Model Compatibility List $80.00 / Each

8,3
BRAKE, 292OD, 5 PERM MAGNETS, SS 600917 104766-001 BRAKE, 292OD, 5 PERM MAGNETS, SS No Model Compatibility List $227.50 / Each

8
ASSEMBLY KIT, BASE HARDWARE 600921 104824-001 ASSEMBLY KIT, BASE HARDWARE No Model Compatibility List $16.25 / Each

3
ASSY, MULTI-GRIP HR ARM, Q47, RH 600922 104924-001 ASSY, MULTI-GRIP HR ARM, Q47, RH No Model Compatibility List $190.00 / Each

7,3,12,13,14,11
ASSY, MULTI-GRIP HR ARM, Q47, LH 600923 104925-001 ASSY, MULTI-GRIP HR ARM, Q47, LH No Model Compatibility List $190.00 / Each

7,3,12,13,14,11
600929 104956-001 ASSY, Q47 PULLEY, ROHS Yes Model Compatibility List $120.00 / Each

8,3
# 601081 106358-001 BRACED PEDAL LEVER PEDAL INSERT, REAR No Model Compatibility List $2.50 / Each

8,9
CIRCUIT BOARD ASSEMBLY, SMART DRIVE 601094 106509-001 CIRCUIT BOARD ASSEMBLY, SMART DRIVE No Model Compatibility List $257.50 / Each

7,3,4,5,6,10
BEARING, CRANK 602208 900001-001 #2-ASSEMBLY BEARING, CRANK No Model Compatibility List $12.50 / Each

8
# 602210 900003-001 #19-ASSY RING, RETAINING, 18MM No Model Compatibility List $4.68 / Each

2
# 602211 900004-001 #20-ASSY WASHER, WAVE, 19.3 X 26.0 X .35 No Model Compatibility List $4.68 / Each

2,4,5,6
# 602212 900005-001 #21-ASSY WASHER, 18.5 X 25 X 1, ST No Model Compatibility List $4.68 / Each

2
RING, RETAINING, 25MM 602215 900009-001 #3-ASSEMBLY RING, RETAINING, 25MM No Model Compatibility List $4.68 / Each

2
602219 900015-001 LOWER FRAME COMPONENTS LEVELER, 50MM DIAMETER Yes Model Compatibility List $14.99 / Each

1,13
# 602222 900031-002 LOWER FRAME COMPONENTS NUT, HEX BLIND INSERT, M5 X 0.8 No Model Compatibility List $4.68 / Each

2
# 602229 950006-010 MAIN PULLEY B18.3.1M, M6 X 1.0 X 25.0L SHCS, BLACK ZINC, STL No Model Compatibility List $4.68 / Each

4,5,6
B18.2.4.1M, HEX NUT, STYLE 1, M8 X 1.25, BLACK ZINC, STL 602241 950038-008 #24-ASSY B18.2.4.1M, HEX NUT, STYLE 1, M8 X 1.25, BLACK ZINC, STL No Model Compatibility List $4.68 / Each

2,4,5,6
B18.2.4.1M, HEX NUT, STYLE 1, M10 X 1.5, BLACK ZINC, STL 602242 950038-009 LOWER FRAME COMPONENTS B18.2.4.1M, HEX NUT, STYLE 1, M10 X 1.5, BLACK ZINC, STL No Model Compatibility List $4.68 / Each

2,4,5,6
B18.22M, WASHER, PLAIN, STL, M8 602244 950042-008 MULTI-AXIS LINK B18.22M, WASHER, PLAIN, STL, M8 No Model Compatibility List $4.68 / Each

2
# 602247 950046-006 LATX TOUCH LOWER FRAME NUT, HEX, NYLON INSERT, STL, M5 No Model Compatibility List $4.68 / Each

2
# 602248 950046-007 LOWER FRAME COMPONENTS NUT, HEX, NYLON INSERT, STL, M6 No Model Compatibility List $4.68 / Each

2
602249 950046-008 REPLACED BY: 103393-001 ADJUSTABLE ROCKER NUT, HEX, NYLON INSERT, STL, M8 No Model Compatibility List $4.68 / Each

602250 950046-009 REPLACED BY: 103395-001 MULTI-AXIS LINK NUT, HEX, NYLON INSERT, STL, M10 No Model Compatibility List $4.68 / Each

B18.21.2M, WASHER, LOCK, STL, M8 602254 950052-008 #17-ASSY B18.21.2M, WASHER, LOCK, STL, M8 No Model Compatibility List $4.68 / Each

2
B18.21.2M, WASHER, LOCK, STL, M10 602255 950052-009 #3-ASSEMBLY KIT B18.21.2M, WASHER, LOCK, STL, M10 No Model Compatibility List $4.68 / Each

2
B18.21.2M, WASHER, LOCK, STL, M12 602256 950052-010 MAIN FRAME COMPONENTS B18.21.2M, WASHER, LOCK, STL, M12 No Model Compatibility List $4.68 / Each

2
Internal Brake Pair 1006737 104763-001 Internal Brake Pair No Model Compatibility List $15.99 / Each

5
Resistance Gear Motor Brake 1000410 100840-001 Resistance Gear Motor Brake Yes Model Compatibility List $78.99 / Each

8,10
Blue Resistance Gear Motor Brake Tensioner 1000686 100840-001 Blue Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $109.99 / Each

8,10
Adjustment Foot Leveler 1001077 900015-001 Adjustment Foot Leveler Yes Model Compatibility List $17.99 / Each

1,13
Magnetic Resistance Eddy Brake 1001078 100840-001 Magnetic Resistance Eddy Brake Yes Model Compatibility List $98.99 / Each

8,10
Main Drive Belt (New) 7D-B244-WB0Y 100405-001 Main Drive Belt (New) Yes Model Compatibility List $65.99 / Each
15
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
