Octane Fitness - xR5000 Standard Base (Discontinued) & xR5000 Console 900MHz

Repair Parts for Octane Fitness xR5000 Standard Base (Discontinued) & xR5000 Console 900MHz

Brand: Octane Fitness

Category: Commercial Ellipticals

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: xR5000 Standard Base (Discontinued) & xR5000 Console 900MHz

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
600150	100862-001	#4-Q37 CNSL-CE DEU DEU CAT-E ROHS	CONSOLE, BACK ARC	No	Model Compatibility List	$4.20 / Each	7,9
600151	100866-001	FIXED CALIPER	SCREW, M4.2 X 1.4 X 8 TYPE B, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ	No	Model Compatibility List	$4.68 / Each	2
600270	101297-001	PRO310	SCREW, M5 X 0.8 X 16.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER	No	Model Compatibility List	$4.68 / Each	2,4,5,6
600459	102134-001	#35-ASSY	SCREW, M5 X 0.8 X 18, PAN HEAD, TYPE 1 CROSS RECESSED, SS	No	Model Compatibility List	$4.68 / Each	2
600567	102875-001	CONSOLE MAST	SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1 CROSS RECESSED, SS, SPRING WSHR-FLAT WSHR	No	Model Compatibility List	$4.68 / Each	7,2,12,13,14
600920	104782-001	MYE BOARD AND INTERFACE BOARD	BOARD ASSEMBLY, MYE INTERFACE	No	Model Compatibility List	$102.90 / Each	7
600955	105119-001	NA	SHROUD, AUDIO JACK, BACK	No	Model Compatibility List	$3.15 / Each	7
600956	105128-001	NA	ASSEMBLY, AUDIO JACK, xR6000	No	Model Compatibility List	$15.75 / Each	7
600957	105129-001	NA	SCREW M4.6 X 1.6 X 20 TYPE B, TYPE 1 CRO	No	Model Compatibility List	$2.00 / Each	7,2
600971	105170-001	NA	BRACKET, AUDIO JACK MOUNT	No	Model Compatibility List	$13.65 / Each	7
600972	105171-001	NA	GROMMET, xR6000 ENTERTAINMENT	No	Model Compatibility List	$8.40 / Each	7
600974	105191-001	NA	CABLE ASSEMBLY, AUDIO INTERFACE, 650MM.	No	Model Compatibility List	$8.93 / Each	4,5,6
600983	105486-001	MYE BOARD AND INTERFACE BOARD	SPACER, BOARD TO BOARD, 900 MHz	No	Model Compatibility List	$2.00 / Each	7
600984	105489-001	XR5000 KEYPAD	ASSEMBLY, MYE BOARD AND INTERFACE BOARD	No	Model Compatibility List	$699.30 / Each	7
600985	105490-001	MYE BOARD AND INTERFACE BOARD	SCREW, M3 X 0.5 X 4, PAN HEAD, TYPE 1, C	No	Model Compatibility List	$2.00 / Each	7,2
600986	105511-001	MYE BOARD AND INTERFACE BOARD	CABLE, FLAT FLEX, 900 MHz	No	Model Compatibility List	$5.25 / Each	4,5,6
600987	105512-001	MYE BOARD AND INTERFACE BOARD	CABLE ASSEMBLY, POWER, 900 MHz	No	Model Compatibility List	$9.98 / Each	4,5,6

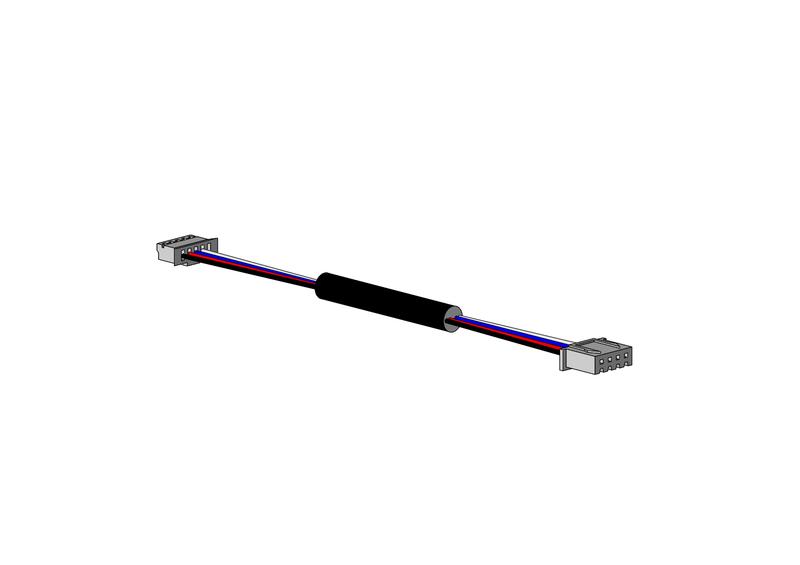

600988	105513-001	MYE BOARD AND INTERFACE BOARD	CABLE ASSEMBLY, DATA INTERCEPT, 900 MHz	No	Model Compatibility List	$8.93 / Each	4,5,6

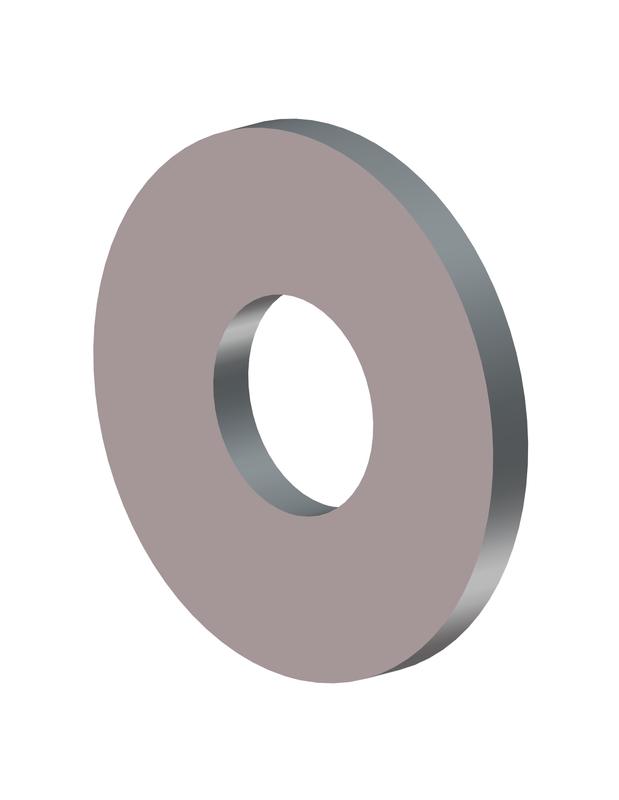

600989	105544-001	MYE BOARD AND INTERFACE BOARD	WASHER, 3.2 X 8 X 0.7, NYLON	No	Model Compatibility List	$2.00 / Each	7,2
600990	105561-001	NA	CABLE ASSEMBLY, POWER AND COMM, 900 MHz, 400 MM	No	Model Compatibility List	$8.40 / Each	4,5,6
601020	105858-001	KEYPAD	LABEL, MODEL, xR5000	No	Model Compatibility List	$6.83 / Each	7
601056	106128-001	XR5000 KEYPAD	KEYPAD, xR5000 900 MHz	No	Model Compatibility List	$37.80 / Each	7
601077	106293-001	NA	ASSEMBLY, xR5000 KEYPAD, 900 MHz	No	Model Compatibility List	$766.50 / Each	7
601203	107052-001	CONSOLE MAST	CABLE ASSEMBLY, KEYPAD-CONSOLE	No	Model Compatibility List	$37.50 / Each	7,9,3,4,5,6,12,13,14
601236	107421-001	NA	ASSEMBLY, xR5000 CONSOLE, ENTERTAINMENT	No	Model Compatibility List	$766.50 / Each	7
601372	108249-001	AUDIO JACK	MOUNTING NUT, AUDIO BOARD	No	Model Compatibility List	$2.10 / Each	7
