Octane Fitness - xR650 Base (Light Commercial)

Repair Parts for Octane Fitness xR650 Base (Light Commercial)

Brand: Octane Fitness

Category: Commercial Ellipticals

Type: Elliptical

Model Name: xR650 Base (Light Commercial)

Color: Grey

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
# 600029 100375-001 STABILITY LINK BEARING, FLANGED, 18 X 22 X 9.5 No Model Compatibility List $3.13 / Each

8
COVER, CONSOLE BACK 600045 100414-001 CONSOLE MAST COVER, CONSOLE BACK No Model Compatibility List $11.88 / Each

7,9,4,5,6
# 600049 100429-001 LOWER FRAME COMPONENTS SCREW, M4.8 X 1.6 X 13 TYPE AB, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ No Model Compatibility List $4.68 / Each

2
SPACER, FLANGE TENSIONER 600054 100457-001 #22-ASSY SPACER, FLANGE TENSIONER No Model Compatibility List $4.68 / Each

2,3,4,5,6
# 600057 100464-001 FAN MAGNET, RPM PULLEY No Model Compatibility List $4.68 / Each

8
# 600073 100596-001 BELT TENSIONER BEARING, 6204 BALL, 47 X 20 X 14 No Model Compatibility List $12.58 / Each

8
# 600083 100712-001 BELT TENSIONER RING, EXT RETAINING, 19MM No Model Compatibility List $4.68 / Each

2
# 600084 100713-001 BELT TENSIONER RING, EXT RETAINING, 16MM No Model Compatibility List $4.68 / Each

2
WASHER, 10 X 23 X 2, STEEL, CZ 600087 100717-001 MULTI-AXIS BEARING LINK WASHER, 10 X 23 X 2, STEEL, CZ No Model Compatibility List $4.68 / Each

2
SCREW, M8x1.25x16 SHCS, STL, BZ 600108 100754-001 #26-ASSEMBLY SCREW, M8x1.25x16 SHCS, STL, BZ No Model Compatibility List $4.68 / Each

2
# 600109 100760-001 CONSOLE MAST TERMINAL, EYELET TO QUICK DISCONNECT No Model Compatibility List $4.68 / Each

4,5,6
SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1 CROSS RECESSED, STAINLESS STEEL 600119 100780-001 CONSOLE MAST SCREW, M5 X 0.8 X 12, PAN HEAD, TYPE 1 CROSS RECESSED, STAINLESS STEEL No Model Compatibility List $4.68 / Each

2
# 600130 100828-001 REAR TRACK COVER DUAL LOCK, 20.6MM DIA - 250 No Model Compatibility List $3.75 / Each

1
BRAKE, GENERATOR, 6302 600131 100830-001 LOWER FRAME COMPONENTS BRAKE, GENERATOR, 6302 Yes Model Compatibility List $999.00 / Each

8
SCREW, M5 X 0.8 X 8, TRUSS HEAD, TYPE II CROSS RECESSED, BZ 600155 100873-001 MAIN FRAME COMPONENTS SCREW, M5 X 0.8 X 8, TRUSS HEAD, TYPE II CROSS RECESSED, BZ No Model Compatibility List $4.68 / Each

2
# 600158 100882-001 CONSOLE MAST DECAL, LARGE OCTANE No Model Compatibility List $5.00 / Each

7,3
# 600161 100890-001 CONSOLE MAST CABLE ASSEMBLY, FEMALE SPADE - 5MM EYELET No Model Compatibility List $4.68 / Each

3,4,5,6,12,13,14
# 600171 100913-001 FAN SCREW, M3.5 X 1.3 X 10 TYPE B, TYPE 1 CROSS RECESS PAN HEAD, ST, BZ No Model Compatibility List $4.68 / Each

2
# 600211 101013-001 CONSOLE MAST SCREW, M5 X 0.8 X 6, PAN HEAD, TYPE 1 CROSS RECESSED, CZ No Model Compatibility List $4.68 / Each

2
# 600212 101014-001 LOWER FRAME COMPONENTS WASHER, M5, EXTERNAL TOOTH, STEEL, CZ No Model Compatibility List $4.68 / Each

2
WASHER, M8, 8.3 X 16.0 X 1.6, ST, BZ 600217 101029-001 ADJUSTABLE ROCKER WASHER, M8, 8.3 X 16.0 X 1.6, ST, BZ No Model Compatibility List $4.68 / Each

2
# 600226 101039-001 CONSOLE MAST DECAL, SMALL OCTANE No Model Compatibility List $3.75 / Each

7,3
# 600227 101040-001 SHROUD FRONT TOP DECAL, 65 DIA BUG No Model Compatibility List $3.75 / Each

7,3
# 600228 101041-001 ACCESS PANEL DECAL, MEDIUM OCTANE No Model Compatibility List $7.50 / Each

7,3
WASHER, WAVE, 26.2 X 33.9 X 0.4 600263 101277-001 #11-HARDWARE XR6000 BASE WASHER, WAVE, 26.2 X 33.9 X 0.4 No Model Compatibility List $4.68 / Each

2,4,5,6
# 600268 101295-001 #16-ASSY SCREW, M8 X 1.25 X 20.0L SHCS, BLACK ZINC, 12.9 STL No Model Compatibility List $4.68 / Each

2,4,5,6
SCREW, M5 X 0.8 X 16.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER 600270 101297-001 PRO310 SCREW, M5 X 0.8 X 16.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER No Model Compatibility List $4.68 / Each

2,4,5,6
# 600271 101298-001 #8-ASSEMBLY SCREW, M5 X 0.8 X 10.0L SHCS, BLACK ZINC, 12.9 STL, SPRING WASHER No Model Compatibility List $4.68 / Each

2,4,5,6
DUAL LOCK, 25 X 20 - 400 600272 101300-001 #12-ASSEMBLY DUAL LOCK, 25 X 20 - 400 No Model Compatibility List $4.68 / Each

1
CABLE TIE, SCREW MOUNT, M5 600295 101416-001 LOWER FRAME COMPONENTS CABLE TIE, SCREW MOUNT, M5 No Model Compatibility List $4.68 / Each

2,4,5,6
WLDMT, LARGE CRANK ARM 600304 101516-001 WLDMT, LARGE CRANK ARM No Model Compatibility List $50.00 / Each

8,3
# 600311 101576-001 #2-ASSEMBLY RIVNUT, BRASS, M8 X 1.25 No Model Compatibility List $4.68 / Each

2
600312 101577-001 REPLACED BY: 102996-001 #6-HARDWARE XR6000 BASE SCREW, M8 X 1.25 X 20, SBHCS, STAINLESS STEEL No Model Compatibility List $4.68 / Each

# 600315 101592-001 CONSOLE MAST COUPLER ASSEMBLY, 8 POSITION, IN-LINE No Model Compatibility List $10.00 / Each

3
# 600316 101593-001 BATTERY WITH PIN BATTERY, SEALED LEAD RECHARGABLE, 6V, CYCLON 0819-0012 No Model Compatibility List $137.50 / Each

4,5,6
# 600323 101646-001 ADJUSTABLE ROCKER BEARING, BALL, 6005, C2 No Model Compatibility List $6.88 / Each

8
# 600326 101655-001 LATX TOUCH LOWER FRAME CONNECTOR, COAXIAL CABLE FEED THRU, IN-L No Model Compatibility List $2.50 / Each

7,4,5,6,12,13,14
# 600366 101774-001 LATX TOUCH LOWER FRAME NUT, THIN JAM, COAXIAL CONNECTOR No Model Compatibility List $22.50 / Each

2
ASSEMBLY, BATTERY WITH PIN 600383 101823-001 MAIN FRAME COMPONENTS ASSEMBLY, BATTERY WITH PIN No Model Compatibility List $142.50 / Each

3,12,13,14
WASHER, WAVE, 16.7 X 22.5 X .3 600410 101920-001 MAIN FRAME COMPONENTS WASHER, WAVE, 16.7 X 22.5 X .3 No Model Compatibility List $4.68 / Each

2,4,5,6
# 600456 102100-001 SEAT AXLE, SEAT PIVOT No Model Compatibility List $16.25 / Each

8,12,13,14
SCREW, M5 X 0.8 X 18, PAN HEAD, TYPE 1 CROSS RECESSED, SS 600459 102134-001 #35-ASSY SCREW, M5 X 0.8 X 18, PAN HEAD, TYPE 1 CROSS RECESSED, SS No Model Compatibility List $4.68 / Each

2
RACK, SEAT SLIDE 600463 102155-001 RACK, SEAT SLIDE No Model Compatibility List $25.00 / Each

4,5,6,12,13,14
CAP. LOWER PEDAL LEVER HUB 600465 102181-001 #7-ASSEMBLY KIT CAP. LOWER PEDAL LEVER HUB No Model Compatibility List $4.68 / Each

8,9,3
PLATE, CRANK COVER 600467 102203-001 PLATE, CRANK COVER No Model Compatibility List $8.75 / Each

8,9,3
# 600469 102215-001 SEAT GAS SPRING No Model Compatibility List $42.50 / Each

2
ROLLER, TRANSPORT 600470 102219-001 LOWER FRAME COMPONENTS ROLLER, TRANSPORT No Model Compatibility List $6.88 / Each

8
COVER, CRANK 600474 102236-001 PAN DECAL LEFT COVER, CRANK No Model Compatibility List $20.00 / Each

8,9
# 600477 102253-001 LEFT ARM LINK COVER COVER, ARM LINK, LEFT No Model Compatibility List $22.50 / Each

9,3
# 600478 102256-001 SHROUD FRONT TOP SHROUD, FRONT, TOP No Model Compatibility List $27.50 / Each

7,9,12,13,14
COVER, MAST BOOT 600479 102258-001 COVER, MAST BOOT No Model Compatibility List $7.50 / Each

9,3
# 600480 102261-001 SHROUD SHROUD, MID-SECTION No Model Compatibility List $23.75 / Each

7,9,12,13,14
TREAD, PLATFORM 600481 102262-001 TREAD, PLATFORM No Model Compatibility List $52.50 / Each

1
SHROUD, REAR, LEFT 600482 102263-001 SHROUD, REAR, LEFT No Model Compatibility List $50.00 / Each

7,9,12,13,14
SHROUD, REAR, RIGHT 600483 102264-001 SHROUD, REAR, RIGHT No Model Compatibility List $40.00 / Each

7,9,12,13,14
CAP, ARM PIVOT 600484 102266-001 CAP, ARM PIVOT No Model Compatibility List $7.50 / Each

8,9,3
# 600485 102267-001 CAP CAP, SHROUD, REAR No Model Compatibility List $6.25 / Each

7,9,12,13,14
# 600486 102269-001 END CAP CAP, REAR STABILIZER No Model Compatibility List $6.25 / Each

9
ASSEMBLY, ARM LINK, RH 600489 102281-001 ASSEMBLY, ARM LINK, RH No Model Compatibility List $60.00 / Each

3
ASSEMBLY, ARM LINK, LH 600490 102285-001 ASSEMBLY, ARM LINK, LH No Model Compatibility List $60.00 / Each

3
# 600491 102292-001 LEFT ARM LINK COVER BRACKET, SHROUD No Model Compatibility List $4.68 / Each

7,2,9,3,4,5,6,12,13,14
SCREW, M5 X 0.8 X 12, FLAT HEAD, TYPE 1 CROSS RECESSED, BZ 600501 102331-001 SCREW, M5 X 0.8 X 12, FLAT HEAD, TYPE 1 CROSS RECESSED, BZ No Model Compatibility List $4.68 / Each

2
SCREW, M8 X 1.25 X 12 HCS, 8.8 STL, CZ 600505 102351-001 LOWER FRAME COMPONENTS SCREW, M8 X 1.25 X 12 HCS, 8.8 STL, CZ No Model Compatibility List $4.68 / Each

2
COVER, AXLE MAST 600508 102413-001 COVER, AXLE MAST No Model Compatibility List $5.63 / Each

8,9
PANEL, LEFT ARM LINK 600509 102431-001 PANEL, LEFT ARM LINK No Model Compatibility List $27.50 / Each

7,3
PANEL, RIGHT ARM LINK 600510 102432-001 PANEL, RIGHT ARM LINK No Model Compatibility List $27.50 / Each

7,3
# 600512 102451-001 SEAT SLIDE COVER DECAL, SEAT HEIGHT No Model Compatibility List $6.25 / Each

7,3,12,13,14
600518 102505-001 CONSOLE MAST CABLE ASSEMBLY, CSAFE Yes Model Compatibility List $11.25 / Each

3,4,5,6
ASSEMBLY, ROCKER RIGHT 600521 102514-001 ASSEMBLY, ROCKER RIGHT No Model Compatibility List $92.50 / Each

3
ASSEMBLY, ROCKER LEFT 600522 102515-001 ASSEMBLY, ROCKER LEFT No Model Compatibility List $92.50 / Each

3
# 600523 102526-001 ROCKER RIGHT WASHER, M8 X 30 X 2 No Model Compatibility List $4.68 / Each

2
# 600524 102527-001 ROCKER RIGHT SPACER, ARM PIVOT BEARING No Model Compatibility List $3.75 / Each

2,8,3,4,5,6
STAND-OFF, BOARD, 4.8MM 600525 102533-001 MAIN FRAME COMPONENTS STAND-OFF, BOARD, 4.8MM No Model Compatibility List $4.68 / Each

2
# 600540 102713-001 FOOT REST GRIP, FOOT REST No Model Compatibility List $8.75 / Each

9,3,11
# 600558 102780-001 BATTERY WITH PIN PIN, BATTERY LOCATOR No Model Compatibility List $4.68 / Each

12,13,14
ASSEMBLY, SHROUD FRONT TOP 600562 102814-001 ASSEMBLY, SHROUD FRONT TOP No Model Compatibility List $40.00 / Each

7,9,3,12,13,14
STAND-OFF, CABLE, 14 DIA 600568 102892-001 LOWER FRAME COMPONENTS STAND-OFF, CABLE, 14 DIA No Model Compatibility List $4.68 / Each

2,4,5,6
ASSEMBLY, END CAP 600580 102979-001 #11-ASSEMBLY ASSEMBLY, END CAP No Model Compatibility List $18.75 / Each

9,3
ASSEMBLY, SEAT SLIDE COVER 600583 102995-001 ASSEMBLY, SEAT SLIDE COVER No Model Compatibility List $40.00 / Each

9,3,12,13,14
ASSEMBLY, LEFT ARM LINK COVER 600606 103049-001 ASSEMBLY, LEFT ARM LINK COVER No Model Compatibility List $27.50 / Each

9,3
CLAMP, CABLE 600610 103068-001 CLAMP, CABLE No Model Compatibility List $4.68 / Each

4,5,6
# 600611 103069-001 LATERAL LABEL, FOOT No Model Compatibility List $4.68 / Each

9,3
ASSEMBLY, SHROUD, MID-SECTION 600612 103071-001 ASSEMBLY, SHROUD, MID-SECTION No Model Compatibility List $32.50 / Each

7,9,3,12,13,14
# 600614 103079-001 CAP LABEL, XRIDE No Model Compatibility List $3.13 / Each

1
ASSEMBLY, CAP, REAR SHROUD 600615 103081-001 ASSEMBLY, CAP, REAR SHROUD No Model Compatibility List $10.00 / Each

7,9,3,12,13,14
# 600621 103140-001 SEAT SCREW, M8 X 1.25 X 35L SHCS, STAINLESS No Model Compatibility List $2.50 / Each

2
COVER, BRAKE PCB 600626 103193-001 COVER, BRAKE PCB No Model Compatibility List $16.25 / Each

8,9
# 600628 103210-001 #7-ASSEMBLY SCREW, M8 X 1.25 X 20.0L SHCS, STAINLESS STEEL No Model Compatibility List $2.50 / Each

2
# 600630 103212-001 SEAT WASHER, M8, 8.3 X 16.0 X 1.6, STAINLESS STEEL No Model Compatibility List $4.68 / Each

2
# 600631 103213-001 #6-ASSEMBLY WASHER, 8.5 X 30 X 2, STAINLESS STEEL No Model Compatibility List $4.68 / Each

2
# 600632 103214-001 SEAT NUT, HEX, NYLON INSERT, M8 X 1.25, CZ No Model Compatibility List $4.68 / Each

2
ASSEMBLY, FOOT REST 600633 103219-001 ASSEMBLY, FOOT REST No Model Compatibility List $52.50 / Each

9,3
# 600634 103220-001 FOOT REST WELDMENT, FOOT REST No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
SCREW, M8 X 1.25 X 52 HHCS, 8.8 ST, CZ 600638 103256-001 SCREW, M8 X 1.25 X 52 HHCS, 8.8 ST, CZ No Model Compatibility List $4.68 / Each

2
CABLE, CO-AXIAL, BASE 600645 103281-001 #8-ASSEMBLY CABLE, CO-AXIAL, BASE No Model Compatibility List $16.25 / Each

3,4,5,6

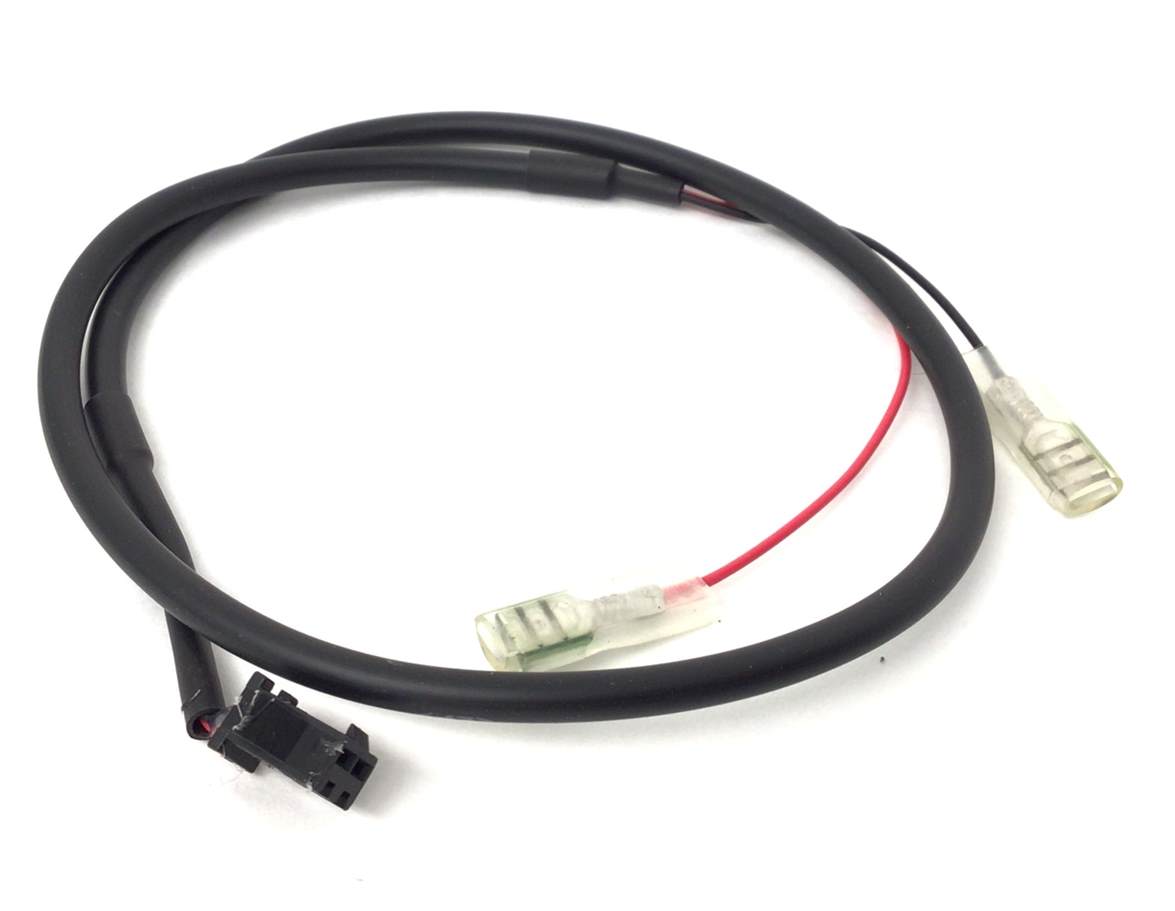

CABLE ASSEMBLY, BATTERY TO MAST 600646 103282-001 CABLE ASSEMBLY, BATTERY TO MAST No Model Compatibility List $13.75 / Each

3,4,5,6
ASSEMBLY, RIGHT ARM LINK COVER 600648 103294-001 ASSEMBLY, RIGHT ARM LINK COVER No Model Compatibility List $30.00 / Each

9,3
CABLE, HR BASE BOX 600653 103306-001 CABLE, HR BASE BOX No Model Compatibility List $30.00 / Each

7,3,4,5,6,12,13,14
# 600655 103308-001 MAST CABLE, HR EXTENSION No Model Compatibility List $6.88 / Each

7,4,5,6,12,13,14
# 600656 103310-001 SHROUD ACCESS PANEL - FLARE SHROUD, ACCESS PANEL-FLARE No Model Compatibility List $27.50 / Each

7,9,4,5,6,12,13,14
# 600657 103312-001 RIGHT FRONT SHROUD - FLARE SHROUD, FRONT, RIGHT - FLARE No Model Compatibility List $47.50 / Each

7,9,12,13,14
ASSEMBLY, RIGHT FRONT SHROUD - FLARE 600658 103314-001 ASSEMBLY, RIGHT FRONT SHROUD - FLARE No Model Compatibility List $35.00 / Each

7,9,3,12,13,14
ASSEMBLY, LEFT FRONT SHROUD - FLARE 600659 103315-001 ASSEMBLY, LEFT FRONT SHROUD - FLARE No Model Compatibility List $35.00 / Each

7,9,3,12,13,14
ASSEMBLY, SHROUD ACCESS PANEL - FLARE 600660 103317-001 ASSEMBLY, SHROUD ACCESS PANEL - FLARE No Model Compatibility List $27.50 / Each

7,9,3,4,5,6,12,13,14
# 600662 103319-001 MAST CABLE ASSEMBLY, MAST, xR6000 No Model Compatibility List $15.00 / Each

3,4,5,6
CIRCUIT BOARD ASSEMBLY, BRAKE CONTROL BOARD, SAFETY CERT, RoHS 600665 103331-001 MAIN FRAME COMPONENTS CIRCUIT BOARD ASSEMBLY, BRAKE CONTROL BOARD, SAFETY CERT, RoHS No Model Compatibility List $315.00 / Each

7,8,9,3,4,5,6
# 600668 103372-001 #2-ASSEMBLY PULLEY, DRIVE, RoHS No Model Compatibility List $57.50 / Each

8,10
NUT, HEX, NYLON INSERT, M8 X 1.25, CZ CLASS 10 600669 103393-001 #23-ASSEMBLY NUT, HEX, NYLON INSERT, M8 X 1.25, CZ CLASS 10 No Model Compatibility List $4.68 / Each

2
INSULATOR, BRAKE BASE 600675 103428-001 LOWER FRAME COMPONENTS INSULATOR, BRAKE BASE No Model Compatibility List $3.75 / Each

8,3
TIE, CABLE, PUSH MOUNT, W4.8 X L170 600676 103432-001 #14-ASSEMBLY TIE, CABLE, PUSH MOUNT, W4.8 X L170 No Model Compatibility List $4.68 / Each

2,4,5,6
BELT, DRIVE, 8 RIB, 490J 600677 103433-001 BELT, DRIVE, 8 RIB, 490J No Model Compatibility List $32.50 / Each

15,10
ASSEMBLY, TENSIONER, INSULATED 600698 103531-001 MAIN FRAME COMPONENTS ASSEMBLY, TENSIONER, INSULATED No Model Compatibility List $52.50 / Each

3
INSULATOR, J-HOOK BOLT 600699 103533-001 #16-ASSEMBLY INSULATOR, J-HOOK BOLT No Model Compatibility List $3.75 / Each

2,3
INSULATOR, BRAKE BOLT 600700 103534-001 LOWER FRAME COMPONENTS INSULATOR, BRAKE BOLT No Model Compatibility List $4.68 / Each

2,8,3
SCREW, M6 X 1.0 X 25.0L SHCS, BLACK ZINC, 12.9 STL 600710 103596-001 MOVING ARM SCREW, M6 X 1.0 X 25.0L SHCS, BLACK ZINC, 12.9 STL No Model Compatibility List $4.68 / Each

2,4,5,6
WASHER, M8, 8.3 X 20 X 2, STAINLESS STEEL 600844 104302-001 WASHER, M8, 8.3 X 20 X 2, STAINLESS STEEL No Model Compatibility List $4.68 / Each

2
# 600851 104350-001 MOVING ARM GRIP, MOVING ARM No Model Compatibility List $8.75 / Each

3,11
# 600893 104589-001 SHROUD LABEL, WARNING, ENG & DEU & FRC No Model Compatibility List $3.75 / Each

1
SPACER, CRANK 600911 104738-001 SPACER, CRANK No Model Compatibility List $2.50 / Each

2,8,3,4,5,6
WASHER, THICK 28 X 8 X 4mm 600913 104757-001 WASHER, THICK 28 X 8 X 4mm No Model Compatibility List $4.68 / Each

2
WLDMT, SMALL CRANK ARM 600914 104762-001 WLDMT, SMALL CRANK ARM No Model Compatibility List $37.50 / Each

8,3
ASSEMBLY, MOVING HANDLE, RH 600952 105114-001 ASSEMBLY, MOVING HANDLE, RH No Model Compatibility List $102.50 / Each

3,11
ASSEMBLY, MOVING HANDLE, LH 600953 105115-001 ASSEMBLY, MOVING HANDLE, LH No Model Compatibility List $102.50 / Each

3,11
CABLE ASSY, BRAKE GEN PWR, FERRITE 600959 105140-001 MAIN FRAME COMPONENTS CABLE ASSY, BRAKE GEN PWR, FERRITE No Model Compatibility List $25.00 / Each

8,3,4,5,6
CABLE ASSY, BRAKE GEN INDUCT, FERRITE 600960 105141-001 MAIN FRAME COMPONENTS CABLE ASSY, BRAKE GEN INDUCT, FERRITE No Model Compatibility List $22.50 / Each

8,3,4,5,6
CABLE ASSY, BASE, xR6000, FERRITE 600973 105182-001 CABLE ASSY, BASE, xR6000, FERRITE No Model Compatibility List $42.50 / Each

3,4,5,6
# 600977 105276-001 ADJUSTABLE SEAT ASSEMBLY, SEAT, xR650 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
# 600996 105611-001 SEAT DAMPER, SEAT SLIDE No Model Compatibility List $100.00 / Each

4,5,6,12,13,14
ASSEMBLY, MAST, xR650 600997 105680-001 ASSEMBLY, MAST, xR650 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
ASSEMBLY, UPPER PEDAL LINK, RIGHT 601003 105710-001 ASSEMBLY, UPPER PEDAL LINK, RIGHT No Model Compatibility List $82.50 / Each

8,9,3
ASSEMBLY, UPPER LINK, LEFT 601004 105712-001 ASSEMBLY, UPPER LINK, LEFT No Model Compatibility List $82.50 / Each

3
CAP, UPPER LINK 601005 105716-001 #7-ASSEMBLY KIT CAP, UPPER LINK No Model Compatibility List $13.75 / Each

9,3
SCREW, M8 X 1.25 X 30.0L SHCS, STAINLESS STEEL 601006 105717-001 #12-HARDWARE XR6000 BASE SCREW, M8 X 1.25 X 30.0L SHCS, STAINLESS STEEL No Model Compatibility List $3.13 / Each

2
# 601073 106270-001 XRIDE PEDAL, SOFT TREAD, SLOTTED No Model Compatibility List $40.00 / Each

8,9
# 601076 106277-001 #3-ASSEMBLY PEDAL, SOFT TREAD No Model Compatibility List $57.50 / Each

8,9
ASSEMBLY, LEVER, PEDAL, LEFT 601084 106425-001 ASSEMBLY, LEVER, PEDAL, LEFT No Model Compatibility List $212.50 / Each

8,9,3
ASSEMBLY, LEVER, PEDAL, RIGHT 601085 106426-001 ASSEMBLY, LEVER, PEDAL, RIGHT No Model Compatibility List $212.50 / Each

8,9,3
ASSEMBLY, ADJUSTABLE SEAT, XR650 601088 106451-001 ASSEMBLY, ADJUSTABLE SEAT, XR650 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
# 601089 106452-001 ADJUSTABLE SEAT ASSEMBLY, SEAT CARRIAGE, XR650 No Model Compatibility List $245.00 / Each

2,3,12,13,14
SCREW, M8 X 1.25 X 55 HHCS, 12.9 STL, CZ 601191 107005-001 #6-HARDWARE KIT SCREW, M8 X 1.25 X 55 HHCS, 12.9 STL, CZ No Model Compatibility List $3.13 / Each

2
ASSEMBLY, DRIVE PULLEY 601312 107877-001 ASSEMBLY, DRIVE PULLEY No Model Compatibility List $115.00 / Each

8,3,10
# 602210 900003-001 #19-ASSY RING, RETAINING, 18MM No Model Compatibility List $4.68 / Each

2
# 602211 900004-001 #20-ASSY WASHER, WAVE, 19.3 X 26.0 X .35 No Model Compatibility List $4.68 / Each

2,4,5,6
# 602212 900005-001 #21-ASSY WASHER, 18.5 X 25 X 1, ST No Model Compatibility List $4.68 / Each

2
# 602215 900009-001 #3-ASSEMBLY RING, RETAINING, 25MM No Model Compatibility List $4.68 / Each

2
602219 900015-001 LOWER FRAME COMPONENTS LEVELER, 50MM DIAMETER Yes Model Compatibility List $14.99 / Each

1,13
# 602222 900031-002 LOWER FRAME COMPONENTS NUT, HEX BLIND INSERT, M5 X 0.8 No Model Compatibility List $4.68 / Each

2
# 602229 950006-010 MAIN PULLEY B18.3.1M, M6 X 1.0 X 25.0L SHCS, BLACK ZINC, STL No Model Compatibility List $4.68 / Each

4,5,6
B18.2.4.1M, HEX NUT, STYLE 1, M10 X 1.5, BLACK ZINC, STL 602242 950038-009 LOWER FRAME COMPONENTS B18.2.4.1M, HEX NUT, STYLE 1, M10 X 1.5, BLACK ZINC, STL No Model Compatibility List $4.68 / Each

2,4,5,6
B18.22M, WASHER, PLAIN, STL, M6 602243 950042-007 LOWER FRAME COMPONENTS B18.22M, WASHER, PLAIN, STL, M6 No Model Compatibility List $4.68 / Each

2
# 602247 950046-006 LATX TOUCH LOWER FRAME NUT, HEX, NYLON INSERT, STL, M5 No Model Compatibility List $4.68 / Each

2
# 602248 950046-007 LOWER FRAME COMPONENTS NUT, HEX, NYLON INSERT, STL, M6 No Model Compatibility List $4.68 / Each

2
602250 950046-009 REPLACED BY: 103395-001 MULTI-AXIS LINK NUT, HEX, NYLON INSERT, STL, M10 No Model Compatibility List $4.68 / Each

Adjustment Foot Leveler 1001077 900015-001 Adjustment Foot Leveler Yes Model Compatibility List $17.99 / Each

1,13
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
