Precor - C764I COMMERCIAL CLIMBER,120V,HHHR,

Repair Parts for Precor C764I COMMERCIAL CLIMBER,120V,HHHR, W6

Brand: Precor

Category: Commercial Upright Steppers

Type: Stepper

Model Name: C764I COMMERCIAL CLIMBER,120V,HHHR,

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Socket Cap SCREW,SKHD,5/16-18X2 1019490 CCNN031-200 0 2 Socket Cap SCREW,SKHD,5/16-18X2",SS,LK Yes Model Compatibility List $12.99 / Each

2
Shoulder Screw - Used 1019517 RCNN038-425 0 1 Shoulder Screw - Used Yes Model Compatibility List $11.69 / Each
Out Of Stock 		2
ASSY CBL RIBBON W/FERRITE-43in (Used) 1024635 45345-043 0 1 ASSY CBL RIBBON W/FERRITE-43in (Used) No Model Compatibility List $29.99 / Each

1
Screw 5/16-24-0.65 1026812 HCCN031075 0 1 Screw 5/16-24-0.65" (Used) No Model Compatibility List $1.19 / Each

1

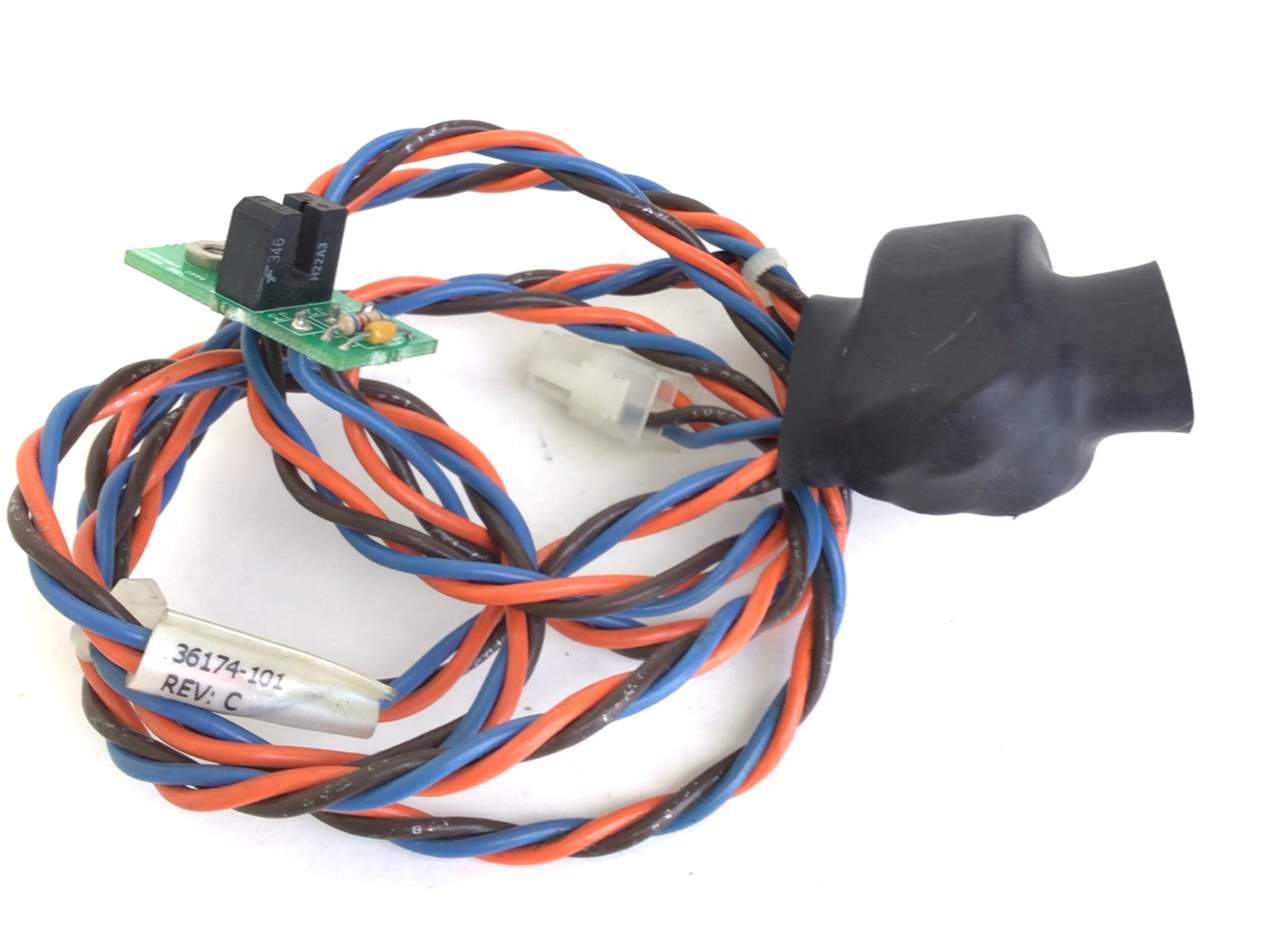

Cable Remote Sensor (Used) 1027853 34052-102 0 1 Cable Remote Sensor (Used) No Model Compatibility List $24.59 / Each

19
403059 57007-103 10 ASSY- COLUMN- C764I- TITANIUM No Model Compatibility List $592.80 / Each

1
400677 31514-101 22 COLLAR SHORT SPACER No Model Compatibility List $18.86 / Each

2
6 406325 WAGNN062-001 31 Wave washer, Crank arm Yes Model Compatibility List $11.00 / Each

2
1 401559 42713-102 33 Heart rate grip (top) Yes Model Compatibility List $65.25 / Each

12,13,14
1 401560 42714-102 34 Heart rate grip (bottom) Yes Model Compatibility List $47.87 / Each

12,13,14
403807 BACN031-075 38 Screw No Model Compatibility List $2.30 / Each

2
4 400691 33970-101 41 Spring Yes Model Compatibility List $83.67 / Each

2
402760 48551-102 42 CLAMP, BELT C776I, BOTTOM No Model Compatibility List $20.07 / Each

15
Drive Belt 53 Inch PC-530R10 10217-123 43 Drive Belt 53 Inch Yes Model Compatibility List $58.50 / Each

23
4 402759 48551-101 44 CLAMP, BELT C776I, TOP Yes Model Compatibility List $20.07 / Each

15
Shaft Stair arm Long (Used) 1027871 37825-102 55 Shaft Stair arm Long (Used) No Model Compatibility List $71.99 / Each

1
406355 WATNN020-002 57 Washer No Model Compatibility List $2.30 / Each

2
Pedal (Used) 1027864 33968-102 57 Pedal (Used) No Model Compatibility List $59.99 / Each

31
5 401883 44779-101 58 Pulley Yes Model Compatibility List $401.14 / Each

8
5 406352 WAPNN100-003 59 WASHER- THRUST- 1.562 OD X Yes Model Compatibility List $32.79 / Each

1
406328 WAHNN105-002 60 WASHER, WAVE, 1.351 OD X 1.051 No Model Compatibility List $4.39 / Each

2
406340 WALCN025-006 64 Washer No Model Compatibility List $2.30 / Each

2
402931 49332-101 66 Bumper, Stop, New Style No Model Compatibility List $49.69 / Each

3
SPRING EXT. 375X4.50 4 1/2 1027851 10589-105 70 SPRING EXT. 375X4.50 4 1/2" (Used) No Model Compatibility List $10.79 / Each
Out Of Stock 		1
1 401572 42730-101 72 Endcap, Mushroom, Internal Yes Model Compatibility List $15.78 / Each

9
400001 10043-104 74 BEARING, FLANGED, .377 ID, 8.2 No Model Compatibility List $2.70 / Each

1
7 400883 36020-102 77 ASSY, DISC, C760 Yes Model Compatibility List $620.57 / Each

3
SHEAVE 762764 (Used) 1027865 34068-103 80 SHEAVE 762764 (Used) No Model Compatibility List $59.99 / Each

1
400079 10565-101 86 NUT, EXTRUDED (U-M5) No Model Compatibility List $9.30 / Each

2
403300 ABHN017-001 88 RING, RETAINER, EXTERNAL No Model Compatibility List $0.51 / Each

2
SCREW 1/4-20 1027873 HCCN025-200 88 SCREW 1/4-20"-2.0" (Used) No Model Compatibility List $3.59 / Each

1
1 406316 WACBN100-006 107 Washer Yes Model Compatibility List $6.88 / Each

2
ASSY INPUT FILTER 110VC760 (Used) 1027852 36345-104 110 ASSY INPUT FILTER 110VC760 (Used) No Model Compatibility List $59.99 / Each

1
ASSY, STEPDOWN TRANSFORMER, 400885 36238-108 111 ASSY, STEPDOWN TRANSFORMER, Yes Model Compatibility List $284.09 / Each

3
1 402976 49725-101 113 RECEIVER, WIRELESS, HEART RATE, HIG Yes Model Compatibility List $128.65 / Each

12,13,14
PIN, HITCH, .093 DIA, ZINC, #203 400073 PPP000000010400103 130 PIN, HITCH, .093 DIA, ZINC, #203 No Model Compatibility List $2.20 / Each

405890 PKCN019-075 134 Screw No Model Compatibility List $2.37 / Each

2
406425 WNKN026-006 141 WASHER,FLT,1/4"X.625X.063,BLK ZN No Model Compatibility List $1.68 / Each

2
2 405571 HCCN031-075 148 SCREW, HEX HD, GRADE 5, 5/16-18 X . Yes Model Compatibility List $7.77 / Each

2
7 1033159 10400-103 152 1 Pin, Retainer (Used) Yes Model Compatibility List $6.50 / Each

14
405886 PGTN016-050 155 SCREW,S/T,#8X1/2,TRS,PHIL,BLK SHARP No Model Compatibility List $0.38 / Each

2
1 400010 10115-113 160 ORing Yes Model Compatibility List $9.07 / Each

2
1 406268 TCNN016-075 161 Buttonhead Screw Yes Model Compatibility List $2.89 / Each

2
400093 11091-101 177 FERRITE,FOR FLAT RIBBON CABLE No Model Compatibility List $15.72 / Each

4,5,6
401880 44722-102 180 ASSY, VERTICAL BARS, C764, HHHR No Model Compatibility List $636.29 / Each

3
405768 KHCN019-013 180 NUT,LOCK,10-32,KEPS,STAR WASHER,STL No Model Compatibility List $0.74 / Each

2
ASSY CABLE HHHR GRIP 36in (Used) 1027850 44632-036 183 ASSY CABLE HHHR GRIP 36in (Used) No Model Compatibility List $18.59 / Each

19
402583 47718-101 190 HOLE PLUG, PLASTIC .875 X.03-.08 No Model Compatibility List $1.12 / Each

9
402933 49341-013 190 Wire Harness, HR No Model Compatibility List $140.71 / Each

4,5,6
405816 MGCN013-050 194 SCREW,MCH,6-32X1/2,PANHD,PHIL, No Model Compatibility List $0.74 / Each

2
400693 33989-101 201 SHIPPER, MAIN C760 No Model Compatibility List $148.72 / Each

1
400886 36306-101 203 SHIPPER, CONSOLE SUPPORT C760 No Model Compatibility List $139.43 / Each

7
403295 AAHN100-004 221 RETAINING RING,EXTERNAL,1.00,ROTOR No Model Compatibility List $1.86 / Each

2
406393 WCCN031-008 279 WASHER, FLT, 5/16X.875X.083 No Model Compatibility List $0.74 / Each

2
405831 MGTN016-038 294 SCREW,MCH,8-32X3/8,PANHD,PHIL,BLK S No Model Compatibility List $1.01 / Each

2
405766 KGCN031-027 322 Starwasher Locknut No Model Compatibility List $2.37 / Each

2
1 400101 11278-101 358 Insert, Clamp, Cable Yes Model Compatibility List $10.41 / Each

4,5,6
406318 WACN019-005 375 WASHER, FLT, #10X.500X.049,ZN No Model Compatibility List $0.74 / Each

2
400692 PPP000000033984101 403 LABEL, SAFETY, GROUND SYMBOL No Model Compatibility List $0.74 / Each

5 406302 TFTN025-075 908 Screw Yes Model Compatibility List $15.59 / Each

2
406341 WALCN031-008 917 WASHER, 5/16 SPLIT LOCK, ZINC No Model Compatibility List $0.68 / Each

2
Lower Control PCA Board Controller 1015841 36177-104 # 1 Lower Control PCA Board Controller Yes Model Compatibility List $648.70 / Each

7
Heart Rate Grip Bottom 1003782 PPP000000042714102 Heart Rate Grip Bottom Yes Model Compatibility List $0.00 / Each
Out Of Stock
Climber Step Machine Idler Pulley Wheel Roller (Used) 1002353 36095-101 Climber Step Machine Idler Pulley Wheel Roller (Used) Yes Model Compatibility List $35.40 / Each

1
Ribbon Wire Harness Assembly (Used) 1010152 37812-101 Ribbon Wire Harness Assembly (Used) Yes Model Compatibility List $23.99 / Each
Out Of Stock 		4
Leveling Foot Leveler W/Hex Nut (Used) 1010127 6213209 Leveling Foot Leveler W/Hex Nut (Used) Yes Model Compatibility List $11.99 / Each
Out Of Stock 		41
Lift Motor Pivot Upper Pin Retainer (Used) 1010166 PPP000000010400103 Lift Motor Pivot Upper Pin Retainer (Used) Yes Model Compatibility List $20.99 / Each

1
