ProForm - 485E

Repair Parts for ProForm 485E PFEL87073

Brand: ProForm

Category: Residential Ellipticals

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

PFEL87073

Model Name: 485E

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
116059	100128	18		ADJUSTMENT BRACKET	No	Model Compatibility List	$2.29 / Each	2,3,4,5,6
118654	100151	.		5/8" AXLECAP	No	Model Compatibility List	$1.75 / Each	7,8,9
118645	101049	62		#12 X 1/2	Yes	Model Compatibility List	$0.24 / Each	2
118652	103735	.		3/4" AXLECAP	Yes	Model Compatibility List	$7.09 / Each	7,8,9
116429	104536	19		TENSION BOLT	No	Model Compatibility List	$4.17 / Each	2
100396	104838	#		LUBE, GREASE	No	Model Compatibility List	$6.19 / Each	1,15
119586	107094	24		MAGNET	No	Model Compatibility List	$2.08 / Each Out Of Stock	8
114216	116980	63		38MM ROUND INNER CAP	Yes	Model Compatibility List	$2.11 / Each	9,46
100031	119425	20		3/8" HEX JAM NUT	Yes	Model Compatibility List	$0.55 / Each	2
120195	012009	47		M5 NUT	No	Model Compatibility List	$0.18 / Each
102840	012090	17		1/4" NUT	No	Model Compatibility List	$1.54 / Each
101294	012108	.		3/8" NYLON LOCKNUT	No	Model Compatibility List	$0.33 / Each
118511	125328	46		POWER BRACKET WASHER	No	Model Compatibility List	$0.66 / Each	2,3,4,5,6
103160	128643	.		BELT GUIDE BOLT	Yes	Model Compatibility List	$0.28 / Each	2,15
121298	129639	#		BATTERY COVER 2.38x3.25"L	Yes	Model Compatibility List	$9.63 / Each	9
101030	013162	34C		M4 X 13MM SCREW	Yes	Model Compatibility List	$1.26 / Each
100149	013300	38		#8 X 3/4" WASHER HD SCREW	Yes	Model Compatibility List	$1.28 / Each
100354	013316	13		HOOD SCREW	No	Model Compatibility List	$1.42 / Each
100326	013540	44		HANDLE SCREW	No	Model Compatibility List	$0.12 / Each
118662	139801	#		CAUTION DECAL	No	Model Compatibility List	$1.54 / Each	7,3
118647	139810	64		PULLEY WASHER	No	Model Compatibility List	$0.47 / Each	2,8
102276	014041	61		IDLER ARM WASHER	No	Model Compatibility List	$0.12 / Each
115286	014066	66		M8 SPLIT WASHER	No	Model Compatibility List	$1.28 / Each
100263	014132	53		IDLER WHEEL WASHER	No	Model Compatibility List	$2.43 / Each
120003	143334	2		REED SWITCH BRACKET	No	Model Compatibility List	$28.03 / Each	1
142830	143340	14		RESISTANCE STRAP W/HDWR	Yes	Model Compatibility List	$89.06 / Each Out Of Stock	10
142831	143341	15		STRAP BUCKLE	Yes	Model Compatibility List	$38.13 / Each	1

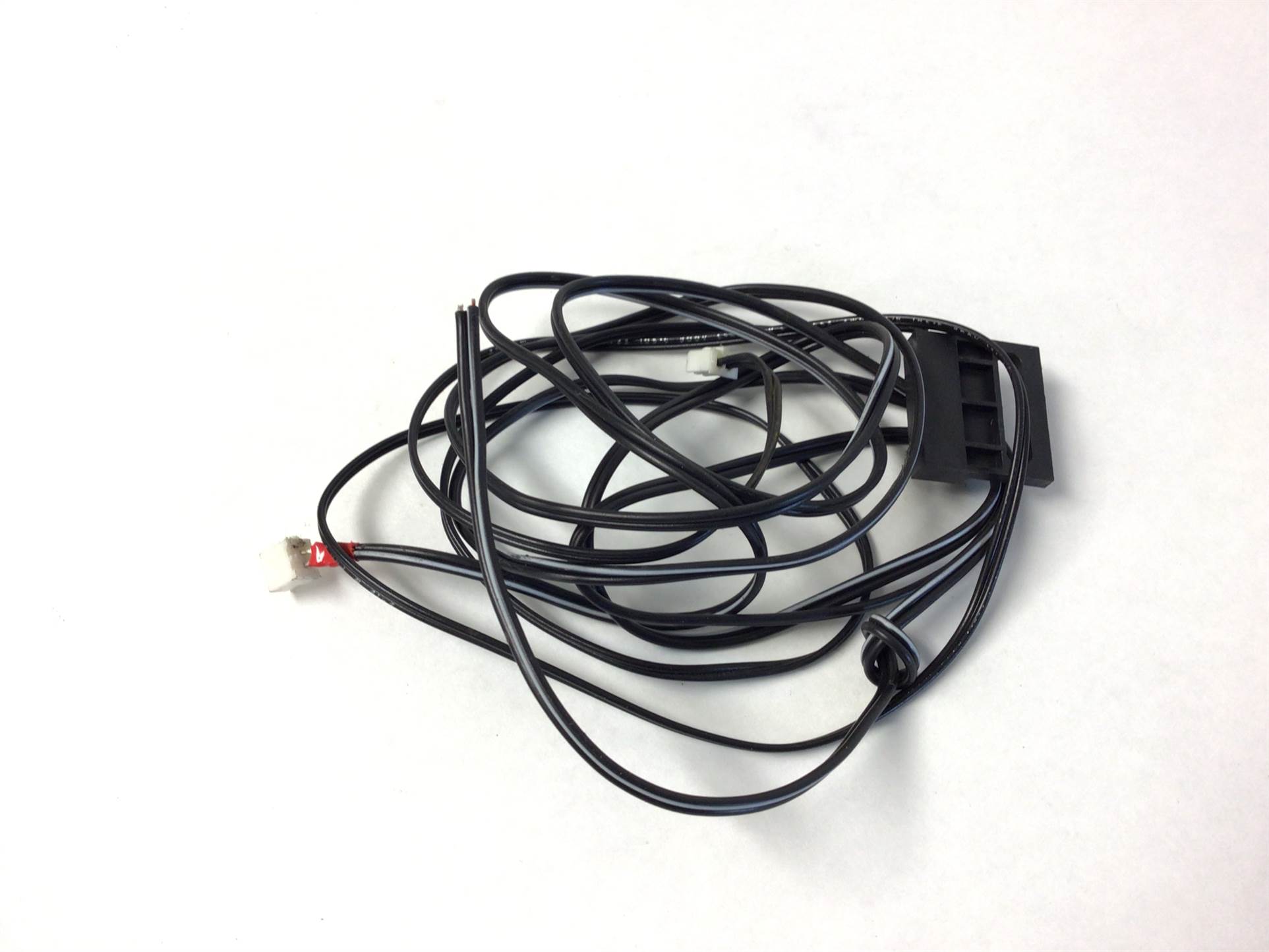

142832	143346	25		SENSOR WIRE/REED SWITCH	Yes	Model Compatibility List	$25.43 / Each	4,5,6
129047	143356	41		PEDAL ARM SPACER W/HDWR	No	Model Compatibility List	$16.62 / Each Out Of Stock	2,8,9,3,4,5,6
142834	143362	56		PIVOT BUSHING W/HDWR	No	Model Compatibility List	$39.31 / Each	8
150236	143963	.		USER-S MANUAL	No	Model Compatibility List	$3.12 / Each	1
118649	144751	32		PULLEY W/AXLE & HDWR	Yes	Model Compatibility List	$134.66 / Each Out Of Stock	8
118650	144757	36		PULLEY BEARING W/HDWR	No	Model Compatibility List	$46.49 / Each	8
118657	144762	30		BELT	Yes	Model Compatibility List	$59.18 / Each	15
129048	145853	31B		RIGHT PEDAL	Yes	Model Compatibility List	$89.39 / Each Out Of Stock	8,9
118658	152749	35		5/16" X1" NYLOC SCREW	No	Model Compatibility List	$2.02 / Each	2
150233	154594	#		CN-ASSY UPDATE, GREASE	No	Model Compatibility List	$2.05 / Each	1
121291	163823	48		CLAMP BOLT	No	Model Compatibility List	$17.36 / Each	2,4,5,6
101362	204489	#		WAVE WASHER	No	Model Compatibility List	$2.99 / Each	2,4,5,6
124691	218201	.		THIN SPACER	No	Model Compatibility List	$1.54 / Each	2,3,4,5,6
101392	256295	.		LIFT BUSHING	No	Model Compatibility List	$4.64 / Each	8,10
000021	143334	78	1	Reed Switch Bracket	No	Model Compatibility List	$33.99 / Each	1
1024776	119811	0	1	Resistance Tension Knob and Cable (Used)	No	Model Compatibility List	$29.00 / Each Out Of Stock	1
1024777	141103	6	1	Console Display (Used)	No	Model Compatibility List	$59.99 / Each	1
1024764	145055	37	1	ASSY CVR CRANK L/R Black (Used)	No	Model Compatibility List	$19.99 / Each	1
1024764	145055	37	1	ASSY CVR CRANK L/R Black (Used)	No	Model Compatibility List	$39.99 / Each	1
1024723	146302	33	1	Crank arm (Used)	No	Model Compatibility List	$132.70 / Each	1
1004211	204489	0	1	Wave Washer	No	Model Compatibility List	$10.99 / Each	2,4,5,6
1004394	013322	0	1	#8 X 3/4" Foot Pedal Screw	No	Model Compatibility List	$5.99 / Each
1008387	144762	0	1	Main Motor Drive Belt	Yes	Model Compatibility List	$67.99 / Each	15
1008389	103735	0	1	Large Axle Cap	Yes	Model Compatibility List	$16.99 / Each	7,8,9
1010890	119425	38	1	Nylock Nut	Yes	Model Compatibility List	$0.55 / Each	2
1011523	133945	0	1	Nylock Jam Nut 3/8"	Yes	Model Compatibility List	$11.99 / Each	2
1011774	012139	0	1	M6 Locknut	Yes	Model Compatibility List	$11.99 / Each
1011778	013162	0	1	Clamp Screw	Yes	Model Compatibility List	$11.99 / Each
1000093	145856 Or 145854			Left Foot Pedal	Yes	Model Compatibility List	$24.99 / Each Out Of Stock
