ProForm - 6.0 CE

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
ROLLER MAGNET 100081 113842 41 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
RSW CLAMP 100079 131090 57 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M4 X 13MM SCREW 101030 013162 92B M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

1/2 100258 013423 90 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

BEARING 100657 139703 38 BEARING Yes Model Compatibility List $24.46 / Each

1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
LARGE SNAP RING 100654 143742 40 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
M8 X 40MM BUTTON SCREW 102047 153770 76 M8 X 40MM BUTTON SCREW Yes Model Compatibility List $10.57 / Each

2
M4 X 12MM SCREW 101004 168267 89 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
M10 SPLIT WASHER 108804 177034 78 M10 SPLIT WASHER No Model Compatibility List $2.27 / Each

1
147535 180220 75 M10 X 45MM BUTTON SCREW No Model Compatibility List $15.76 / Each

2
109379 018030 29 MEDIUM ROLLER No Model Compatibility List $14.10 / Each

100691 183633 35 M5 WASHER No Model Compatibility List $0.23 / Each

2
108634 184363 62 M6 X 16MM SCREW No Model Compatibility List $3.73 / Each

2
REED SWITCH/WIRE 100953 186070 58 REED SWITCH/WIRE Yes Model Compatibility List $27.83 / Each

47
PULSE RECIEVER SCREW 100497 194020 # PULSE RECIEVER SCREW No Model Compatibility List $0.32 / Each

2,12,13,14
PIVOT SCREW 101001 208163 88 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
AUDIO WIRE,18 100197 215823 95 AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
CAM SCREW 109110 223168 80 CAM SCREW Yes Model Compatibility List $4.25 / Each

2
115583 230444 10 FOAM GRIP No Model Compatibility List $29.41 / Each

11
101865 234235 92A M4.2 X 18MM SCREW No Model Compatibility List $0.74 / Each

2
MOTOR BRACKET SCREW 101183 234286 71 MOTOR BRACKET SCREW No Model Compatibility List $1.83 / Each

1
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
RESISTANCE WHEEL 101173 241954 7 RESISTANCE WHEEL No Model Compatibility List $1.29 / Each

1
M10 X 85MM SCREW 115615 242965 82 M10 X 85MM SCREW Yes Model Compatibility List $5.91 / Each

2
115169 245941 97 M4 X 12MM FLANGE SCREW No Model Compatibility List $0.96 / Each

2
SMALL UPPER BODY ARM CAP 115020 246303 11 SMALL UPPER BODY ARM CAP No Model Compatibility List $0.52 / Each

9,3,46
M8 X 18MM BOLT 109399 247329 85 M8 X 18MM BOLT No Model Compatibility List $2.16 / Each

2
M10 X 20MM PATCH SCREW 101417 248334 79 M10 X 20MM PATCH SCREW Yes Model Compatibility List $3.83 / Each

2
POWER SUPPLY 100830 248512 # POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
101431 251978 63 M10 SHOULDER SCREW No Model Compatibility List $9.58 / Each

2
115410 252110 67 M6 X 10MM SET SCREW No Model Compatibility List $1.23 / Each

2
M6 LOCKNUT 101181 254769 74 M6 LOCKNUT No Model Compatibility List $2.27 / Each

1
LIFT BUSHING 101392 256295 17 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
M8 NUT 100030 256446 77 M8 NUT No Model Compatibility List $0.69 / Each

2
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
M8 X 25MM WASHER 101053 261150 33 M8 X 25MM WASHER Yes Model Compatibility List $2.64 / Each

2
M3.5 X 12MM SCREW 101180 276024 87 M3.5 X 12MM SCREW No Model Compatibility List $1.16 / Each

1
PULLEY 101387 277369 86 PULLEY Yes Model Compatibility List $178.75 / Each

37
MOTOR BRACKET 101174 279645 55 MOTOR BRACKET Yes Model Compatibility List $9.34 / Each

2,3,4,5,6
115522 281020 23 PEDAL ARM BUSHING No Model Compatibility List $4.88 / Each

8,9,3
C-MAGNET BRACKET BOLT 101178 281148 65 C-MAGNET BRACKET BOLT No Model Compatibility List $4.52 / Each

1
BELT ADJUSTMENT SCREW 101436 281149 72 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
IDLER SCREW 101010 281150 66 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
115665 281473 42 MAIN WIRE No Model Compatibility List $58.11 / Each

4,5,6
115398 281557 68 M8 X 44MM BOLT No Model Compatibility List $3.26 / Each

2
115403 281558 61 M8 LOCKNUT CLASS 12.9 No Model Compatibility List $2.32 / Each

2
KEY 100991 281559 60 KEY No Model Compatibility List $2.86 / Each

9
M5 X 7MM SCREW 101179 283304 83 M5 X 7MM SCREW No Model Compatibility List $1.45 / Each

1
115601 283862 39 HANDLEBAR No Model Compatibility List $59.17 / Each

11
FLYWHEEL AXLE 101176 284116 64 FLYWHEEL AXLE Yes Model Compatibility List $18.05 / Each

1
115040 284963 93A LEFT SENSOR/WIRE No Model Compatibility List $48.75 / Each

4,5,6
115039 284964 93B RIGHT SENSOR/WIRE No Model Compatibility List $48.75 / Each

4,5,6
MOUNT 101022 286527 18A MOUNT Yes Model Compatibility List $1.91 / Each

2,1
101100 301390 # TREE FASTENER No Model Compatibility List $0.46 / Each

1
101134 303479 18B SNAP MOUNT SCREW No Model Compatibility List $0.69 / Each

2
101208 304180 36 MEDIUM SNAP RING No Model Compatibility List $0.69 / Each

2
RESISTANCE ARM 101172 304734 56 RESISTANCE ARM Yes Model Compatibility List $20.35 / Each

3,10,49
115405 305948 27 CRANK SPACER No Model Compatibility List $12.29 / Each

2,8,3,4,5,6
DRIVE BELT 115605 306492 46 DRIVE BELT Yes Model Compatibility List $48.09 / Each

23
C-MAGNET 101524 308028 53 C-MAGNET Yes Model Compatibility List $153.71 / Each
8
RESISTANCE MOTOR 101525 308036 54 RESISTANCE MOTOR Yes Model Compatibility List $105.45 / Each

1
110219 310739 59 M8 X 10MM BOLT No Model Compatibility List $2.09 / Each

2

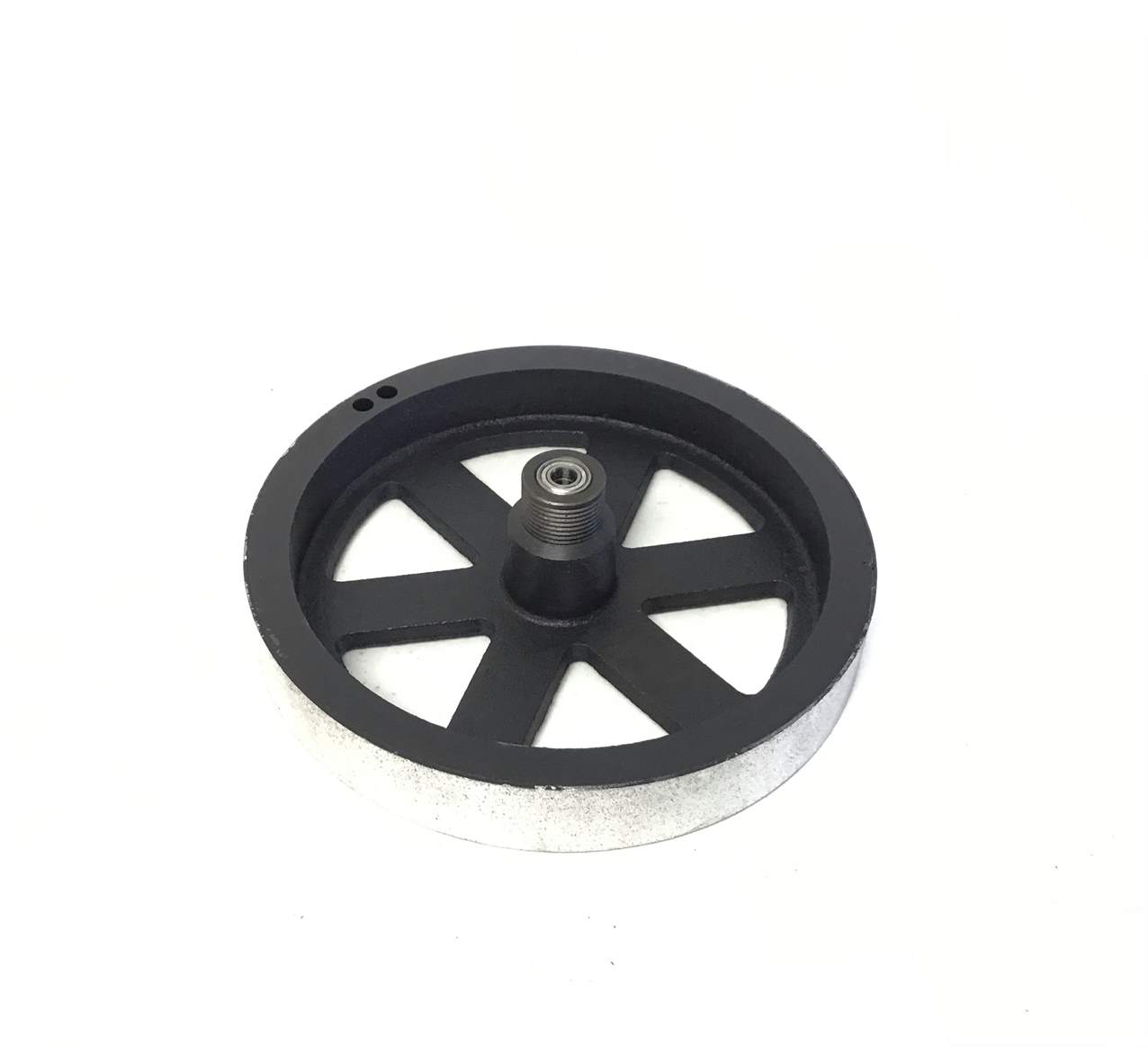

FLYWHEEL 101526 312441 51A FLYWHEEL Yes Model Compatibility List $362.10 / Each

8
115612 314149 73 FRONT STABILIZER No Model Compatibility List $101.41 / Each

1
115611 314152 70 REAR STABILIZER No Model Compatibility List $101.51 / Each

1
115616 314155 96 LEFT CRANK ARM No Model Compatibility List $126.89 / Each

8,3
115594 314159 25 RIGHT CRANK ARM No Model Compatibility List $126.89 / Each

8,3
115396 314681 43 M6 WASHER No Model Compatibility List $0.94 / Each

2
115597 314745 31 BOLT SET No Model Compatibility List $14.75 / Each

2
LT BATTERY DOOR 147568 314900 # LT BATTERY DOOR No Model Compatibility List $7.19 / Each
Out Of Stock
1
147569 314901 # RT BATTERY DOOR No Model Compatibility List $7.19 / Each
Out Of Stock
1
149606 315404 32 FRONT CONSOLE COVER No Model Compatibility List $57.33 / Each

7,9
149611 315407 81 REAR CONSOLE COVER No Model Compatibility List $27.69 / Each

7,9
149598 315409 6 UPPER BODY LEG No Model Compatibility List $90.09 / Each

1
LEFT PEDAL 149601 315411 12 LEFT PEDAL Yes Model Compatibility List $91.93 / Each

8,9
RIGHT PEDAL 149602 315412 13 RIGHT PEDAL No Model Compatibility List $98.53 / Each

8,9
149603 316992 14 LEFT PEDAL ARM No Model Compatibility List $125.49 / Each

8,9,3
149610 316993 49 RIGHT PEDAL ARM No Model Compatibility List $125.49 / Each

8,9,3
149604 316994 15 PEDAL BRACKET No Model Compatibility List $33.54 / Each

2,8,9,3,4,5,6
149608 316995 44 LEFT SHIELD No Model Compatibility List $147.17 / Each

3
149609 316996 45 RIGHT SHIELD No Model Compatibility List $147.17 / Each

3
148246 316998 19 PIVOT COVER A No Model Compatibility List $14.26 / Each

8,9
148249 316999 22 PIVOT COVER B No Model Compatibility List $15.23 / Each
Out Of Stock
8,9
132302 317000 16 FRONT UPRIGHT COVER No Model Compatibility List $50.70 / Each

9,3
132292 317001 3 REAR UPRIGHT COVER No Model Compatibility List $29.25 / Each

9,3
148247 317002 20 FRONT LEG COVER No Model Compatibility List $33.15 / Each

9
148248 317003 21 REAR LEG COVER No Model Compatibility List $20.35 / Each

9
132310 317004 30 PEDAL ARM CAP No Model Compatibility List $1.63 / Each

8,9,3
STABILIZER CAP 148255 317005 48 STABILIZER CAP Yes Model Compatibility List $12.04 / Each

9
115508 317006 5 ACCESSORY TRAY No Model Compatibility List $17.02 / Each

4,5,6
WHEEL 121168 317007 50 WHEEL Yes Model Compatibility List $20.35 / Each

8
149596 317014 2 UPRIGHT No Model Compatibility List $206.49 / Each
Out Of Stock
3
LEVELING FOOT 110324 317078 47 LEVELING FOOT Yes Model Compatibility List $20.30 / Each

1
149599 317214 8 LEFT UPPER BODY ARM No Model Compatibility List $113.10 / Each

3
149600 317215 9 RIGHT UPPER BODY ARM No Model Compatibility List $113.10 / Each

3
149605 317407 26 PEDAL DISC No Model Compatibility List $105.74 / Each

8,9
149612 317409 # USER-S MANUAL No Model Compatibility List $8.93 / Each

1
149597 317462 4 CONSOLE No Model Compatibility List $218.10 / Each
Out Of Stock
7
149607 317463 37 SHIELD COVER No Model Compatibility List $109.97 / Each

9,3
115517 321734 84 #10 X 16MM SCREW No Model Compatibility List $0.69 / Each

2
115593 345904 24 CRANK No Model Compatibility List $54.53 / Each
Out Of Stock
8
IDLER 100939 363093 52 IDLER Yes Model Compatibility List $58.30 / Each

8
5MM ALLEN WRENCH 100604 045008 # 5MM ALLEN WRENCH Yes Model Compatibility List $3.85 / Each

6MM ALLEN WRENCH 100541 045021 # 6MM ALLEN WRENCH Yes Model Compatibility List $5.28 / Each

Foot Leveler Level Feet 000142 317078 0 1 Foot Leveler Level Feet Yes Model Compatibility List $29.99 / Each

1
Bearing Sealed 1002777 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1
Pulley Assembly 1003102 277369 19 1 Pulley Assembly Yes Model Compatibility List $178.75 / Each

37
Sealed Bearing 1004784 018030 0 1 Sealed Bearing No Model Compatibility List $25.99 / Each

M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
Screw M8 X 18MM 1004795 247329 0 1 Screw M8 X 18MM No Model Compatibility List $13.99 / Each

2
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $67.99 / Each

8
Motor Bracket 1006637 279645 0 1 Motor Bracket Yes Model Compatibility List $18.99 / Each

2,3,4,5,6
Snap Fastener 1008634 286527 156A 1 Snap Fastener Yes Model Compatibility List $1.91 / Each

2,1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Idler Bolt 101010 281150 66 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

2,8
Link Arm Assembly 1010309 304734 79 1 Link Arm Assembly Yes Model Compatibility List $20.35 / Each

3,10,49
Axle Screw M10 X 19MM 1010514 248334 105 1 Axle Screw M10 X 19MM Yes Model Compatibility List $3.83 / Each

2
Resistance Rod 101172 304734 56 1 Resistance Rod Yes Model Compatibility List $20.35 / Each

3,10,49
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

2,8
Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $68.99 / Each

8
Leveling Foot Leveler 1000586 317078 Leveling Foot Leveler Yes Model Compatibility List $16.99 / Each
1
AC Adapter Power Supply 999991 248512 AC Adapter Power Supply Yes Model Compatibility List $8.99 / Each

4,5,6
AC Adapter Power Supply 999992 248512 AC Adapter Power Supply Yes Model Compatibility List $14.99 / Each

4,5,6
Right Foot Pedal Assembly + Bracket 1002684 315412 Right Foot Pedal Assembly + Bracket Yes Model Compatibility List $49.99 / Each
Out Of Stock
8,9
Reed Switch RPM Speed Sensor 1002520 186070 Reed Switch RPM Speed Sensor Yes Model Compatibility List $21.99 / Each

47
Foot Leveler Level Feet 1003271 317078 Foot Leveler Level Feet Yes Model Compatibility List $17.99 / Each

1
Elliptical Motor Bracket (New) 1013083 279645 Elliptical Motor Bracket (New) Yes Model Compatibility List $22.99 / Each
2,3,4,5,6
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1
Belt Adjustment Screw (New) 1011896 281149 Belt Adjustment Screw (New) Yes Model Compatibility List $15.99 / Each

2,15
View Drawing
