ProForm - 910 E

Repair Parts for ProForm 910 E PFEL099110

Brand: ProForm

Category: Residential Ellipticals

Type: Elliptical

Model Name: 910 E

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
M8 X 16MM Patch Screw 1004200 237612 0 1 M8 X 16MM Patch Screw No Model Compatibility List $5.99 / Each

2
Snap Ring 1004203 295991 0 1 Snap Ring No Model Compatibility List $11.99 / Each

2
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Retainer Small 1004487 243375 0 1 Retainer Small No Model Compatibility List $4.50 / Each

2
Pedal Arm Bushing 1005020 308523 0 1 Pedal Arm Bushing No Model Compatibility List $22.00 / Each

3,8
Small Pulley Spacer 1005193 306635 0 1 Small Pulley Spacer No Model Compatibility List $5.00 / Each

2,3,4,5,6,8
Retainer Snap Ring 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

2
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $79.00 / Each

8
Motor Bracket 1006637 279645 0 1 Motor Bracket Yes Model Compatibility List $18.99 / Each

2,3,4,5,6
Leveling Foot Leveler 1008628 153280 0 1 Leveling Foot Leveler Yes Model Compatibility List $23.99 / Each

3
Retainer Snap Ring 1009932 243374 0 1 Retainer Snap Ring Yes Model Compatibility List $12.99 / Each

2,8,1
Power Supply Control Board 1010417 316981 0 1 Power Supply Control Board Yes Model Compatibility List $121.99 / Each

7,8
Magnet Lift Axle 1011550 317331 0 1 Magnet Lift Axle Yes Model Compatibility List $31.99 / Each

8,10
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $79.00 / Each

8
Roller Wheel 1002848 306984 Roller Wheel Yes Model Compatibility List $84.92 / Each

8
Elliptical Motor Bracket (New) 1013083 279645 Elliptical Motor Bracket (New) Yes Model Compatibility List $22.99 / Each
2,3,4,5,6
Incline Motor 1037080 317352 or 317333 Incline Motor Yes Model Compatibility List $65.99 / Each
Out Of Stock
Control Board Bracket (New) 1013084 300804 Control Board Bracket (New) Yes Model Compatibility List $33.99 / Each

2,3,4,5,6,7
Bolt M10 X 58MM (New) 1011921 310999 Bolt M10 X 58MM (New) Yes Model Compatibility List $18.99 / Each

2
Handlebar Right Hand Grip (New) 1012687 316468 Handlebar Right Hand Grip (New) Yes Model Compatibility List $78.99 / Each

11
Controller Circuit Board with Mounting Plate 1037923 316981 Controller Circuit Board with Mounting Plate Yes Model Compatibility List $99.00 / Each
Out Of Stock 		7,8
Locking Nut 21-CD7-KR (Used) 1007264 060714 Locking Nut 21-CD7-KR (Used) Yes Model Compatibility List $7.79 / Each

1
Screw (New) 104355 102959 Screw (New) Yes Model Compatibility List $11.99 / Each

1
Pedal Arm Pivot Bushing Set (Used) 1032793 322749 291052 Pedal Arm Pivot Bushing Set (Used) Yes Model Compatibility List $30.59 / Each
Out Of Stock 		1
149009 322822 2 REAR STABILIZER COVER No Model Compatibility List $117.02 / Each

9
149010 322824 3 RAMP No Model Compatibility List $243.00 / Each

4,5,6
149011 322823 4 UPRIGHT No Model Compatibility List $438.09 / Each

3
149012 322751 5 REAR STABILIZER No Model Compatibility List $146.03 / Each

1
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $2.49 / Each

1
149013 322750 6 FRONT STABILIZER No Model Compatibility List $126.89 / Each

1
149014 322818 7 CONSOLE No Model Compatibility List $460.76 / Each

7
109191 315996 8 FRONT STABILIZER COVER No Model Compatibility List $107.15 / Each

9
149015 322762 9 BOTTOM RAMP COVER No Model Compatibility List $119.83 / Each

9,4,5,6
149016 322910 10 TOP RAMP COVER No Model Compatibility List $140.99 / Each

9,4,5,6

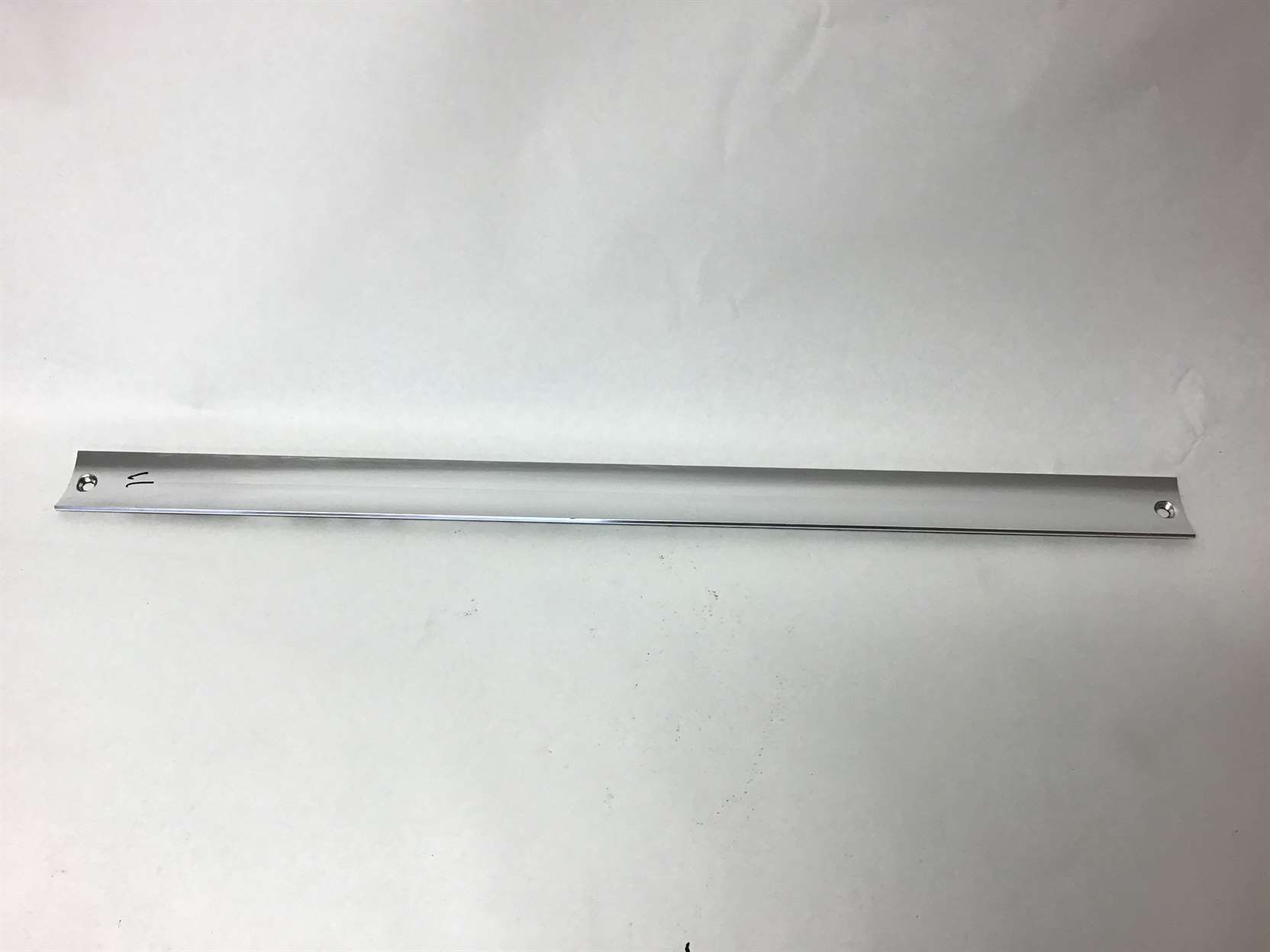

TRACK 108976 306606 11 TRACK Yes Model Compatibility List $87.76 / Each

3,4,5,6,15
149017 322742 12 LEFT ROLLER ARM No Model Compatibility List $159.72 / Each

8,3
100931 317352 13 LIFT MOTOR No Model Compatibility List $258.98 / Each

10
149018 322827 14A LEFT PEDAL No Model Compatibility List $142.60 / Each

8,9
108980 306626 14B LEFT PEDAL INSERT No Model Compatibility List $105.30 / Each

8,9
CONTROLLER 101192 316981 15 CONTROLLER Yes Model Compatibility List $120.69 / Each

7,8
POWER SWITCH 100201 186726 16 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
SQUARE GROMMET 100934 313668 17 SQUARE GROMMET Yes Model Compatibility List $7.19 / Each

6
149019 322754 18 CRANK No Model Compatibility List $93.05 / Each

8
PULLEY 101387 277369 19 PULLEY Yes Model Compatibility List $178.75 / Each

37
Pulley Assembly 1003102 277369 19 1 Pulley Assembly Yes Model Compatibility List $178.75 / Each

37
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

1,2
149020 322752 20 CRANK ARM No Model Compatibility List $246.42 / Each
Out Of Stock 		8,3
100938 316047 21 ROLLER ARM CAP No Model Compatibility List $8.60 / Each

8,9,3
IDLER 100939 363093 22 IDLER Yes Model Compatibility List $79.00 / Each

8
109234 304346 23 C-MAGNET No Model Compatibility List $87.20 / Each

8
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
MOTOR BRACKET 101174 279645 24 MOTOR BRACKET Yes Model Compatibility List $9.34 / Each

2,3,4,5,6
RESISTANCE MOTOR 101525 308036 25 RESISTANCE MOTOR Yes Model Compatibility List $105.45 / Each

1
RESISTANCE ARM 101172 304734 26 RESISTANCE ARM Yes Model Compatibility List $20.35 / Each

3,10,49
Resistance Rod 101172 304734 26 1 Resistance Rod Yes Model Compatibility List $20.35 / Each

3,10,49
M10 Locking Nut 1004782 275907 26B 1 M10 Locking Nut Yes Model Compatibility List $3.36 / Each

2
Locking Nut M10 1010497 275907 26B 1 Locking Nut M10 Yes Model Compatibility List $3.36 / Each

2
RESISTANCE WHEEL 101173 241954 27 RESISTANCE WHEEL No Model Compatibility List $1.29 / Each

1
FLYWHEEL 12 101161 313085 28 FLYWHEEL 12" Yes Model Compatibility List $530.45 / Each

8
FLYWHEEL AXLE 101176 284116 29 FLYWHEEL AXLE Yes Model Compatibility List $18.05 / Each

1
100945 143426 30 FRAME/UPRIGHT BUSHING No Model Compatibility List $6.89 / Each

8,3
LIFT MOTOR LOWER AXLE 100946 317331 31 LIFT MOTOR LOWER AXLE Yes Model Compatibility List $19.91 / Each

8,10
LIFT MOTOR SPACER 100947 306636 32 LIFT MOTOR SPACER Yes Model Compatibility List $2.44 / Each

2,3,4,5,6,10
Lift Motor Spacer 100947 306636 32 1 Lift Motor Spacer Yes Model Compatibility List $2.44 / Each

2,3,4,5,6,10
WHEEL 100949 306628 34 WHEEL Yes Model Compatibility List $23.68 / Each

8

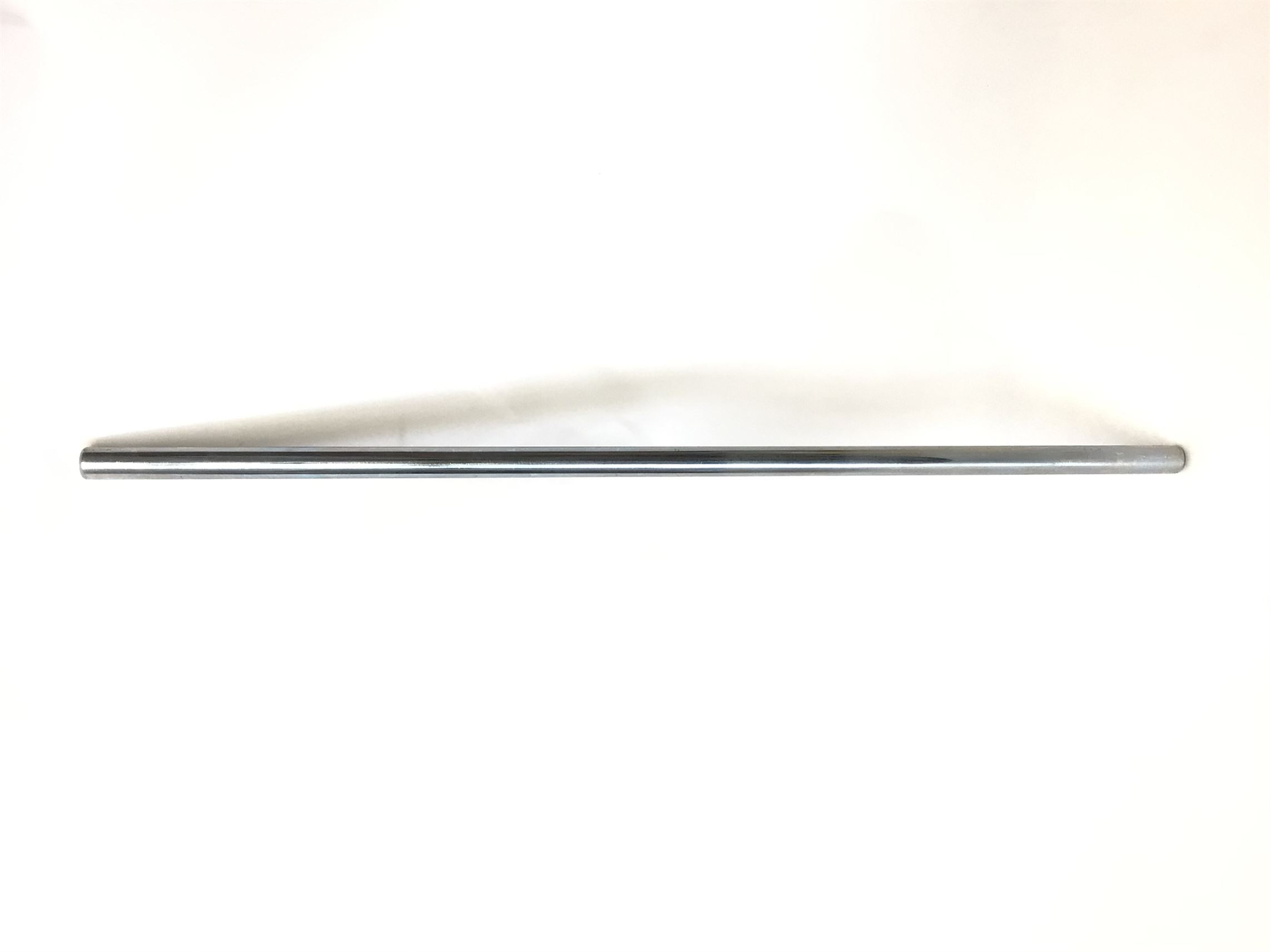

PIVOT AXLE 108986 306648 35 PIVOT AXLE No Model Compatibility List $95.56 / Each

8
149021 322739 36 RIGHT UPPER BODY LEG No Model Compatibility List $133.94 / Each

1
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $7.79 / Each
Out Of Stock

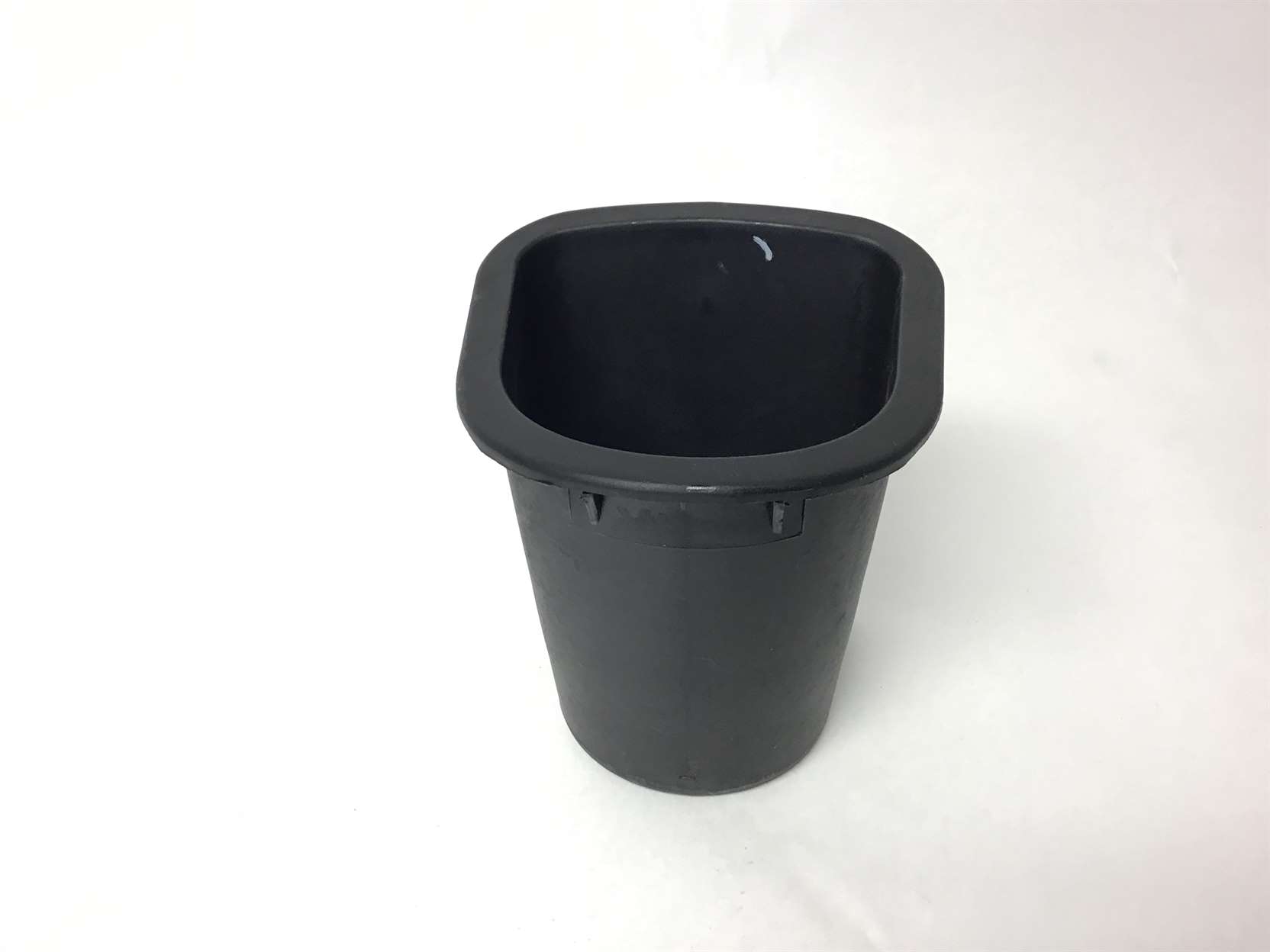

WATER BOTTLE HOLDER 108988 306615 37 WATER BOTTLE HOLDER Yes Model Compatibility List $25.91 / Each
Out Of Stock 		1
REED SWITCH/WIRE 101987 307218 38 REED SWITCH/WIRE Yes Model Compatibility List $26.60 / Each

4,5,6
RSW CLAMP 100079 131090 39 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
FRAME BEARING 100955 295804 40 FRAME BEARING Yes Model Compatibility List $40.21 / Each

1
Bearing Sealed 1003109 295804 40 1 Bearing Sealed Yes Model Compatibility List $40.21 / Each

1
Sealed Bearing 100955 295804 40 1 Sealed Bearing Yes Model Compatibility List $40.21 / Each

1
RIGHT GRIP 105079 316468 41 RIGHT GRIP Yes Model Compatibility List $72.15 / Each

11
LARGE SNAP RING 100957 295991 42 LARGE SNAP RING No Model Compatibility List $11.99 / Each

2
ROLLER MAGNET 100081 113842 43 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
149022 322825 44 LEFT PEDAL ARM No Model Compatibility List $187.10 / Each

8,9,3
149023 322743 45 RIGHT ROLLER ARM No Model Compatibility List $159.72 / Each

8,3
149024 322738 46 LEFT UPPER BODY LEG No Model Compatibility List $133.94 / Each

1
149025 323727 47 LEFT UPPER BODY ARM No Model Compatibility List $101.51 / Each

3
LEFT GRIP 105078 316467 48 LEFT GRIP Yes Model Compatibility List $98.69 / Each

11
149026 322828 49A RIGHT PEDAL No Model Compatibility List $142.60 / Each

8,9
108998 306627 49B RIGHT PEDAL INSERT No Model Compatibility List $105.30 / Each

8,9
101208 304180 50 MEDIUM SNAP RING No Model Compatibility List $0.69 / Each

2
ROLLER 108999 306984 51 ROLLER Yes Model Compatibility List $96.49 / Each

8
109201 316001 52 PEDAL ARM CAP No Model Compatibility List $12.04 / Each
Out Of Stock 		8,9,3
149027 322761 53 AXLE COVER No Model Compatibility List $6.51 / Each
Out Of Stock 		8,9
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $2.50 / Each

2
129668 316039 54 LEFT OUTER COVER No Model Compatibility List $40.95 / Each

9

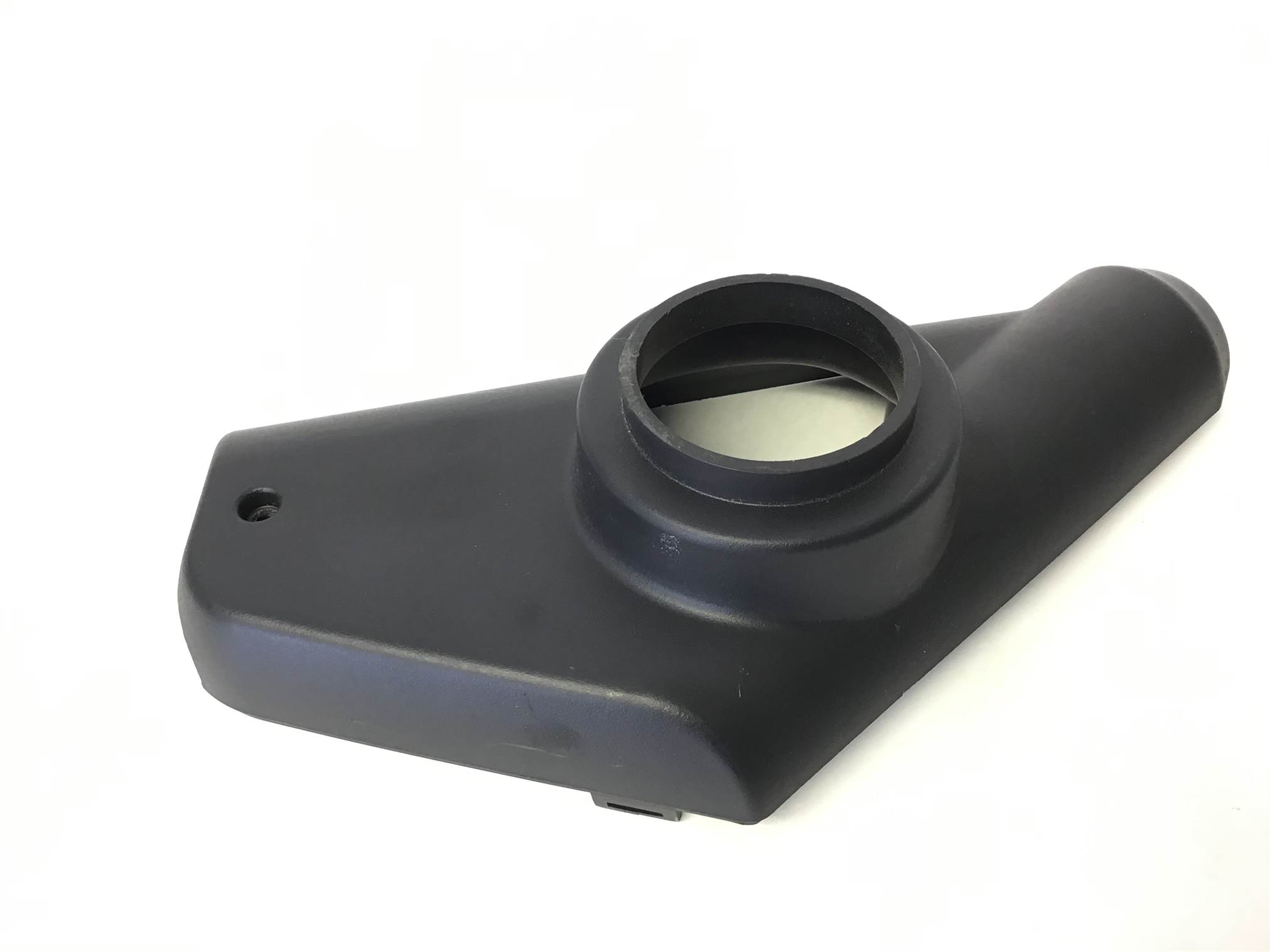

LEFT INNER COVER 129669 316040 55 LEFT INNER COVER Yes Model Compatibility List $46.45 / Each

9
149028 322757 56 LOWER UPRIGHT COVER No Model Compatibility List $24.05 / Each
Out Of Stock 		9,3
ROLLER ARM BUSHING 105073 308523 57 ROLLER ARM BUSHING No Model Compatibility List $22.00 / Each

3,8
149029 322826 58 RIGHT PEDAL ARM No Model Compatibility List $187.10 / Each
Out Of Stock 		8,9,3
FLEX BRACKET BUSHING 100971 291052 59 FLEX BRACKET BUSHING Yes Model Compatibility List $35.30 / Each

2,3,4,5,6,8
Axle Bushing 100971 291052 59 1 Axle Bushing Yes Model Compatibility List $52.99 / Each

2,3,4,5,6,8
149030 322760 60 CRANK ARM COVER No Model Compatibility List $14.75 / Each

8,9,3
149031 323723 61 RIGHT UPPER BODY ARM No Model Compatibility List $101.51 / Each

3
RESISTANCE BRACKET 101523 303952 62 RESISTANCE BRACKET Yes Model Compatibility List $3.49 / Each

1,2,3,4,5,6,10,40,49
109204 318560 63A RIGHT SENSOR No Model Compatibility List $78.00 / Each

1
RIGHT WIRE HARNESS 100976 316100 63B RIGHT WIRE HARNESS Yes Model Compatibility List $22.20 / Each

4,5,6
M5 X 7MM SCREW 101179 283304 64 M5 X 7MM SCREW No Model Compatibility List $1.45 / Each

1
RAMP AXLE 101198 285646 65 RAMP AXLE Yes Model Compatibility List $44.86 / Each
Out Of Stock 		4,5,6,8
149032 322765 66 LEFT PEDAL ARM COVER No Model Compatibility List $4.18 / Each

8,9,3
129673 316037 67 RIGHT OUTER COVER No Model Compatibility List $40.95 / Each

9
129674 316038 68 RIGHT INNER COVER No Model Compatibility List $40.95 / Each

9
109205 318561 69A LEFT SENSOR No Model Compatibility List $78.00 / Each

1
100982 316141 69B LEFT WIRE HARNESS Yes Model Compatibility List $91.64 / Each

4,5,6
100983 306646 70 UPPER BODY LEG BUSHING No Model Compatibility List $31.21 / Each

8
149033 322759 71 DISC No Model Compatibility List $131.20 / Each
Out Of Stock 		1
101197 285643 72 RAMP BUSHING No Model Compatibility List $7.94 / Each

8,4,5,6
149034 370666 73 LEFT FRONT SHIELD No Model Compatibility List $220.16 / Each

3
149035 370673 74 RIGHT FRONT SHIELD No Model Compatibility List $177.58 / Each

3
149036 322821 75 SHIELD COVER No Model Compatibility List $121.24 / Each

9,3
129678 316002 76 LEFT REAR SHIELD No Model Compatibility List $85.80 / Each

3
129679 316003 77 RIGHT REAR SHIELD No Model Compatibility List $85.80 / Each

3
KEY 100991 281559 78 KEY Yes Model Compatibility List $5.99 / Each

9
M6 LOCKNUT 101181 254769 79 M6 LOCKNUT No Model Compatibility List $2.27 / Each

1
Link Arm Assembly 1010309 304734 79 1 Link Arm Assembly Yes Model Compatibility List $20.35 / Each

3,10,49
129680 316042 80 REAR UPRIGHT COVER No Model Compatibility List $83.85 / Each

9,3
148645 348635 81 SMALL AXLE COVER No Model Compatibility List $28.61 / Each

8,9
101342 234594 82 CRANK SCREW No Model Compatibility List $2.64 / Each

2,8
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
SMALL PULLEY SPACER 101091 306635 83 SMALL PULLEY SPACER No Model Compatibility List $5.00 / Each

2,3,4,5,6,8
109019 240818 84 M10 X 90MM PATCH SCREW No Model Compatibility List $16.97 / Each

2
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

2,8
101434 275979 85 M6 X 12MM HEX PATCH SCREW No Model Compatibility List $1.40 / Each

2
M10 X 58MM BOLT 105104 310999 86 M10 X 58MM BOLT Yes Model Compatibility List $6.51 / Each

2
149037 322766 87 RIGHT PEDAL ARM COVER No Model Compatibility List $4.18 / Each

8,9,3
BELT ADJUSTMENT SCREW 101000 281156 88 BELT ADJUSTMENT SCREW No Model Compatibility List $6.47 / Each

1
PIVOT SCREW 101001 208163 89 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
C-MAGNET BRACKET BOLT 101178 281148 90 C-MAGNET BRACKET BOLT No Model Compatibility List $4.52 / Each

1
129681 316041 91 FRONT UPRIGHT COVER No Model Compatibility List $85.80 / Each

9,3
FRAME CUSHION 100684 153280 92 FRAME CUSHION Yes Model Compatibility List $13.94 / Each

3
M4 X 12MM SCREW 101004 168267 93 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
MOTOR BRACKET SCREW 101183 234286 94 MOTOR BRACKET SCREW No Model Compatibility List $1.83 / Each

1
WAVE WASHER 101005 287202 95 WAVE WASHER No Model Compatibility List $2.54 / Each

2,4,5,6
M8 X 35MM SCREW 100785 183870 96 M8 X 35MM SCREW Yes Model Compatibility List $1.61 / Each

2
109022 306712 97 MOTOR AXLE No Model Compatibility List $8.60 / Each

8
M8 LARGE WASHER 100803 222789 98A M8 LARGE WASHER No Model Compatibility List $2.83 / Each

2
M8 X 25MM WASHER 101053 261150 98B M8 X 25MM WASHER Yes Model Compatibility List $2.64 / Each

2
M10 LOCKNUT 101008 275907 99A M10 LOCKNUT Yes Model Compatibility List $3.36 / Each

2
Locking Nut 101008 275907 99A 1 Locking Nut Yes Model Compatibility List $3.36 / Each

2
M10 LOCKNUT 100540 148710 99B M10 LOCKNUT No Model Compatibility List $2.50 / Each

2
100691 183633 100 M5 WASHER No Model Compatibility List $0.23 / Each

2
IDLER SCREW 101010 281150 101 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
Idler Bolt 101010 281150 101 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

2,8
Incline Motor Bushing 1006412 317332 102 1 Incline Motor Bushing No Model Compatibility List $2.87 / Each

8,10,2
M8 NUT 100030 256446 102B M8 NUT No Model Compatibility List $2.00 / Each

2
M3.5 X 12MM SCREW 101180 276024 103 M3.5 X 12MM SCREW No Model Compatibility List $1.16 / Each

1
M4 X 13MM SCREW 101030 013162 104 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

M8 X 16MM HEX SCREW 101012 310520 105 M8 X 16MM HEX SCREW No Model Compatibility List $1.86 / Each

2
1/2 100258 013423 106 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

1
LARGE STANDOFF 101014 125819 107 LARGE STANDOFF Yes Model Compatibility List $2.35 / Each

1,2
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $2.00 / Each

2
MAIN WIRE 109023 307215 110 MAIN WIRE Yes Model Compatibility List $68.25 / Each
4,5,6
M5 NYLON LOCKNUT 100690 150327 111 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
POWER CORD 101017 342275 112 POWER CORD Yes Model Compatibility List $74.11 / Each

1,4,5,6
108748 317411 112A POWER CORD No Model Compatibility List $74.11 / Each

4,5,6
DRIVE BELT 109024 307097 113 DRIVE BELT Yes Model Compatibility List $100.52 / Each

10,15
AUDIO WIRE,18 100197 215823 114 AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
101020 307188 115 TRACK SCREW No Model Compatibility List $1.63 / Each

2,15,3,4,5,6
M10 X 105MM BUTTON BOLT 109025 303935 116 M10 X 105MM BUTTON BOLT Yes Model Compatibility List $9.83 / Each

2
MOUNT 101022 286527 117A MOUNT Yes Model Compatibility List $1.91 / Each

2,1
101134 303479 117B SNAP MOUNT SCREW No Model Compatibility List $0.69 / Each

2
CONTROL BOARD BRACKET 101023 300804 118 CONTROL BOARD BRACKET Yes Model Compatibility List $21.38 / Each

2,3,4,5,6,7
M10 X 75MM SCREW 104571 223809 119 M10 X 75MM SCREW No Model Compatibility List $11.43 / Each

2
Plate Power Cord 1003820 313668 119 1 Plate Power Cord Yes Model Compatibility List $7.19 / Each

6
M8 X 16MM SCREW 100985 237612 120 M8 X 16MM SCREW No Model Compatibility List $5.99 / Each

2
109026 307256 121 M6 X 10MM PATCH SCREW No Model Compatibility List $1.40 / Each

2
Axle Frame Bushing 1011860 237616 121B 1 Axle Frame Bushing Yes Model Compatibility List $3.60 / Each

4,5,6,8,2
100021 234325 122 M8.4 STAR WASHER No Model Compatibility List $1.12 / Each

2
Screw 1007995 184369 124 1 Screw No Model Compatibility List $0.47 / Each

2
M6 X 12MM SCREW 101027 197037 125 M6 X 12MM SCREW Yes Model Compatibility List $0.69 / Each

1,2,50
109027 263759 126 M4 X 75MM SCREW No Model Compatibility List $2.32 / Each

2
101028 251831 127 M4 X 22MM SCREW No Model Compatibility List $1.16 / Each

2
109028 313138 128 M4 X 16MM PATCH SCREW No Model Compatibility List $0.94 / Each

2
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
M8 X 23MM WASHER 109029 250868 129 M8 X 23MM WASHER No Model Compatibility List $0.38 / Each

2
NYLON INSERT 109211 317937 130 NYLON INSERT No Model Compatibility List $1.17 / Each

1
LIFT MOTOR BUSHING 101034 317332 131 LIFT MOTOR BUSHING No Model Compatibility List $2.87 / Each

8,10,2
ROUND GROMMET 101035 129004 132 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
ROLLER ARM BUSHING 101036 306644 133 ROLLER ARM BUSHING No Model Compatibility List $39.01 / Each

8,3
Roller Arm Bushing 101036 306644 133 1 Roller Arm Bushing No Model Compatibility List $50.99 / Each

8,3
RAMP SHIELD 109212 316014 134 RAMP SHIELD Yes Model Compatibility List $35.10 / Each

3,4,5,6
149038 322748 135 ROLLER ARM FLEX BRACKET No Model Compatibility List $20.35 / Each

2,8,3,4,5,6
101039 322749 136 PEDAL ARM FLEX BRACKET No Model Compatibility List $20.35 / Each

2,8,9,3,4,5,6
131807 322767 137 FLEX BRACKET COVER No Model Compatibility List $16.47 / Each

2,9,3,4,5,6
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
149039 322747 138 LEFT PEDAL BRACKET No Model Compatibility List $118.43 / Each

2,8,9,3,4,5,6
149040 322746 139 RIGHT PEDAL BRACKET No Model Compatibility List $118.43 / Each

2,8,9,3,4,5,6
PEDAL PLATE SPRING 101043 316278 140 PEDAL PLATE SPRING Yes Model Compatibility List $3.95 / Each

2,8,9
Pedal Spring 101043 316278 140 1 Pedal Spring Yes Model Compatibility List $20.99 / Each

2,8,9
101056 315610 141 SPRING SLEEVE No Model Compatibility List $1.17 / Each

2,3
109217 319068 142A LEFT PEDAL KNOB No Model Compatibility List $29.25 / Each

8,9
109218 319069 142B RIGHT PEDAL KNOB No Model Compatibility List $29.25 / Each

8,9
149041 322756 143 RIGHT PEDAL ADJ BRACKET No Model Compatibility List $74.11 / Each

2,8,9,3,4,5,6
RAMP BUSHING 101422 237616 144 RAMP BUSHING Yes Model Compatibility List $3.60 / Each

4,5,6,8,2
PEDAL PLATE SCREW 101049 256377 145 PEDAL PLATE SCREW Yes Model Compatibility List $9.83 / Each

2,8,9
Pedal Plate Screw 101049 256377 145 1 Pedal Plate Screw Yes Model Compatibility List $28.99 / Each

2,8,9
M4 X 16MM SCREW 106040 184369 146 M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
M10 X 56MM BOLT 100994 198497 147 M10 X 56MM BOLT Yes Model Compatibility List $5.14 / Each

2
Elliptical Bolt M10 X 56MM 100994 198497 147 1 Elliptical Bolt M10 X 56MM Yes Model Compatibility List $21.99 / Each

2
149042 322755 148 LEFT PEDAL ADJ BRACKET No Model Compatibility List $74.11 / Each

2,8,9,3,4,5,6
BASE PAD 100076 157600 149 BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
109115 173773 150 RECEIVER EXTENSION WIRE Yes Model Compatibility List $20.42 / Each

4,5,6
Snap Fastener 1008634 286527 156A 1 Snap Fastener Yes Model Compatibility List $1.91 / Each

1,2
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
8 100300 112083 # 8" BLUE WIRE, 2F Yes Model Compatibility List $3.26 / Each

1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,4,5,6
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

1,2
100084 142711 # 4" GRN WIRE, F/R, CNTRLR Yes Model Compatibility List $1.91 / Each

4,5,6,7
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
100602 166909 # PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

1,3,7,12,13,14
101603 197808 # DECAL, SITE WARNING, FCA No Model Compatibility List $3.92 / Each

1,3,7
IDLER SNAP RING 101063 243374 # IDLER SNAP RING Yes Model Compatibility List $1.32 / Each

2,8,1
101220 258871 # DECAL, GENERAL WARNING No Model Compatibility List $2.11 / Each

7,3
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
101065 304974 # 4MM ALLEN WRENCH No Model Compatibility List $3.11 / Each

2,1
101059 307216 # 50" LIFT MTR HRNS No Model Compatibility List $54.60 / Each

4,5,6,10,12,13,14
50 101058 307217 # 50" LIFT MTR HRNS, 2 CONN Yes Model Compatibility List $15.20 / Each

4,5,6,10,12,13,14
30 109030 307219 # 30 Yes Model Compatibility List $24.05 / Each

4,5,6,10
149044 317503 # DECAL, LEFT RAMP ANGLE No Model Compatibility List $4.65 / Each

7,3,4,5,6
149045 317504 # DECAL, RIGHT PEDAL ADJUST No Model Compatibility List $4.65 / Each

7,8,9,3
109228 318591 # DECAL, LEFT KNOB No Model Compatibility List $3.02 / Each

7,3
109229 318592 # DECAL, RIGHT KNOB No Model Compatibility List $3.02 / Each

7,3
109224 318596 # DECAL, LEFT RAMP ANGLE No Model Compatibility List $22.20 / Each

7,3,4,5,6
109225 318597 # DECAL, RIGHT RAMP ANGLE No Model Compatibility List $22.20 / Each

7,3,4,5,6
109231 321214 # OPTIONAL CHEST PULSE No Model Compatibility List $137.73 / Each

12,13,14
149046 322817 # USER-S MANUAL No Model Compatibility List $8.93 / Each

1
149043 322909 # CNSL REPROGRAMMING MODULE No Model Compatibility List $207.48 / Each

7
102010 328496 # 5 FRENCH DECALS ON 1SHEET No Model Compatibility List $78.23 / Each

7,3,1
149047 330713 # USER-S MANUAL, FCA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
IFIT WIFI ACCESSORY KIT 101226 EXIF12 # IFIT WIFI ACCESSORY KIT Yes Model Compatibility List $242.00 / Each

1
Idler Snap Ring 101063 243374 # 1 Idler Snap Ring Yes Model Compatibility List $17.99 / Each

2,8,1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
