ProForm - 920 S EKG

Repair Parts for ProForm 920 S EKG PFEVEX17010

Brand: ProForm

Category: Residential Upright Bikes

Type: Stationary Bikes

Model Name: 920 S EKG

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Poly V Drive Belt 6 Ribs 1000477 176559 0 1 Poly V Drive Belt 6 Ribs Yes Model Compatibility List $39.99 / Each

15
M8 Split Washer 1004202 014174 0 1 M8 Split Washer No Model Compatibility List $11.99 / Each

Leveling Foot Leveler 1008628 153280 0 1 Leveling Foot Leveler Yes Model Compatibility List $23.99 / Each

3
Rider Image Cycle Seat Screw #8 X 1/4 1011508 013585 0 1 Rider Image Cycle Seat Screw #8 X 1/4" Yes Model Compatibility List $11.99 / Each

REAR STABILIZER 147470 175588 3 REAR STABILIZER No Model Compatibility List $65.85 / Each

1
REAR STABLIZER ENDCAP 119994 175575 4 REAR STABLIZER ENDCAP Yes Model Compatibility List $25.50 / Each

4,5,6,9
121072 175641 5 SEAT POST No Model Compatibility List $103.44 / Each

12,13,14
121073 175923 6 SEAT BRACKET No Model Compatibility List $81.94 / Each

2,3,4,5,6,12,13,14
HANDLEBAR ENDCAP 120720 163342 7 HANDLEBAR ENDCAP Yes Model Compatibility List $5.69 / Each

4,5,6,9,11
116432 134537 11 M6 X 38MM BUTTON SCREW No Model Compatibility List $4.44 / Each

2
SEAT 104032 105022 12 SEAT Yes Model Compatibility List $140.55 / Each
Out Of Stock 		12,13,14
147471 175597 13 UPRIGHT No Model Compatibility List $68.96 / Each

3
121075 175637 14 UPRIGHT BUSHING No Model Compatibility List $24.53 / Each

8,3
121077 176475 17 LEFT SIDESHIELD No Model Compatibility List $146.08 / Each

3
121078 176476 18 RIGHT SIDESHIELD No Model Compatibility List $146.08 / Each

3
RSW CLAMP 100079 131090 22 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M5 X 6MM SCREW 101801 013585 23 M5 X 6MM SCREW Yes Model Compatibility List $1.65 / Each

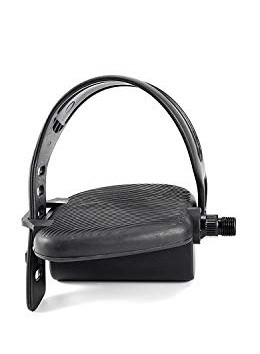

LEFT PEDAL W/STRAP 121081 180949 24 LEFT PEDAL W/STRAP Yes Model Compatibility List $61.42 / Each

8,9
121082 180951 25 PEDAL STRAP No Model Compatibility List $19.17 / Each

8,9
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
RIGHT PEDAL W/STRAP 121083 180950 26 RIGHT PEDAL W/STRAP Yes Model Compatibility List $61.42 / Each

8,9
116053 176994 28 SEAT KNOB No Model Compatibility List $33.15 / Each

12,13,14
121084 180221 29 M6 X 72MM BUTTON SCREW No Model Compatibility List $2.06 / Each

2
LEFT FRONT ENDCAP 119992 175584 31 LEFT FRONT ENDCAP No Model Compatibility List $16.36 / Each

1
RIGHT FRONT ENDCAP 120000 175585 32 RIGHT FRONT ENDCAP No Model Compatibility List $18.56 / Each

1
Right Front Stabilizer End Cap 000020 175585 32 1 Right Front Stabilizer End Cap No Model Compatibility List $26.99 / Each

1
121085 150321 33 M6 X 25.4MM BUTTON SCREW No Model Compatibility List $1.44 / Each

2
RESISTANCE MOTOR 100647 193223 34 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
UPPER WIRE HARNESS 102040 175904 36 UPPER WIRE HARNESS No Model Compatibility List $76.57 / Each

1
121086 177036 37 FLYWHEEL W/BRNGS No Model Compatibility List $256.18 / Each

8
ROLLER MAGNET 100081 113842 38 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
147472 175636 39 FLYWHEEL AXLE No Model Compatibility List $14.74 / Each

8
FLYWHEEL BEARING 101781 177035 40 FLYWHEEL BEARING No Model Compatibility List $63.94 / Each

8
Upper Handlebar End Cap (used) 1015739 163342a 40 2 Upper Handlebar End Cap (used) No Model Compatibility List $11.39 / Each
Out Of Stock 		9
121088 176547 42 LEFT CRANK ARM No Model Compatibility List $119.42 / Each

8,3
120928 181488 43 REED SWITCH No Model Compatibility List $12.22 / Each

4,5,6
BEARING 100657 139703 44 BEARING Yes Model Compatibility List $19.00 / Each

1
M5 NUT 102054 144520 45 M5 NUT No Model Compatibility List $0.67 / Each

2
123206 162701 46 RESISTANCE CABLE ASSY No Model Compatibility List $11.26 / Each

4,5,6,10
121089 182841 47 RETURN SPRING No Model Compatibility List $20.38 / Each

2
M10 SPLIT WASHER 101359 121519 50 M10 SPLIT WASHER No Model Compatibility List $4.44 / Each

2
106039 144379 51 M10 X 25MM BUTTON BOLT No Model Compatibility List $1.44 / Each

2
8 X 1 Inch SCREW 101799 154848 52 8 X 1 Inch SCREW No Model Compatibility List $1.23 / Each

2
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
M10 X 25MM FLTHD SCREW 114623 163977 55 M10 X 25MM FLTHD SCREW No Model Compatibility List $6.66 / Each

2
119969 180223 56 5/16" X 25MM FLANGE SCREW No Model Compatibility List $3.49 / Each

2
116052 142255 57 CRANK ARM No Model Compatibility List $108.00 / Each

8,3
M4 X 5MM SCREW 117099 013497 58 M4 X 5MM SCREW No Model Compatibility List $2.57 / Each

M8 X 40MM BUTTON SCREW 102047 153770 59 M8 X 40MM BUTTON SCREW Yes Model Compatibility List $10.57 / Each

2
M6 NUT 100663 012111 60 M6 NUT Yes Model Compatibility List $3.31 / Each

M10 LARGE WASHER 106291 130286 62 M10 LARGE WASHER No Model Compatibility List $8.46 / Each

2
M10 LOCKNUT 100540 148710 63 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
121091 180222 65 M10 X 112MM CARRIAGE BOLT No Model Compatibility List $9.50 / Each

2
8X.625 SCREW 100668 144985 66 8X.625 SCREW No Model Compatibility List $0.22 / Each

2
FRAME CUSHION 100684 153280 67 FRAME CUSHION Yes Model Compatibility List $13.94 / Each

3
147473 175638 68 FLYWHEEL SPACER No Model Compatibility List $1.02 / Each

2,8,3,4,5,6
117875 012105 69 M8 FLANGE NUT No Model Compatibility List $2.43 / Each

1
M8 SPLIT WASHER 100665 014174 70 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

102372 123325 71 #8 BELT GUIDE SCREW No Model Compatibility List $0.30 / Each

2,15
DRIVE BELT 115718 176559 72 DRIVE BELT Yes Model Compatibility List $39.99 / Each

15
100887 161903 73 M4 WASHER No Model Compatibility List $0.10 / Each

2
LARGE SNAP RING 100654 143742 74 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
Cover Battery Console (Used) 1023092 176718 1006 1 Cover Battery Console (Used) No Model Compatibility List $7.81 / Each
Out Of Stock 		1
THRUST WASHER 101351 116014 # THRUST WASHER No Model Compatibility List $8.36 / Each

2,12,13,14,1
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
120781 151249 # WARNING DECAL No Model Compatibility List $4.65 / Each

7,3
JACK 100386 158332 # JACK Yes Model Compatibility List $7.66 / Each

1
100706 165288 # IFIT SPLITTER No Model Compatibility List $11.26 / Each

1
AUDIO CABLE 100385 167079 # AUDIO CABLE Yes Model Compatibility List $17.61 / Each

1
119879 176564 # CUP HOLDER No Model Compatibility List $20.45 / Each

1
BOOK RACK 119880 176565 # BOOK RACK Yes Model Compatibility List $4.37 / Each

4,5,6
152260 179387 # USER-S MANUAL, UK No Model Compatibility List $8.13 / Each

1
152261 179388 # USER-S MANUAL, FRENCH No Model Compatibility List $8.13 / Each

1
152262 179389 # USER-S MANUAL, GERMAN No Model Compatibility List $8.13 / Each

1
152263 179510 # USER-S MANUAL, ITALIAN No Model Compatibility List $8.13 / Each

1
152264 179511 # USER-S MANUAL, SPANISH No Model Compatibility List $8.13 / Each

1
152258 180210 # CN-ASSY UPDATE, STEP 3 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
120933 186064 # CONSOLE WARNING DECAL No Model Compatibility List $10.33 / Each

7,3
6MM ALLEN WRENCH 100541 045021 # 6MM ALLEN WRENCH Yes Model Compatibility List $5.28 / Each

1
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $19.00 / Each

1
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Round endcap (New) 1038181 163342 Round endcap (New) Yes Model Compatibility List $6.91 / Each

4,5,6,9,11
Locking Nut 21-CD7-KR (Used) 1007264 060714 Locking Nut 21-CD7-KR (Used) Yes Model Compatibility List $7.79 / Each

1
