ProForm - AB GLIDER PLATINUM

Repair Parts for ProForm AB GLIDER PLATINUM PFBE194112

Brand: ProForm

Category: Abdominal

Type: Strength Systems

Model Name: AB GLIDER PLATINUM

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
1/4 100042 014063 35 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
100887 161903 48 M4 WASHER No Model Compatibility List $0.10 / Each

2
119628 164199 45 M13 WASHER No Model Compatibility List $1.44 / Each

2
147086 173425 51 INCLINE PIN No Model Compatibility List $8.59 / Each

10,12,13,14
100691 183633 49 M5 WASHER No Model Compatibility List $0.23 / Each

2
101345 213717 52 M5 X 16MM SCREW No Model Compatibility List $0.64 / Each

2
116914 220148 9 M5 X 20MM SELF-TAP SCREW No Model Compatibility List $1.03 / Each

2
M4 X 25MM SCREW 100788 224606 47 M4 X 25MM SCREW Yes Model Compatibility List $0.52 / Each

2
HAND GRIP 113316 226956 17 HAND GRIP Sub Assembly Yes Model Compatibility List $6.85 / Each

11,1
117089 234181 37 M4 X 40MM SCREW No Model Compatibility List $0.31 / Each

2
107143 239245 31 M4 X 20MM SCREW No Model Compatibility List $1.17 / Each

2
104448 242419 34 M8 WASHER No Model Compatibility List $0.26 / Each

2
100534 246785 28 M6 X 15MM SCREW No Model Compatibility List $2.60 / Each

2
M4 X 12MM MACHINE SCREW (New) 108957 251429 36 M4 X 12MM MACHINE SCREW (New) No Model Compatibility List $11.99 / Each

2,4,5,6
M8 NUT 100030 256446 38 M8 NUT No Model Compatibility List $0.69 / Each

2
110489 259547 39 M8 CURVED WASHER No Model Compatibility List $0.52 / Each

2
M8 X 15MM SCREW 101836 270796 29 M8 X 15MM SCREW No Model Compatibility List $1.86 / Each

2
119625 297037 43 PIVOT WASHER No Model Compatibility List $0.94 / Each

2,8
119623 297038 41 LARGE WASHER No Model Compatibility List $15.20 / Each

2
119605 297042 12 BUMPER No Model Compatibility List $5.81 / Each

1
146918 297077 27 PIN No Model Compatibility List $17.70 / Each
Out Of Stock 		12,13,14
147048 298986 13 PIVOT FRAME CAP No Model Compatibility List $6.97 / Each

8,9,3
119615 309214 24 M3 X 15MM SCREW No Model Compatibility List $0.94 / Each

2
147043 316129 8A IF 1 SEND CNSL 316129 No Model Compatibility List $60.30 / Each

7
119632 319729 8B BATTERY DOOR No Model Compatibility List $2.32 / Each

1
119613 322291 22 LARGE MAGNET MOUNT No Model Compatibility List $17.39 / Each

2,8
119616 322390 25 ROLLER SPACER No Model Compatibility List $24.05 / Each

2,8,3,4,5,6
119603 322392 10 STABILIZER FOOT No Model Compatibility List $13.27 / Each

9
119626 322393 44A FRONT STABLIZER ENDCAP No Model Compatibility List $1.17 / Each

9,4,5,6
119612 322394 21 CARRIAGE CAP No Model Compatibility List $2.09 / Each

9
119624 322395 42 LOWER HANDLEBAR CAP No Model Compatibility List $0.94 / Each

9,11
146909 322397 # DVD, 3 MINUTE RESULTS No Model Compatibility List $8.11 / Each

2
146910 322398 # DVD, 2-IN-1 EASY AB PLUS No Model Compatibility List $10.55 / Each

1
147087 322567 # DVD, SLEEK AND SEXY ARMS No Model Compatibility List $8.11 / Each

3
147080 322597 3 PIVOT FRAME No Model Compatibility List $250.26 / Each

8,3
147083 322602 6 CARRIAGE No Model Compatibility List $67.67 / Each

1
119617 322619 26 FOOT INSERT No Model Compatibility List $13.27 / Each

9
114896 322620 50 PAD TUBE CAP No Model Compatibility List $21.57 / Each

9,3,12,13,14
119607 322621 14 SLEEVE No Model Compatibility List $40.95 / Each

3
119614 322709 23 SMALL MAGNET MOUNT No Model Compatibility List $78.00 / Each

2,8
119610 322711 19 UPPER ROLLER No Model Compatibility List $55.58 / Each

8
147090 322712 # HARDWARE KIT No Model Compatibility List $35.10 / Each

1
119611 322721 20 LOWER ROLLER No Model Compatibility List $12.29 / Each

8
147084 322830 7 KNEE PAD No Model Compatibility List $148.31 / Each

12,13,14
119636 323058 # DECAL, WARNING No Model Compatibility List $6.23 / Each

7,3
147088 324930 # DVD, AWESOME OBLIQUES No Model Compatibility List $8.11 / Each

1
147089 324931 # DVD, CORE BOOT CAMP No Model Compatibility List $8.11 / Each

4,5,6
119620 325743 32 ROLLER AXLE No Model Compatibility List $9.58 / Each

8
119619 325978 30 M8 X 145MM BOLT No Model Compatibility List $39.01 / Each

2
147082 326074 5 HANDLEBAR No Model Compatibility List $117.01 / Each

11
147081 326303 4 FRONT STABILIZER No Model Compatibility List $159.72 / Each

1
119622 327574 40 UPPER BUSHING No Model Compatibility List $16.79 / Each

8
146912 327577 2 REAR STABILIZER No Model Compatibility List $112.79 / Each

1
119629 327579 46 LOWER BUSHING No Model Compatibility List $16.79 / Each

8
119627 327948 44B REAR STABLIZER ENDCAP No Model Compatibility List $6.05 / Each

9,4,5,6
119608 327949 15 MAIN FRAME CAP No Model Compatibility List $9.83 / Each

9,3
119609 331245 16 STOP No Model Compatibility List $18.50 / Each

1
147094 345520 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
119604 346731 11 FRAME FOOT No Model Compatibility List $19.61 / Each

9,3
147093 350161 33 PIVOT FRAME COVER No Model Compatibility List $24.41 / Each

8,9,3
147092 PFSPK12 # OPTIONAL WEIGHT KIT No Model Compatibility List $21.99 / Each

3
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2

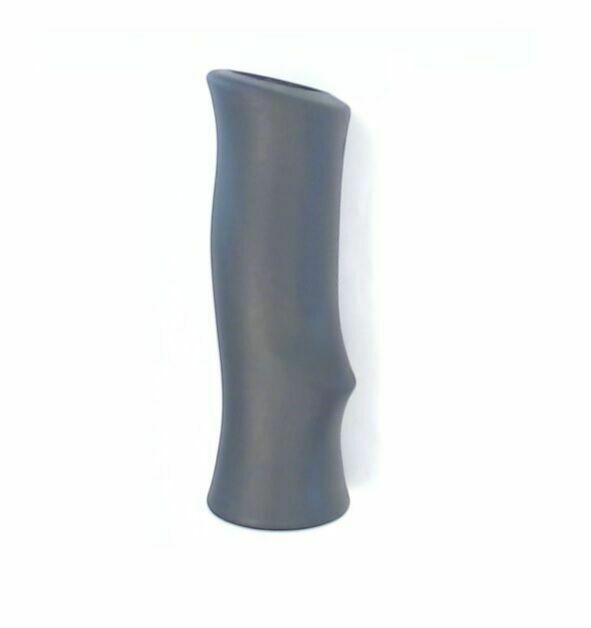

Handlebar Grip 1010913 226956 0 1 Handlebar Grip Yes Model Compatibility List $19.99 / Each

11,1
