ProForm - CROSSWALK 405 E

Repair Parts for ProForm CROSSWALK 405 E 831.246330

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: CROSSWALK 405 E

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Epic Gold-s Gym HealthRider Image Treadmill IFIT Audio Jack Wire 157646 (Used) 1004634 400 MX-AJW 0 1 Epic Gold-s Gym HealthRider Image Treadmill IFIT Audio Jack Wire 157646 (Used) No Model Compatibility List $17.99 / Each

1,4
Nylock Nut 013265 012149 0 1 Nylock Nut No Model Compatibility List $12.99 / Each

Idler Arm Washer 013273 014132 0 1 Idler Arm Washer No Model Compatibility List $14.99 / Each

Cable Tie 013293 016057 0 1 Cable Tie No Model Compatibility List $20.99 / Each

Allen Wrench 5/32 013295 045023 0 1 Allen Wrench 5/32" No Model Compatibility List $11.99 / Each

Step Round Bumper Endcap 013354 126650 0 1 Step Round Bumper Endcap Yes Model Compatibility List $15.59 / Each

1
Rear Platform Nut 013359 136012 0 1 Rear Platform Nut No Model Compatibility List $11.99 / Each

1
Treadbelt 1002014 248753 0 1 Treadbelt Yes Model Compatibility List $136.99 / Each

23
Speed sensor 1002534 185207 0 1 Speed sensor Yes Model Compatibility List $21.49 / Each

47
Split Washer 1/4 1004205 014126 0 1 Split Washer 1/4" No Model Compatibility List $10.99 / Each

#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Star Washer 1010876 014064 0 1 Star Washer No Model Compatibility List $11.99 / Each

Handlebar Grip 1010913 226956 0 1 Handlebar Grip Yes Model Compatibility List $19.99 / Each

11,1
Upper Body Arm Endcap 1010916 227163 0 1 Upper Body Arm Endcap No Model Compatibility List $19.99 / Each

3,1
RPM Speed Sensor Reed Switch 40 1010920 160068 0 1 RPM Speed Sensor Reed Switch 40" No Model Compatibility List $23.99 / Each

4,5,6
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Housing, Latch 1027645 245488 0 1 Housing, Latch No Model Compatibility List $7.79 / Each
Out Of Stock

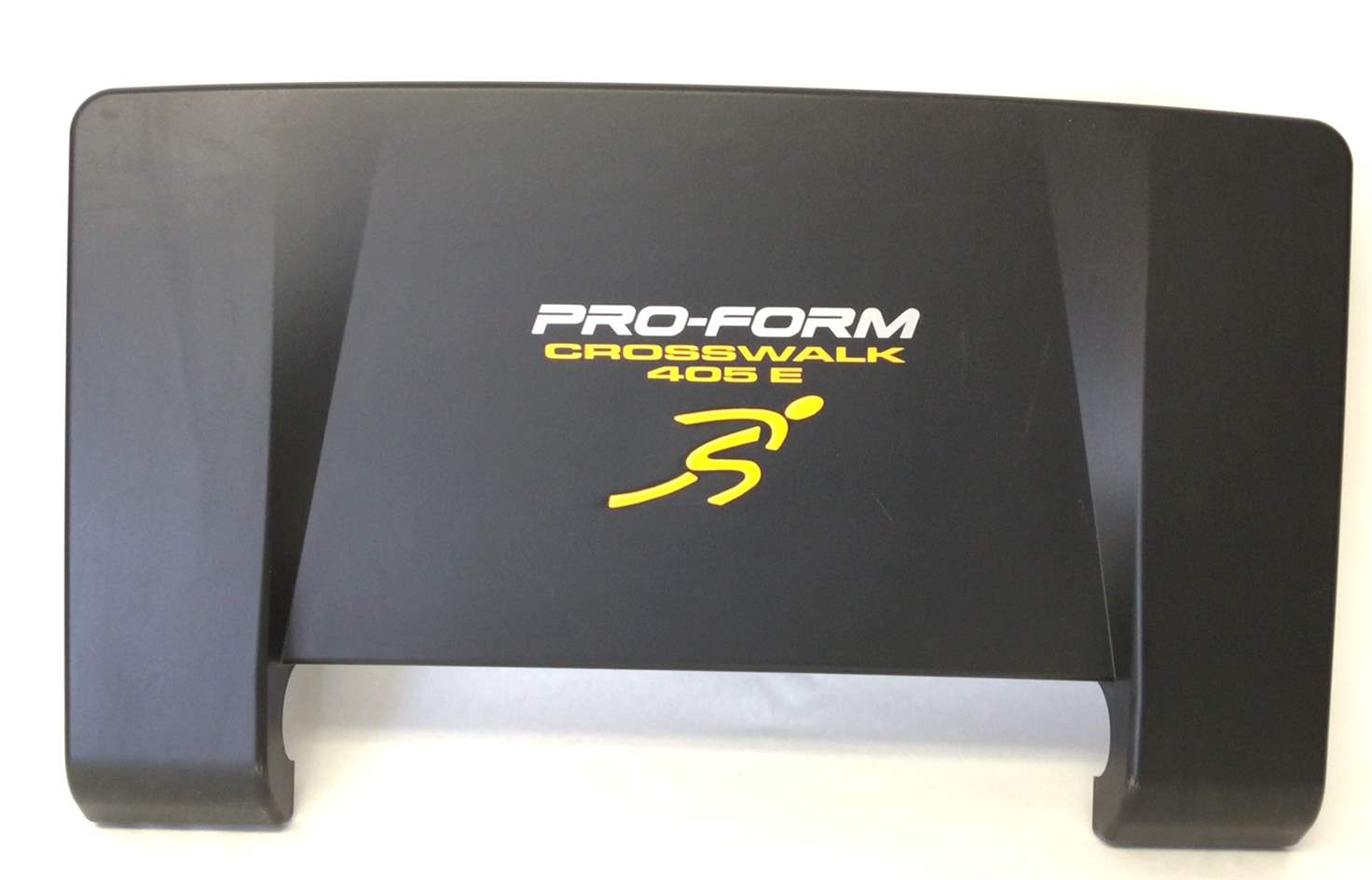

HOOD 161149 248090 1 HOOD Yes Model Compatibility List $90.01 / Each

9
Screw 3/8 1010891 181980 2 1 Screw 3/8" X 1 3/4" Yes Model Compatibility List $2.39 / Each

2

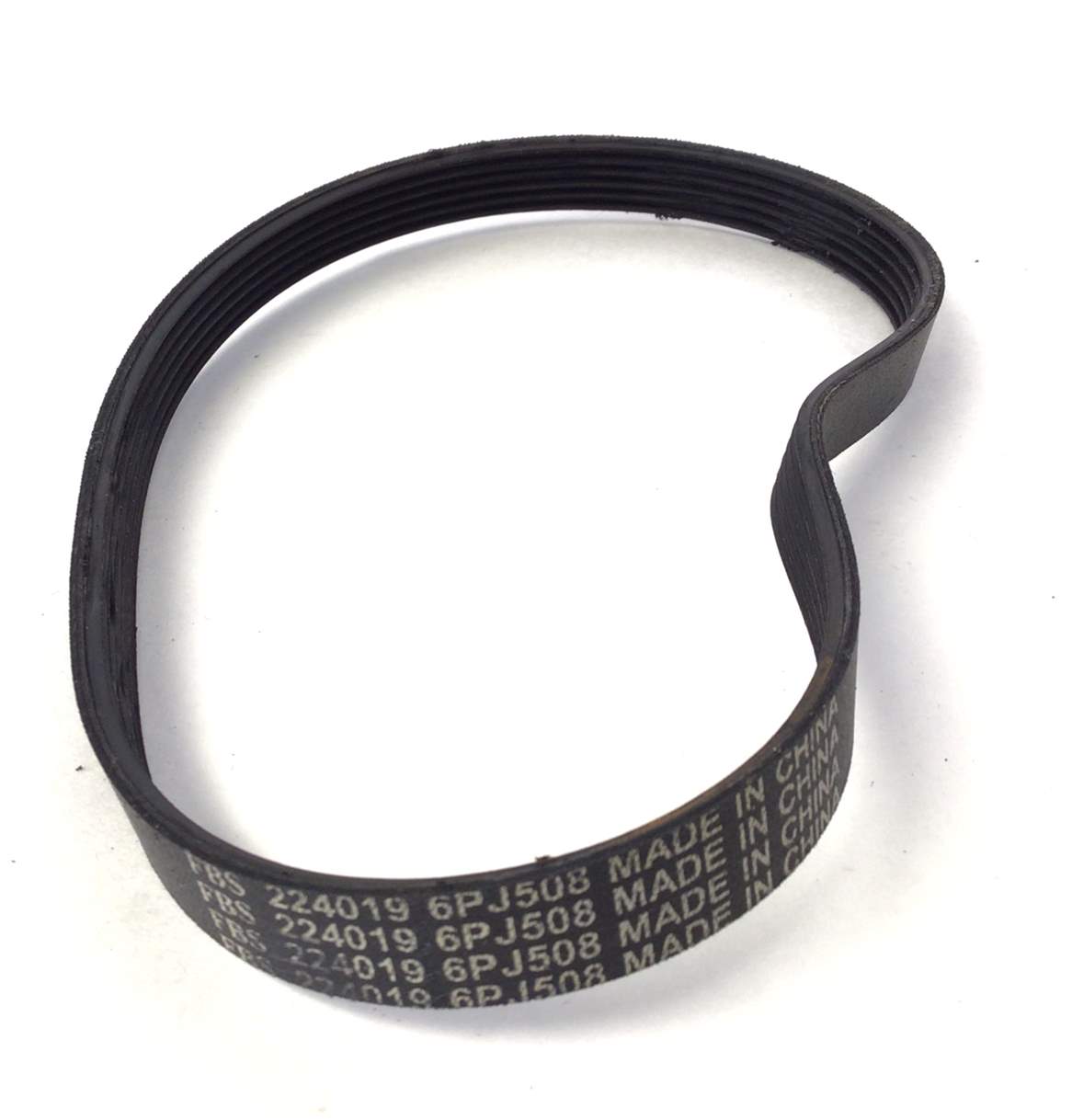

MOTOR BELT 119368 247956 3 MOTOR BELT Yes Model Compatibility List $21.68 / Each

1,23
Belt Drive pfnt200j6 247956 3 1 Belt Drive Yes Model Compatibility List $29.99 / Each

1,23
SCREW,Hex,3/8-16X.75 113294 117332 4 SCREW,Hex,3/8-16X.75" No Model Compatibility List $2.02 / Each

2
3/8 103764 104478 6 3/8" FLAT WASHER No Model Compatibility List $1.32 / Each

2
REED SWITCH WIRE 112269 160068 10 REED SWITCH WIRE No Model Compatibility List $12.45 / Each

4,5,6
100280 256836 11 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100257 256840 11A FRENCH LATCH WRNG DECAL No Model Compatibility List $0.78 / Each

7,3
157142 241172 12 FRAME SPACER No Model Compatibility List $16.53 / Each

2,3,4,5,6
WHEEL BOLT 102266 223785 14 WHEEL BOLT No Model Compatibility List $4.59 / Each

2,8
117938 124614 15 REAR PLATFORM BOLT No Model Compatibility List $2.55 / Each

2

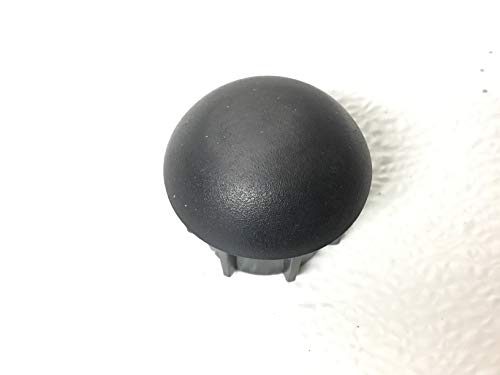

LOWER HANDRAIL ENDCAP 119371 201469 16 LOWER HANDRAIL ENDCAP Yes Model Compatibility List $5.17 / Each

3,4,5,6,9
FRONT ROLLER/PULLEY 157143 248056 17 FRONT ROLLER/PULLEY Yes Model Compatibility List $97.01 / Each
Out Of Stock 		8
ROLLER MAGNET 100081 113842 18 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
MOTOR PIVOT BOLT 118371 104925 3/8 -16 X 4.5 19 MOTOR PIVOT BOLT No Model Compatibility List $5.91 / Each

2,8
MOTOR BOLT 111182 215360 20 MOTOR BOLT Yes Model Compatibility List $3.28 / Each

2

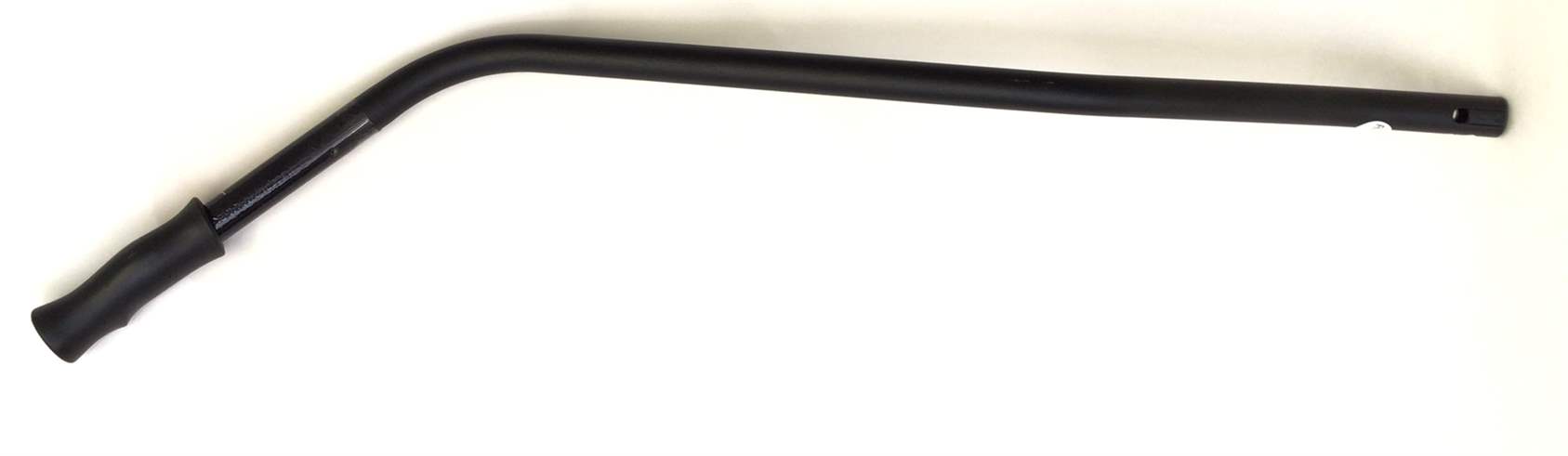

Arm Upper Right (Used) 1023828 248102 21 1 Arm Upper Right (Used) No Model Compatibility List $35.99 / Each

1
#8 HOOD CLIP 100032 133333 22 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
REAR ROLLER ADJ. BOLT 100250 305744 23 REAR ROLLER ADJ. BOLT Yes Model Compatibility List $19.99 / Each

2,8
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
MOTOR BRACKET 113290 241040 24 MOTOR BRACKET Yes Model Compatibility List $10.52 / Each
2,3,4,5,6
119360 251052 25 REAR ROLLER BRACKET No Model Compatibility List $25.44 / Each

2,8,3,4,5,6
#8 X 3/4 100132 013607 26 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

1
SEAT RAIL FLANGE NUT 104004 120867 28 SEAT RAIL FLANGE NUT Yes Model Compatibility List $3.75 / Each

1
LATCH 102233 223504 30 LATCH Yes Model Compatibility List $3.36 / Each

1
LEFT REAR ENDCAP 117940 222507 31 LEFT REAR ENDCAP Yes Model Compatibility List $10.22 / Each

9,4,5,6
142560 241119 32 BOOK RACK No Model Compatibility List $6.74 / Each

4,5,6
#12 X 1 1/4 102772 251607 33 #12 X 1 1/4" No Model Compatibility List $1.67 / Each

2
IDLER WHEEL BOLT 100229 162866 34 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

2,8
5/16 100472 014073 36 5/16" WASHER Yes Model Compatibility List $1.25 / Each

Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Rail Foot Left (Used) 1027353 253878 39 1 Rail Foot Left (Used) No Model Compatibility List $23.99 / Each

1
100344 200747 40 GROUND WIRE No Model Compatibility List $2.56 / Each

4,5,6
RESISTANCE ASSEMBLY 113317 316450 41 RESISTANCE ASSEMBLY Yes Model Compatibility List $64.91 / Each
10
UPRIGHT WIRE 102804 248079 42 UPRIGHT WIRE Yes Model Compatibility List $74.82 / Each

3,4,5,6
Console Display (Used) 1030517 248100 43 1 Console Display (Used) No Model Compatibility List $159.00 / Each
Out Of Stock

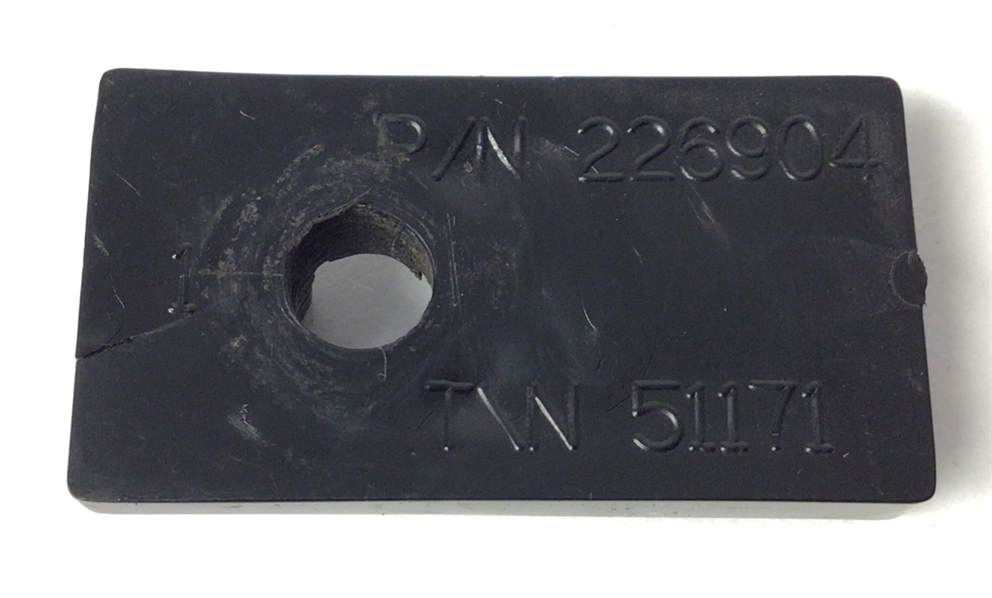

REAR ROLLER PLATE 119354 226904 44 REAR ROLLER PLATE Yes Model Compatibility List $2.79 / Each

8

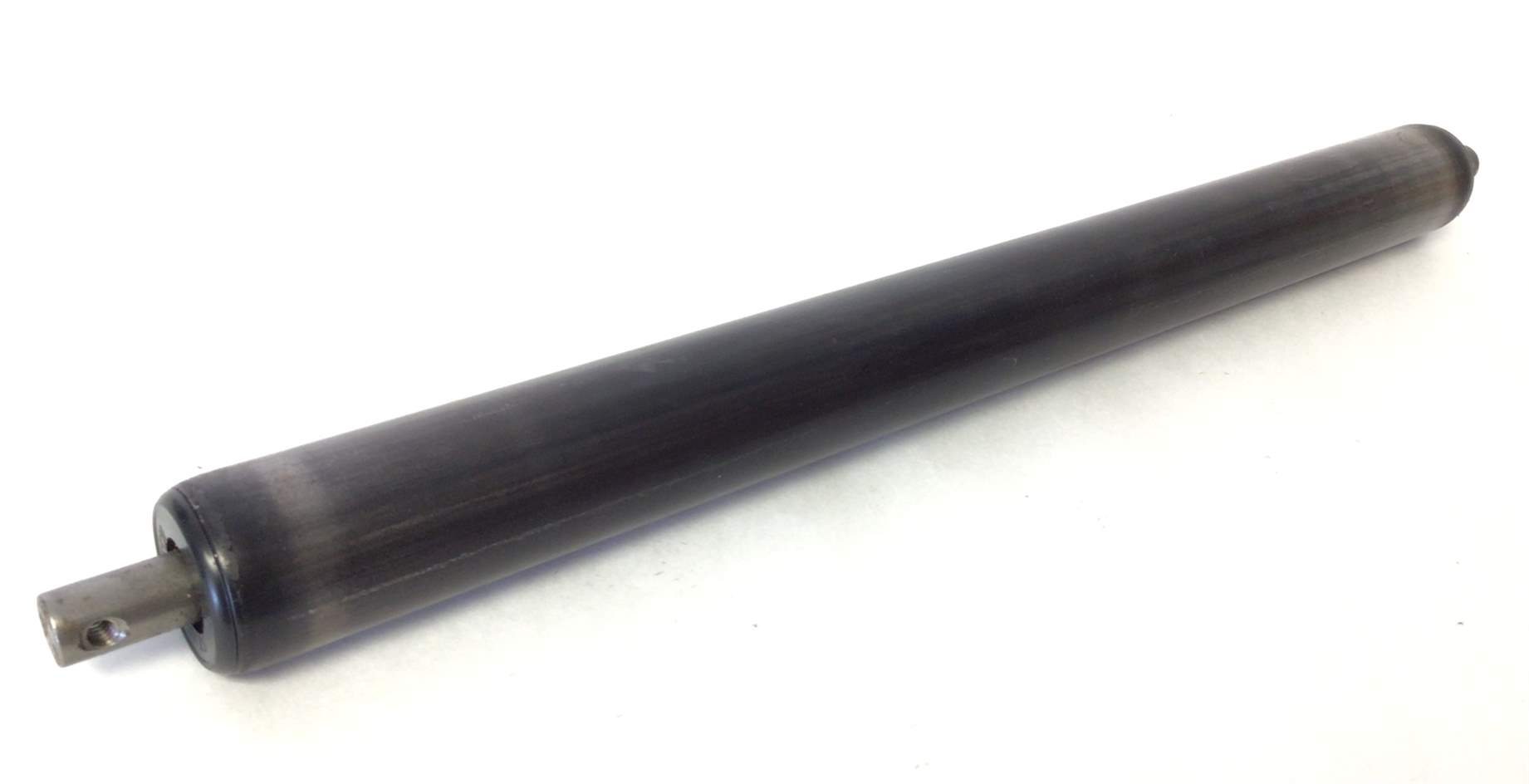

REAR ROLLER 157144 248057 45 REAR ROLLER Yes Model Compatibility List $110.83 / Each
8
161150 241207 47 CONSOLE BASE No Model Compatibility List $87.70 / Each
Out Of Stock 		7,3
UPPER BODY ARM INSERT 113319 227163 48 UPPER BODY ARM INSERT Part # 85 on diagram No Model Compatibility List $5.48 / Each

3,1
WIRE TIE 100073 132315 49 WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6
INCLINE MOTOR 157146 248062 51 INCLINE MOTOR Yes Model Compatibility List $138.24 / Each

10
106965 247587 52 INCLINE MOTOR BOLT, LOWER No Model Compatibility List $1.94 / Each

2
HOOD SCREW 100354 013316 53 HOOD SCREW No Model Compatibility List $1.42 / Each

M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
100365 141225 54 UPRIGHT BOLT No Model Compatibility List $2.38 / Each

2,3
REAR ROLLER WASHER 100283 014126 55 REAR ROLLER WASHER No Model Compatibility List $1.10 / Each

INCLINE/CONTROLLER WIRE 102354 223520 56 INCLINE/CONTROLLER WIRE Yes Model Compatibility List $9.35 / Each

4,5,6,7,8,10
#8 X 3/4 100149 013300 58A #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
CONTROLLER 102317 408938 59 CONTROLLER Yes Model Compatibility List $197.44 / Each

7,8
157147 241008 60 LIFT FRAME No Model Compatibility List $87.03 / Each

3,10
FOOT 101638 204005 61 FOOT Yes Model Compatibility List $4.09 / Each
9
100268 213350 62A WRNG DECAL,OM HAS CAUTION No Model Compatibility List $5.96 / Each

7,3,1
100178 252433 62 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
157148 248089 63 EXTENSION LEG No Model Compatibility List $30.43 / Each

1
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,40
40MM X 50MM INT ENDCAP 106302 117544 65 40MM X 50MM INT ENDCAP Yes Model Compatibility List $3.12 / Each

1
PLATFORM NUT 100252 136012 67 PLATFORM NUT No Model Compatibility List $1.47 / Each

1
8 100063 016057 68 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
161151 248088 69 UPRIGHT No Model Compatibility List $266.44 / Each

3

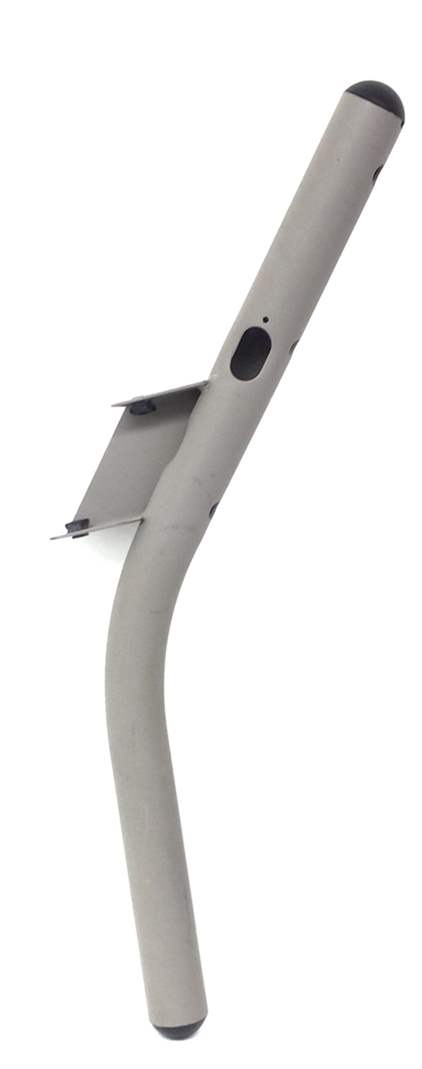

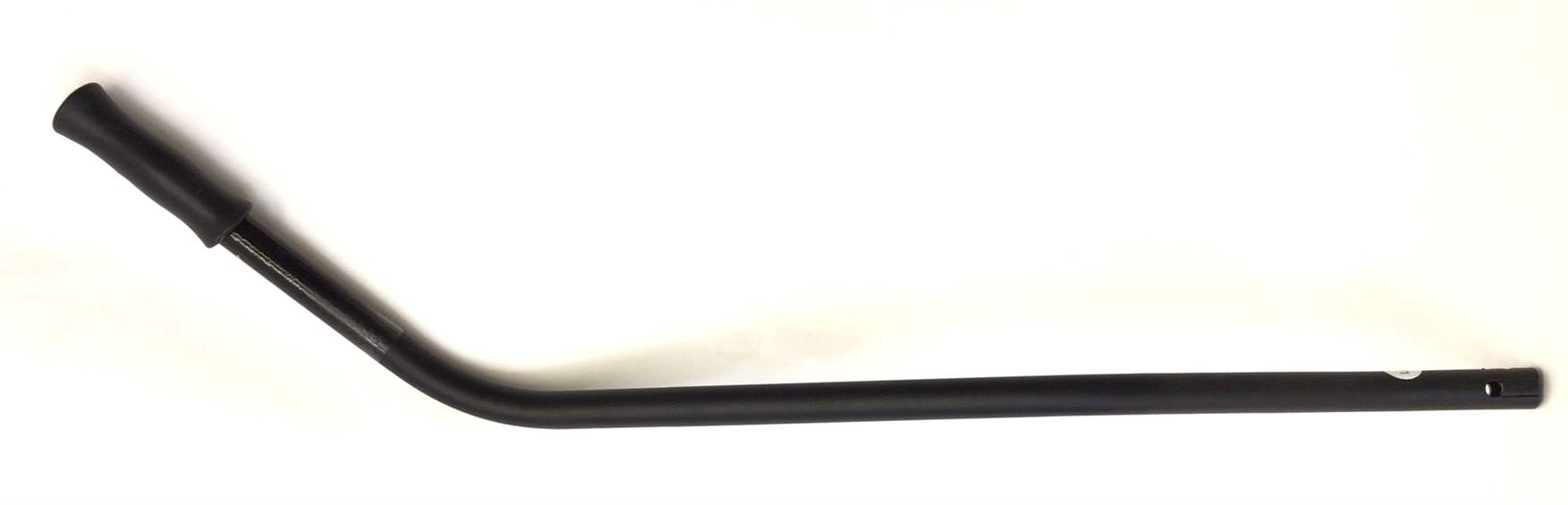

Handlebar (Used) 1030370 248061 71 2 Handlebar (Used) No Model Compatibility List $17.99 / Each

WALKING BELT 161152 248059 72 WALKING BELT Yes Model Compatibility List $119.83 / Each

1
119386 220996 73 INCLINE STOP BRACKET No Model Compatibility List $3.56 / Each

2,3,4,5,6,10
LT UPPER BODY ARM W/GRIP 157151 248101 76 LT UPPER BODY ARM W/GRIP Yes Model Compatibility List $95.37 / Each
Out Of Stock 		3,11
161153 229156 77 HAND GRIP No Model Compatibility List $13.59 / Each

11
157152 248074 78 RIGHT FOOT RAIL No Model Compatibility List $57.76 / Each

9
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
POWER SWITCH 100201 186726 80 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
157153 241174 81 BELLY PAN No Model Compatibility List $76.74 / Each

1
BELT GUIDE 100040 198640 82 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
#8 X 1/2 100137 136728 83 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
103729 126942 84 #8 X 3/4" SCREW No Model Compatibility List $0.24 / Each

2
Spring Deck (Used) 1023761 248055 85 1 Spring Deck (Used) No Model Compatibility List $24.59 / Each

1
RELEASABLE WIRE TIE 100064 116926 87 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4

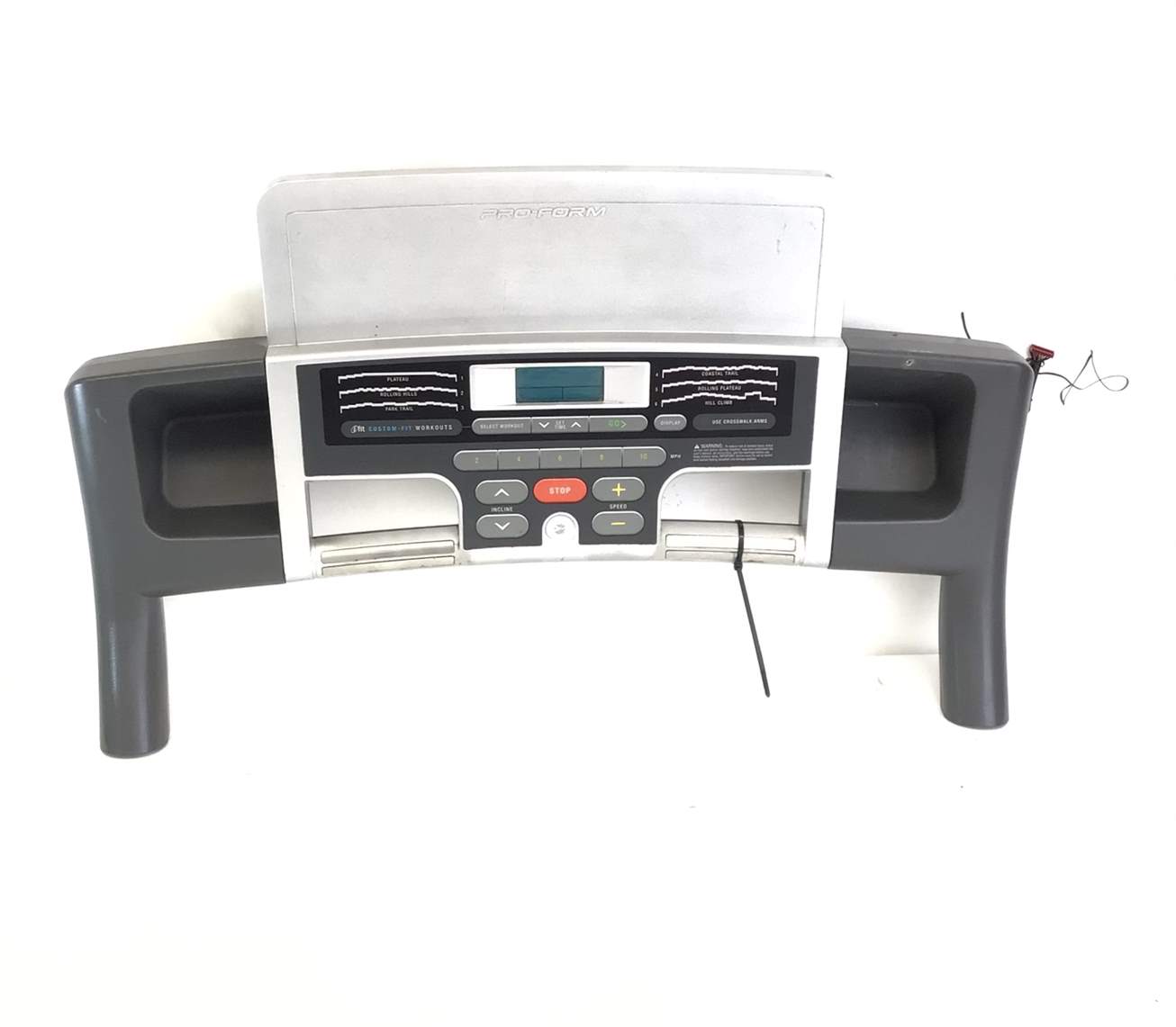

Console Display (Used) 1029346 252190 87 1 Console Display (Used) No Model Compatibility List $159.00 / Each
Out Of Stock 		30
GROMMET 100061 173169 90 GROMMET Yes Model Compatibility List $0.94 / Each

1,2
RSW CLAMP 100079 131090 91 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
103169 183824 92 ELECTRONICS SCREW No Model Compatibility List $0.19 / Each

2
HANDRAIL COVER CAGE NUT 103818 125198 97 HANDRAIL COVER CAGE NUT Yes Model Compatibility List $3.25 / Each

1
117948 246727 99 UPPER INCLINE MOTOR BOLT No Model Compatibility List $1.51 / Each

2,10
RIGHT REAR ENDCAP 117941 222508 102 RIGHT REAR ENDCAP Yes Model Compatibility List $10.22 / Each

9,4,5,6
U-NUT 100462 012179 103 U-NUT No Model Compatibility List $4.42 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Self Drilling Cover Screw 013268 013300 123 1 Self Drilling Cover Screw Yes Model Compatibility List $15.59 / Each

Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
Power Entry On/Off Switch 1004418 186726 128 Power Entry On/Off Switch Yes Model Compatibility List $16.42 / Each

6
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8

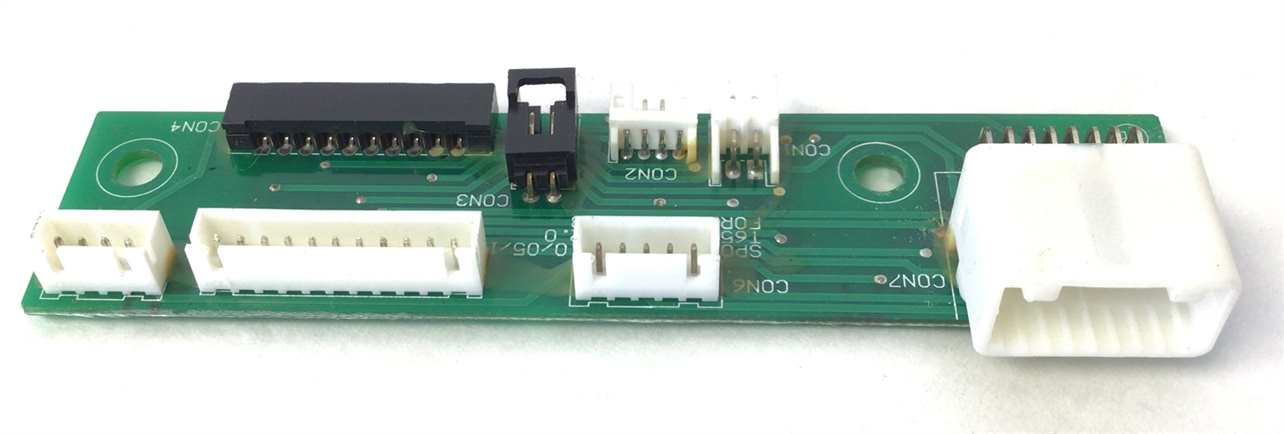

Bridge Board (Used) 1027803 T652-213 742 Bridge Board (Used) No Model Compatibility List $36.59 / Each

1
4 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

1,4
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,4,5,6
MOTOR WASHER 113293 122812 # MOTOR WASHER No Model Compatibility List $1.53 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

4,5,6
157155 138628 # DECAL, SPACE SAVER No Model Compatibility List $1.78 / Each

7,3,4,5,6
100302 016063 # WIRE TIE No Model Compatibility List $0.60 / Each

113323 194526 # CONTROLLER GROUND WIRE No Model Compatibility List $2.33 / Each

7,8,4,5,6
121264 195942 # "PROFORM" LOGO DECAL No Model Compatibility List $7.34 / Each

7,3
112925 198084 # 6" RED WIRE, M/F No Model Compatibility List $3.07 / Each

4,5,6
112373 200167 # 11" CABLE TIE No Model Compatibility List $0.34 / Each

2,4,5,6
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $9.99 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

1,2,4,5,6
157157 240685 # DECAL, HOOD, RUNNING MAN No Model Compatibility List $11.42 / Each

7,9,3
157158 240687 # DECAL, CROSSWALK ARM No Model Compatibility List $1.74 / Each

7,3
161154 241514 # DECAL, HOOD No Model Compatibility List $5.60 / Each

7,9,3
161155 241518 # TECH SHEET No Model Compatibility List $0.87 / Each

1
161157 253024 # USER-S MANUAL,FCA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
Belt Adjustment Tool 013752 128457 # 1 Belt Adjustment Tool No Model Compatibility List $18.74 / Each

1
3/8 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
104109 126970 . RESISTOR BOX SCREW No Model Compatibility List $1.82 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
3/8 100017 013544 . 3/8" BOLT No Model Compatibility List $2.87 / Each

EXTENSION LEG BOLT 100465 138797 . EXTENSION LEG BOLT Yes Model Compatibility List $11.99 / Each

2
1/4 100042 014063 . 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

3/8 102446 014117 . 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
1/2 102653 174801 . 1/2" X 1/2" SCREW No Model Compatibility List $0.52 / Each

2
1/4 111553 188958 . 1/4" STAR WASHER No Model Compatibility List $0.39 / Each

2
WHEEL 100034 199545 . WHEEL Yes Model Compatibility List $4.12 / Each

8,45
KEY/CLIP 100072 208603 . KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
144107 209745 . STORAGE LATCH SPACER No Model Compatibility List $3.02 / Each

2,3,4,5,6
EXTENSION LEG NUT 102261 223547 . EXTENSION LEG NUT Yes Model Compatibility List $3.06 / Each
Out Of Stock 		2
118496 227496 . EXTENSION LEG BOLT No Model Compatibility List $2.31 / Each

2
LATCH INSERT 117358 228101 . LATCH INSERT Yes Model Compatibility List $9.93 / Each

1
157162 241269 . HARDWARE KIT NOTE: No Model Compatibility List $37.75 / Each

1
161156 241520 . USER-S MANUAL No Model Compatibility List $22.29 / Each

1
LATCH PIN ASSEMBLY 113292 247310 . LATCH PIN ASSEMBLY Yes Model Compatibility List $49.83 / Each
Out Of Stock 		12,13,14,40
1 5/32 100191 045023 . 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

Star Washer 5/16 100449 014149 . 1 Star Washer 5/16" Yes Model Compatibility List $12.99 / Each

Flexonic Motor Belt 1003323 275608 or 253569 Flexonic Motor Belt No Model Compatibility List $62.99 / Each

Motor Controller Board 1001217 241697 Motor Controller Board Yes Model Compatibility List $159.00 / Each
Out Of Stock
Drive Motor 1002395 190621 or 171965 Drive Motor Yes Model Compatibility List $229.00 / Each

Black Jumper R-R 8 Inch 1036849 200747 Black Jumper R-R 8 Inch Yes Model Compatibility List $5.00 / Each
Out Of Stock 		4,5,6
Round Bumper Step (New) 1013016 126650 Round Bumper Step (New) Yes Model Compatibility List $12.99 / Each

1
Locking Nut 21-CD7-KR (Used) 1007264 060714 Locking Nut 21-CD7-KR (Used) Yes Model Compatibility List $7.79 / Each

1
Screw (New) 104355 102959 Screw (New) Yes Model Compatibility List $11.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
