ProForm - CROSSWALK CALIBER

Exploded Diagrams

loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price

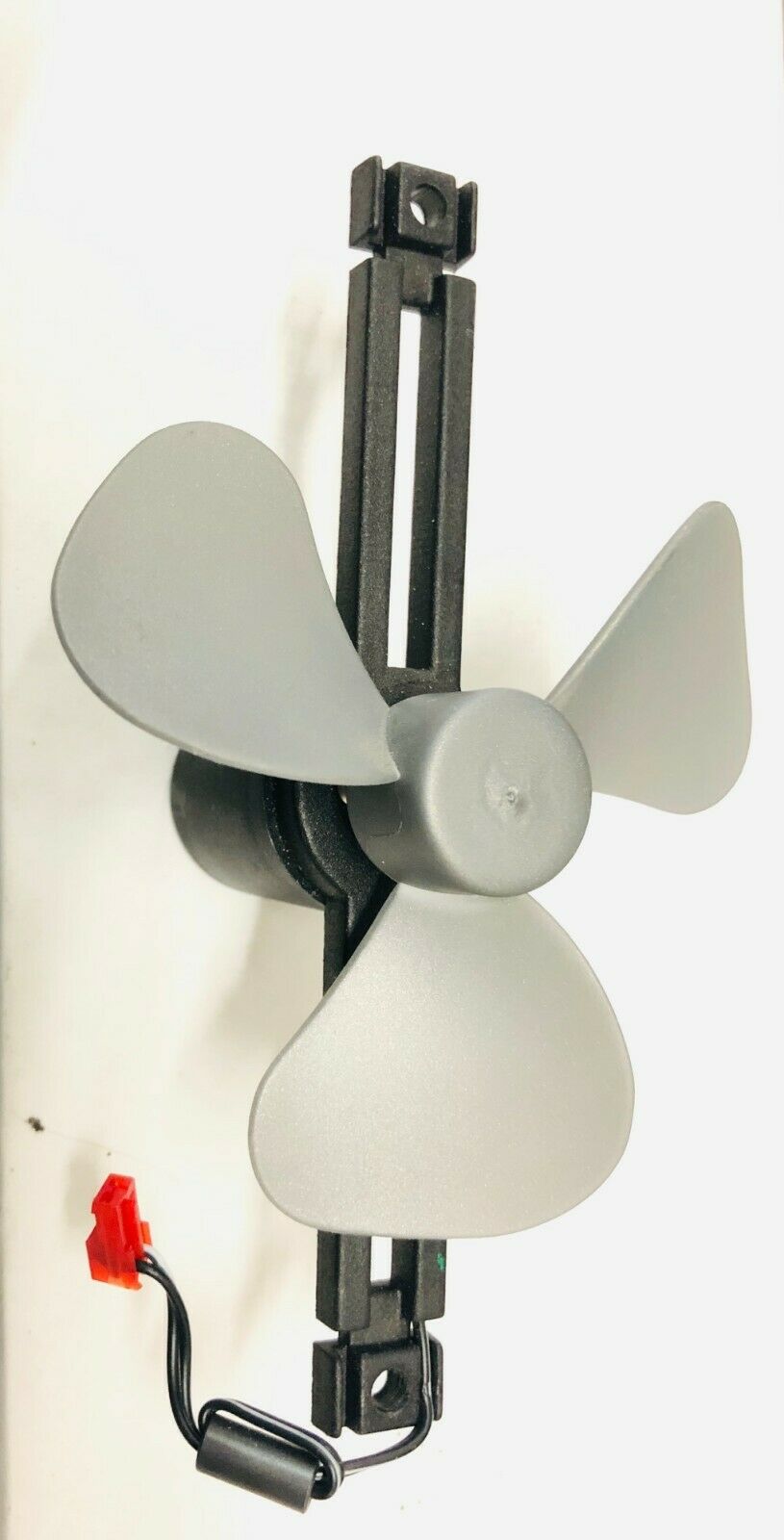

Fan Housing 013021 200889 0 1 Fan Housing Yes Model Compatibility List $24.99 / Each

1
console Left Top Cup Holder 013023 202516 0 1 console Left Top Cup Holder Yes Model Compatibility List $15.99 / Each

9
Heart Rate Handlebar Assembly (Used) 013062 207601 0 1 Heart Rate Handlebar Assembly (Used) Yes Model Compatibility List $95.99 / Each

3
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

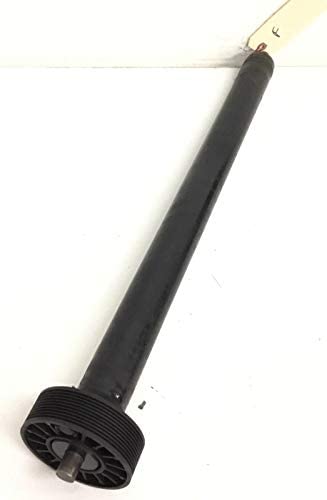

Roller Front 1008202 196324 0 1 Roller Front Yes Model Compatibility List $111.59 / Each

8
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
RPM Speed Sensor Reed Switch 40 1010920 160068 0 1 RPM Speed Sensor Reed Switch 40" No Model Compatibility List $23.99 / Each

4,5,6
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Bolt 3/8-16-1.50 Inches (Used) 1026116 174320 3 1 Bolt 3/8-16-1.50 Inches (Used) Yes Model Compatibility List $2.29 / Each

2,41
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
Bracket (Used) 1022107 126773 66 1 Bracket (Used) No Model Compatibility List $29.25 / Each

1
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
Cone, Resistance (Used) 1026262 226958 113 2 Cone, Resistance (Used) No Model Compatibility List $39.00 / Each
Out Of Stock
1
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
View Drawing
