ProForm - CROSSWALK CALIBER

Repair Parts for ProForm CROSSWALK CALIBER PFTL591040

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: CROSSWALK CALIBER

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Fan Housing 013021 200889 0 1 Fan Housing Yes Model Compatibility List $24.99 / Each

1
console Left Top Cup Holder 013023 202516 0 1 console Left Top Cup Holder Yes Model Compatibility List $15.99 / Each

9
Heart Rate Handlebar Assembly (Used) 013062 207601 0 1 Heart Rate Handlebar Assembly (Used) Yes Model Compatibility List $95.99 / Each

3

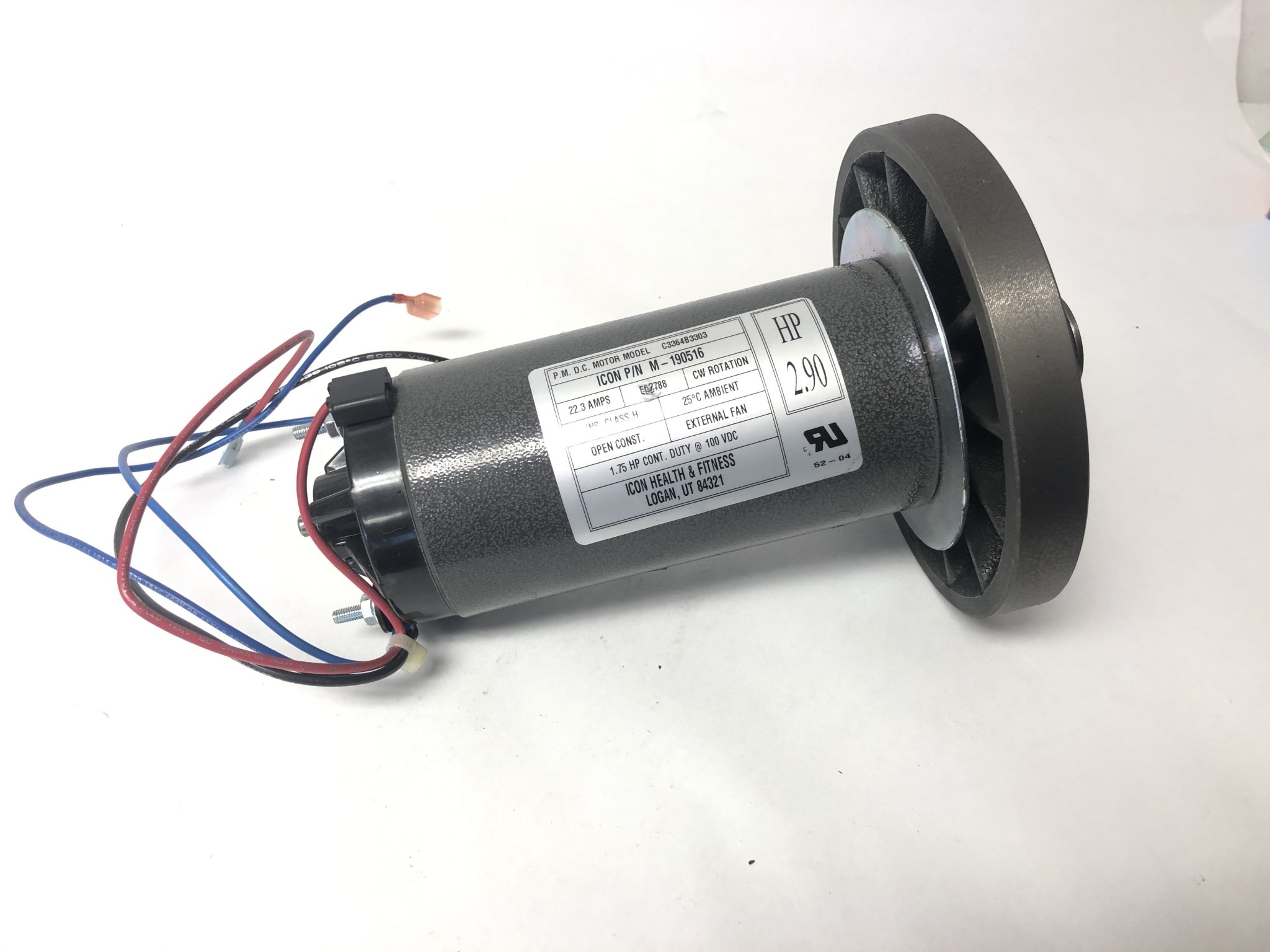

Drive Motor (Used) 1002178-R M-190516 0 1 Drive Motor (Used) No Model Compatibility List $110.99 / Each
Out Of Stock 		28
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Roller Front 1008202 196324 0 1 Roller Front Yes Model Compatibility List $111.59 / Each

8
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
RPM Speed Sensor Reed Switch 40 1010920 160068 0 1 RPM Speed Sensor Reed Switch 40" No Model Compatibility List $23.99 / Each

4,5,6
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Control Board Motor Controller 1003006 248187 or 195883 Control Board Motor Controller Yes Model Compatibility List $139.00 / Each
Out Of Stock
Motor Choke Transformer 1001514 209967 Motor Choke Transformer Yes Model Compatibility List $15.00 / Each

1
Incline Lift Motor Actuator 1001300 193034 Incline Lift Motor Actuator Yes Model Compatibility List $29.99 / Each
Out Of Stock 		10
Lower Board Cable (New) 1012715 159530 Lower Board Cable (New) Yes Model Compatibility List $19.99 / Each

4,5,6
Display Console Fan (Used) 1008534 585427 Display Console Fan (Used) Yes Model Compatibility List $14.99 / Each
Out Of Stock 		1
158363 220829 3 SPRING No Model Compatibility List $19.57 / Each

2
158364 223374 5 SPRING BRACKET COVER No Model Compatibility List $3.54 / Each

2,9,3,4,5,6
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
122465 164320 9 LATCH DECAL No Model Compatibility List $4.66 / Each

7,3
PLATFORM NUT 100252 136012 10 PLATFORM NUT No Model Compatibility List $1.47 / Each

1
REAR ROLLER STAR WASHER 100359 136121 12 REAR ROLLER STAR WASHER No Model Compatibility List $2.33 / Each

1
REAR ROLLER ADJ BOLT 104339 105444 13 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

1
#8 X 3/4 100149 013300 16 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
REAR FOOT, LEFT 118413 177319 17 REAR FOOT, LEFT Yes Model Compatibility List $9.05 / Each
Out Of Stock 		9
REAR FOOT, RIGHT 118415 177320 20 REAR FOOT, RIGHT Yes Model Compatibility List $9.05 / Each

9
REAR ROLLER 118976 191668 22 REAR ROLLER Yes Model Compatibility List $136.96 / Each

8
IDLER WHEEL BOLT 100229 162866 23 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

2,8
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
PLATFORM BOLT, FRONT 1/4 100221 128272 27 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
#8 X 1/2 100137 136728 28 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
BELT GUIDE 100147 198639 29 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40
102925 192352 30 FRONT ISOLATOR No Model Compatibility List $18.24 / Each

3
8 X 1 Inch SCREW 101799 154848 31 8 X 1 Inch SCREW No Model Compatibility List $1.23 / Each

2
UPRIGHT BOLT 102932 013438 34 UPRIGHT BOLT Yes Model Compatibility List $2.11 / Each

ROLLER MAGNET 100081 113842 35 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
FRONT ROLLER/PULLEY 118975 196324 36 FRONT ROLLER/PULLEY Yes Model Compatibility List $122.75 / Each

8
WALKING BELT 158365 223946 37 WALKING BELT No Model Compatibility List $117.58 / Each

1
158366 221001 38 RIGHT FRONT ENDCAP No Model Compatibility List $4.61 / Each

9,4,5,6
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
MOTOR BELT 118965 186689 40 MOTOR BELT Yes Model Compatibility List $36.75 / Each

23
3/8 100136 012149 41 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

3/8 106108 145006 42 3/8" X 1" BOLT No Model Compatibility List $1.94 / Each

2
MOTOR WASHER 113293 122812 43A MOTOR WASHER No Model Compatibility List $1.53 / Each

2
SEAT RAIL FLANGE NUT 104004 120867 44 SEAT RAIL FLANGE NUT Yes Model Compatibility List $3.75 / Each

1
FRAME SPACER 118425 177597 46 FRAME SPACER No Model Compatibility List $3.46 / Each

2,3,4,5,6
REED SWITCH WIRE 112269 160068 47 REED SWITCH WIRE No Model Compatibility List $12.45 / Each

4,5,6
REED SWTICH CLIP 100318 148202 49 REED SWTICH CLIP No Model Compatibility List $2.42 / Each

1
158367 220878 50 LIFT FRAME No Model Compatibility List $143.01 / Each

3,10
3/8 103764 104478 51 3/8" FLAT WASHER No Model Compatibility List $1.32 / Each

2
121676 107189 53 14" GREEN WIRE, F/R No Model Compatibility List $3.52 / Each

4,5,6
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
CONTROLLER 102339 248187 54 CONTROLLER Yes Model Compatibility List $183.27 / Each
Out Of Stock 		7,8
TRANSFORMER 100350 209967 55 TRANSFORMER Yes Model Compatibility List $27.45 / Each
1
118428 238747 56 ELECTRONICS BRACKET No Model Compatibility List $30.95 / Each

2,3,4,5,6
ROUND GROMMET 101035 129004 57 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
M10 - 3/8-16 X 2.25 104347 013578 58 M10 - 3/8-16 X 2.25" HEX EAD WHEEL BOLT Yes Model Compatibility List $7.28 / Each

MOTOR BOLT 3/8-16X5 117640 107503 59 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

1
INCLINE MOTOR WIRE 102501 191554 60 INCLINE MOTOR WIRE Yes Model Compatibility List $15.75 / Each

1
111976 184903 61 FILTER W/WIRE No Model Compatibility List $19.17 / Each

4,5,6
158368 223947 65 BELLYPAN No Model Compatibility List $86.09 / Each
Out Of Stock 		9
12 100352 157646 66 12" IFIT AUDIO JACK WIRE Yes Model Compatibility List $16.74 / Each

4,5,6
Bracket (Used) 1022107 126773 66 1 Bracket (Used) No Model Compatibility List $20.99 / Each

1
#8 HOOD CLIP 100032 133333 67 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
POWER SWITCH 100201 186726 68 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
AUDIO WIRE NUT 100351 172822 69 AUDIO WIRE NUT No Model Compatibility List $1.32 / Each

2,4,5,6
GROMMET 100061 173169 71 GROMMET Yes Model Compatibility List $0.94 / Each

1,2
102240 158157 72 STATIC DECAL No Model Compatibility List $1.84 / Each
Out Of Stock 		7,3
8 100063 016057 73 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 74 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
118433 158827 76 PULSE BAR SCREW No Model Compatibility List $0.24 / Each
Out Of Stock 		2,12,13,14
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
HANDRAIL COVER CAGE NUT 103818 125198 79 HANDRAIL COVER CAGE NUT Yes Model Compatibility List $3.25 / Each

1
FAN COVER 118436 200889 82 FAN COVER Yes Model Compatibility List $16.89 / Each

1
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
158369 242280 83 RESISTANCE KNOB No Model Compatibility List $19.56 / Each

10
IDLER WHEEL WASHER 100263 014132 84B IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

122690 128005 85 SPRING WASHER No Model Compatibility List $0.69 / Each

2
THRUST BEARING 119587 106896 87 THRUST BEARING Yes Model Compatibility List $3.29 / Each

12,13,14
100475 215574 90 OUTLET BRACKET SCREW No Model Compatibility List $0.16 / Each

2,3,4,5,6
119591 126827 91 RESISTANCE SLEEVE No Model Compatibility List $3.26 / Each

3,10
RESISTANCE ASSEMBLY 113317 316450 92 RESISTANCE ASSEMBLY Yes Model Compatibility List $64.91 / Each
10
RESISTANCE BOLT 141989 126644 94 RESISTANCE BOLT Yes Model Compatibility List $7.22 / Each

2,10
158370 224196 95B RT UPPER BODY ARM No Model Compatibility List $48.83 / Each
Out Of Stock 		3
SMALL FOAM GRIP 118659 105500 96 SMALL FOAM GRIP No Model Compatibility List $7.73 / Each
Out Of Stock 		11
158371 221007 97 BOTTOM LEFT CUP HOLDER No Model Compatibility List $21.36 / Each

1
158372 221008 98 TOP LEFT CUP HOLDER No Model Compatibility List $23.69 / Each

1
M4 X 12MM SCREW 101004 168267 99 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
118439 201254 100 BOOK HOLDER No Model Compatibility List $8.22 / Each

1
158373 221009 102 TOP RIGHT CUP HOLDER No Model Compatibility List $23.69 / Each

1
ACCESS DOOR 119282 200028 105 ACCESS DOOR Yes Model Compatibility List $4.70 / Each

6,9
118441 221107 106 LEFT HANDGRIP, TOP No Model Compatibility List $8.51 / Each
Out Of Stock 		11
118442 221109 107 LEFT HANDGRIP, BOTTOM No Model Compatibility List $8.03 / Each

11
118443 220881 108 HANDRAIL No Model Compatibility List $76.79 / Each

9,3
1/2 100258 013423 109 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

1
U-NUT 100462 012179 112 U-NUT No Model Compatibility List $4.42 / Each

2X3 Inch Rectangular Endcap 108456 149217 114 2X3 Inch Rectangular Endcap Yes Model Compatibility List $10.79 / Each

4,5,6,9
118444 210165 115 RIGHT HANDGRIP, TOP Yes Model Compatibility List $8.07 / Each

11
UPRIGHT WIRE 118970 189987 118 UPRIGHT WIRE Yes Model Compatibility List $92.62 / Each

3,4,5,6
40MM X 50MM INT ENDCAP 106302 117544 124 40MM X 50MM INT ENDCAP Yes Model Compatibility List $3.12 / Each

1
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
IDLER ARM BOLT 100282 142276 130 IDLER ARM BOLT Yes Model Compatibility List $2.50 / Each

1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
#8 STAR WASHER 100141 014157 138 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

1
119386 220996 140 INCLINE STOP BRACKET No Model Compatibility List $3.56 / Each

2,3,4,5,6,10
3/8 100135 174320 141 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $2.29 / Each

2,41
INCLINE DISK 104346 109370 142 INCLINE DISK Yes Model Compatibility List $5.31 / Each

1
Screw (New) 104355 102959 143 Screw (New) Yes Model Compatibility List $11.99 / Each

1
FRONT ROLLER ADJ BOLT 100433 165220 145 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

1
RELEASABLE WIRE TIE 100064 116926 146 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
MOTOR BOLT 111182 215360 147 MOTOR BOLT Yes Model Compatibility List $3.28 / Each

2
PHOTO SWITCH WIRE 117965 159530 149 PHOTO SWITCH WIRE Yes Model Compatibility List $9.90 / Each

4,5,6
4 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

1,4
113328 114953 # 14" BLUE WIRE F/F No Model Compatibility List $4.17 / Each

4,5,6
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
123779 139114 # 14" RED WIRE, M/F No Model Compatibility List $4.10 / Each

4,5,6
8 117654 153458 # 8" GREEN WIRE, 2RING Yes Model Compatibility List $2.27 / Each

4,5,6
142050 210775 # X-WALK ARM RND INT ENDCAP No Model Compatibility List $1.55 / Each

9,3,4,5,6
CONTROLLER FUSE 100394 212142 # CONTROLLER FUSE No Model Compatibility List $8.22 / Each

1
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $9.99 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
FRONT ROLLER BUSHING 102248 219550 # FRONT ROLLER BUSHING No Model Compatibility List $2.52 / Each

1
158374 221130 # TECH SHEET No Model Compatibility List $0.87 / Each

1
158376 221131 # LITERATURE PACKET No Model Compatibility List $95.02 / Each

4,5,6
CHEST PULSE KIT 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each
Out Of Stock 		1
100178 252433 # WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
100289 104345 . TV CABLE STAR WASHER No Model Compatibility List $0.20 / Each

2,4,5,6
3/8 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
3/8 117424 124123 . 3/8" X 2 1/4" BOLT No Model Compatibility List $4.71 / Each

2
104109 126970 . RESISTOR BOX SCREW No Model Compatibility List $1.82 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
ISOLATOR BOLT, BOTTOM 102272 013492 . ISOLATOR BOLT, BOTTOM Yes Model Compatibility List $1.76 / Each

1
CONSOLE BOLT 102260 013496 . CONSOLE BOLT No Model Compatibility List $2.25 / Each

WHEEL BOLT 104188 013501 . WHEEL BOLT No Model Compatibility List $3.67 / Each

1/4 100042 014063 . 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
JACK 100386 158332 . JACK Yes Model Compatibility List $7.66 / Each

1
FRONT WHEEL 100369 165009 . FRONT WHEEL Yes Model Compatibility List $5.07 / Each

1
AUDIO CABLE 100385 167079 . AUDIO CABLE Yes Model Compatibility List $17.61 / Each

1
#8 X 1/2 100120 186819 . #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100444 189861 . REAR ROLLER STAR WASHER No Model Compatibility List $1.00 / Each

2,8
142454 196488 . CD 8 WEEKS WEIGHTLOSS SET No Model Compatibility List $20.87 / Each

3
3.5 104354 207753 . 3.5" BOLT Yes Model Compatibility List $6.38 / Each

2
KEY/CLIP 100072 208603 . KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
158375 221132 . USER-S MANUAL No Model Compatibility List $8.93 / Each

1
158377 221179 . HARDWARE KIT No Model Compatibility List $44.72 / Each

1
1 5/32 100191 045023 . 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
