ProForm - CROSSWALK CALIBER ELITE

Repair Parts for ProForm CROSSWALK CALIBER ELITE PFTL715053

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: CROSSWALK CALIBER ELITE

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

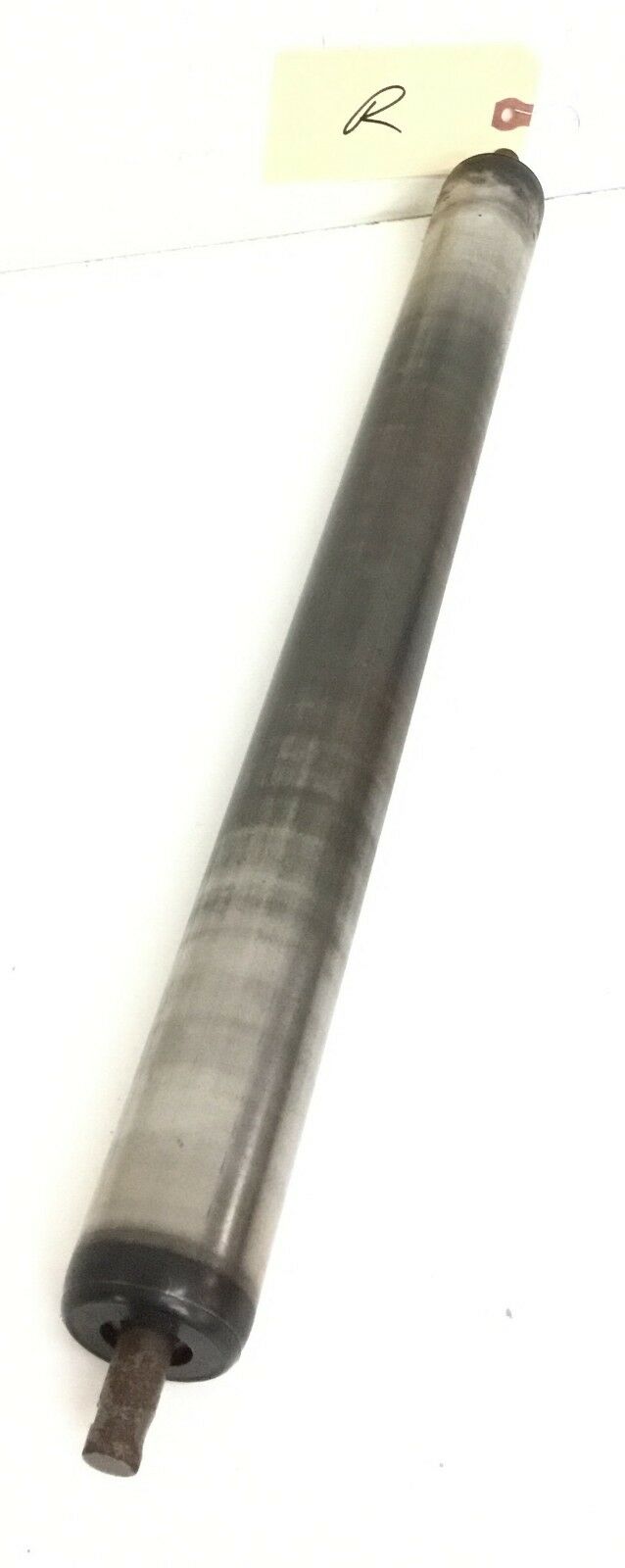

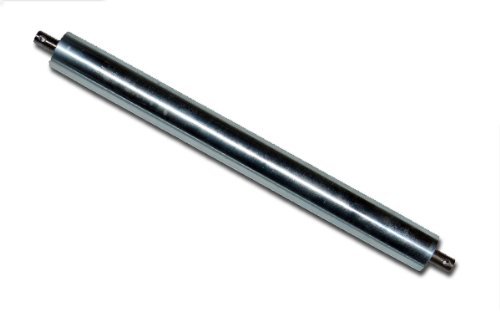

Rear Idler Roller 1008233 235715 0 1 Rear Idler Roller Yes Model Compatibility List $107.92 / Each
Out Of Stock 		8
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
Star Washer 1010876 014064 0 1 Star Washer No Model Compatibility List $11.99 / Each

Handlebar Grip 1010913 226956 0 1 Handlebar Grip Yes Model Compatibility List $19.99 / Each

11,1
Upper Body Arm Endcap 1010916 227163 0 1 Upper Body Arm Endcap No Model Compatibility List $19.99 / Each

3,1
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

MOTOR BELT 119368 247956 3 MOTOR BELT Yes Model Compatibility List $21.68 / Each

1,23
Belt Drive pfnt200j6 247956 3 1 Belt Drive Yes Model Compatibility List $29.99 / Each

1,23
SCREW,Hex,3/8-16X.75 113294 117332 4 SCREW,Hex,3/8-16X.75" No Model Compatibility List $2.02 / Each

2
RIGHT REAR ENDCAP 117941 222508 5 RIGHT REAR ENDCAP Yes Model Compatibility List $10.22 / Each

9,4,5,6
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
3/8 103764 104478 6 3/8" FLAT WASHER No Model Compatibility List $1.32 / Each

2
117948 246727 7 UPPER INCLINE MOTOR BOLT No Model Compatibility List $1.51 / Each

2,10
100280 256836 11 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
117947 169460 12 LIFT FRAME SPACER No Model Compatibility List $2.49 / Each

2,3,4,5,6,10
104328 119994 14 FRAME PIVOT BOLT No Model Compatibility List $2.28 / Each

2,8,3
IDLER WHEEL BOLT 100229 162866 15 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

2,8
159201 252239 17 FRONT ROLLER/PULLEY No Model Compatibility List $135.26 / Each
Out Of Stock 		8
ROLLER MAGNET 100081 113842 18 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
MOTOR PIVOT BOLT 118371 104925 3/8 -16 X 4.5 19 MOTOR PIVOT BOLT No Model Compatibility List $5.91 / Each

2,8
MOTOR BOLT 111182 215360 20 MOTOR BOLT Yes Model Compatibility List $3.28 / Each

2
#8 HOOD CLIP 100032 133333 22 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
5/16 100472 014073 23 5/16" WASHER Yes Model Compatibility List $1.25 / Each

Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
#12 X 1 1/4 102772 251607 25 #12 X 1 1/4" No Model Compatibility List $1.67 / Each

2
103843 130459 26A COVER PLATE SCREW No Model Compatibility List $0.21 / Each

2,9
CONSOLE FAN 102304 188015 27 CONSOLE FAN No Model Compatibility List $32.16 / Each

30
SEAT RAIL FLANGE NUT 104004 120867 28 SEAT RAIL FLANGE NUT Yes Model Compatibility List $3.75 / Each

1
LATCH 102233 223504 30 LATCH Yes Model Compatibility List $3.36 / Each

1
LEFT REAR ENDCAP 117940 222507 31 LEFT REAR ENDCAP Yes Model Compatibility List $10.22 / Each

9,4,5,6
117938 124614 32 REAR PLATFORM BOLT No Model Compatibility List $2.55 / Each

2
POWER SWITCH 100201 186726 33 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
119374 226003 34 LEFT GRIP PLATE No Model Compatibility List $5.50 / Each

11
PHOTO SWITCH WIRE 117965 159530 35 PHOTO SWITCH WIRE Yes Model Compatibility List $9.90 / Each

4,5,6
119376 225768 38 FAN HOUSING No Model Compatibility List $24.01 / Each

8
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
100344 200747 40 GROUND WIRE No Model Compatibility List $2.56 / Each

4,5,6
100444 189861 41 REAR ROLLER STAR WASHER No Model Compatibility List $1.00 / Each

2,8
159202 248807 42 UPRIGHT WIRE No Model Compatibility List $25.08 / Each

3,4,5,6
REAR ROLLER PLATE 119354 226904 44 REAR ROLLER PLATE Yes Model Compatibility List $2.79 / Each

8
144161 230120 45 BOOK HOLDER No Model Compatibility List $2.00 / Each

1
WIRE TIE 100073 132315 49 WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6
119379 248677 51 INCLINE MOTOR No Model Compatibility List $144.06 / Each

10
106965 247587 53 INCLINE MOTOR BOLT, LOWER No Model Compatibility List $1.94 / Each

2
UPRIGHT BOLT 102932 013438 54 UPRIGHT BOLT Yes Model Compatibility List $2.11 / Each

INCLINE/CONTROLLER WIRE 102354 223520 56 INCLINE/CONTROLLER WIRE Yes Model Compatibility List $9.35 / Each

4,5,6,7,8,10
#8 X 3/4 100149 013300 58 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
CONTROLLER 102317 408938 59 CONTROLLER Yes Model Compatibility List $197.44 / Each

7,8
157127 229534 60 LIFT FRAME No Model Compatibility List $112.97 / Each

3,10
FOOT 101638 204005 61 FOOT Yes Model Compatibility List $4.09 / Each
9
100178 252433 62 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
157128 242865 63 EXTENSION LEG No Model Compatibility List $24.84 / Each

1
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,40
40MM X 50MM INT ENDCAP 106302 117544 65 40MM X 50MM INT ENDCAP Yes Model Compatibility List $3.12 / Each

1
PLATFORM NUT 100252 136012 67 PLATFORM NUT No Model Compatibility List $1.47 / Each

1
8 100063 016057 68 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
ROUND GROMMET 101035 129004 70 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
144167 229734 71 LEFT HANDRAIL No Model Compatibility List $33.16 / Each

9,3
144168 229737 72 RIGHT HANDRAIL No Model Compatibility List $33.16 / Each

9,3
REAR ROLLER ADJ. BOLT 100250 305744 73 REAR ROLLER ADJ. BOLT Yes Model Compatibility List $19.99 / Each

2,8
#8 X 3/4 100132 013607 77 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

1
119386 220996 78 INCLINE STOP BRACKET No Model Compatibility List $3.56 / Each

2,3,4,5,6,10
POWER CORD ASSEMBLY 119387 214217 79 POWER CORD ASSEMBLY Yes Model Compatibility List $47.93 / Each

4,5,6
157130 252232 80 REAR ROLLER BRACKET No Model Compatibility List $25.55 / Each

2,8,3,4,5,6
119389 226021 81 BELLY PAN No Model Compatibility List $92.47 / Each
Out Of Stock 		1
BELT GUIDE 100040 198640 82 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
#8 X 1/2 100137 136728 83 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
HANDRAIL COVER FASTENER 100290 138853 84 HANDRAIL COVER FASTENER No Model Compatibility List $1.55 / Each

1,40
159203 252240 85 ISOLATOR CUSHION No Model Compatibility List $18.16 / Each

3
RELEASABLE WIRE TIE 100064 116926 87 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
110964 016055 89 WIRE CLIP,FAN No Model Compatibility List $1.44 / Each

RSW CLAMP 100079 131090 91 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
159204 252187 92A RT UPPR BODY ARM W/GRIP No Model Compatibility List $82.35 / Each
Out Of Stock 		3,11
159187 238191 98 RIGHT FOOT RAIL No Model Compatibility List $65.67 / Each

9
U-NUT 100462 012179 99 U-NUT No Model Compatibility List $4.42 / Each

REAR ROLLER 119355 235715 100 REAR ROLLER Yes Model Compatibility List $118.71 / Each
Out Of Stock 		8
INCLINE DISK 104346 109370 101 INCLINE DISK Yes Model Compatibility List $5.31 / Each

1
MOTOR BRACKET 113290 241040 103 MOTOR BRACKET Yes Model Compatibility List $10.52 / Each
2,3,4,5,6
Screw (New) 104355 102959 106 Screw (New) Yes Model Compatibility List $11.99 / Each

1
119397 234008 107 LEFT PULSE PLATE No Model Compatibility List $20.04 / Each

12,13,14
119398 234009 108 RIGHT PULSE PLATE No Model Compatibility List $20.04 / Each

12,13,14
159205 252188 109 LT UPPER BODY ARM W/GRIP No Model Compatibility List $98.04 / Each
Out Of Stock 		3,11
HOOD SCREW 100354 013316 110 HOOD SCREW No Model Compatibility List $1.42 / Each

UPPER BODY ARM INSERT 113319 227163 113 UPPER BODY ARM INSERT Part # 85 on diagram No Model Compatibility List $5.48 / Each

3,1
RESISTANCE ASSEMBLY 113317 316450 114 RESISTANCE ASSEMBLY Yes Model Compatibility List $64.91 / Each
10
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
HAND GRIP 113316 226956 115 HAND GRIP Sub Assembly Yes Model Compatibility List $6.85 / Each

11,1
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
4 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

1,4
4 102280 114012 # 4 Yes Model Compatibility List $2.74 / Each

4,5,6
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

4,5,6
159199 188244 # DECAL SPACE SAVER No Model Compatibility List $3.11 / Each

7,3,4,5,6
113323 194526 # CONTROLLER GROUND WIRE No Model Compatibility List $2.33 / Each

7,8,4,5,6
142454 196488 # CD 8 WEEKS WEIGHTLOSS SET No Model Compatibility List $20.87 / Each

3
100303 221100 # TAPE, FRAME No Model Compatibility List $0.57 / Each

3,40
100407 225209 # CD, MARATHON, INTERMEDIAT No Model Compatibility List $92.28 / Each

1
100408 225212 # CD, 5K, BEGINNER No Model Compatibility List $92.28 / Each

1
100409 225213 # CD, BODY TONE, LEVEL 3 No Model Compatibility List $53.92 / Each

1
100410 225214 # CD, 10K, INTERMEDIATE No Model Compatibility List $92.28 / Each

1
159190 234058 # HOOD DECAL No Model Compatibility List $14.29 / Each

7,9,3
159196 238277 # HARDWARE KIT No Model Compatibility List $43.63 / Each

1
157135 238791 # TECH SHEET No Model Compatibility List $0.87 / Each

1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
Walking Belt 1000797 240197 # 1 Walking Belt No Model Compatibility List $120.99 / Each

15
3/8 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
104109 126970 . RESISTOR BOX SCREW No Model Compatibility List $1.82 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
3/8 100017 013544 . 3/8" BOLT No Model Compatibility List $2.87 / Each

EXTENSION LEG BOLT 100465 138797 . EXTENSION LEG BOLT Yes Model Compatibility List $11.99 / Each

2
1/4 100042 014063 . 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

3/8 102446 014117 . 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

#8 STAR WASHER 100141 014157 . #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

1
100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
5/16 101663 150699 . 5/16" X 2 1/2" SCREW Yes Model Compatibility List $7.15 / Each

2
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
103169 183824 . ELECTRONICS SCREW No Model Compatibility List $0.19 / Each

2
WHEEL 100034 199545 . WHEEL Yes Model Compatibility List $4.12 / Each

8,45
KEY/CLIP 100072 208603 . KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
157125 210787 . HANDRAIL CAP No Model Compatibility List $10.97 / Each
Out Of Stock 		9,3
142206 214200 . HANDRAIL BRACKET No Model Compatibility List $5.55 / Each

2,9,3,4,5,6
AUDIO WIRE,18 100197 215823 . AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
EXTENSION LEG NUT 102261 223547 . EXTENSION LEG NUT Yes Model Compatibility List $3.06 / Each
Out Of Stock 		2
119375 226004 . RIGHT GRIP PLATE No Model Compatibility List $5.50 / Each

11
119394 226567 . LATCH PIN ASSEMBLY No Model Compatibility List $8.37 / Each

12,13,14
LATCH INSERT 117358 228101 . LATCH INSERT Yes Model Compatibility List $9.93 / Each

1
159206 251396 . USER-S MANUAL No Model Compatibility List $9.39 / Each

1
Star Washer 5/16 100449 014149 . 1 Star Washer 5/16" Yes Model Compatibility List $12.99 / Each

Console Fan 1000827 188015 Console Fan Yes Model Compatibility List $8.40 / Each
Out Of Stock 		30
Motor Controller Board 1001217 241697 Motor Controller Board Yes Model Compatibility List $159.00 / Each
Out Of Stock
Black Jumper R-R 8 Inch 1036849 200747 Black Jumper R-R 8 Inch Yes Model Compatibility List $5.00 / Each
Out Of Stock 		4,5,6
Lower Board Cable (New) 1012715 159530 Lower Board Cable (New) Yes Model Compatibility List $19.99 / Each

4,5,6

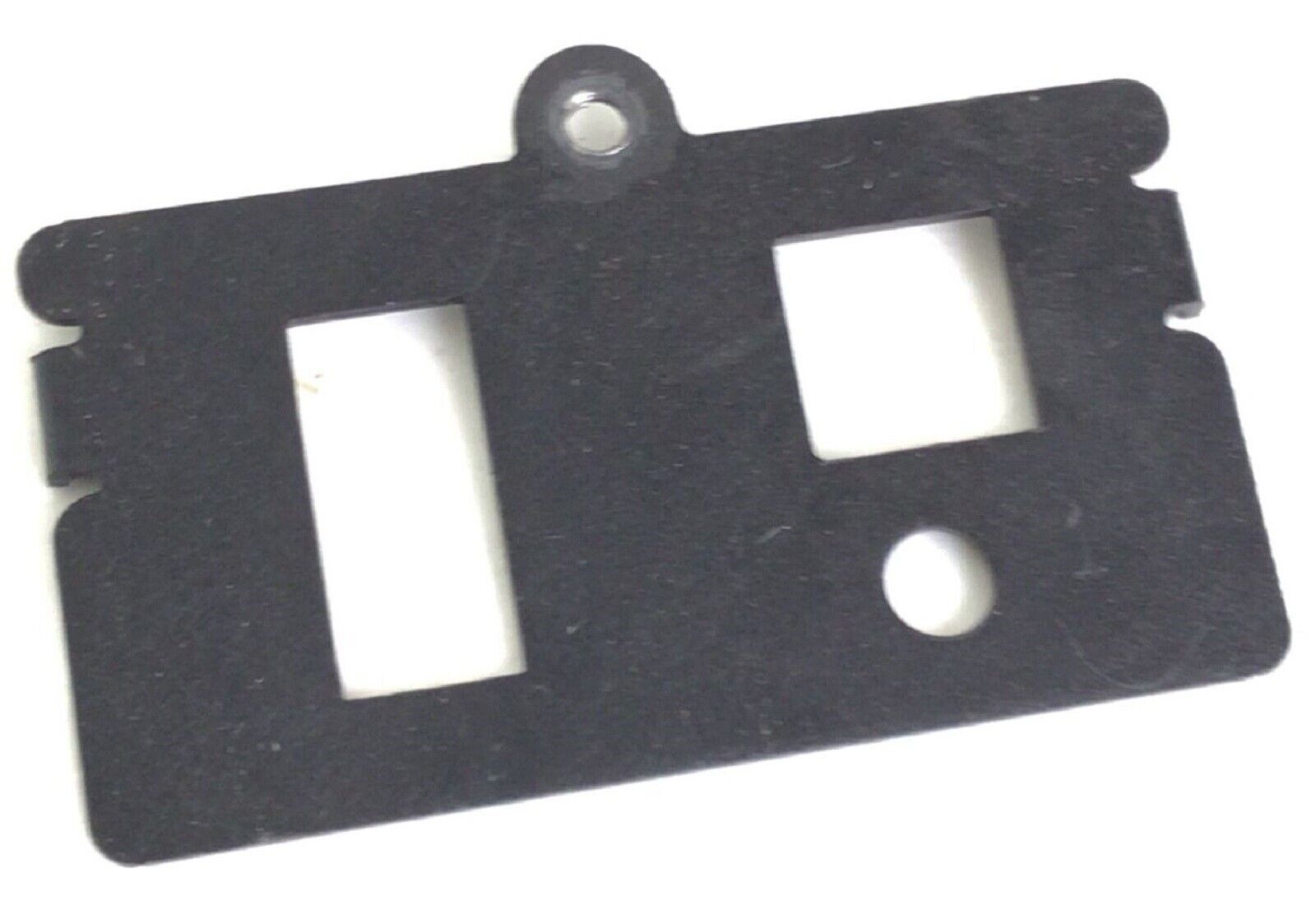

Power Input Bracket (Used) 1029623 7430218 Power Input Bracket (Used) Yes Model Compatibility List $5.99 / Each
Out Of Stock 		1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
