ProForm - PROFORM 505 CST TREADMILL

Repair Parts for ProForm PROFORM 505 CST TREADMILL PFTL59420-INT0

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: PROFORM 505 CST TREADMILL

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3 100139 100427 39B 5/16" NUT Yes Model Compatibility List $0.46 / Each

2,40
3 109942 102973 33 3/8" THRUST WASHER No Model Compatibility List $0.69 / Each

2,12,13,14
1 100081 113842 104 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
7 102521 114078 72 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10,1
3 100031 119425 38 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
106527 120008 7 5/16" X 1 1/2" SCREW No Model Compatibility List $1.66 / Each

2
5/16 101661 012056 85 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

117875 012105 29 M8 FLANGE NUT No Model Compatibility List $2.43 / Each

M6 LOCKNUT 101429 012142 79 M6 LOCKNUT No Model Compatibility List $1.98 / Each

100083 130424 TS3 4" BLACK WIRE,F/F, POWER No Model Compatibility List $3.49 / Each

4,5,6
1 100079 131090 105 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
4 100073 132315 48 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
3 100032 133333 37 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
1/2 100258 013423 69 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

113392 136346 TS7 10" WHITE WIRE,F/F No Model Compatibility List $4.31 / Each

4,5,6
2 100137 136728 25 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
100498 137233 TS13 DECAL, GROUND WIRE ID No Model Compatibility List $0.69 / Each

7,3,4,5,6
5 100151 139090 57 WHEEL Yes Model Compatibility List $2.11 / Each

8,45
#10 STAR WASHER 100142 014088 23 #10 STAR WASHER No Model Compatibility List $0.07 / Each

101808 144079 TS10 6" GREEN/YELLOW WIRE, F/R No Model Compatibility List $3.45 / Each

4,5,6
# 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
3 100695 152478 32 M8 X 25MM WASHER Yes Model Compatibility List $0.75 / Each

2
8 100063 016057 65 8" CABLE TIE No Model Compatibility List $1.30 / Each

1 100123 163045 11 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $0.50 / Each

2
110139 165287 TS5 10" BLU WIRE, F/F, FILTER No Model Compatibility List $4.86 / Each

4,5,6
6 100128 167049 6 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
2 100135 174320 2 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $2.29 / Each

2,41
2 100134 179767 21 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $43.87 / Each

2
109927 181979 1 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
111976 184903 TS8 FILTER W/WIRE No Model Compatibility List $19.17 / Each

4,5,6
2 100120 186819 27 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100129 195683 13 3/8" X 2 1/2" BOLT Yes Model Compatibility List $12.19 / Each

2
105639 198089 TS4 6" BLUE WIRE, F/F No Model Compatibility List $3.65 / Each

4,5,6,1
100493 198091 TS6 6" WHITE WIRE, 2F No Model Compatibility List $3.67 / Each

4,5,6
5 100040 198640 50 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
102975 209460 # HEX KEY No Model Compatibility List $5.80 / Each

9,1
100469 210461 108B FILTER No Model Compatibility List $145.78 / Each

1
3 100024 213894 34 FOOT RAIL FLAT WASHER No Model Compatibility List $0.46 / Each

2,9,46
1 100187 215822 102 Ground Wire 4 Inch Yes Model Compatibility List $2.09 / Each

4,5,6,7
# 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
# 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $8.84 / Each

23
# 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
113387 219527 108A MOTOR BUSHING No Model Compatibility List $0.96 / Each

8,2
113388 224346 109 MOTOR ISOLATOR No Model Compatibility List $2.16 / Each

3,1
8 100182 227199 89 UPRIGHT GROMMET Yes Model Compatibility List $1.55 / Each

2,3,1
113431 234279 107 M4 ELECTRIC BKT GRND SCRW No Model Compatibility List $0.26 / Each

1,2
6 100016 234288 63 M8 X 20MM BOLT No Model Compatibility List $1.06 / Each

1
100021 234325 94 M8.4 STAR WASHER No Model Compatibility List $1.12 / Each

2
113433 237952 106 M4 ELECTRIC BKT GRND NUT No Model Compatibility List $0.26 / Each

2
100185 240351 56 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
7 100070 242387 75 RECEPTACLE Yes Model Compatibility List $11.36 / Each

4,5,6,1
8 100292 243797 81 CONSOLE CLAMP Yes Model Compatibility List $0.75 / Each

9,2
109973 250472 TS12 8" GRN/YLLW WIRE,F/R No Model Compatibility List $9.46 / Each

4,5,6
1 100015 250549 17 M8 X 102MM BOLT No Model Compatibility List $4.13 / Each

1
100060 250627 76 POWER SWITCH No Model Compatibility List $11.90 / Each

4,5,6,1
8 108957 251429 8 M4 X 12MM MACHINE SCREW (New) No Model Compatibility List $11.99 / Each

2,4,5,6
100178 252433 40 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
9 100030 256446 95 M8 NUT No Model Compatibility List $0.69 / Each

2
100108 263710 41 KEY/CLIP WITHOUT PRONGS No Model Compatibility List $19.07 / Each

2,9,1
2 111806 264255 24 5/16" X 3/4" SCREW Yes Model Compatibility List $1.44 / Each

2,1
1 100143 265234 18 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
126839 271624 26 5/16" X 1 1/2" SCREW No Model Compatibility List $1.79 / Each

2
# 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

47
2 100133 291486 20 #8X5/8" DECKRAIL SCREW No Model Compatibility List $0.28 / Each

2,3,9
113366 295757 23 1/4" MOTOR SCREW No Model Compatibility List $1.11 / Each

2,1
2 102454 298484 28 5/16" BOLT,FLASH TM11-200 Yes Model Compatibility List $1.61 / Each

2
100037 305284 46 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3,1,40
100179 306715 93 BASE CAP No Model Compatibility List $1.11 / Each

9,3,46
9 100181 307031 92 THIN BASE PAD,1/4" THK No Model Compatibility List $1.43 / Each

3,12,13,14,46
9 100180 307032 91 THICK BASE PAD Yes Model Compatibility List $2.76 / Each

3,12,13,14,46,40
9 111850 314522 90 BASE PAD SPACER Yes Model Compatibility List $0.80 / Each

2,3,4,5,6,12,13,14,46
6 100164 315067 68 LIFT FRAME BUSHING No Model Compatibility List $11.24 / Each

3,8,10,40
100140 315068 52 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

3,10,12,13,14,2
1 100130 319894 14 M6 X 55MM SCREW Yes Model Compatibility List $4.80 / Each

2
113393 325851 TS15 INCLN MOTOR HARNESS No Model Compatibility List $11.68 / Each

4,5,6
3 111803 341768 3 3/8" X 2 1/4" SCREW No Model Compatibility List $9.14 / Each

2
2 109924 346519 22 3/8" X 1 1/2" BOLT Yes Model Compatibility List $2.98 / Each

2
106903 349203 # CAUTION DECAL,6 LANG No Model Compatibility List $8.98 / Each

7,3,1
100413 349204 # LATCH WARNING DECAL,6LANG No Model Compatibility List $31.37 / Each

7,3,40,1
2 109923 349213 29 5/16" X 2 1/4" BOLT Yes Model Compatibility List $3.18 / Each

2
109948 357530 TS9 DRIVE MOTOR GRND WIRE No Model Compatibility List $5.27 / Each

4,5,6,10
5 111847 365328 54 CONTROLLER CLAMP Yes Model Compatibility List $11.40 / Each

4,5,6,7,8,2
109931 372033 15 3/8" X 1" SCREW No Model Compatibility List $4.07 / Each

2
109941 372092 69 3/8" BUSHING No Model Compatibility List $3.72 / Each

8,2
6 111827 372093 67 ROLLER SPACER Yes Model Compatibility List $3.83 / Each

3,40
111809 372094 84 9/32" PLASTIC BUSHING No Model Compatibility List $3.60 / Each

8,9,1,2
1 109984 378667 103 REED SWITCH No Model Compatibility List $21.99 / Each

4,5,6,47
5 145109 379928 53 DRIVE ROLLER/PULLEY No Model Compatibility List $104.32 / Each

8,10,45
145257 380931 71 LIFT FRAME No Model Compatibility List $66.52 / Each

3,10,40
122389 388203 35 STORAGE LATCH Yes Model Compatibility List $87.46 / Each

1,40

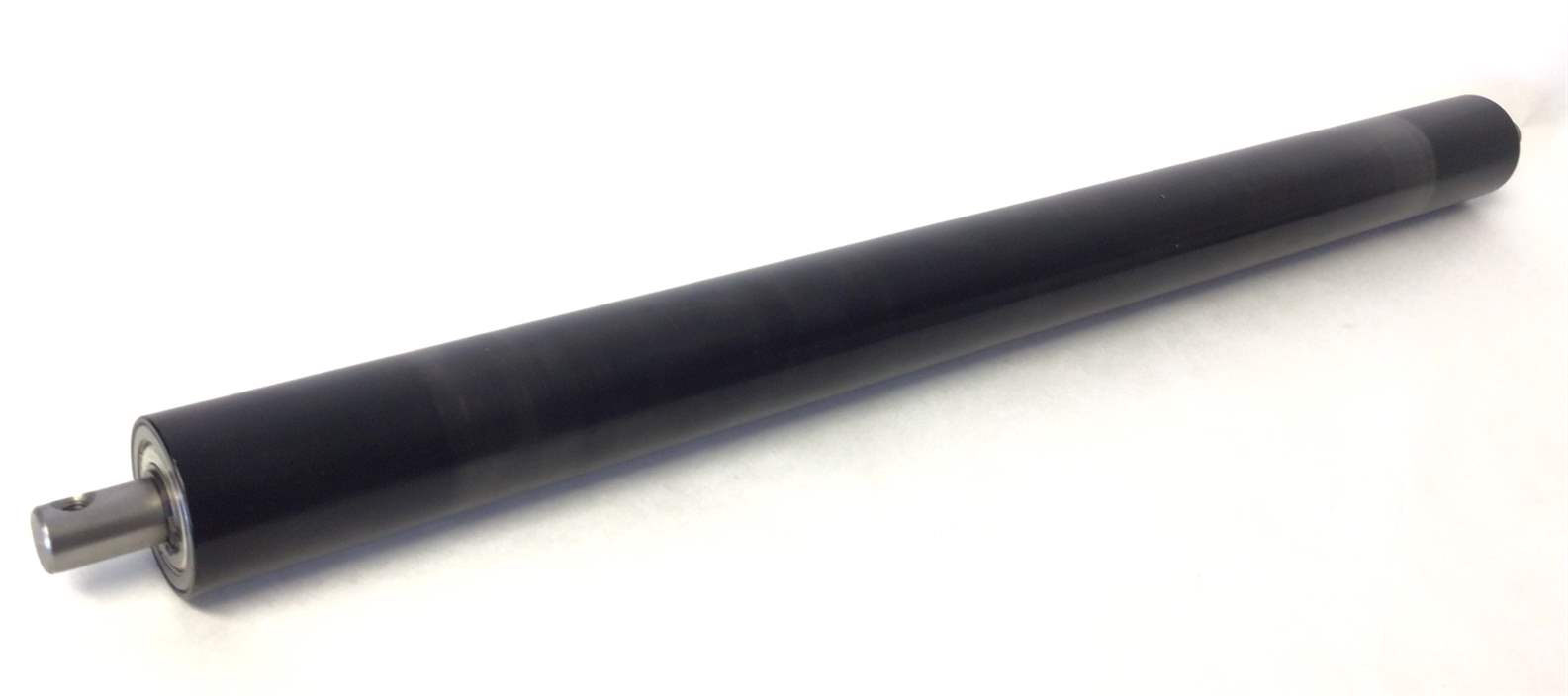

6 117895 392552 64 IDLER ROLLER Yes Model Compatibility List $122.09 / Each

8,45
128517 396971 70 INCLINE MOTOR No Model Compatibility List $214.46 / Each

10
900065 013576 79 M5 X 12MM SCREW Yes Model Compatibility List $0.15 / Each

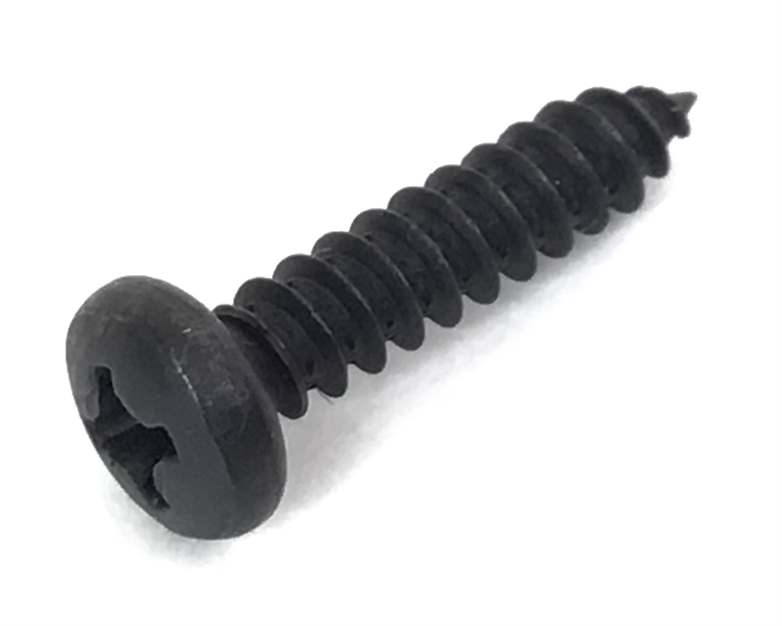

#8 X 3/4 900066 013322 4 #8 X 3/4" SCREW No Model Compatibility List $0.15 / Each

2
900068 014149 12 5/16" STAR WASHER Yes Model Compatibility List $0.20 / Each

#8 X 3/4 900069 013607 16 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

900070 014157 30 #8 STAR WASHER Yes Model Compatibility List $0.07 / Each

# 900103 410314 # TABLET HOLDER No Model Compatibility List $104.72 / Each

3,1,4
900646 404353 31 LATCH CROSSBAR No Model Compatibility List $51.35 / Each

1,40
# 013322 116926 # 1 Releasable Tie No Model Compatibility List $0.25 / Each

1,4,2
895556 422502 42 PLATFORM CUSHION No Model Compatibility List $24.00 / Each

40
895557 407822 43B CONSOLE FAN No Model Compatibility List $116.14 / Each

45
895558 422395 43C ECA,PRMRY CNTRL,ASSY No Model Compatibility List $165.00 / Each

1
895559 422740 44 LEFT FOOT RAIL No Model Compatibility List $70.09 / Each

46
895560 422736 45 RIGHT FOOT RAIL No Model Compatibility List $70.09 / Each

46
895561 422741 47 WALKING PLATFORM No Model Compatibility List $164.01 / Each

1
4 895562 423462 49 WALKING BELT No Model Compatibility List $118.70 / Each

0

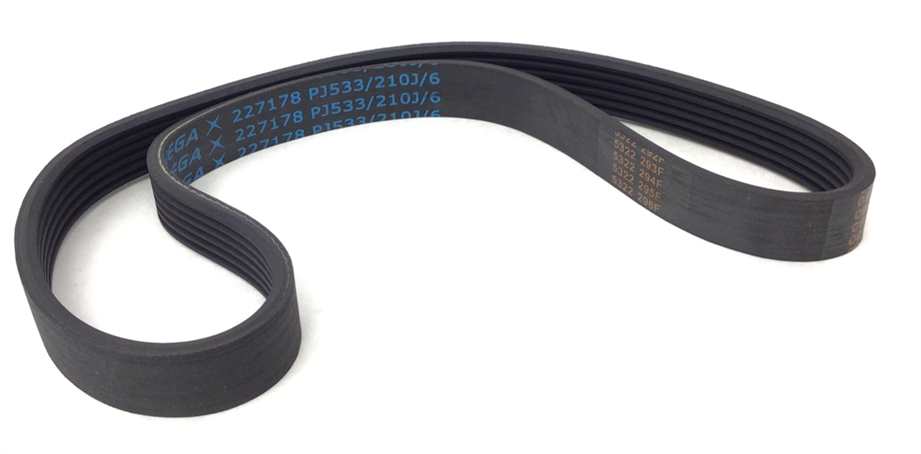

895563 413657 59 MOTOR BELT Yes Model Compatibility List $28.99 / Each

15
895564 422516 61 RIGHT REAR FOOT No Model Compatibility List $20.46 / Each

46
895565 422517 62 LEFT REAR FOOT No Model Compatibility List $20.46 / Each

46
895566 422742 66 MOTOR HOOD COVER No Model Compatibility List $77.97 / Each

46

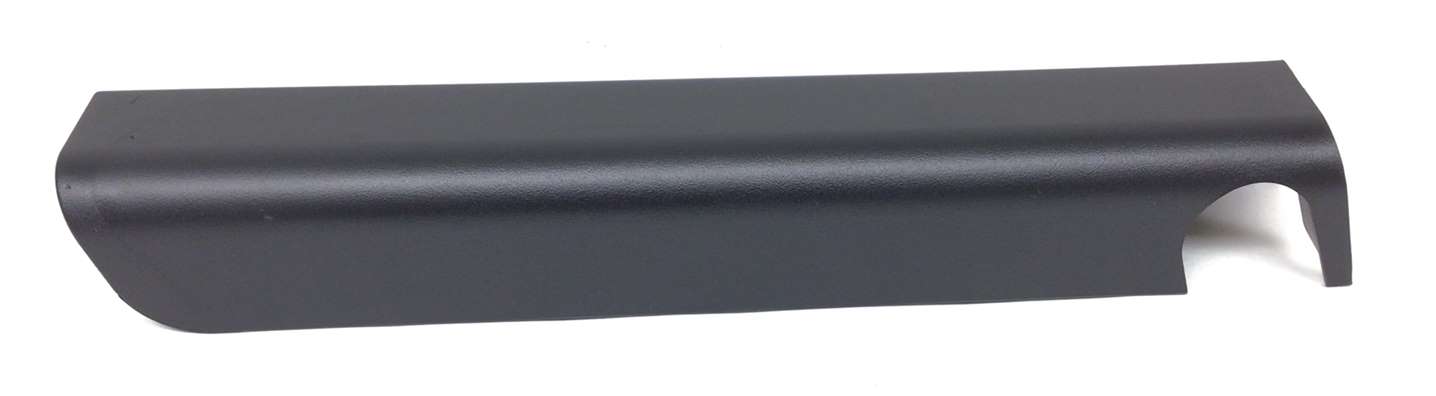

7 895567 422690 78 LEFT HANDRAIL COVER No Model Compatibility List $19.07 / Each

46

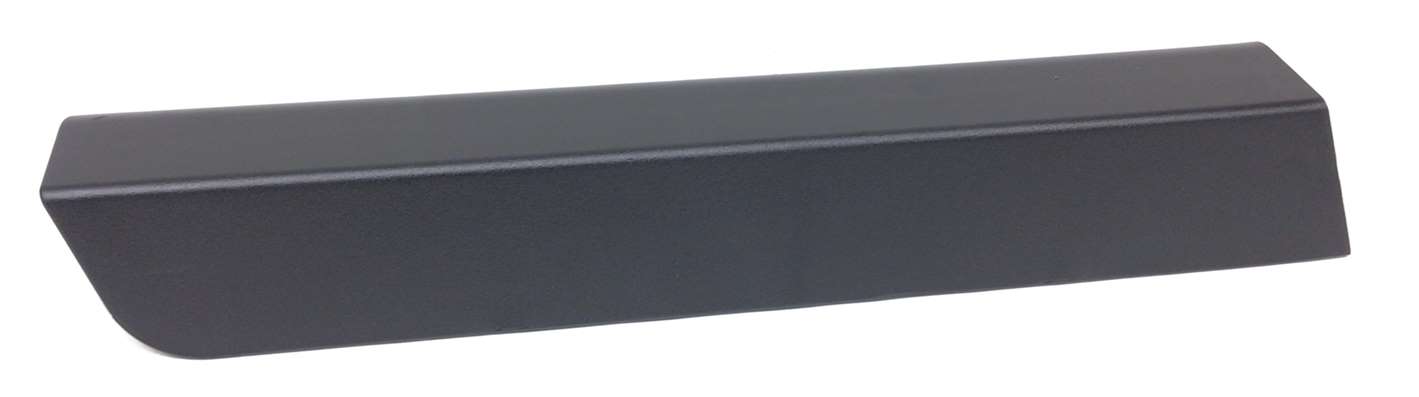

7 895568 422689 79 RIGHT HANDRAIL COVER No Model Compatibility List $19.07 / Each

46

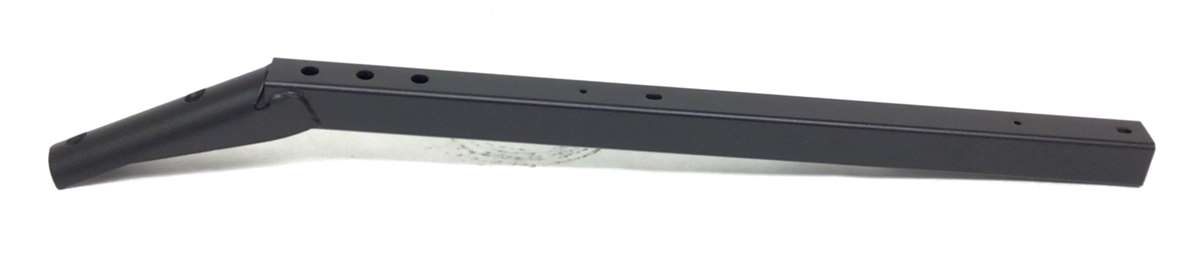

8 895569 422497 80 HANDRAIL No Model Compatibility List $43.97 / Each

46
8 895570 423421 82 LT BOTTOM HANDRAIL COVER No Model Compatibility List $10.20 / Each

46
8 895571 423420 83 RT BOTTOM HANDRAIL COVER No Model Compatibility List $10.20 / Each

46
895572 422484 85 LEFT UPRIGHT No Model Compatibility List $137.63 / Each

1
895573 422487 86 RIGHT UPRIGHT No Model Compatibility List $137.18 / Each

1
895574 422711 87 CROSSBAR No Model Compatibility List $118.45 / Each

40
895575 422887 97 BASE No Model Compatibility List $163.13 / Each

46
895576 422688 98 LEFT TRAY No Model Compatibility List $18.04 / Each

1
895577 422687 99 RIGHT TRAY No Model Compatibility List $18.04 / Each

1
895578 422685 100 CONSOLE BASE No Model Compatibility List $81.08 / Each

46
895579 422499 101 CONSOLE FRAME No Model Compatibility List $45.83 / Each

40
895580 422728 # HARDWARE KIT, NOTE: No Model Compatibility List $53.09 / Each

1
5 pft-210r6 413657 59 1 Drive Belt Yes Model Compatibility List $20.72 / Each

15
CONTROLLER PLATE 1037621 315047 CONTROLLER PLATE Yes Model Compatibility List $8.00 / Each

7,8,48,1,40
CONTROLLER CLAMP 1037622 365328 or 592150 CONTROLLER CLAMP Yes Model Compatibility List $10.00 / Each
