ProForm - PROFORM PRO HIIT H14 ELLIPTICAL

Repair Parts for ProForm PROFORM PRO HIIT H14 ELLIPTICAL PFEL01420-INT0

Brand: ProForm

Category: Residential Ellipticals

Type: Elliptical

Model Name: PROFORM PRO HIIT H14 ELLIPTICAL

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1 100081 113842 104 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
7 101351 116014 75 THRUST WASHER No Model Compatibility List $8.36 / Each

2,12,13,14,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
104500 130302 95 M10 X 80MM BOLT No Model Compatibility List $19.40 / Each

2
4 100079 131090 42 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
# 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
8 100032 133333 83 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
7 100657 139703 70 BEARING Yes Model Compatibility List $24.46 / Each

1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
M6 WASHER 100536 014033 25 M6 WASHER Yes Model Compatibility List $1.14 / Each

# 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
8 100690 150327 80 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
133135 150731 17E PEDAL ARM SNAP RING No Model Compatibility List $0.72 / Each

2,8,9,3,1
113103 173667 98 M8 X 30MM BOLT No Model Compatibility List $3.29 / Each

2
104666 195561 94 M10 X 55MM BOLT No Model Compatibility List $8.11 / Each

2
1 100586 195562 106 M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
1 101027 197037 108 M6 X 12MM SCREW Yes Model Compatibility List $0.69 / Each

2,1,50
100793 213457 114 M4 X 12MM SCREW No Model Compatibility List $1.20 / Each

2,50
# 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
105911 218132 71 HUB BEARING No Model Compatibility List $52.51 / Each

1,45
7 100803 222789 77 M8 LARGE WASHER No Model Compatibility List $2.83 / Each

2
9 100594 223089 96 M8 X 15MM BUTTON HEAD SCREW - BOLT No Model Compatibility List $5.28 / Each

2
117096 227701 112 M10 X 25MM SCREW No Model Compatibility List $1.58 / Each

2
1 108702 236321 105 M8 X 25MM PATCH SCREW No Model Compatibility List $3.21 / Each

2
6 101146 237631 69 LEVELING FOOT Yes Model Compatibility List $6.69 / Each

9,46
3 101173 241954 37 RESISTANCE WHEEL No Model Compatibility List $1.29 / Each

1
1 100881 250961 113 M4 X 19MM SELF-TAP SCREW No Model Compatibility List $0.69 / Each

2
101028 251831 107 M4 X 22MM SCREW No Model Compatibility List $1.16 / Each

2
110710 254874 85 M5 X 16MM BUTTON SCREW No Model Compatibility List $0.40 / Each

2
9 100030 256446 99 M8 NUT No Model Compatibility List $0.69 / Each

2
7 108934 259935 74 THRUST WASHER No Model Compatibility List $4.42 / Each

1
7 101053 261150 78 M8 X 25MM WASHER Yes Model Compatibility List $2.64 / Each

2
147806 265605 100 M8 X 23MM SCREW No Model Compatibility List $6.95 / Each

2
109176 266083 # DECAL, GENERAL WARNING No Model Compatibility List $4.80 / Each

7,3,1
132889 266088 # DECAL,GENERAL WRNG,9-LANG No Model Compatibility List $10.32 / Each

7,3,1
119705 271688 13 PULSE GRIP Yes Model Compatibility List $54.27 / Each

12,13,14,11,47
8 101008 275907 89 M10 LOCKNUT Yes Model Compatibility List $3.36 / Each

2
8 101180 276024 86 M3.5 X 12MM SCREW No Model Compatibility List $1.16 / Each

1
9 130633 277730 90 CRANK ARM BOLT No Model Compatibility List $6.91 / Each

2,8,3
6 101926 291606 60 CRANK BEARING Yes Model Compatibility List $16.59 / Each
Out Of Stock 		8,45
7 147796 300223 72 LARGE BEARING No Model Compatibility List $64.19 / Each

1,45
3 101172 304734 39 RESISTANCE ARM Yes Model Compatibility List $20.35 / Each

3,10,49
101065 304974 # 4MM ALLEN WRENCH No Model Compatibility List $3.11 / Each

2,1
101066 306510 # 5MM ALLEN WRENCH No Model Compatibility List $4.80 / Each

2,1
8 109161 322839 82 M4 X 42MM SCREW Yes Model Compatibility List $1.17 / Each

2
9 101007 331026 92 M8 X 23MM WASHER No Model Compatibility List $0.94 / Each

2,1
5 100940 332578 56 FRONT STABILIZER FOOT Yes Model Compatibility List $9.83 / Each

9,46
147798 341554 76 M10 JAM NUT No Model Compatibility List $1.40 / Each

2
4 109397 346533 45 M8 FLAT WASHER Yes Model Compatibility List $3.11 / Each

2,1
9 109400 356255 91 M8 FLAT HEAD SCREW Yes Model Compatibility List $1.91 / Each

2,45
# 103644 364361 # CHEST HEART RATE MONITOR Yes Model Compatibility List $121.32 / Each

12,13,14,47,1
147805 371429 93 STUD No Model Compatibility List $13.73 / Each

1
147772 373268 34 SPROCKET No Model Compatibility List $111.09 / Each
Out Of Stock 		1
147750 373273 17D IDLER AXLE No Model Compatibility List $12.99 / Each

8,45
3 147768 375856 30 CRANK No Model Compatibility List $133.12 / Each

8,1
2 147767 375858 29 CRANK ARM No Model Compatibility List $104.06 / Each

8,3,45
1 147753 375860 19 EXCHANGE AXLE No Model Compatibility List $91.40 / Each

8,45
3 147773 375868 35 LINK ARM Yes Model Compatibility List $67.10 / Each

3,1
147748 375887 17A IDLER No Model Compatibility List $19.37 / Each

8,1
5 147789 375922 57 WHEEL Yes Model Compatibility List $12.25 / Each

8,45
147779 375923 46 LEFT WHEEL COVER No Model Compatibility List $6.49 / Each

8,9,45
5 147790 375924 58 RIGHT WHEEL COVER Yes Model Compatibility List $6.49 / Each

8,9,46
5 147788 375925 55 STABILIZER CAP Yes Model Compatibility List $11.03 / Each

9,46
147811 375926 119 CRANK COVER DISC Yes Model Compatibility List $18.45 / Each

8,9,46
3 147771 375927 33 DISC HUB Yes Model Compatibility List $20.83 / Each

1
147751 375928 17B IDLER BUSHING No Model Compatibility List $1.39 / Each

8,2
147797 375929 73 BUSHING No Model Compatibility List $2.09 / Each

8,2
147799 375930 81 M8 SHOULDER BOLT, NOTE No Model Compatibility List $6.49 / Each

2
4 147776 375931 43 KEY No Model Compatibility List $2.78 / Each

9,1
2 147754 375936 20 MEDIUM PULLEY No Model Compatibility List $46.67 / Each

8,1
147755 375952 21 LARGE PULLEY No Model Compatibility List $62.24 / Each

8,1
4 147775 375958 41 SMALL PULLEY No Model Compatibility List $64.19 / Each

8,1
5 147787 375967 54 ACCESSORY TRAY BASE Yes Model Compatibility List $18.45 / Each

3,4,5,6,46
147752 375968 18 ACCESSORY TRAY Yes Model Compatibility List $23.99 / Each

4,5,6,1
147792 375969 65 REAR PIVOT COVER No Model Compatibility List $14.71 / Each

8,9,46
1 147743 375970 12 SHIELD COVER Yes Model Compatibility List $22.14 / Each

9,3,46
147791 375971 59 HANDLEBAR CAP No Model Compatibility List $4.40 / Each

9,11,46
8 147804 375972 88 DISC SCREW Yes Model Compatibility List $13.73 / Each

2
147793 376422 66 FRONT PIVOT COVER Yes Model Compatibility List $16.42 / Each

8,9,46
1 147749 376548 17C IDLER PULLY Yes Model Compatibility List $58.34 / Each

8,1
147763 376766 25 LEFT PEDAL LEG Yes Model Compatibility List $195.70 / Each

8,9,45
147762 376767 24 RIGHT PEDAL LEG Yes Model Compatibility List $153.68 / Each

8,9,45
147814 380618 67 SPRING No Model Compatibility List $42.98 / Each

2,1
116412 380825 101 M4 X 12MM SCREW No Model Compatibility List $1.86 / Each

2,40
147809 382359 109 M8 X 86MM SCREW No Model Compatibility List $7.84 / Each

2
135167 386602 47 LARGE PEDAL ARM BEARING No Model Compatibility List $58.34 / Each

8,9,3,45
147818 386625 26 CONNECTOR ARM Yes Model Compatibility List $187.18 / Each

3,1
130792 386639 87 M8 X 16MM HEX SCREW No Model Compatibility List $22.14 / Each

2
9 147821 386959 9 LEFT STABILIZER Yes Model Compatibility List $121.44 / Each

1,40
8 147820 386965 8 RIGHT STABILIZER Yes Model Compatibility List $124.07 / Each

1,40
147822 386993 6 SNAP RING No Model Compatibility List $9.80 / Each

2,1
147813 391858 111 TRIANGULAR CAP No Model Compatibility List $18.38 / Each

9,46
147801 393601 84 M6 X 14MM SCREW No Model Compatibility List $3.37 / Each

2
147795 396209 68B PULLY COVER No Model Compatibility List $18.38 / Each

9,46
1 147810 400743 110 M10 X 20MM SCREW No Model Compatibility List $6.95 / Each

2
# 900103 410314 # TABLET HOLDER No Model Compatibility List $104.72 / Each

3,1,4
900270 303957 38 RESISTANCE ROD No Model Compatibility List $17.69 / Each

1,49
900653 408855 28 DRIVE BELT KIT, NOTE: Yes Model Compatibility List $112.41 / Each

1,15
900729 416180 2 RIGHT PEDAL BASE Yes Model Compatibility List $202.53 / Each

8,45
3 900730 416177 3 LEFT PEDAL BASE Yes Model Compatibility List $202.53 / Each

8,45
1 900734 416223 10 RIGHT HANDLEBAR Yes Model Compatibility List $127.44 / Each

1
900735 416222 11 LEFT HANDLEBAR Yes Model Compatibility List $127.44 / Each

1
1 900736 416818 16 MAGNET BRACKET Yes Model Compatibility List $91.40 / Each

3,40
2 900737 416188 22 RIGHT PEDAL Yes Model Compatibility List $128.59 / Each

8,45
2 900738 416182 23 LEFT PEDAL Yes Model Compatibility List $128.59 / Each

8,45
900739 416361 27 DISC AXLE No Model Compatibility List $184.78 / Each

8,45
3 900740 416812 32 DISC Yes Model Compatibility List $247.14 / Each

8,1
4 900741 411087 40 POWER RECEPTACLE/WIRE Yes Model Compatibility List $35.01 / Each

4
900742 416815 44 MAGNET COVER Yes Model Compatibility List $40.84 / Each

9,46
4 900743 416364 48 DISC AXLE BUSHING No Model Compatibility List $13.49 / Each

8,40,45
4 900744 416200 49 DISC RING Yes Model Compatibility List $99.19 / Each

8,1
900747 416173 52 FRONT COVER Yes Model Compatibility List $71.96 / Each

9,46
900748 416202 53 REAR COVER Yes Model Compatibility List $71.58 / Each

9,46
900749 416169 61 LEFT REAR HANDLEBAR COVER No Model Compatibility List $42.79 / Each

9,46,1
900750 416170 62 LT FRONT HANDLEBAR COVER No Model Compatibility List $42.79 / Each

9,1,46
900751 416171 63 RT REAR HANDLEBAR COVER No Model Compatibility List $42.79 / Each

9,1,46
900752 416172 64 RT FRONT HANDLEBAR COVER No Model Compatibility List $42.79 / Each

9,1,46
6 900753 416203 68A LOWER REAR SHIELD COVER Yes Model Compatibility List $92.19 / Each

9,46
900754 419907 97 M8 SHOULDER SCREW No Model Compatibility List $4.98 / Each

2
900755 417308 102 M8 X 20MM SCREW No Model Compatibility List $4.94 / Each

2
900756 417306 103 CAP SCREW No Model Compatibility List $1.16 / Each

2,46
1 900757 416987 115 MAIN WIRE Yes Model Compatibility List $112.81 / Each

4
1 900758 415080 116 REED SWITCH/WIRE Yes Model Compatibility List $33.04 / Each

4,47
900759 416986 117 PULSE WIRE No Model Compatibility List $48.62 / Each

4,47
900762 417307 # HARDWARE KIT, NOTE: No Model Compatibility List $123.04 / Each

1

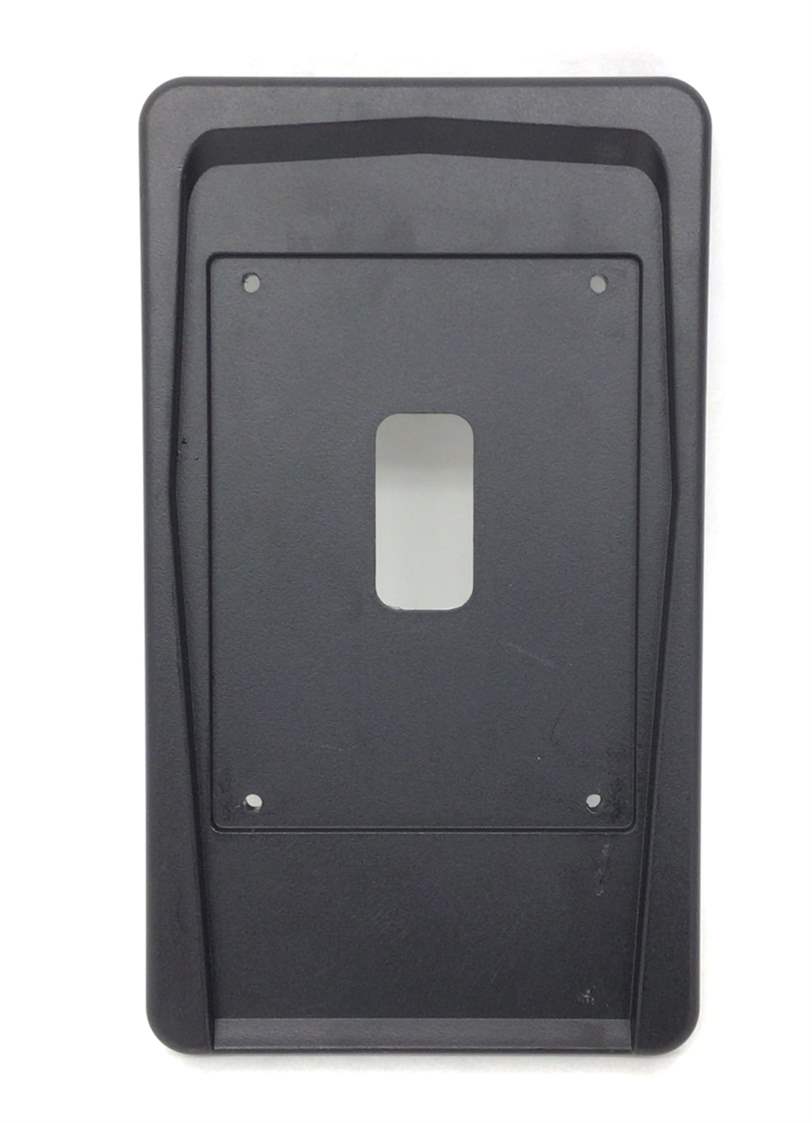

895496 417942 4 CONSOLE BRACKET Yes Model Compatibility List $161.07 / Each

40
7 895497 417946 7 CONSOLE COVER Yes Model Compatibility List $99.12 / Each

46

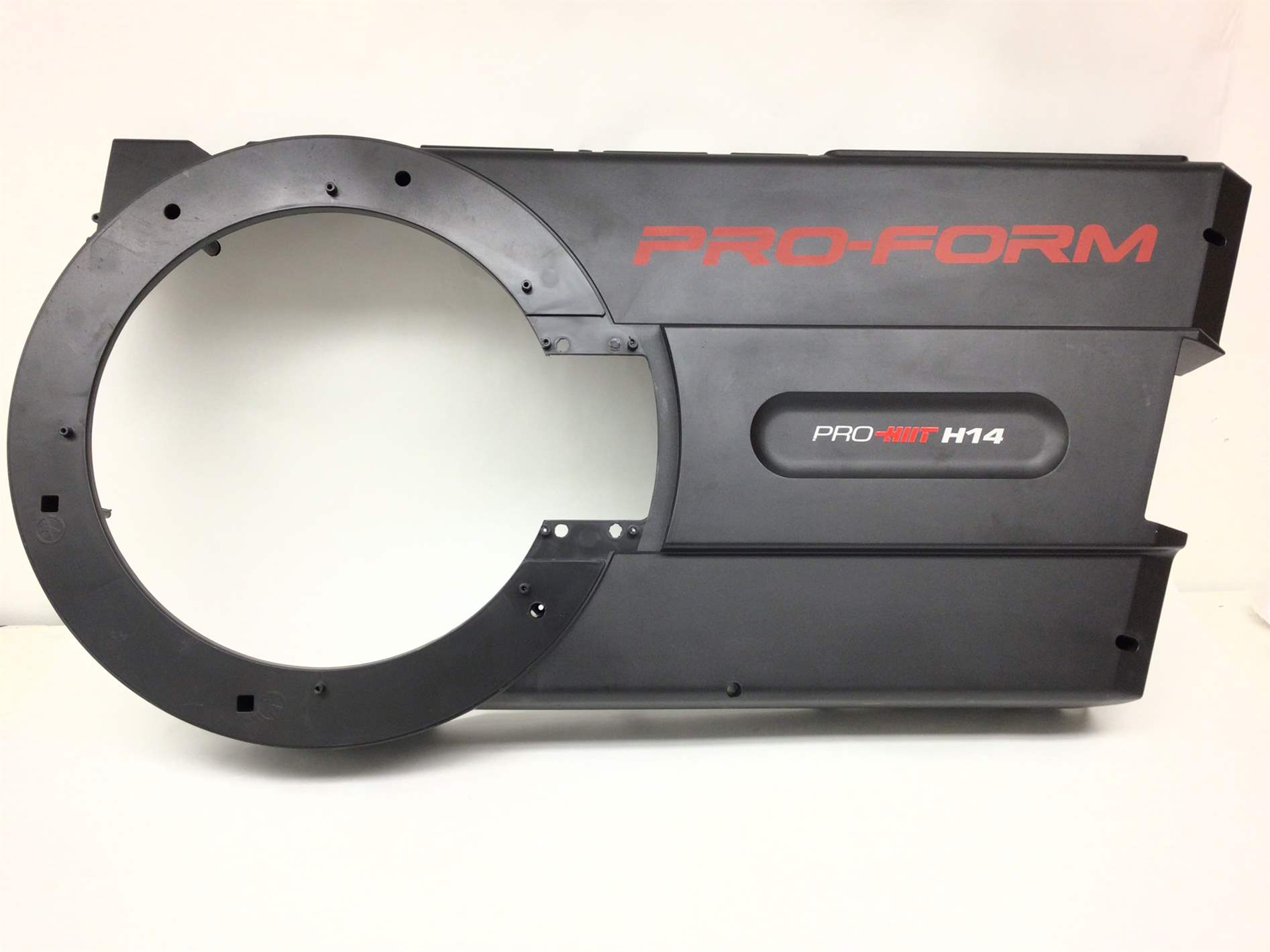

5 895498 418129 50 LEFT SHIELD Yes Model Compatibility List $203.60 / Each

46
5 895499 418128 51 RIGHT SHIELD Yes Model Compatibility List $203.60 / Each

46
895500 386951 # DECAL, WARNING PINCH No Model Compatibility List $4.94 / Each

1
895249 418127 5A CONSOLE No Model Compatibility List $1290.15 / Each

51
Console, Display (Used) 1034600 418127 5 1 Console, Display (Used) No Model Compatibility List $499.00 / Each

51
2 pfh420R8 408855 28 1 Belt, Drive Yes Model Compatibility List $112.41 / Each

1,15
3 1033870 411461 36 Resistance Motor with Link Arm Yes Model Compatibility List $95.61 / Each
Out Of Stock 		1,10,49
7 1003396 139703 70 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1
1 1020015 250961 113 Self-tap Screw M4 X 19mm (New) No Model Compatibility List $11.99 / Each

2
8 1011961 322839 82 Screw M4 X 42MM (New) Yes Model Compatibility List $12.99 / Each

2
# 999893 364361 # Optional Chest Pulse Heart Rate Sensor Strap (New) Yes Model Compatibility List $197.00 / Each

12,13,14,47,1
LARGE PULLEY WITH CRANK (USED) 1037945 299290 or 372200 LARGE PULLEY WITH CRANK (USED) Yes Model Compatibility List $89.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
