ProForm - STRIDESELECT 825

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
SNAP RING 100630 100488 58 SNAP RING No Model Compatibility List $2.71 / Each

2
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
ROLLER MAGNET 100081 113842 43 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
M6 NUT 100663 012111 60 M6 NUT Yes Model Compatibility List $3.31 / Each

M10 SPLIT WASHER 101359 121519 94 M10 SPLIT WASHER No Model Compatibility List $4.44 / Each

2
RSW CLAMP 100079 131090 69 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
104617 013373 64 M8 X 40MM BOLT No Model Compatibility List $5.00 / Each

ISOLATOR BOLT, BOTTOM 102272 013492 68A ISOLATOR BOLT, BOTTOM No Model Compatibility List $1.76 / Each

M4 X 38MM SCREW 102048 013529 74 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

100412 013567 49 SPRING PAD SCREW No Model Compatibility List $0.26 / Each

BEARING 100657 139703 40 BEARING Yes Model Compatibility List $24.46 / Each

1
M6 WASHER 101370 014003 93 M6 WASHER No Model Compatibility List $1.55 / Each

M8 SPLIT WASHER 100665 014174 83 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

LARGE SNAP RING 100654 143742 42 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
M4 X 16MM SCREW 100668 144985 66 M4 X 16MM SCREW No Model Compatibility List $0.22 / Each

2
106314 144995 34 M10 X 74MM CARRIAGE BOLT No Model Compatibility List $15.20 / Each

2
115206 145943 59 M5 X 40MM SCREW No Model Compatibility List $0.20 / Each

2
M10 LOCKNUT 100540 148710 29 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
M5 NYLON LOCKNUT 100690 150327 61 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
M8 X 40MM BUTTON SCREW 102047 153770 50 M8 X 40MM BUTTON SCREW Yes Model Compatibility List $10.57 / Each

2
115027 175592 28 FRONT PEDAL ARM BUSHING No Model Compatibility List $37.39 / Each

8,9,3
104931 179002 62 M5 X 12MM SCREW No Model Compatibility List $4.44 / Each

2
100885 184366 33 M10 X 45MM BOLT No Model Compatibility List $4.66 / Each

2
M8 X 25MM PATCH SCREW 102049 186409 22 M8 X 25MM PATCH SCREW No Model Compatibility List $2.32 / Each

2
UPPER BODY ENDCAP 101655 189558 71 UPPER BODY ENDCAP Yes Model Compatibility List $5.11 / Each

4,5,6,9
RESISTANCE CABLE 115218 191466 85 RESISTANCE CABLE Yes Model Compatibility List $13.10 / Each

4,5,6,10
WATER BOTTLE HOLDER 101258 191629 72 WATER BOTTLE HOLDER Yes Model Compatibility List $21.45 / Each

1
RESISTANCE MOTOR 100647 193223 55 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
REED SWITCH 35.5 INch 115213 196564 77 REED SWITCH 35.5 INch Yes Model Compatibility List $24.20 / Each

4
C Magnet Resistance Brake 115259 197598 54 C Magnet Resistance Brake Yes Model Compatibility List $74.65 / Each

8
100661 197605 30 PILLOW BLOCK No Model Compatibility List $63.82 / Each

1
101340 199493 73 M6 X 16MM BUTTON SCREW Yes Model Compatibility List $1.58 / Each

2
115241 200301 11 FOAM GRIP No Model Compatibility List $21.23 / Each

11
M10-1.5 X 85MM BOLT 100882 206319 63 M10-1.5 X 85MM BOLT No Model Compatibility List $12.94 / Each

2
101352 206322 53 M8 WASHER No Model Compatibility List $1.17 / Each

2
115212 206394 76 M4 X 22MM SCREW No Model Compatibility List $0.52 / Each

2
115261 209532 67 M8 X 70MM BUTTON BOLT No Model Compatibility List $5.32 / Each

2
115207 212054 65 ADJUSTMENT BRACKET SCREW No Model Compatibility List $1.63 / Each

2,3,4,5,6
UPPER WIRE 115070 212501 95 UPPER WIRE Yes Model Compatibility List $48.75 / Each

4,5,6
115266 212821 81 PIVOT AXLE No Model Compatibility List $55.66 / Each

8
WAVE WASHER 100797 213148 91 WAVE WASHER No Model Compatibility List $4.64 / Each

2
M8 X 16MM BUTTON SCREW 100673 214070 84 M8 X 16MM BUTTON SCREW No Model Compatibility List $1.06 / Each

2
M3 X 12MM SCREW 112958 220047 89 M3 X 12MM SCREW No Model Compatibility List $2.13 / Each

2

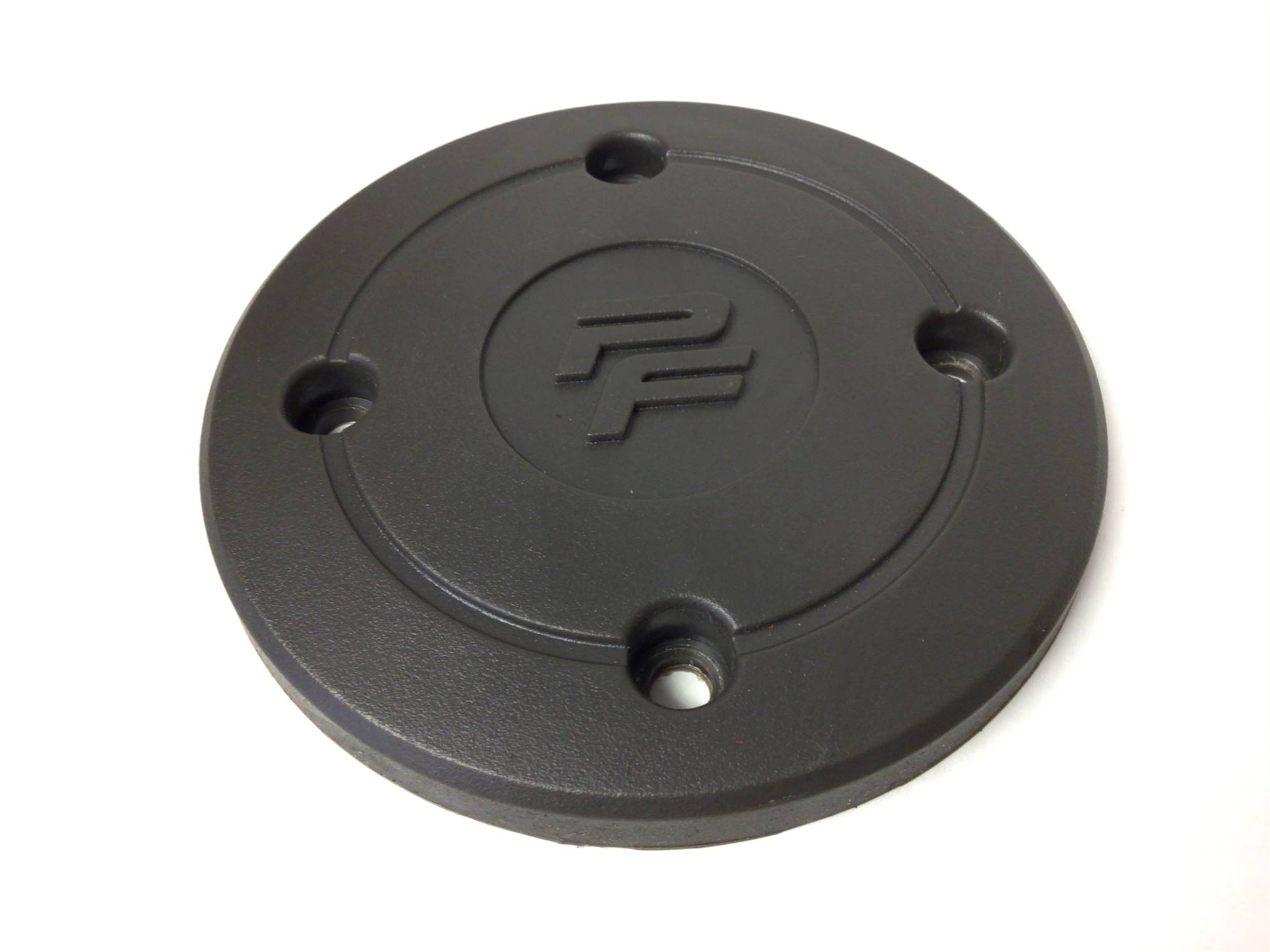

HUB COVER 115256 222225 48 HUB COVER Yes Model Compatibility List $31.21 / Each

9
HANDLEBAR SPACER 115251 222332 25 HANDLEBAR SPACER Yes Model Compatibility List $8.92 / Each

9,11
115250 222334 23 HANDLEBAR CAP No Model Compatibility List $5.81 / Each

9,11
115238 222338 8B RIGHT PEDAL DISC No Model Compatibility List $146.03 / Each
Out Of Stock
8,9
115247 222345 18 PEDAL ARM BUSHING No Model Compatibility List $54.00 / Each
Out Of Stock
8,9,3
115267 222347 88 PEDAL ARM SLEEVE No Model Compatibility List $13.02 / Each

8,9,3
115237 222407 8A LEFT PEDAL DISK No Model Compatibility List $130.81 / Each
Out Of Stock
8,9
115243 223277 14 LEFT PEDAL ARM No Model Compatibility List $129.51 / Each

8,9,3
115263 223278 75 RIGHT PEDAL ARM No Model Compatibility List $81.94 / Each

8,9,3
LEFT CRANK ARM 115254 223280 36 LEFT CRANK ARM Yes Model Compatibility List $102.42 / Each
3,8
RIGHT CRANK ARM 115255 223281 38 RIGHT CRANK ARM Yes Model Compatibility List $134.30 / Each

3,8
STABILIZER ENDCAP 115253 223285 35 STABILIZER ENDCAP Yes Model Compatibility List $26.70 / Each

9
ADJUSTMENT PIN 115246 223287 17 ADJUSTMENT PIN Yes Model Compatibility List $52.74 / Each

14

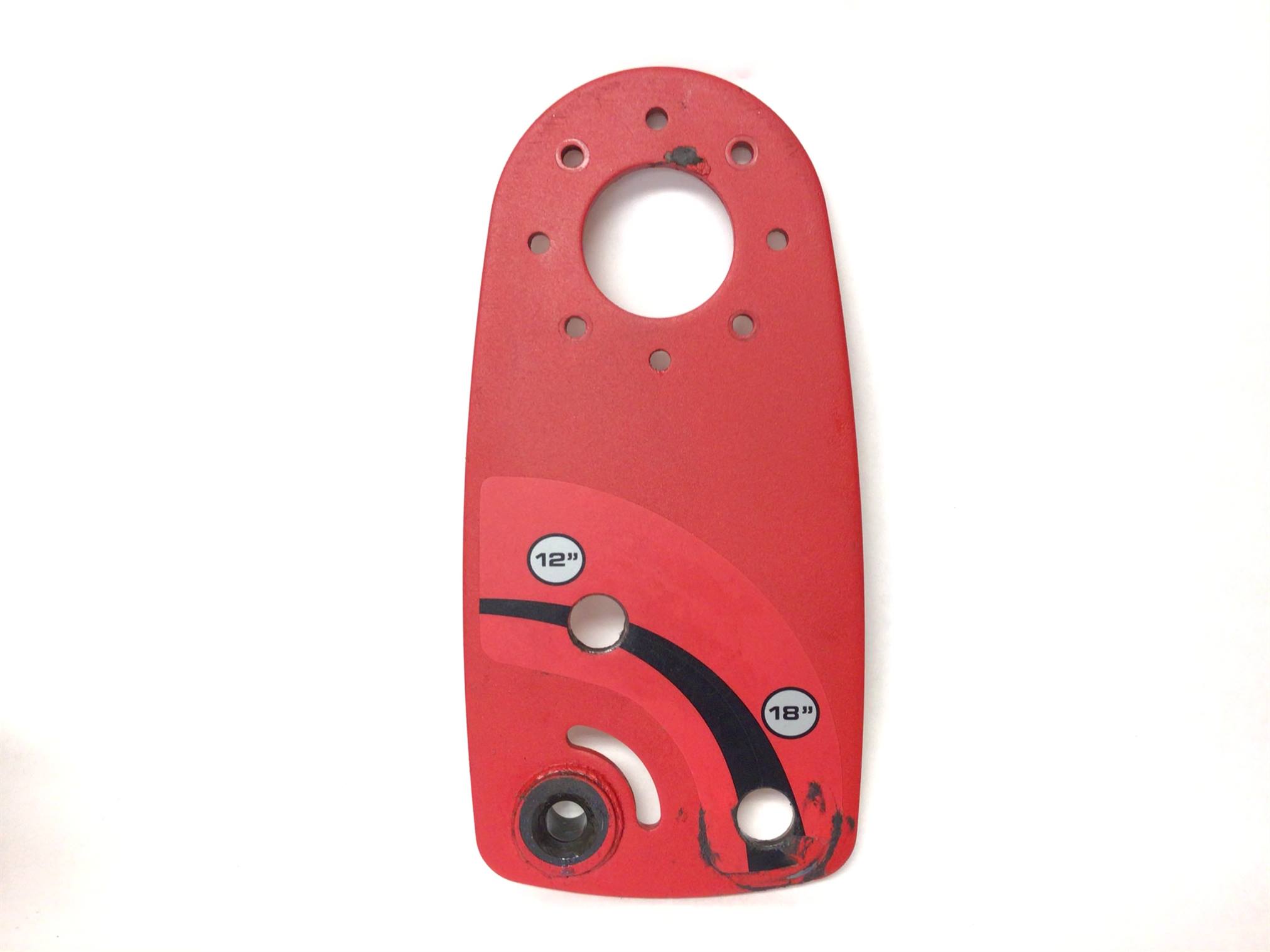

ADJUSTMENT BRACKET 115249 223299 20 ADJUSTMENT BRACKET Yes Model Compatibility List $109.47 / Each
Out Of Stock
3,8
115244 223300 15 MAST No Model Compatibility List $93.80 / Each

1
115235 223301 4 REAR STABILIZER No Model Compatibility List $43.13 / Each

1
115236 223303 7 RIGHT SIDE SHIELD No Model Compatibility List $138.76 / Each

3

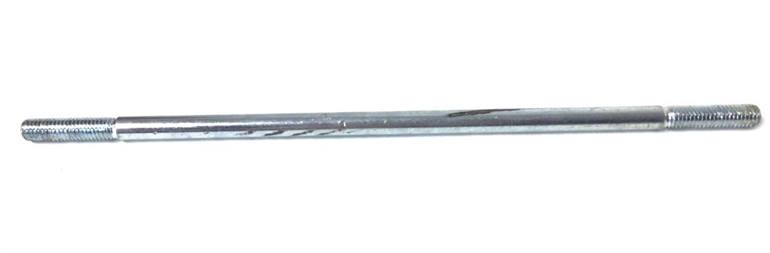

MAGNET GUIDE THREADED 115258 223416 52 MAGNET GUIDE THREADED Yes Model Compatibility List $8.33 / Each

8

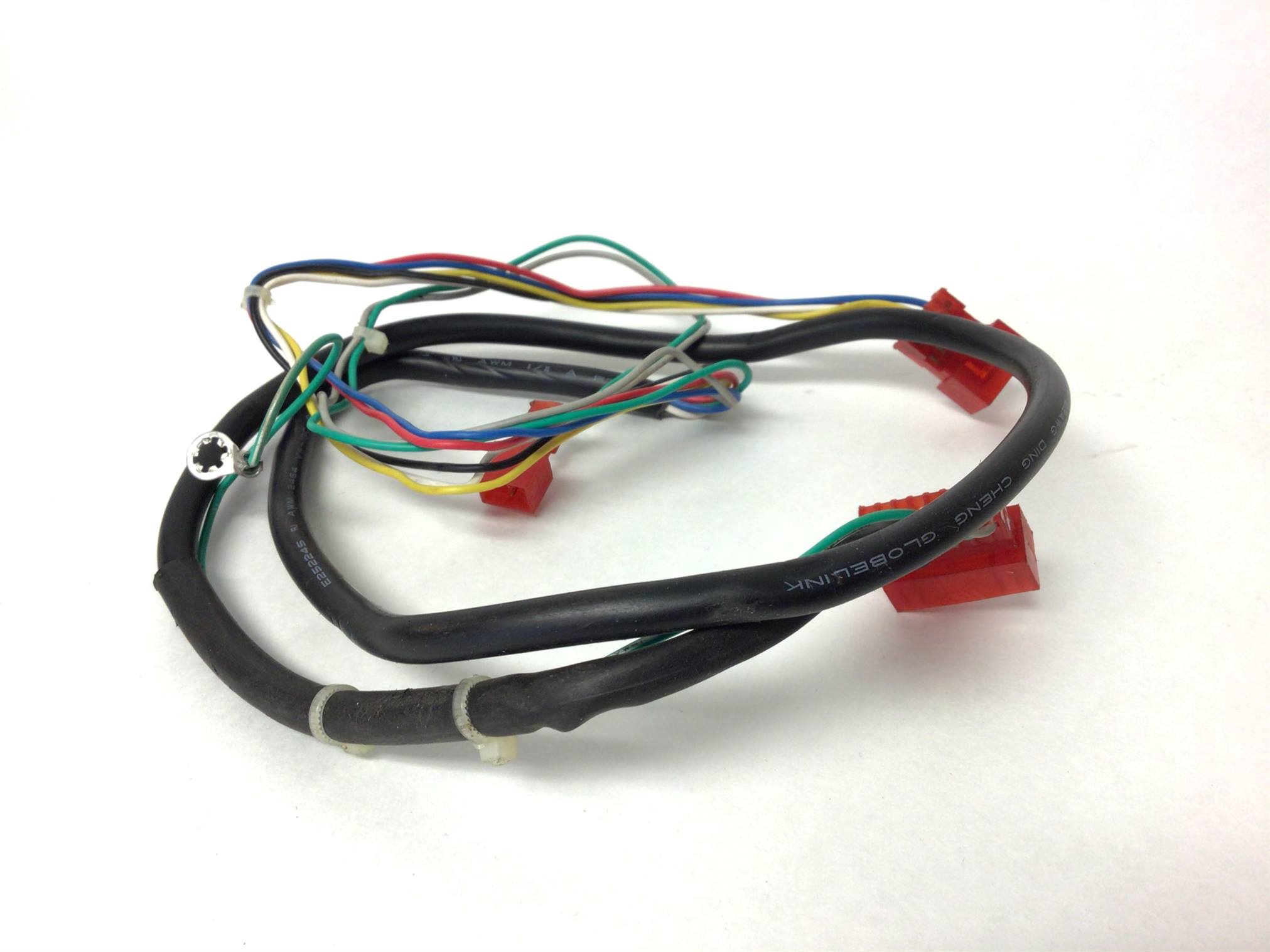

LOWER WIRE HARNESS 115219 223428 87 LOWER WIRE HARNESS Yes Model Compatibility List $15.00 / Each

4,5,6
115217 223450 82 COVER SCREW No Model Compatibility List $0.52 / Each
Out Of Stock
2,9
115239 223457 9 LEFT HANDLEBAR No Model Compatibility List $77.20 / Each

11
115240 223458 10 RIGHT HANDLEBAR No Model Compatibility List $77.20 / Each

11
115265 223459 79 HANDLEBAR LEG No Model Compatibility List $99.51 / Each

11
115234 223460 2 UPRIGHT No Model Compatibility List $103.07 / Each

3
115268 223474 96 PEDAL ARM ENDCAP No Model Compatibility List $0.77 / Each

8,9,3,4,5,6
ADJUSTMENT SPRING 3.94X.86 115248 223621 19 ADJUSTMENT SPRING 3.94X.86" Yes Model Compatibility List $14.96 / Each

2
115233 223643 # BATTERY DOOR No Model Compatibility List $6.42 / Each
Out Of Stock
1
115245 223899 16 PEDAL POST No Model Compatibility List $14.40 / Each

8,9,12,13,14
115264 223950 78 REED SWITCH BRACKET No Model Compatibility List $1.29 / Each

2,3,4,5,6
115242 229490 13 UPRIGHT ENDCAP No Model Compatibility List $2.11 / Each

9,3,4,5,6
115229 234388 # PLASTIC SPACER,1"ID,2"OD No Model Compatibility List $3.08 / Each

2,9,3,4,5,6
147376 235490 # USER-S MANUAL-PFEL3905V2 No Model Compatibility List $8.93 / Each

1
115260 235508 57 HUB No Model Compatibility List $103.89 / Each

1
FLYWHEEL BRACKET 100806 235509 97 FLYWHEEL BRACKET Yes Model Compatibility List $16.96 / Each

3

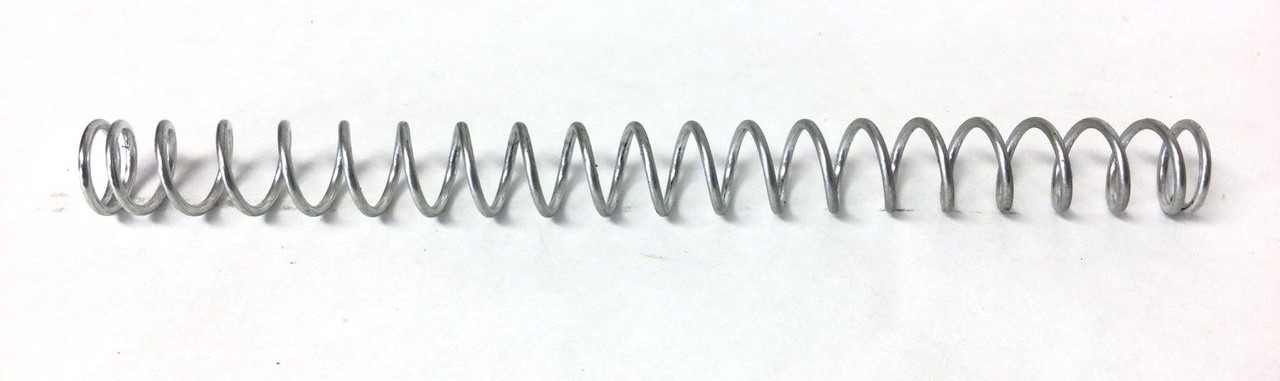

RETURN SPRING 115257 236327 51 RETURN SPRING Yes Model Compatibility List $7.41 / Each

2
115227 236418 68B FLAT FLYWHEEL SCREW No Model Compatibility List $1.03 / Each

2,8
147375 242469 # USER-S MANUAL - FCA No Model Compatibility List $8.69 / Each

1
IDLER SCREW M8-1.25X45MM 115262 247677 70 IDLER SCREW M8-1.25X45MM No Model Compatibility List $3.10 / Each

2,8
FLANGE SCREW 100677 249938 47 FLANGE SCREW No Model Compatibility List $47.34 / Each

2
LIFT BUSHING 101392 256295 24 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
M8 NUT 100030 256446 80 M8 NUT No Model Compatibility List $0.69 / Each

2
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
100824 258873 # DECAL, GENERAL WRNG, FR No Model Compatibility List $2.21 / Each

7,3
5MM ALLEN WRENCH 100604 045008 # 5MM ALLEN WRENCH Yes Model Compatibility List $3.85 / Each

6MM ALLEN WRENCH 100541 045021 # 6MM ALLEN WRENCH Yes Model Compatibility List $5.28 / Each

WHEEL 115252 052012 32 WHEEL Yes Model Compatibility List $4.49 / Each

Wire Harness (Used) 1019268 212502 0 1 Wire Harness (Used) Yes Model Compatibility List $5.49 / Each

4
Moving Arm Spacer (Used) 1019308 222333 0 2 Moving Arm Spacer (Used) Yes Model Compatibility List $22.00 / Each

9
Adjustment Knob 1019295 222504 0 2 Adjustment Knob No Model Compatibility List $16.49 / Each
Out Of Stock
14
Idler Pulley Assembly, Belt 1019282 223284 0 1 Idler Pulley Assembly, Belt Yes Model Compatibility List $49.50 / Each

8
Pedal (Used) 1019270 223286 0 2 Pedal (Used) Yes Model Compatibility List $82.50 / Each

9
Flywheel Set (Used) 1019272 223417 0 1 Flywheel Set (Used) Yes Model Compatibility List $130.90 / Each

8
ELPF3905 Display Console Used 1019271 223427 0 1 ELPF3905 Display Console Used Yes Model Compatibility List $164.99 / Each
Out Of Stock
7
65 Profel650j6 223443 0 1 65" Drive Belt Yes Model Compatibility List $54.99 / Each

15
Tension Spring 1019281 pf825-sprig # 1 Tension Spring No Model Compatibility List $10.99 / Each

2
Bearing Sealed 1002777 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1
Screw M8 X 16MM 1003998 214070 105 1 Screw M8 X 16MM No Model Compatibility List $1.06 / Each

2
M8 Split Washer 1004202 014174 0 1 M8 Split Washer No Model Compatibility List $11.99 / Each

M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
Retainer Snap Ring 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

2
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Resistance Motor Cable Assembly 1000031 191466 Resistance Motor Cable Assembly Yes Model Compatibility List $14.99 / Each

4,5,6,10
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
