ProForm - XP210 U

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
ROLLER MAGNET 100081 113842 16 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
101859 121642 51 HANDLEBAR CAP No Model Compatibility List $0.96 / Each

9,11,46
102372 123325 41 #8 BELT GUIDE SCREW No Model Compatibility List $0.30 / Each

2,15
RSW CLAMP 100079 131090 22 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M4 X 12MM GROUND SCREW 101860 013222 # M4 X 12MM GROUND SCREW No Model Compatibility List $2.75 / Each

WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
RIGHT PEDAL/STRAP 115066 134367 26 RIGHT PEDAL/STRAP No Model Compatibility List $40.76 / Each

1
LEFT PEDAL/STRAP 115065 134368 24 LEFT PEDAL/STRAP Yes Model Compatibility List $40.76 / Each

8,9
M8 SPLIT WASHER 100665 014174 45 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

110698 160721 23 DRIVE BELT No Model Compatibility List $43.13 / Each

1
REED SWITCH/WIRE 100752 170205 21 REED SWITCH/WIRE Yes Model Compatibility List $15.46 / Each

4,5,6
110292 179369 32 M10 FLANGE NUT No Model Compatibility List $0.64 / Each

2
RESISTANCE CABLE 115035 181250 34 RESISTANCE CABLE Yes Model Compatibility List $18.29 / Each

5
101864 184126 40A M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
RESISTANCE MOTOR 100647 193223 29 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
M4 X 16MM SCREW 100586 195562 40B M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
102219 207073 33 M10 X 35MM SCREW No Model Compatibility List $3.02 / Each

2
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
101865 234235 35 M4.2 X 18MM SCREW No Model Compatibility List $0.74 / Each

2
104448 242419 56 M8 WASHER No Model Compatibility List $0.26 / Each

2
M8 FLANGE NUT 100028 246066 39 M8 FLANGE NUT No Model Compatibility List $1.79 / Each

2
POWER SUPPLY 100830 248512 # POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
101028 251831 54 M4 X 22MM SCREW No Model Compatibility List $1.16 / Each

2
101431 251978 38 M10 SHOULDER SCREW No Model Compatibility List $9.58 / Each

2
M8 NUT 100030 256446 37 M8 NUT No Model Compatibility List $0.69 / Each

2
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
PULSE WIRE 30 101186 260951 52 PULSE WIRE 30 Yes Model Compatibility List $22.35 / Each

1
116288 265767 28 SEAT POST BUSHING No Model Compatibility List $2.83 / Each

8,12,13,14
147562 266028 48 SEAT POST KNOB No Model Compatibility List $20.66 / Each

12,13,14
147548 266029 11 SEAT KNOB No Model Compatibility List $19.57 / Each

12,13,14
116297 272639 43 M8 X 60MM SCREW No Model Compatibility List $9.52 / Each

2
101471 274913 # IFIT CARD,CIRCUIT TRNG,L1 No Model Compatibility List $63.16 / Each

4,5,6
101472 274914 # IFIT CARD,CIRCUIT TRNG,L2 No Model Compatibility List $63.16 / Each

4,5,6
101473 274915 # IFIT CARD,CIRCUIT TRNG,L3 No Model Compatibility List $63.16 / Each

4,5,6
101474 276770 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101475 276771 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101476 276772 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101477 276773 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101478 276774 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101479 276775 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101465 290905 # IFIT CARD, WELLNESS, L1 No Model Compatibility List $21.99 / Each

1
101466 290906 # IFIT CARD, WELLNESS, L2 No Model Compatibility List $21.99 / Each

1
101467 290907 # IFIT CARD, WELLNESS, L3 No Model Compatibility List $21.99 / Each

1
101468 290908 # IFIT CARD, WEIGHT LOSS,L1 No Model Compatibility List $21.99 / Each

3
101469 290909 # IFIT CARD, WEIGHT LOSS,L2 No Model Compatibility List $21.99 / Each

3
101470 290910 # IFIT CARD, WEIGHT LOSS,L3 No Model Compatibility List $21.99 / Each

3
CRANK BEARING SET 115067 295560 27 CRANK BEARING SET Yes Model Compatibility List $54.00 / Each

1
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
LT BATTERY DOOR 147568 314900 6C LT BATTERY DOOR No Model Compatibility List $7.19 / Each
Out Of Stock
1
147569 314901 6B RT BATTERY DOOR No Model Compatibility List $7.19 / Each
Out Of Stock
1
WHEEL 121168 317007 15 WHEEL Yes Model Compatibility List $20.35 / Each

8
LEVELING FOOT 110324 317078 50 LEVELING FOOT Yes Model Compatibility List $20.30 / Each

1
147556 317906 25 IDLER No Model Compatibility List $44.86 / Each

8
STABILIZER CAP 147543 317916 4 STABILIZER CAP Yes Model Compatibility List $9.83 / Each

9
153125 318542 5 SEAT POST No Model Compatibility List $74.11 / Each

12,13,14
147551 318546 14 REAR STABILIZER No Model Compatibility List $115.05 / Each

1
153129 318553 10 TOP SHIELD CAP No Model Compatibility List $14.75 / Each

9,3
154345 318558 13 PULLEY/CRANK No Model Compatibility List $116.27 / Each

8

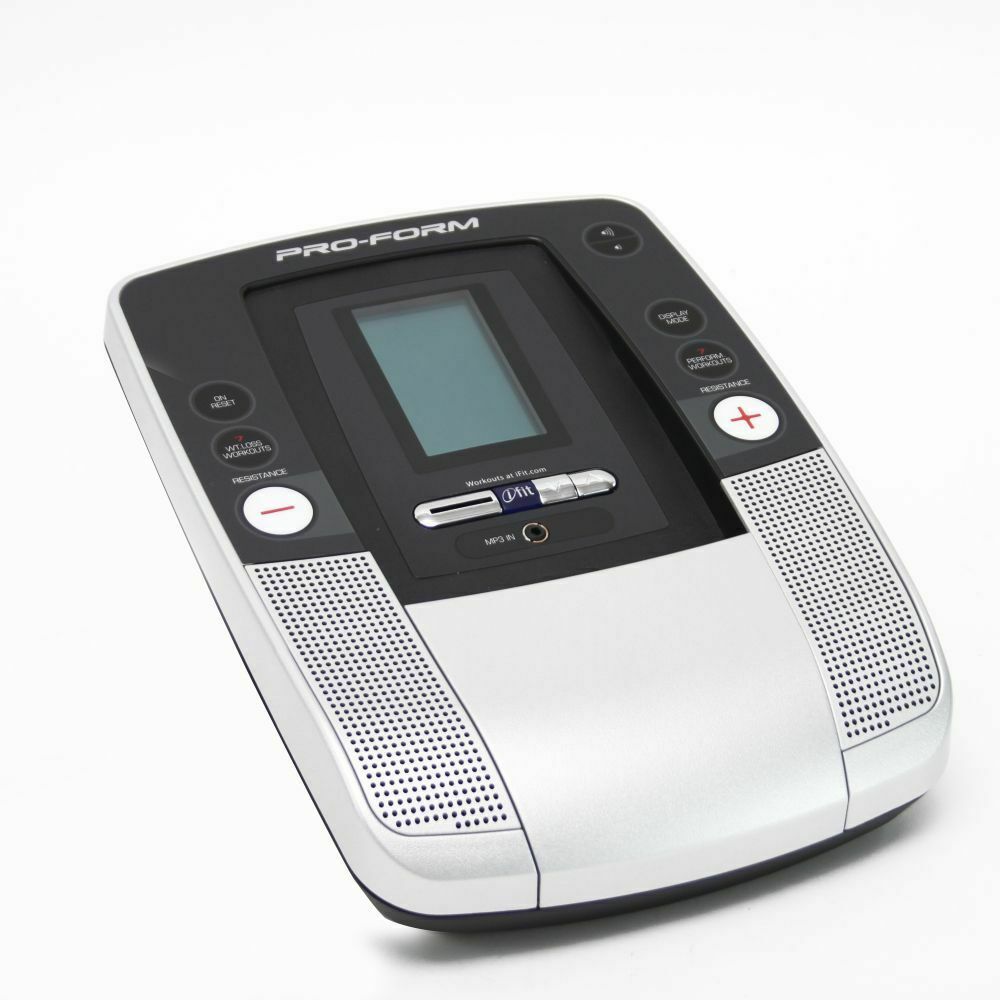

CONSOLE EBS199211 154350 319154 6A CONSOLE EBS199211 Yes Model Compatibility List $241.71 / Each
7
160991 319156 17 LEFT SHIELD No Model Compatibility List $139.52 / Each

3
160992 319157 18 RIGHT SHIELD No Model Compatibility List $139.52 / Each

3
154351 319162 9 TOP SHIELD No Model Compatibility List $37.05 / Each

3
147555 319934 20 SEAT POST BUSHING No Model Compatibility List $12.29 / Each

8,12,13,14
147558 322057 31 MAIN WIRE No Model Compatibility List $40.95 / Each

4,5,6
146906 322992 8 M8 CURVED WASHER No Model Compatibility List $3.01 / Each

2
147441 324160 46 PULSE SENSOR No Model Compatibility List $18.50 / Each

12,13,14
147559 332562 36 M10 X 80MM SCREW No Model Compatibility List $4.65 / Each

2
147560 332563 44 M8 X 25MM SCREW No Model Compatibility List $2.32 / Each

2
160995 355301 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock
1
154357 356150 49 WATER BOTTLE HOLDER No Model Compatibility List $195.69 / Each

1
154349 356159 3 UPRIGHT No Model Compatibility List $90.46 / Each

3
154348 356375 2 FRONT STABILIZER No Model Compatibility List $87.20 / Each

1
154354 356386 19 CONSOLE PLATE No Model Compatibility List $206.98 / Each

7
154355 356410 30 SEAT CARRIAGE No Model Compatibility List $30.15 / Each

12,13,14
154356 356419 47 HANDLEBAR No Model Compatibility List $108.55 / Each

11
154358 356455 55 CARRIAGE BLOCK No Model Compatibility List $17.71 / Each

1
154344 356619 7 EDDY MECHANISM No Model Compatibility List $266.32 / Each

8
154346 374030 53 M8 X 16MM SCREW No Model Compatibility List $2.87 / Each

2
SEAT 153130 374733 12 SEAT Yes Model Compatibility List $99.99 / Each

12,13,14
Bike Pedal Pair 1/2 115066 134368 + 134367 26 Bike Pedal Pair 1/2" - Aftermarket No Model Compatibility List $37.39 / Each

8
Foot Leveler Level Feet 000142 317078 0 1 Foot Leveler Level Feet Yes Model Compatibility List $29.99 / Each

1
Belt Drive ntel-370j6 160721 0 1 Belt Drive No Model Compatibility List $39.99 / Each

1
Belt Drive ntel-370j6 160721 0 1 Belt Drive No Model Compatibility List $39.99 / Each

1
Belt Drive ntel-370j6 160721a 0 1 Belt Drive Yes Model Compatibility List $39.99 / Each

1
M8 Split Washer 1004202 014174 0 1 M8 Split Washer No Model Compatibility List $11.99 / Each

Pedal Set 1004415 134367 0 1 Pedal Set No Model Compatibility List $52.99 / Each

1
Speed Sensor 1004489 170205 0 1 Speed Sensor Yes Model Compatibility List $21.99 / Each

4,5,6
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
1/2 1007314 134367 0 1 1/2" Spindle Pedal Pair with Straps No Model Compatibility List $69.99 / Each

1
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Crank Bearing Set 1008357 295560 0 1 Crank Bearing Set Yes Model Compatibility List $59.99 / Each

1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Hand Sensor Wire Harness 101186 260951 52 1 Hand Sensor Wire Harness Yes Model Compatibility List $32.99 / Each

1
Leveling Foot Leveler 1000586 317078 Leveling Foot Leveler Yes Model Compatibility List $16.99 / Each
1
AC Adapter Power Supply 999991 248512 AC Adapter Power Supply Yes Model Compatibility List $8.99 / Each

4,5,6
AC Adapter Power Supply 999992 248512 AC Adapter Power Supply Yes Model Compatibility List $14.99 / Each

4,5,6
Foot Leveler Level Feet 1003271 317078 Foot Leveler Level Feet Yes Model Compatibility List $17.99 / Each

1
Pedal Set 1002491 134367 & 134368 Pedal Set Yes Model Compatibility List $23.99 / Each
Out Of Stock
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
