ProForm - XP 550S

Repair Parts for ProForm XP 550S 831.296751

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: XP 550S

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
031229 Power Cord KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $34.00 / Each

5,6
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Motor Drive 1008145 286075 0 1 Motor Drive Yes Model Compatibility List $250.79 / Each

28
Roller Front 1008223 204054 0 1 Roller Front Yes Model Compatibility List $104.35 / Each

8
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
Front Platform Bolt 1010869 013500 0 1 Front Platform Bolt No Model Compatibility List $13.99 / Each

Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Motor Controller Board 1001217 241697 Motor Controller Board Yes Model Compatibility List $159.00 / Each
Out Of Stock
DC Drive Motor 1001582 286075 and G-215392 DC Drive Motor Yes Model Compatibility List $159.00 / Each
Out Of Stock
Screw 013826 286075 or 295730 Screw Yes Model Compatibility List $1.79 / Each
Out Of Stock

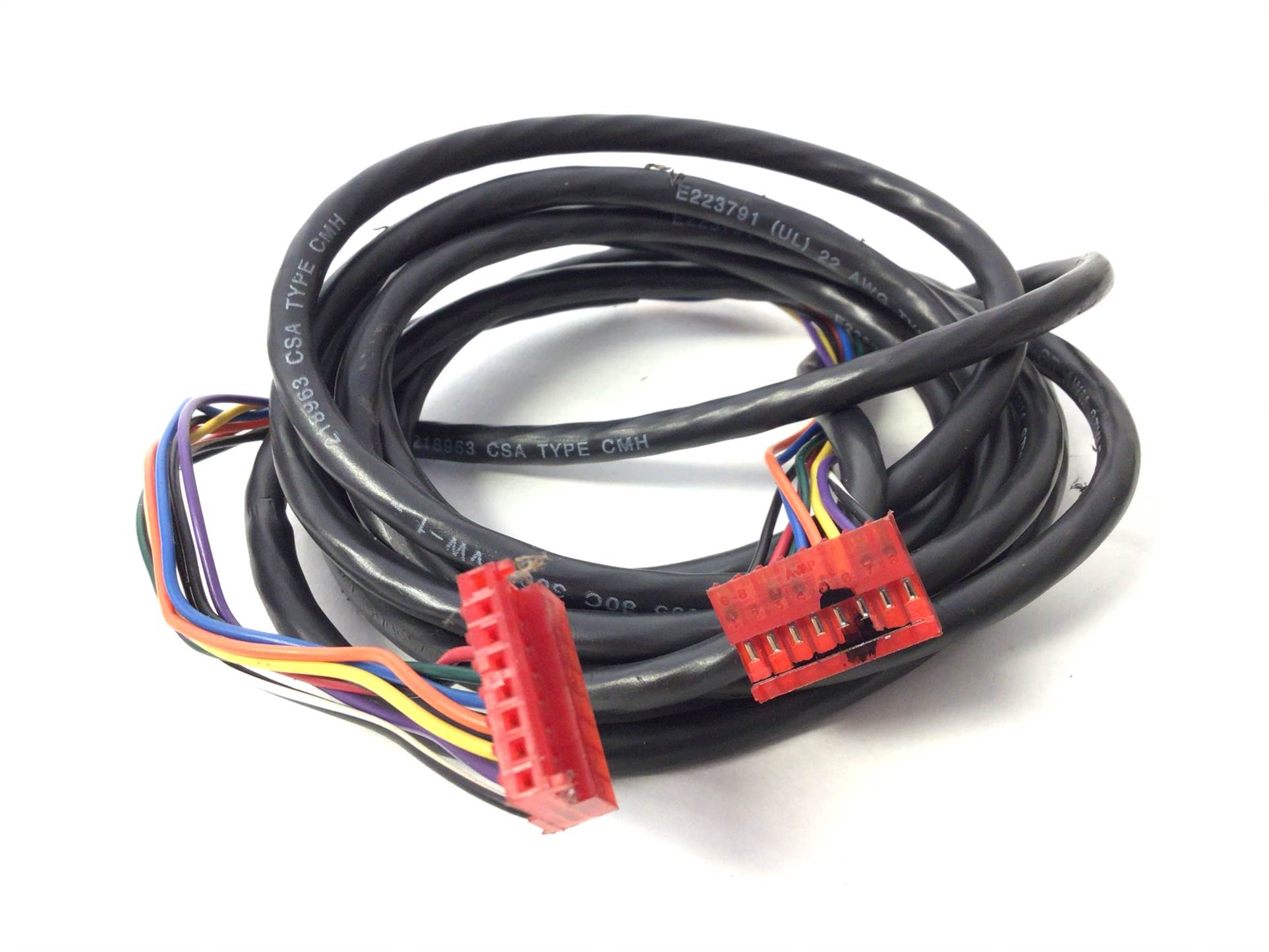

Lower Board Cable (New) 1012715 159530 Lower Board Cable (New) Yes Model Compatibility List $19.99 / Each

4,5,6
Safety Latch Shock 46.5” (Used) 1004973 255033 Safety Latch Shock 46.5” (Used) Yes Model Compatibility List $34.19 / Each
Out Of Stock 		1

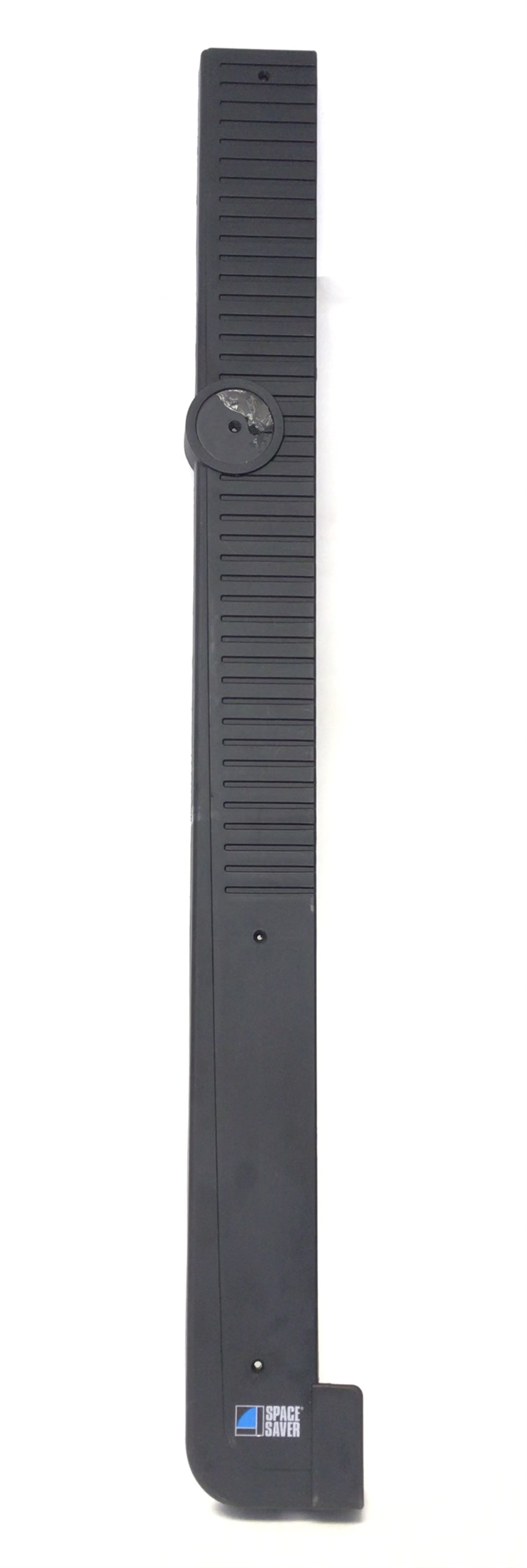

LEFT FOOT RAIL 118456 235441 1 LEFT FOOT RAIL Yes Model Compatibility List $52.92 / Each

9
102234 251606 2 FOOT RAIL SCREW No Model Compatibility List $0.54 / Each

2,9

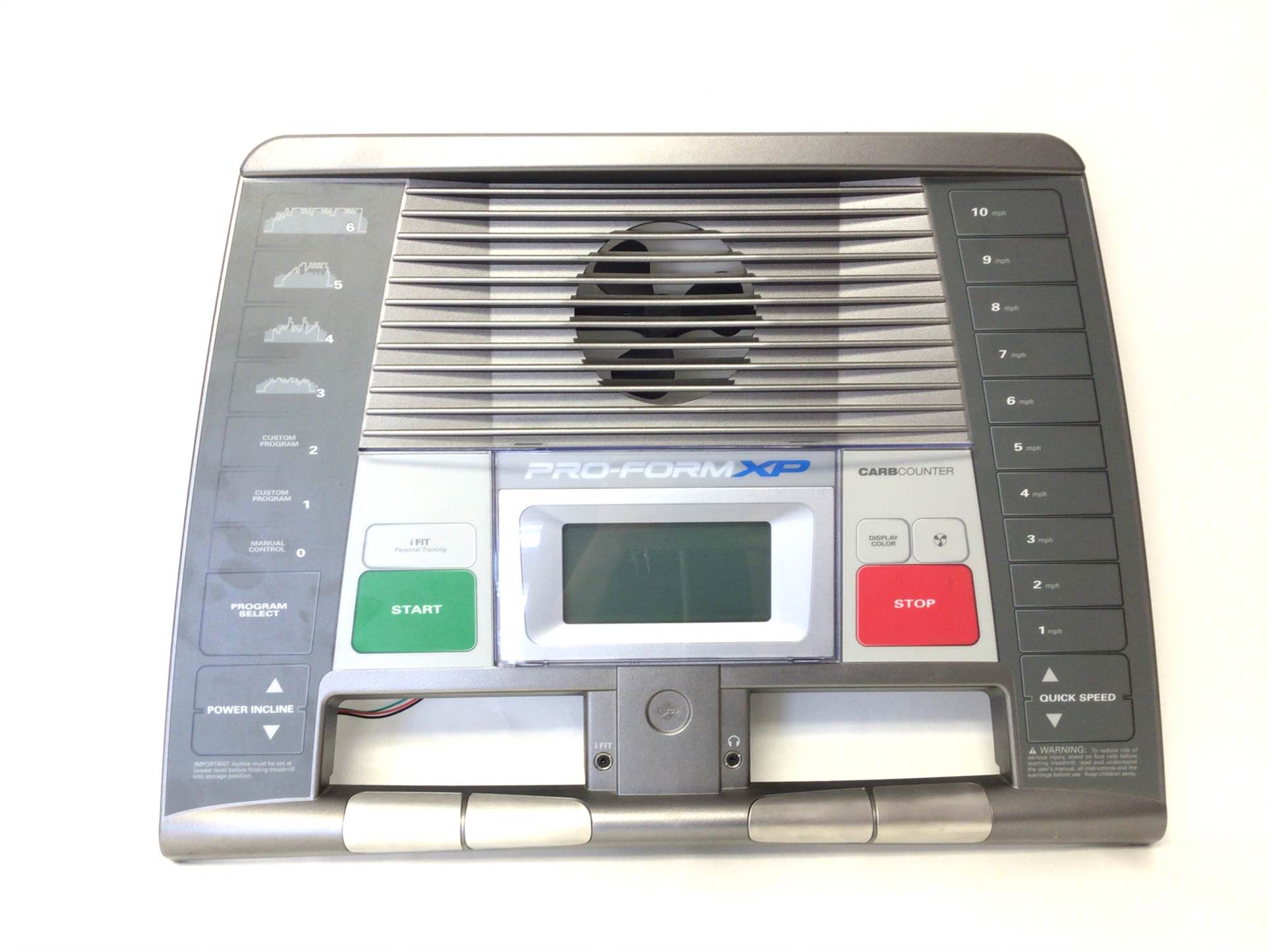

CONSOLE 161747 234580 3 CONSOLE Yes Model Compatibility List $382.90 / Each
Out Of Stock 		7
142592 224131 4 CUSHION DECAL No Model Compatibility List $8.93 / Each

7,3
Screw #8 X 19MM 1004194 130659 4 1 Screw #8 X 19MM Yes Model Compatibility List $0.66 / Each

2,7,1
LATCH 102233 223504 5 LATCH Yes Model Compatibility List $3.36 / Each

1
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
FRONT ISOLATOR 118458 198050 6 FRONT ISOLATOR Yes Model Compatibility List $21.60 / Each

3
Isolator Center (Used) 1021616 223535 7 1 Isolator Center (Used) No Model Compatibility List $30.59 / Each
Out Of Stock 		1
M4 X 38MM SCREW 102048 013529 8 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

1

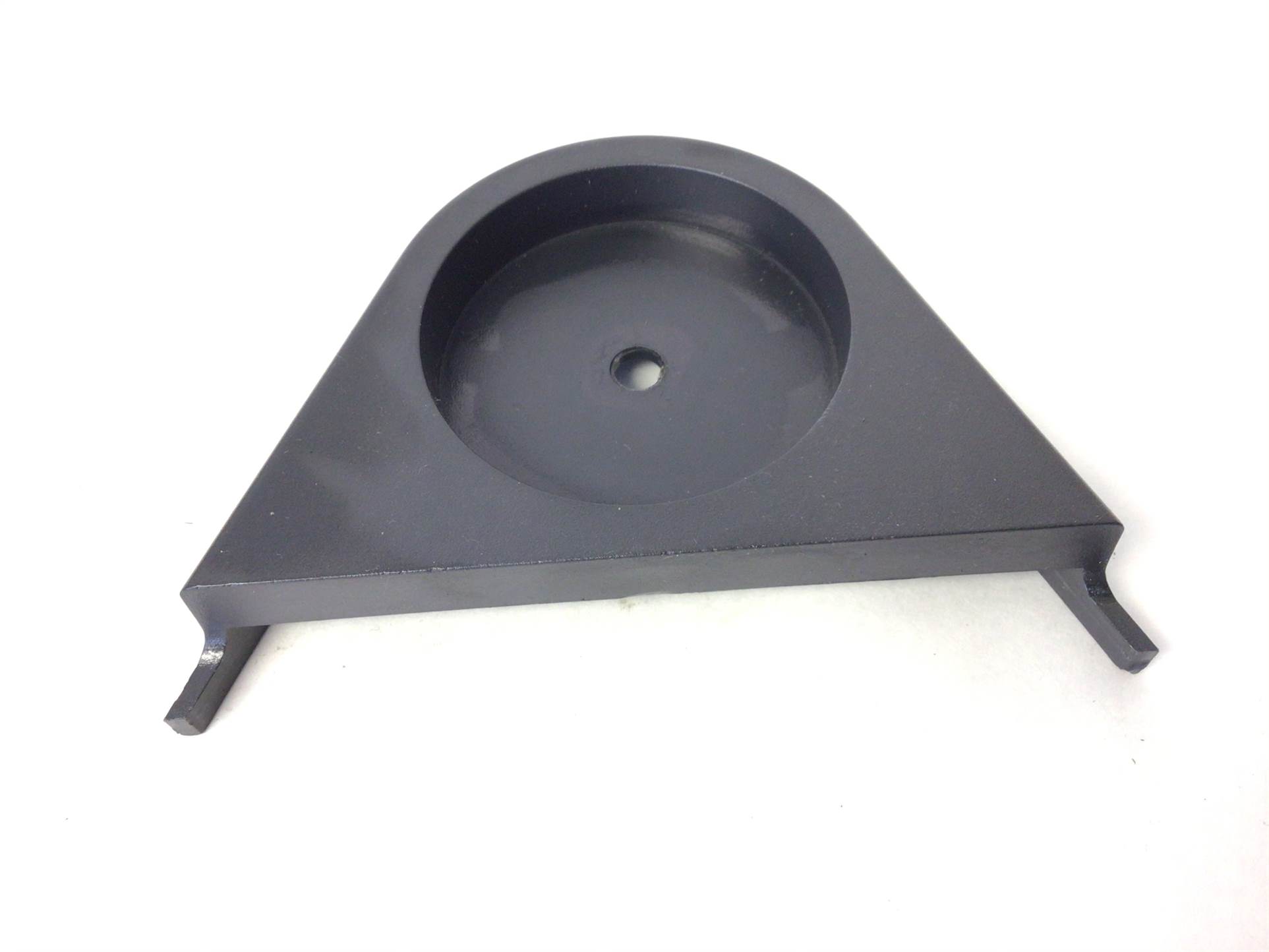

ISOLATOR BRACKET COVER 118459 223408 9 ISOLATOR BRACKET COVER Yes Model Compatibility List $9.73 / Each

2,3,4,5,6,9
FRONT ROLLER BUSHING 102248 219550 11 FRONT ROLLER BUSHING No Model Compatibility List $2.52 / Each

1
161721 235103 13 WALKING PLATFORM No Model Compatibility List $288.50 / Each

15
BELT GUIDE 100147 198639 14 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40
#8 X 1/2 100137 136728 15 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
102236 228366 16 PLATFORM BOLT, BACK No Model Compatibility List $2.33 / Each

2,4,5,6
HANDRAIL BOLT 100255 142622 17 HANDRAIL BOLT No Model Compatibility List $2.18 / Each

2,3,9

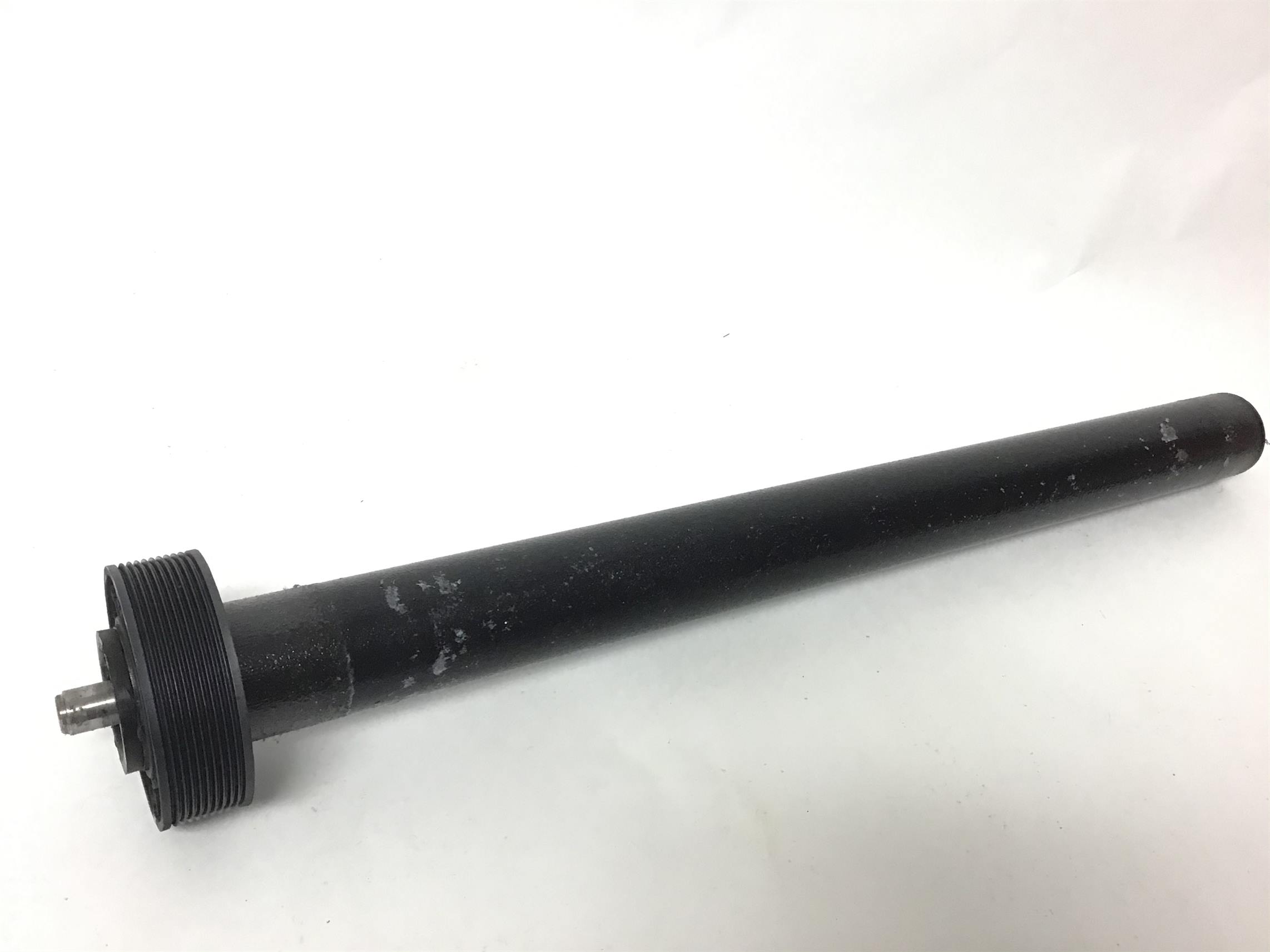

FRONT ROLLER/PULLEY 145720 204054 18 FRONT ROLLER/PULLEY Yes Model Compatibility List $114.78 / Each

8
ROLLER MAGNET 100081 113842 19 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
117947 169460 21 LIFT FRAME SPACER No Model Compatibility List $2.49 / Each

2,3,4,5,6,10
REED SWITCH 102795 165798 22 REED SWITCH Yes Model Compatibility List $14.41 / Each

24
CONSOLE PLATE SCREW 100269 130659 23 CONSOLE PLATE SCREW Yes Model Compatibility List $0.66 / Each

2,7,1
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
REED SWTICH CLIP 100318 148202 24 REED SWTICH CLIP No Model Compatibility List $2.42 / Each

1
SCREW,Hex,3/8-16X.75 113294 117332 25 SCREW,Hex,3/8-16X.75" No Model Compatibility List $2.02 / Each

2
MOTOR WASHER 113293 122812 26 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
160585 223410 27 RIGHT BOTTOM HANDGRIP No Model Compatibility List $19.51 / Each

11
MOTOR BELT 102891 189462 28 MOTOR BELT Yes Model Compatibility List $24.04 / Each

15
3/8 102446 014117 29 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

SEAT RAIL FLANGE NUT 104004 120867 30 SEAT RAIL FLANGE NUT Yes Model Compatibility List $3.75 / Each

1
160586 229526 31 RIGHT TOP HANDGRIP No Model Compatibility List $21.70 / Each
Out Of Stock 		11
DRIVE MOTOR 102793 286075 32 DRIVE MOTOR Yes Model Compatibility List $240.90 / Each

28
HOOD SCREW 100354 013316 34 HOOD SCREW No Model Compatibility List $1.42 / Each

PLATFORM NUT 100252 136012 35 PLATFORM NUT No Model Compatibility List $1.47 / Each

1
113311 215943 36 HAIR PIN COTTER PIN Yes Model Compatibility List $3.04 / Each

2
Motor Incline (Used) 1021628 238954 37 1 Motor Incline (Used) Yes Model Compatibility List $50.39 / Each
Out Of Stock 		1,10
IDLER ARM BOLT 100282 142276 38 IDLER ARM BOLT Yes Model Compatibility List $2.50 / Each

1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
1/4 100042 014063 39 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

FRONT ROLLER ADJ BOLT 100433 165220 41 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

1
PLATFORM BOLT, FRONT 1/4 100221 128272 42 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
#8 X 3/4 100132 013607 44 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

1
160587 226300 46 CONTROLLER BRACKET No Model Compatibility List $12.07 / Each

7,2,8,3,4,5,6
POWER SWITCH 100201 186726 47 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
CONTROLLER 102317 408938 48 CONTROLLER Yes Model Compatibility List $197.44 / Each

7,8
GROMMET 100061 173169 50 GROMMET Yes Model Compatibility List $0.94 / Each

1,2
102240 158157 51 STATIC DECAL No Model Compatibility List $1.84 / Each
Out Of Stock 		7,3
#8 HOOD CLIP 100032 133333 53 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
117949 215163 54 BELLY PAN No Model Compatibility List $99.07 / Each

1
RELEASABLE WIRE TIE 100064 116926 55 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
PHOTO SWITCH WIRE 117965 159530 56 PHOTO SWITCH WIRE Yes Model Compatibility List $9.90 / Each

4,5,6
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 57 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
8 100063 016057 58 8" CABLE TIE No Model Compatibility List $1.30 / Each

1

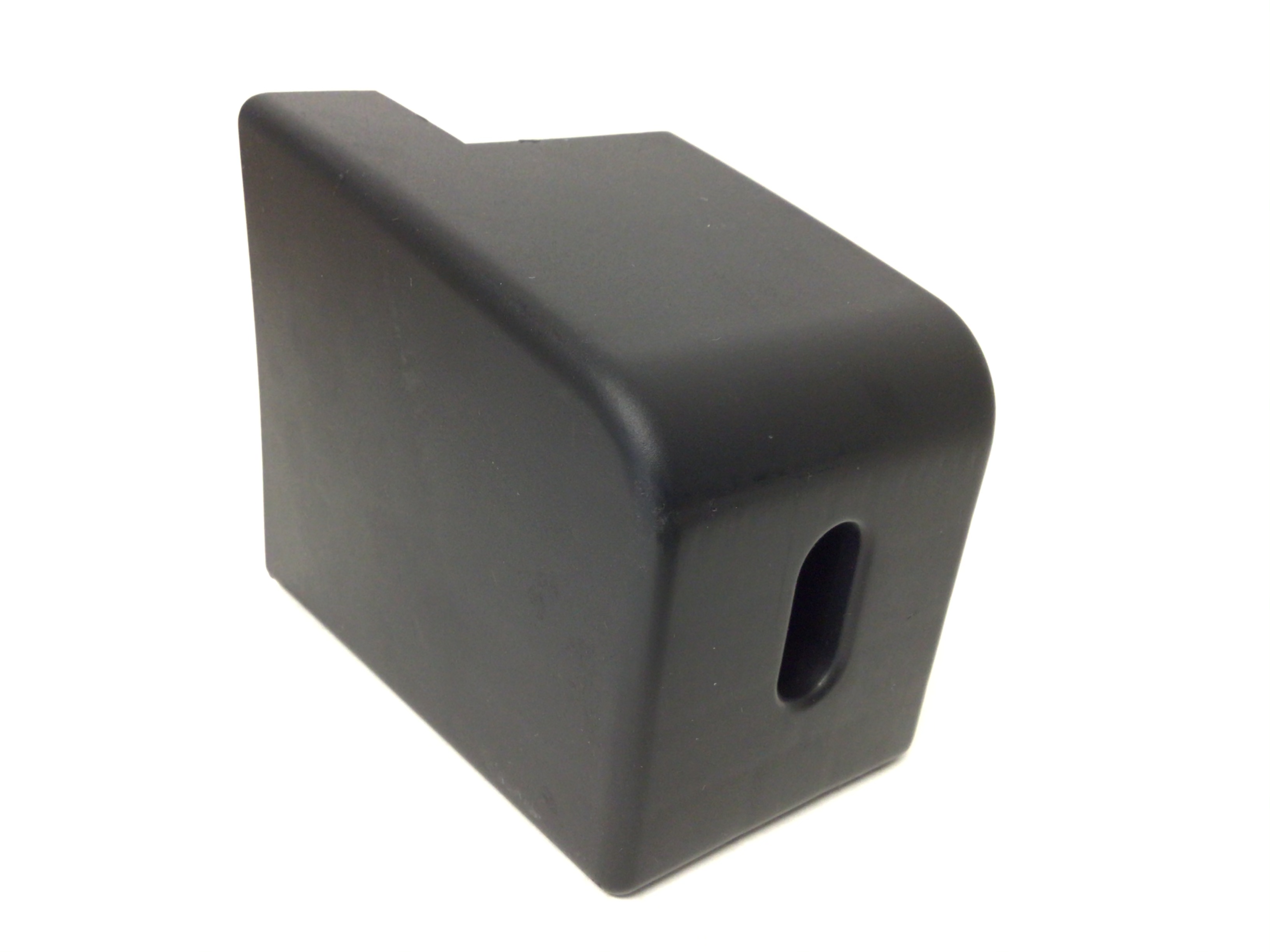

RIGHT REAR ENDCAP 102255 223406 60 RIGHT REAR ENDCAP Yes Model Compatibility List $10.26 / Each

4,5,6,9
161722 228573 61 MOTOR BRACKET No Model Compatibility List $12.67 / Each

2,3,4,5,6
REAR ROLLER ADJ BOLT 104339 105444 62 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

1

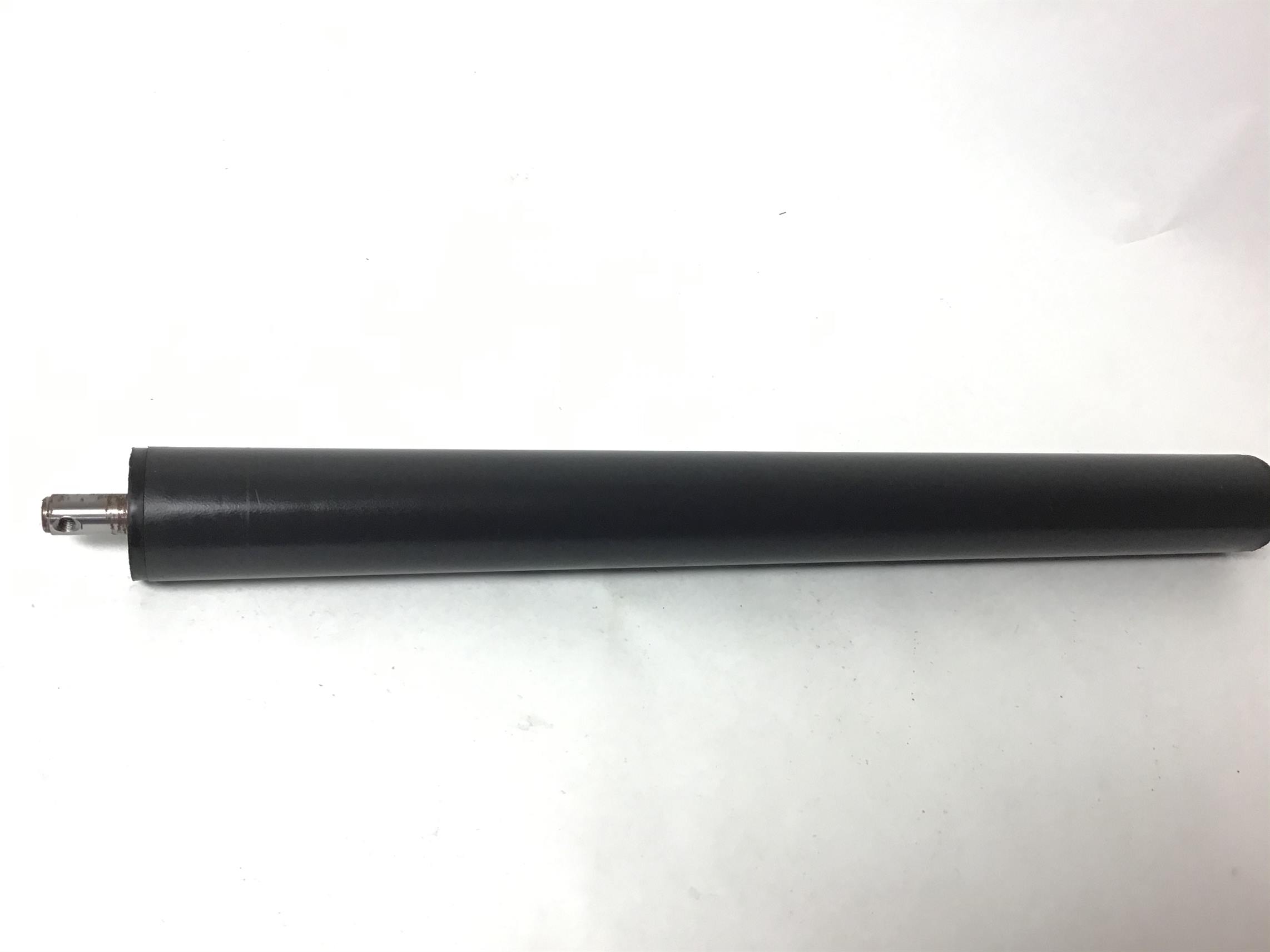

REAR ROLLER 144762 248366 63 REAR ROLLER Yes Model Compatibility List $127.83 / Each

8
103158 045017 65 7/32" ALLEN WRENCH No Model Compatibility List $2.20 / Each

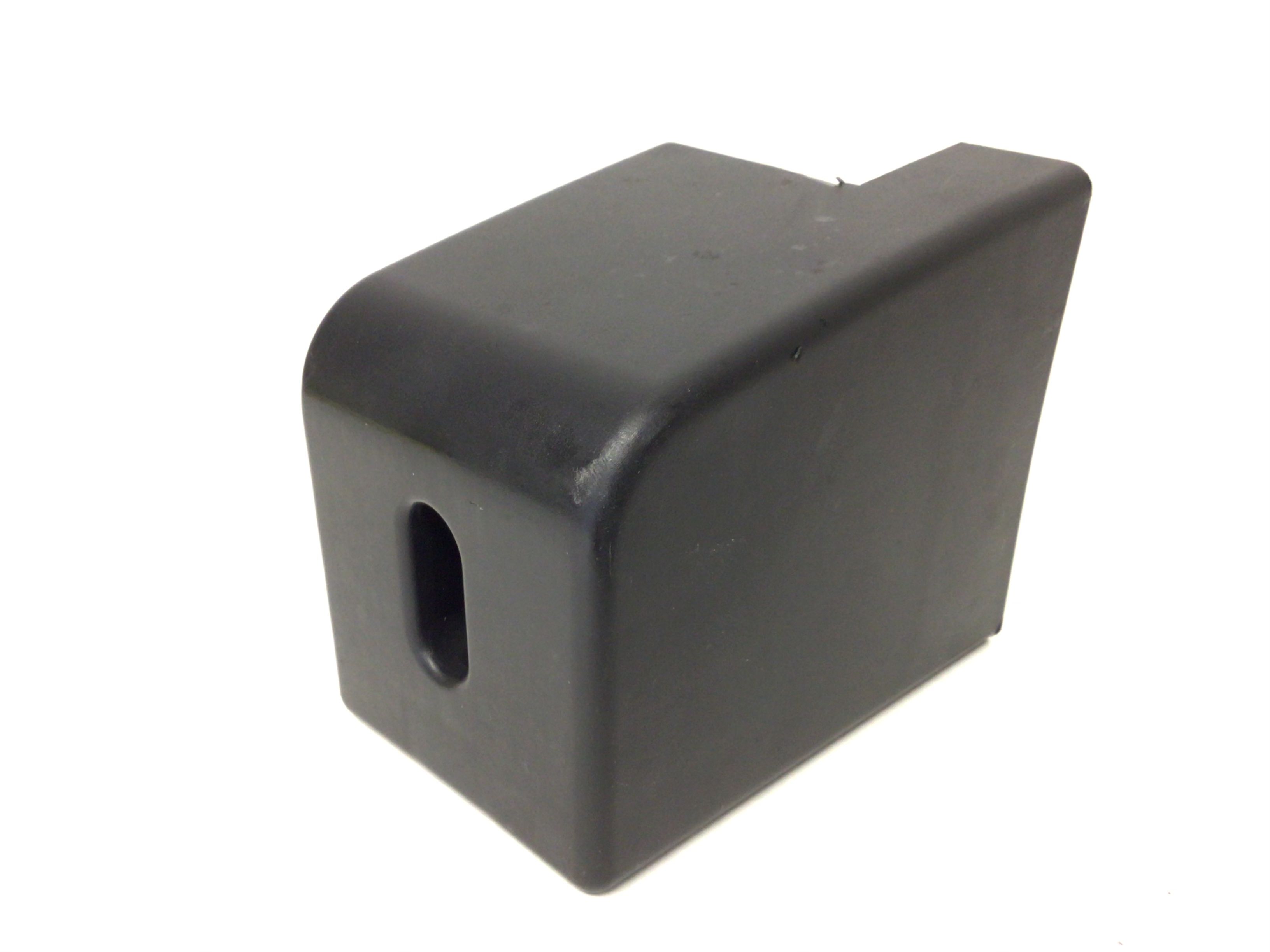

LEFT REAR ENDCAP 102254 223407 66 LEFT REAR ENDCAP Yes Model Compatibility List $19.06 / Each

4,5,6,9
118466 235442 67 RIGHT FOOT RAIL No Model Compatibility List $49.01 / Each

9
159233 238852 68 WALKING BELT No Model Compatibility List $111.31 / Each

15
100280 256836 69 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
FILTER W/6 100113 189813 70 FILTER W/6" WIRE Yes Model Compatibility List $19.45 / Each

1,4
COTTER PIN 100432 015044 72 COTTER PIN No Model Compatibility List $1.98 / Each

#8 STAR WASHER 100141 014157 73 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

1
UPRIGHT WIRE HARNESS 160588 234884 74 UPRIGHT WIRE HARNESS Yes Model Compatibility List $56.64 / Each

3,4,5,6
Ground Wire 4 Inch 100187 215822 77 Ground Wire 4 Inch Yes Model Compatibility List $2.09 / Each

4,5,6,7
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
INCLINE/CONTROLLER WIRE 102354 223520 83 INCLINE/CONTROLLER WIRE Yes Model Compatibility List $9.35 / Each

4,5,6,7,8,10
#10 STAR WASHER 100142 014088 84 #10 STAR WASHER No Model Compatibility List $0.91 / Each

1
1/4 102840 012090 85 1/4" NUT No Model Compatibility List $1.54 / Each

MOTOR BOLT 111182 215360 87 MOTOR BOLT Yes Model Compatibility List $3.28 / Each

2
160590 223401 89 U-BASE No Model Compatibility List $58.29 / Each
Out Of Stock 		3
100178 252433 91 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
161750 215162 93 HOOD No Model Compatibility List $81.49 / Each
Out Of Stock 		9
ACCESS DOOR 100167 215158 96 ACCESS DOOR No Model Compatibility List $1.18 / Each

4,5,6
Screw (New) 104355 102959 100 Screw (New) Yes Model Compatibility List $11.99 / Each

1
160592 233486 101 CONSOLE BASE No Model Compatibility List $92.16 / Each

7,3
INCLINE DISK 104346 109370 102 INCLINE DISK Yes Model Compatibility List $5.31 / Each

1
#8 X 1/2 100120 186819 103 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
PAD SPACER 100247 161411 107 PAD SPACER Yes Model Compatibility List $3.72 / Each

3,9
Bracket Roller Rear (Used) 1021603 233668 108 1 Bracket Roller Rear (Used) No Model Compatibility List $13.79 / Each
Out Of Stock 		1
160593 223629 110 CROSSBAR No Model Compatibility List $42.25 / Each

1
1/2 100258 013423 112 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

1
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113328 114953 # 14" BLUE WIRE F/F No Model Compatibility List $4.17 / Each

4,5,6
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

4,5,6
FRONT ROLLER GROUND WIRE 117600 143024 # FRONT ROLLER GROUND WIRE No Model Compatibility List $2.18 / Each

4,5,6,8
8 117654 153458 # 8" GREEN WIRE, 2RING Yes Model Compatibility List $2.27 / Each

4,5,6
117971 162843 # 20" BLACK WIRE, M/F No Model Compatibility List $5.37 / Each

4,5,6
6 102279 198071 # 6" BLUE WIRE, 2F No Model Compatibility List $2.81 / Each

4,5,6
117969 198083 # 12"BLUE WIRE, M/F No Model Compatibility List $3.92 / Each

4,5,6
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $9.99 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
117970 223492 # 22" RED WIRE, M/F No Model Compatibility List $5.86 / Each

4,5,6
160600 223538 # HARDWARE KIT No Model Compatibility List $28.90 / Each

1
100407 225209 # CD, MARATHON, INTERMEDIAT No Model Compatibility List $92.28 / Each

1
100408 225212 # CD, 5K, BEGINNER No Model Compatibility List $92.28 / Each

1
100409 225213 # CD, BODY TONE, LEVEL 3 No Model Compatibility List $53.92 / Each

1
100410 225214 # CD, 10K, INTERMEDIATE No Model Compatibility List $92.28 / Each

1
161751 232395 # TECH SHEET No Model Compatibility List $0.87 / Each

1

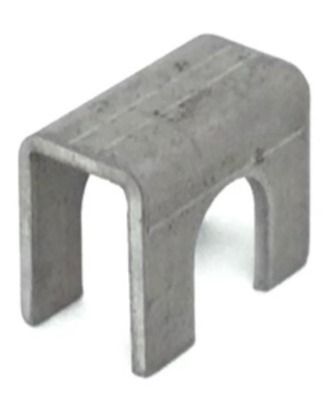

STOP BRACKET 117964 236907 # STOP BRACKET No Model Compatibility List $6.92 / Each

2,3,4,5,6
CHEST PULSE KIT 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each
Out Of Stock 		1

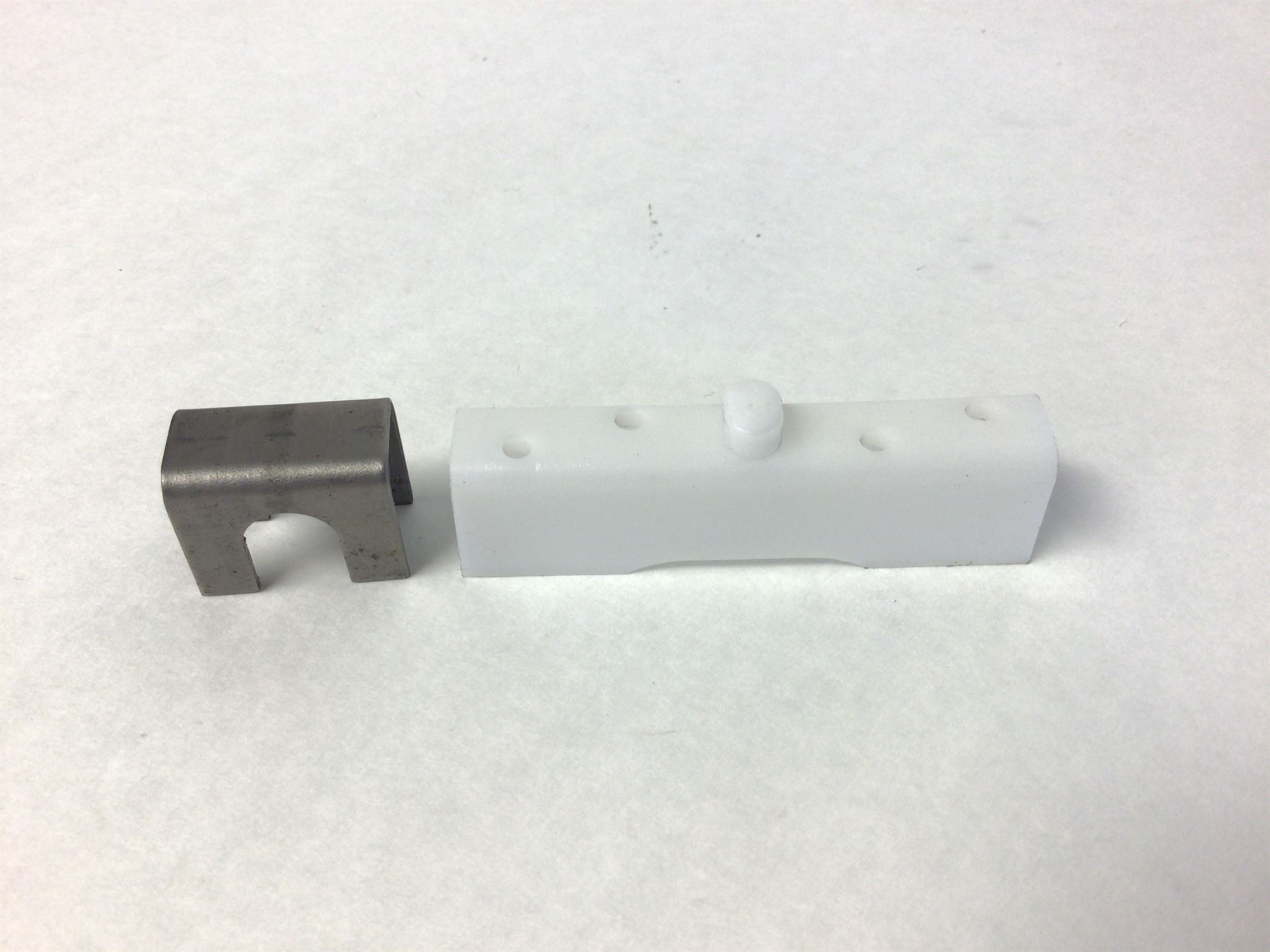

INCLINE MOTOR FIXKIT,NOTE 161723 239332 # INCLINE MOTOR FIXKIT,NOTE No Model Compatibility List $12.21 / Each
Out Of Stock 		10
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
3/8 110794 106879 . 3/8" X 3" BOLT Yes Model Compatibility List $2.94 / Each

2
3/8 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
3/8 117424 124123 . 3/8" X 2 1/4" BOLT No Model Compatibility List $4.71 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
107438 013294 . #8 X 1" PAN HEAD SCREW No Model Compatibility List $0.18 / Each

#8 X 3/4 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
115453 014017 . M8 X 23MM WASHER No Model Compatibility List $0.40 / Each

IDLER WHEEL WASHER 100263 014132 . IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
FRONT WHEEL 100369 165009 . FRONT WHEEL Yes Model Compatibility List $5.07 / Each

1
KEY/CLIP 100072 208603 . KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
AUDIO WIRE,18 100197 215823 . AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
INCLINE MOTOR SPACER 117898 233464 . INCLINE MOTOR SPACER No Model Compatibility List $1.24 / Each

2,3,4,5,6,10,1

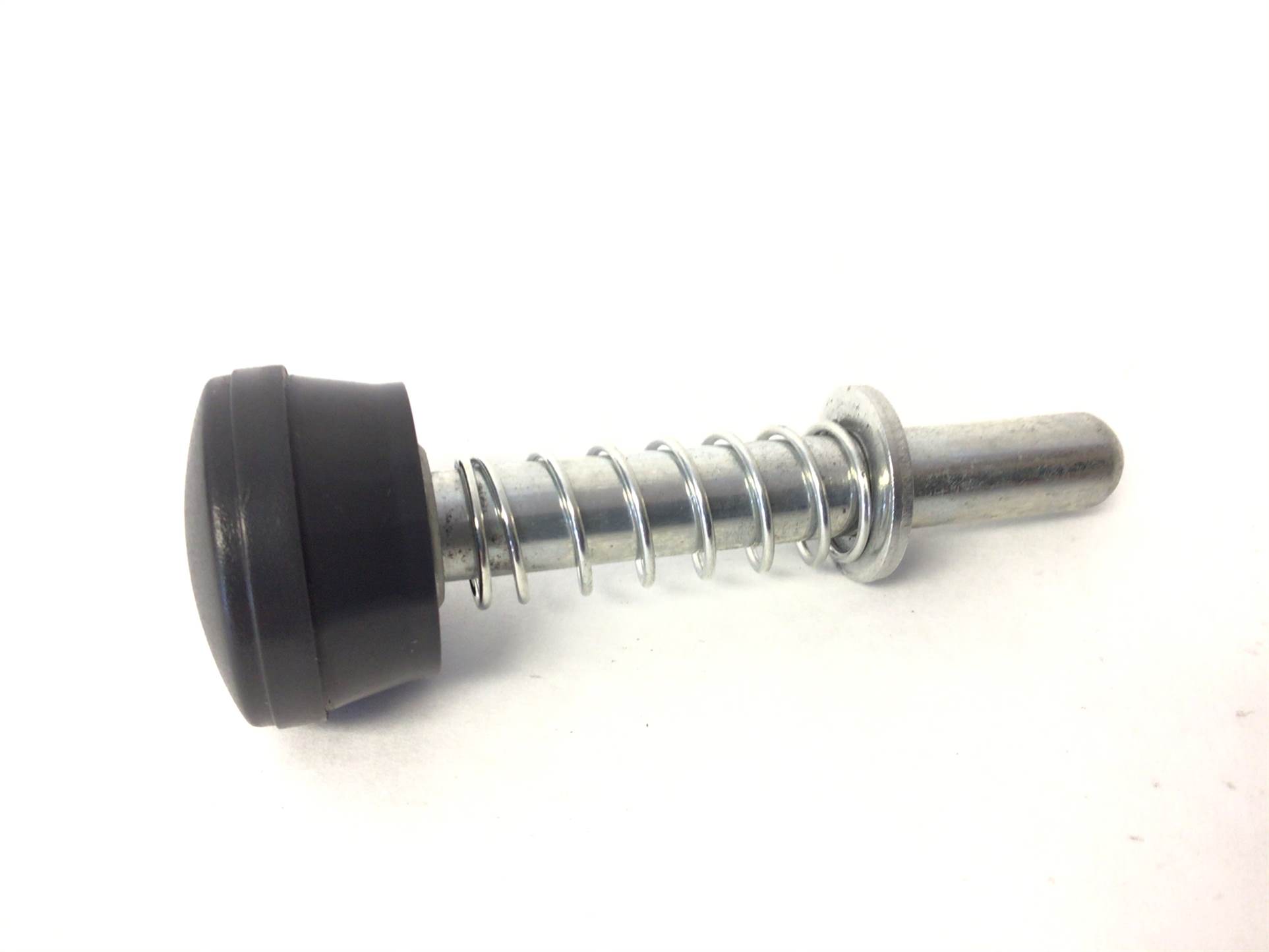

LATCH ASSEMBLY 160589 234463 . LATCH ASSEMBLY Yes Model Compatibility List $8.70 / Each

1
161753 235858 . USER-S MANUAL No Model Compatibility List $7.34 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
