ProForm - XT 70

Repair Parts for ProForm XT 70 PFTL050990

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: XT 70

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Retainer Snap Ring 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

2
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M6 Locknut 1011774 012139 0 1 M6 Locknut Yes Model Compatibility List $11.99 / Each

3/8 113614 125237 1 3/8" X 4" SCREW No Model Compatibility List $8.99 / Each

2
113486 308092 2 3/8" X 2 1/4" SCREW No Model Compatibility List $7.19 / Each

2
127534 270642 3 3/8" X 2" BOLT No Model Compatibility List $4.95 / Each

2
3/8 147057 220095 4 3/8" X 40MM BUTTON SCREW Yes Model Compatibility List $17.02 / Each

2
108814 292421 5 5/16" X 5/8" SCREW No Model Compatibility List $1.44 / Each

2
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
#8 X 3/4 100149 013300 7 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
3/8 100031 119425 8 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
Star Lock Washer 3/8 1010919 163045 8 1 Star Lock Washer 3/8" Yes Model Compatibility List $0.50 / Each

2
3/8 100123 163045 9 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $0.50 / Each

2
MOTOR TENSION WASHER 104348 177910 10 MOTOR TENSION WASHER No Model Compatibility List $3.71 / Each

2
MOTOR BOLT 111182 215360 12 MOTOR BOLT Yes Model Compatibility List $3.28 / Each

2
3/8 102956 269362 13 3/8" X 2 3/4" SCREW Yes Model Compatibility List $3.87 / Each

2
155556 292101 14 5/16" X 2 1/4" BOLT No Model Compatibility List $4.04 / Each

2

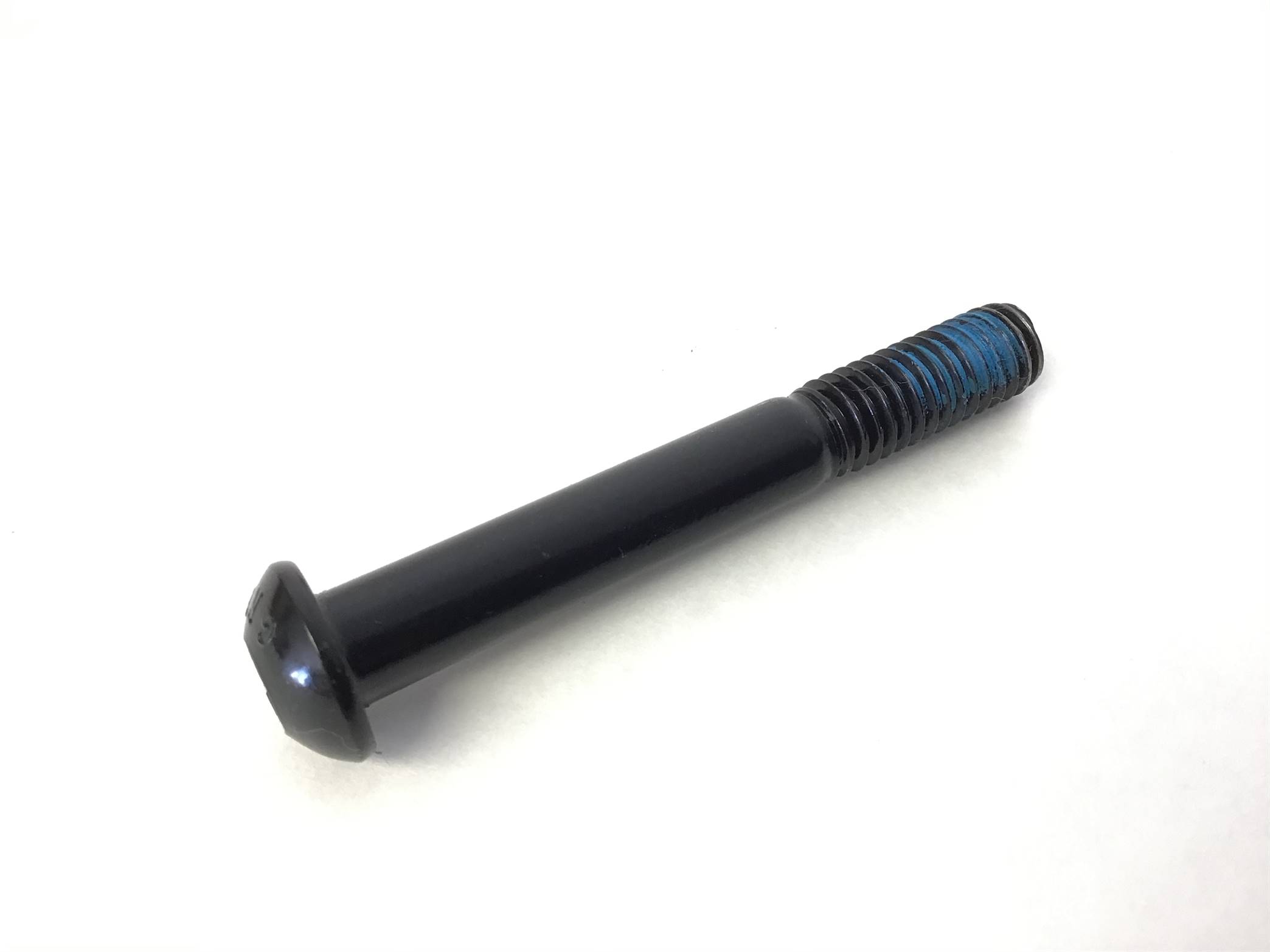

1/4 155557 262872 15 1/4" X 2 1/4" BOLT Yes Model Compatibility List $9.12 / Each

2
M6 X 70MM SCREW 100013 234285 16 M6 X 70MM SCREW No Model Compatibility List $9.90 / Each

1
#8 X 1/2 100120 186819 17 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
#8 X 3/4 100132 013607 18 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

1
101978 292368 19 M4 X 25MM SCREW No Model Compatibility List $1.20 / Each

2
100012 234284 21 M4.2 X 13MM INDENTED SCRW No Model Compatibility List $0.26 / Each

1,2
#8 HOOD CLIP 100032 133333 24 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
#8 STAR WASHER 100141 014157 25 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

1
142794 162606 26 M6 FLAT WASHER No Model Compatibility List $0.94 / Each

2
FOOT RAIL FLAT WASHER 100024 213894 27 FOOT RAIL FLAT WASHER No Model Compatibility List $0.46 / Each

2,9,46
101333 014018 28 M6 SPLIT WASHER No Model Compatibility List $0.28 / Each

155558 291690 29 LEFT FOOT RAIL ACCENT No Model Compatibility List $5.54 / Each

9,4,5,6
155559 291691 30 RIGHT FOOT RAIL ACCENT No Model Compatibility List $5.54 / Each

9,4,5,6

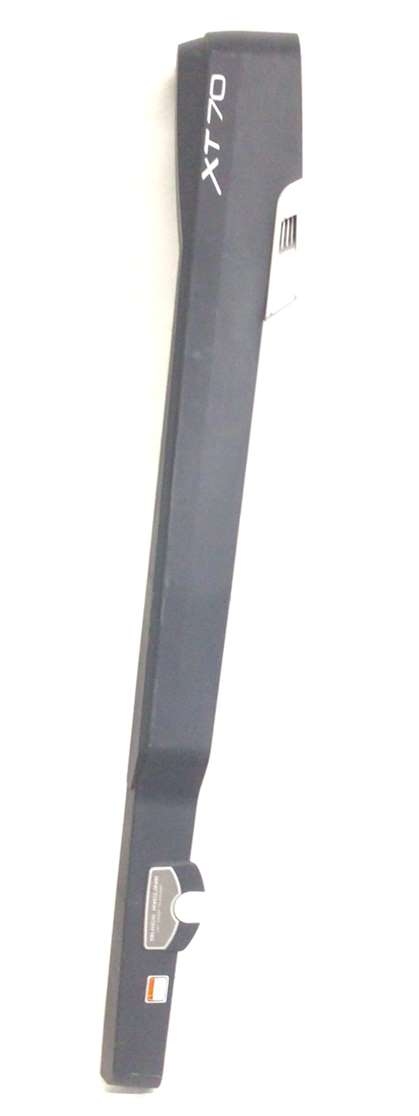

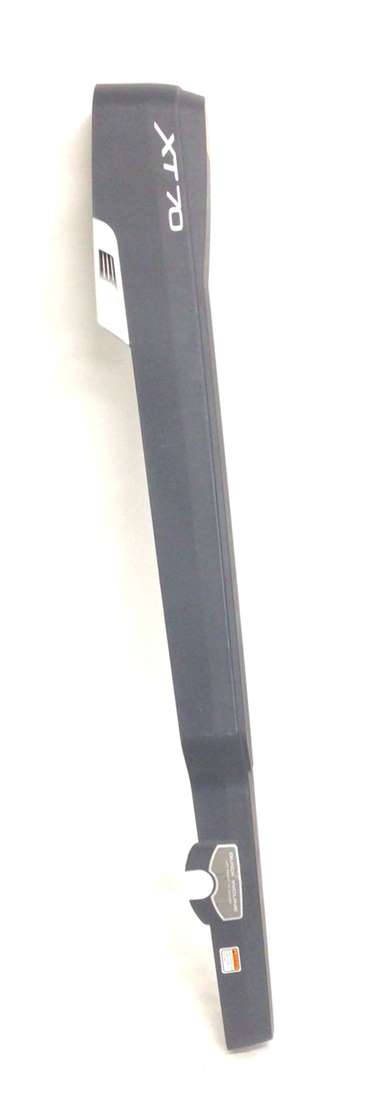

LEFT FOOT RAIL 155560 292519 31 LEFT FOOT RAIL Yes Model Compatibility List $119.82 / Each

9
RIGHT FOOT RAIL 155561 292520 32 RIGHT FOOT RAIL Yes Model Compatibility List $88.31 / Each
9
REED SWITCH 102795 165798 33 REED SWITCH Yes Model Compatibility List $14.41 / Each

24
RSW CLAMP 100079 131090 34 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
MOTOR BELT 113669 292525 35 MOTOR BELT Yes Model Compatibility List $42.20 / Each

15

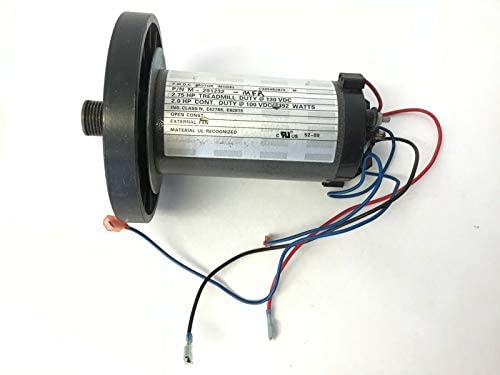

DRIVE MOTOR 155562 292550 36 DRIVE MOTOR Yes Model Compatibility List $188.03 / Each
Out Of Stock 		10
155563 292103 37 FRAME PIVOT BUSHING No Model Compatibility List $2.52 / Each

8,3

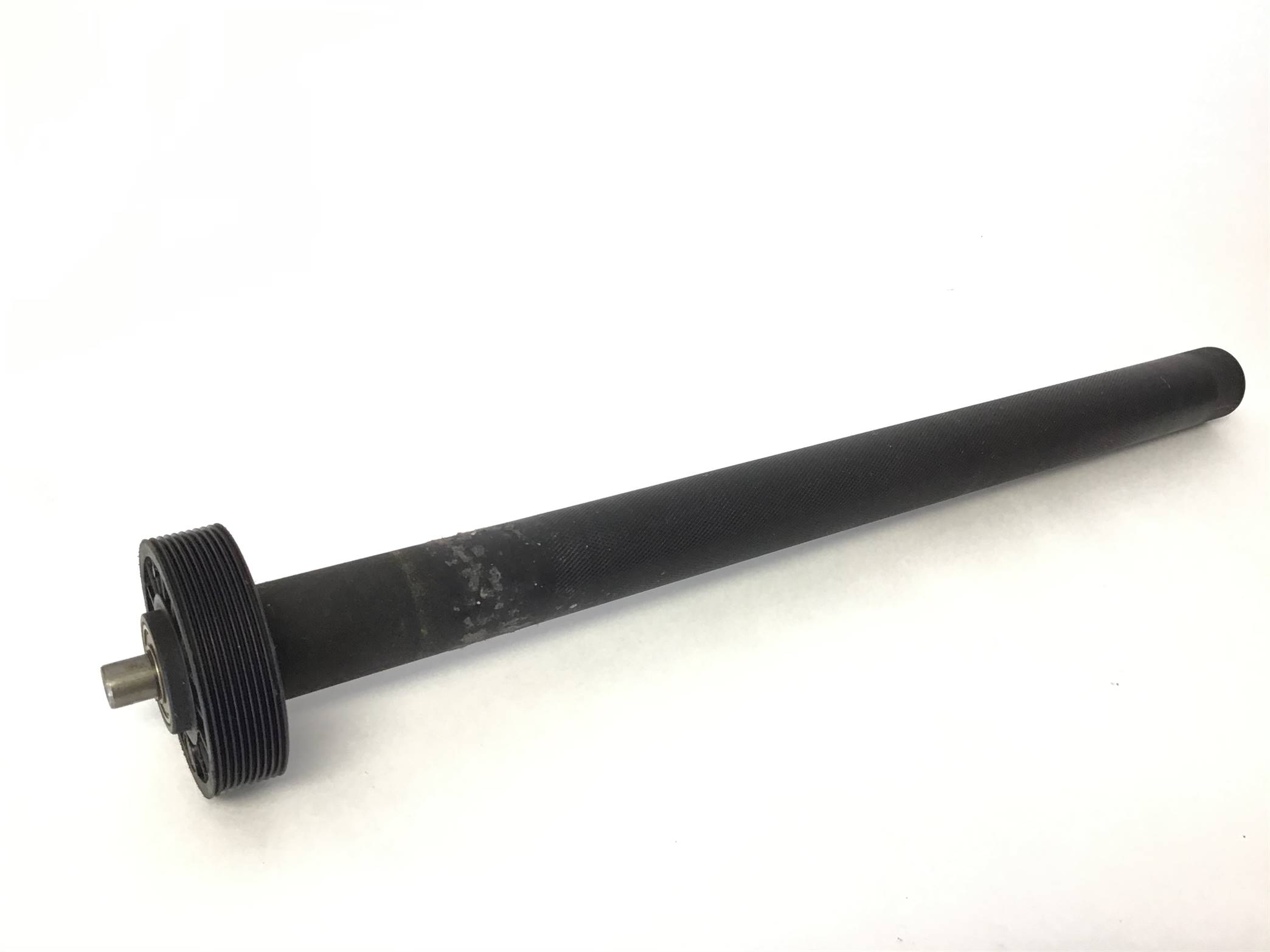

DRIVE ROLLER/PULLEY 155564 292553 38 DRIVE ROLLER/PULLEY Yes Model Compatibility List $140.61 / Each
8,10
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
ROLLER MAGNET 100081 113842 39 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
WALKING BELT 155565 295120 41 WALKING BELT Yes Model Compatibility List $171.31 / Each

15

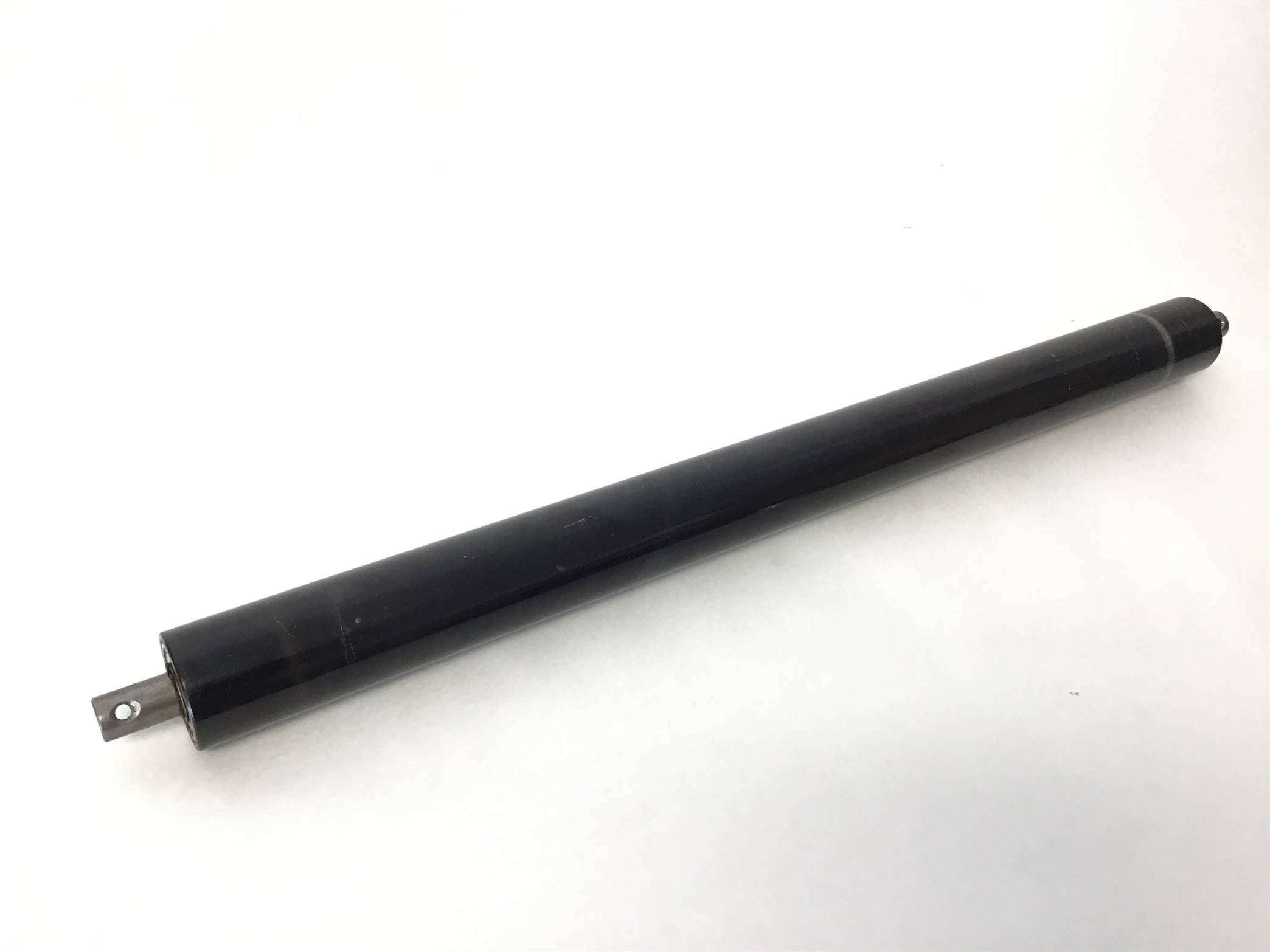

IDLER ROLLER 155566 292552 42 IDLER ROLLER Yes Model Compatibility List $136.75 / Each

8
BELT GUIDE 100040 198640 43 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
102791 156526 44 LIFT FRAME GROUND WIRE No Model Compatibility List $2.02 / Each

3,4,5,6,10

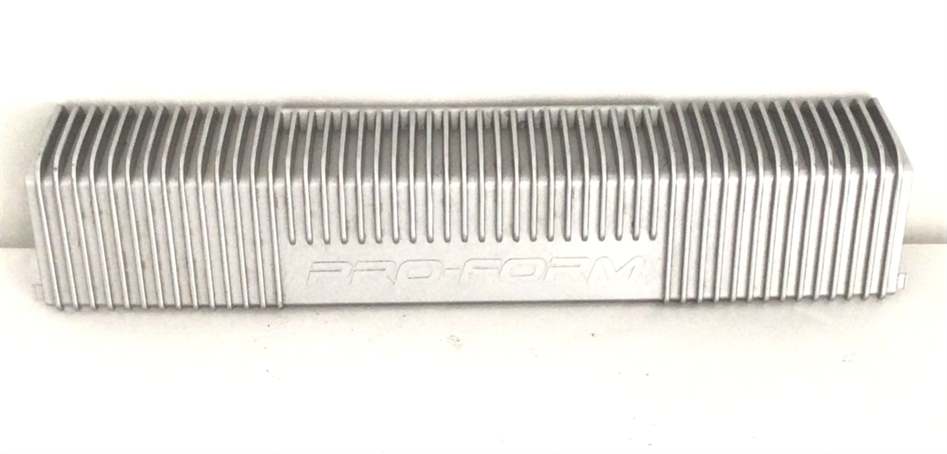

FRONT HOOD 155567 292523 46 FRONT HOOD Yes Model Compatibility List $67.63 / Each

9

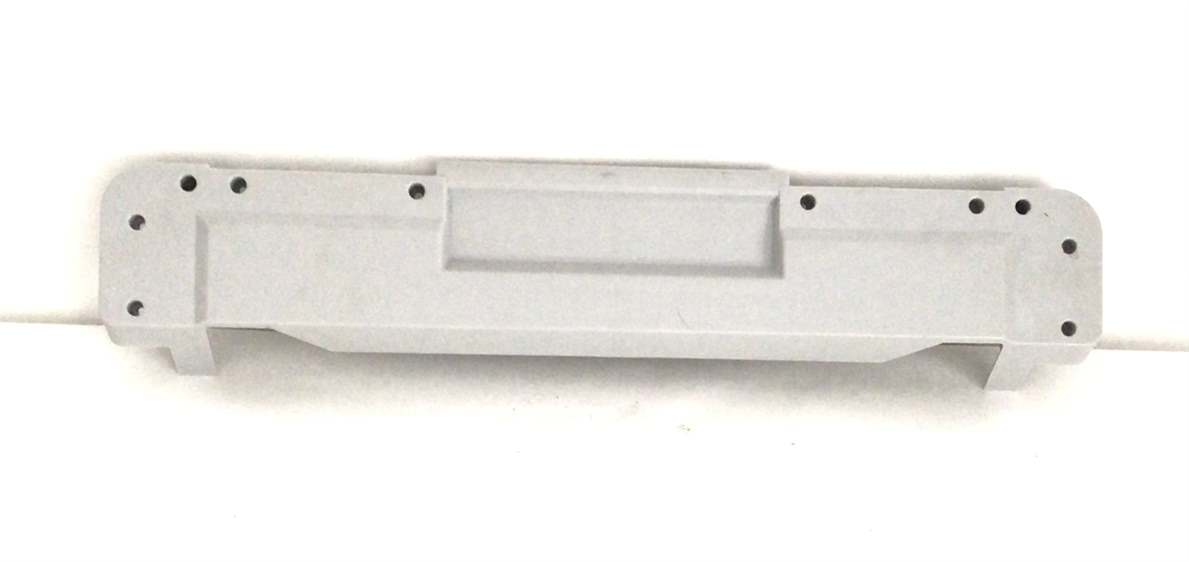

FRONT BELLY PAN 155568 291503 47 FRONT BELLY PAN Yes Model Compatibility List $59.17 / Each

1

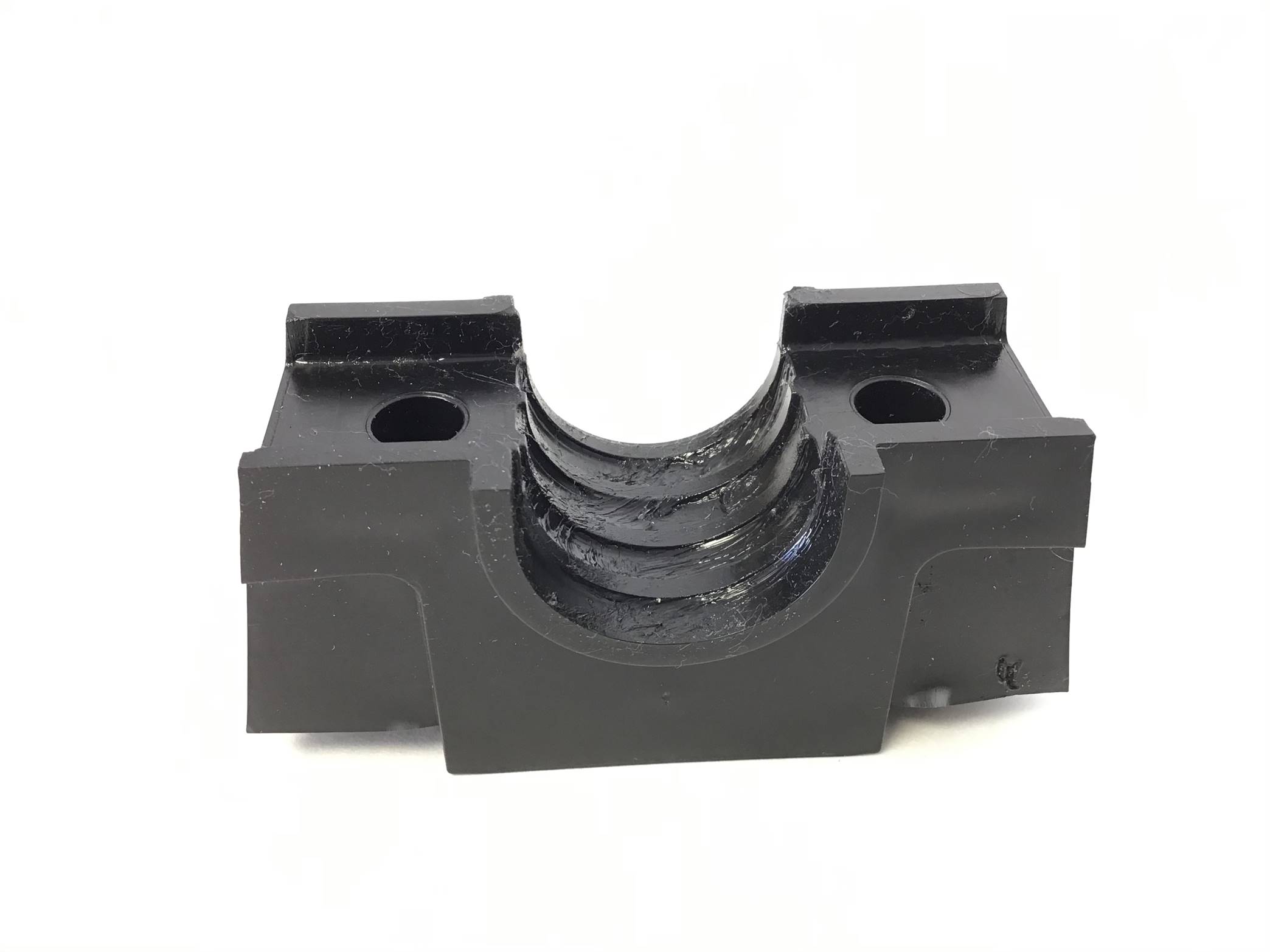

TOP INCLINE ASSY BKT 155569 291684 48 TOP INCLINE ASSY BKT Yes Model Compatibility List $10.60 / Each

3,10

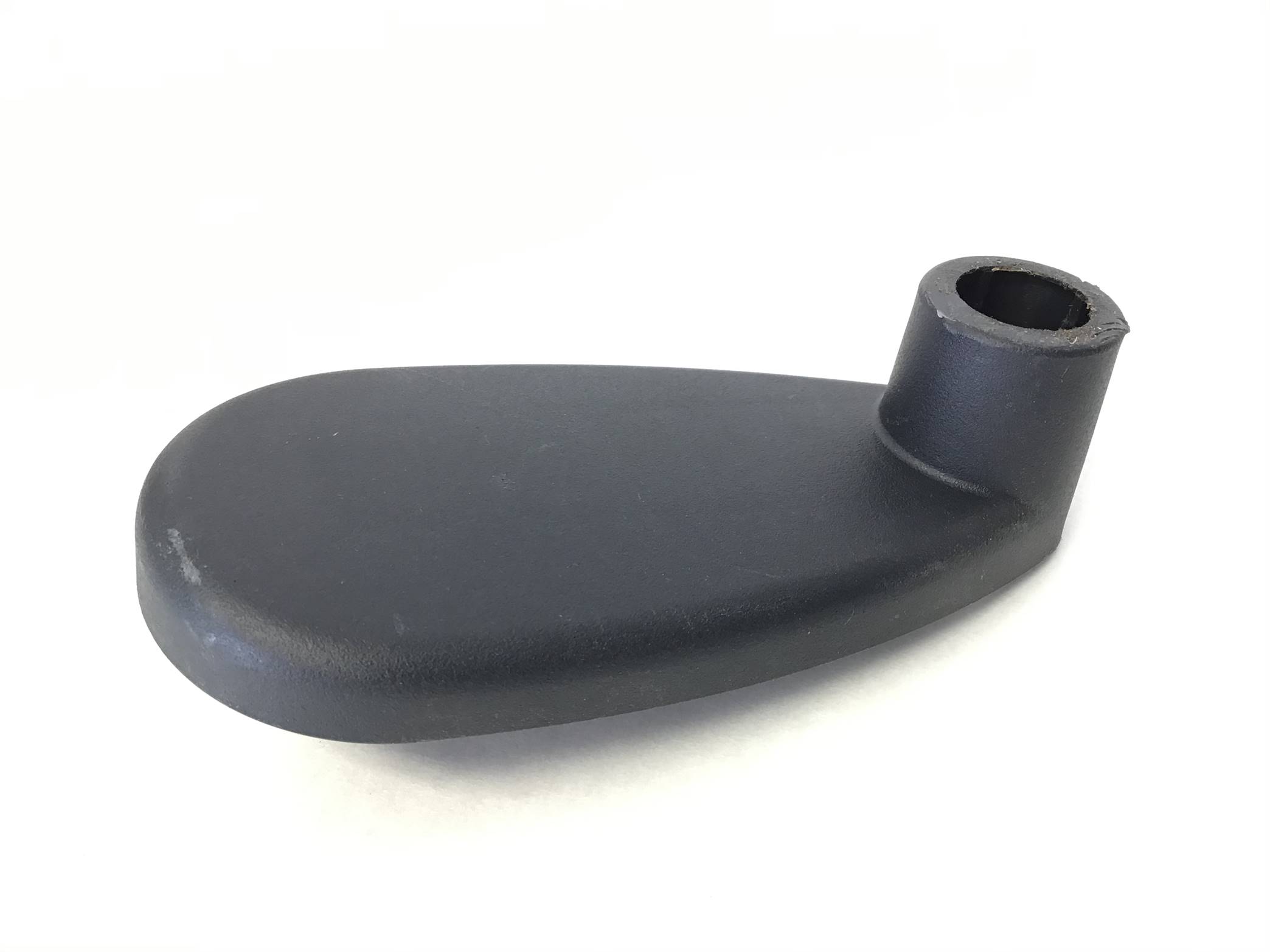

INCLINE ASSEMBLY COVER 155570 291500 50 INCLINE ASSEMBLY COVER Yes Model Compatibility List $10.38 / Each

9,10

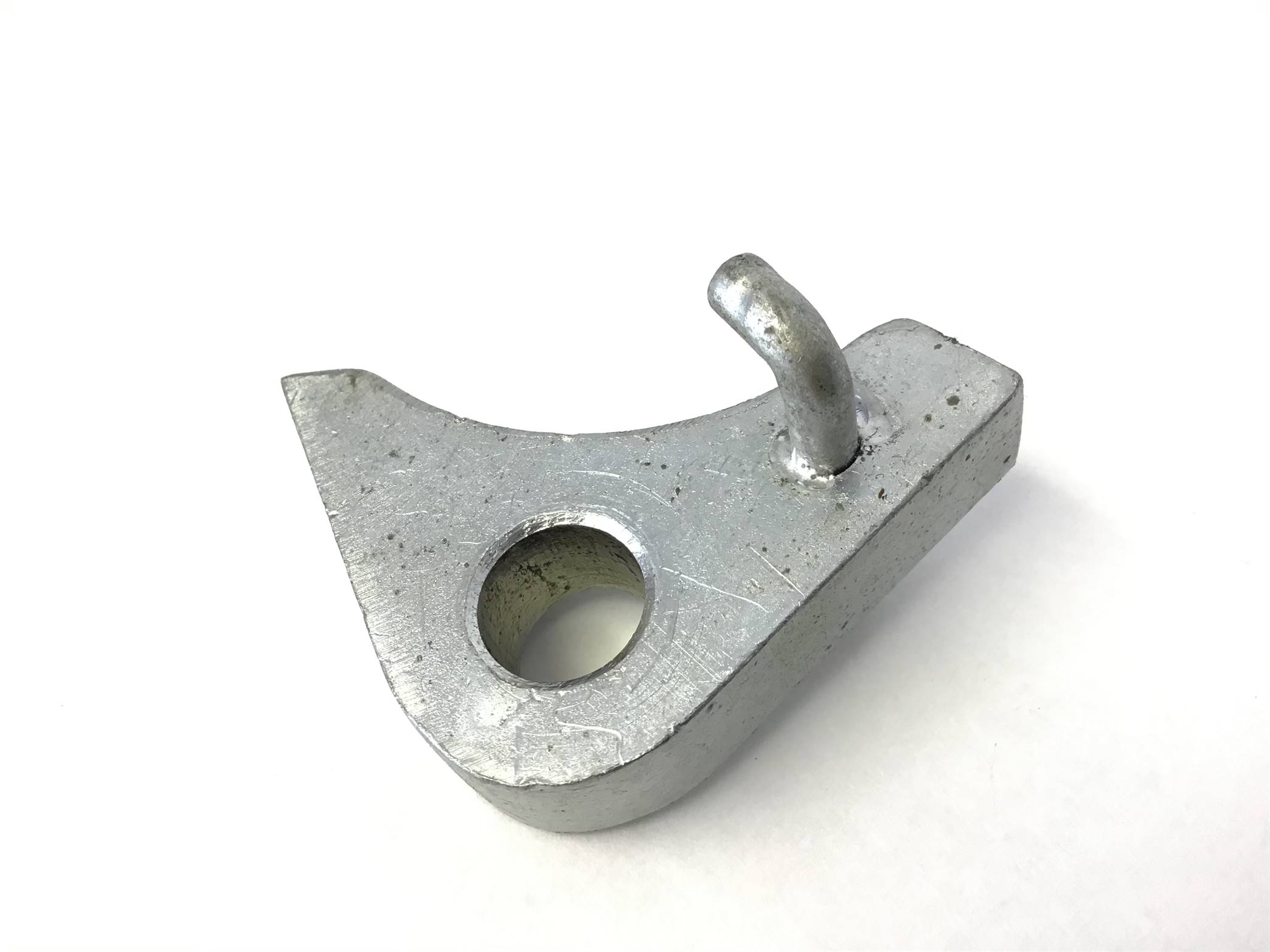

155571 292423 52 INCLINE LATCH Yes Model Compatibility List $33.15 / Each

3
155572 292100 54 ELECTRONICS COVER No Model Compatibility List $21.31 / Each

9
117950 238754 55 CONTROLLER BRACKET No Model Compatibility List $9.76 / Each

7,2,8,3,4,5,6
3/16-7/32 100190 128457 56 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
4MM ALLEN WRENCH 100086 119894 57 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
155573 291498 58 BELLY PAN No Model Compatibility List $84.74 / Each

1
GROMMET 100061 173169 60 GROMMET Yes Model Compatibility List $0.94 / Each

1,2
106557 271317 61 WARNING DECAL No Model Compatibility List $10.57 / Each

7,3,1
155574 292041 62 BASE No Model Compatibility List $242.70 / Each

3
POWER SWITCH 100201 186726 63 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
155575 292502 64 LEFT UPRIGHT No Model Compatibility List $97.62 / Each

3
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,40

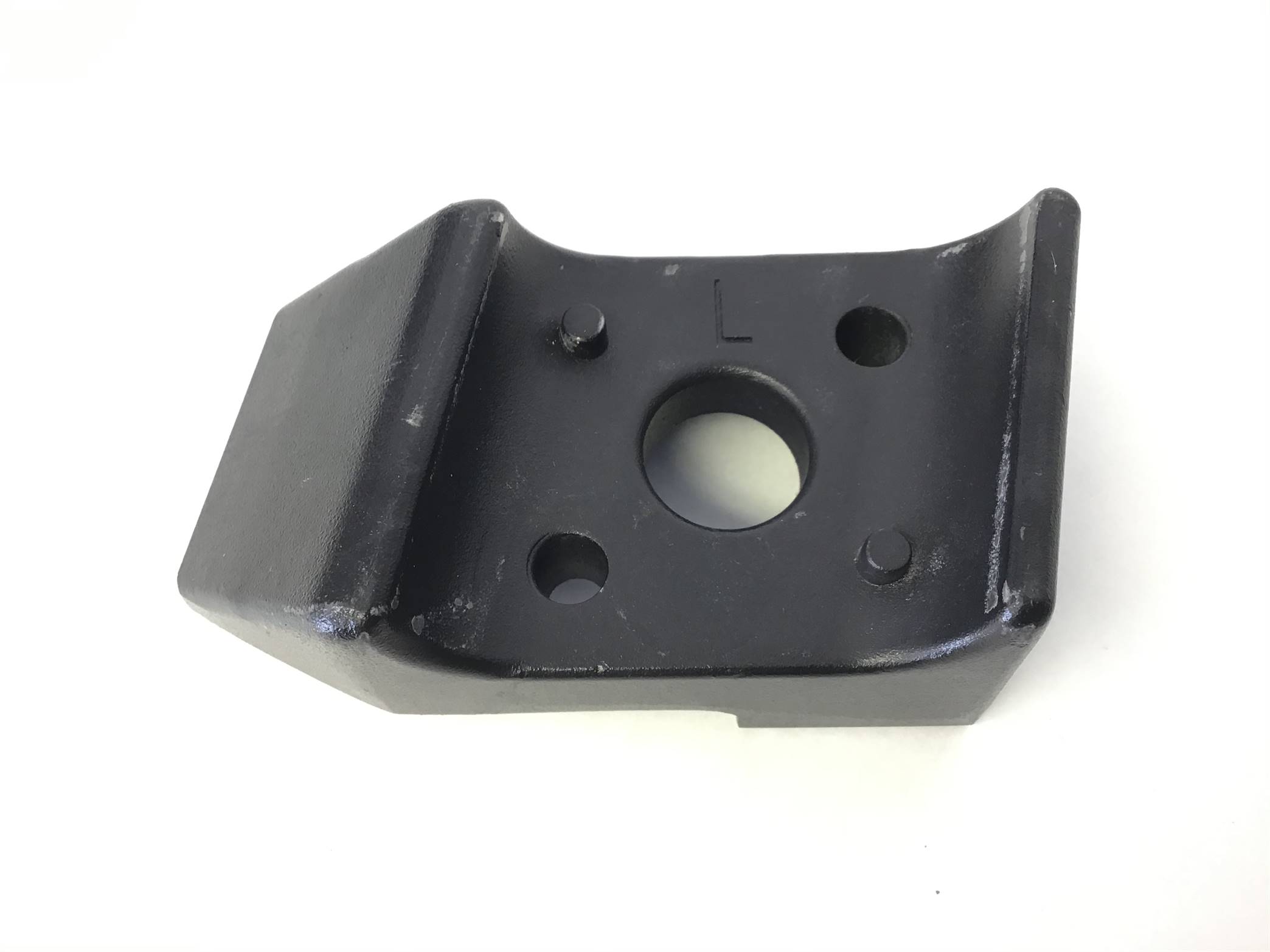

LEFT UPRIGHT SPACER 155576 291688 65 LEFT UPRIGHT SPACER Yes Model Compatibility List $43.37 / Each
2,3,4,5,6
155577 291687 66 WHEEL No Model Compatibility List $4.28 / Each

8

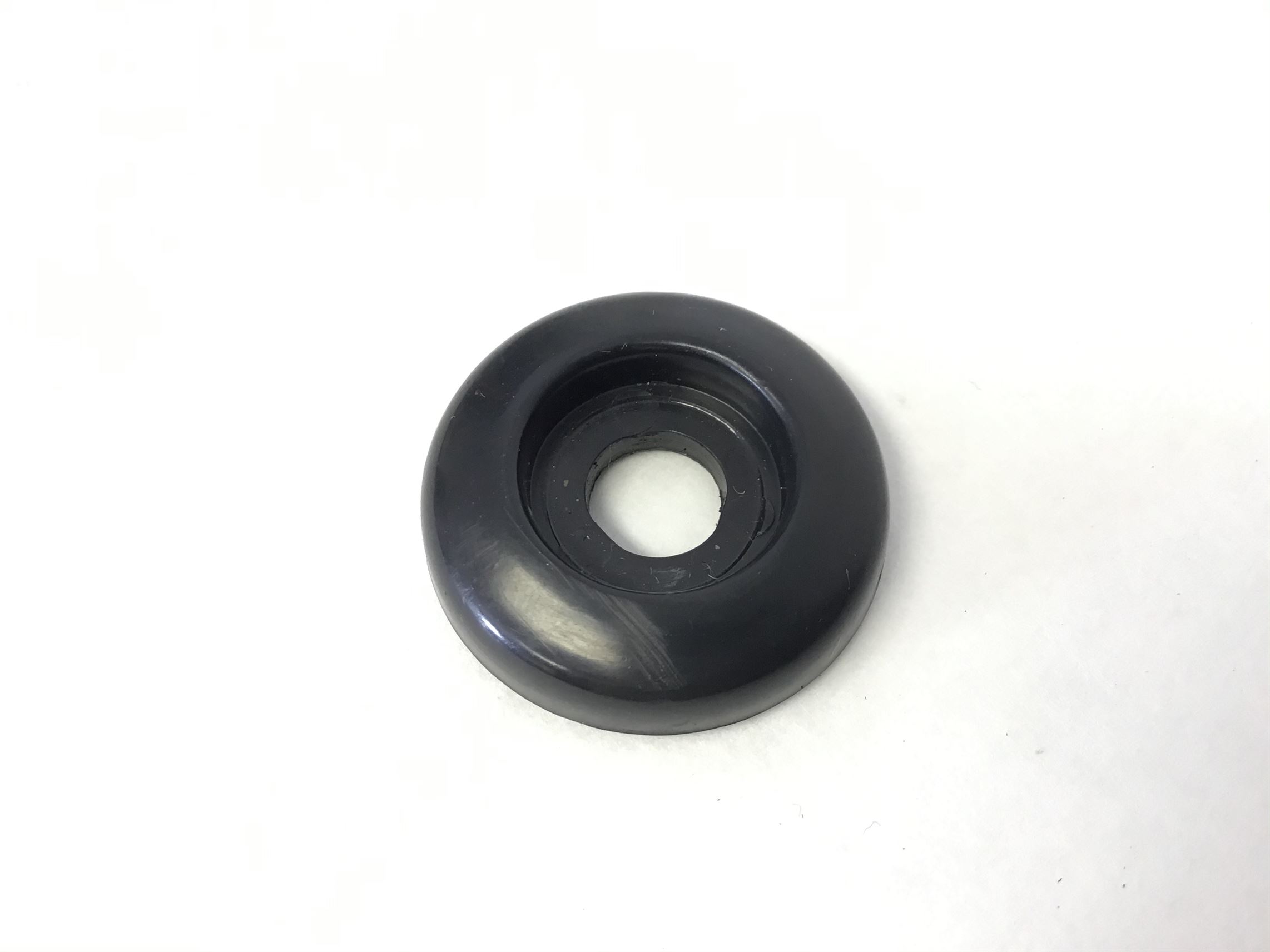

UPPER CYLINDER CAP 155578 291683 68 UPPER CYLINDER CAP No Model Compatibility List $6.92 / Each
Out Of Stock 		9

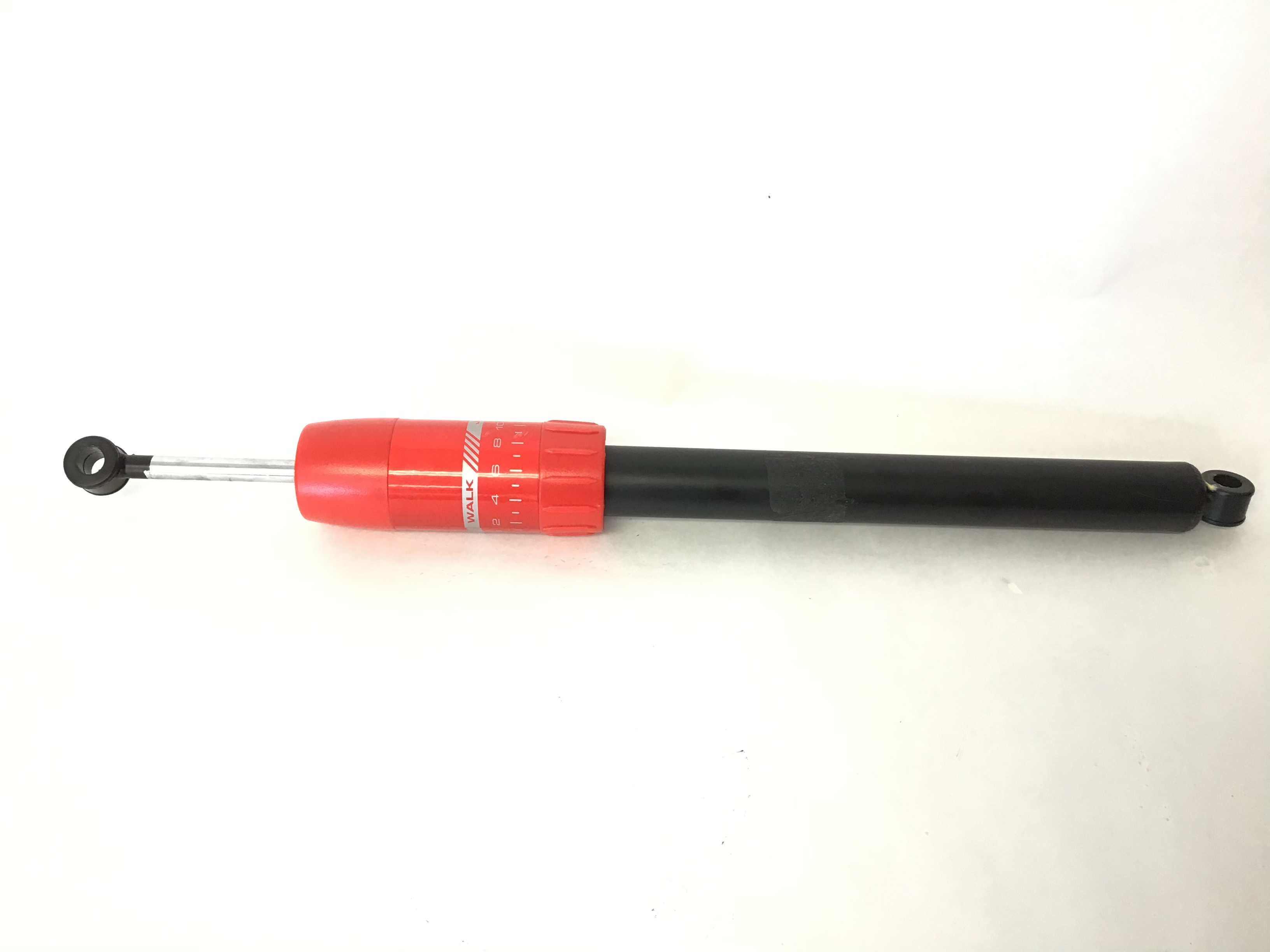

SHOCK CYLINDER 155579 295634 69 SHOCK CYLINDER Yes Model Compatibility List $99.00 / Each

1
155580 292098 70 CYLINDER SPACER No Model Compatibility List $3.28 / Each

2,3,4,5,6
117363 254499 71 BOLT SPACER No Model Compatibility List $1.69 / Each

2,3,4,5,6
155581 292503 72 RIGHT UPRIGHT No Model Compatibility List $97.62 / Each

3

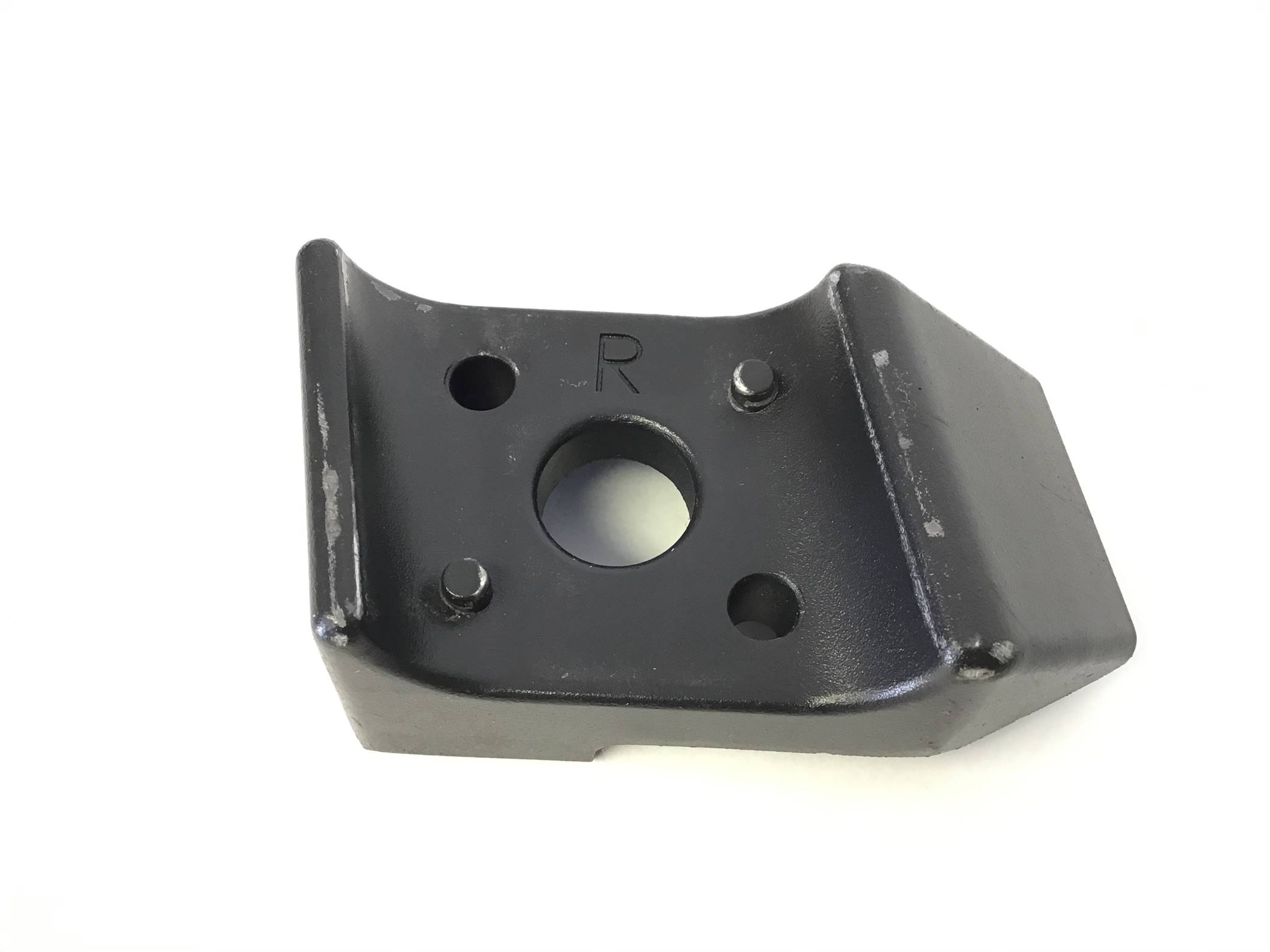

RIGHT UPRIGHT SPACER 155582 291689 73 RIGHT UPRIGHT SPACER Yes Model Compatibility List $43.88 / Each
2,3
155583 292117 74 BASE GROUND WIRE No Model Compatibility List $1.40 / Each

3,4,5,6

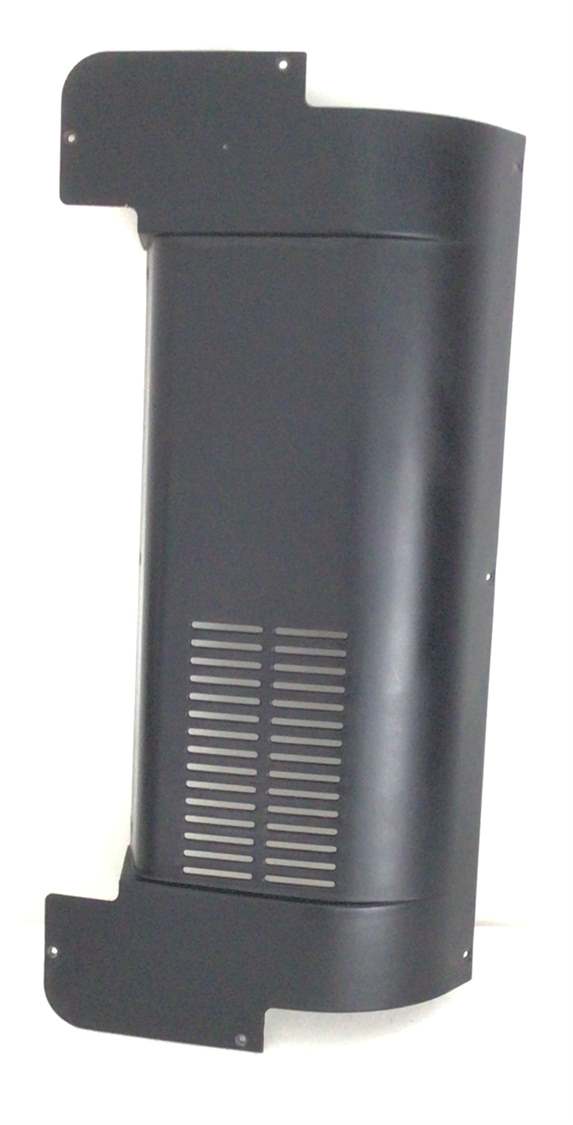

BELLY PAN INSERT 155584 291499 75 BELLY PAN INSERT Yes Model Compatibility List $74.60 / Each

1
KEY/CLIP 100072 208603 76 KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
WIRE TIE 100073 132315 77 WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6

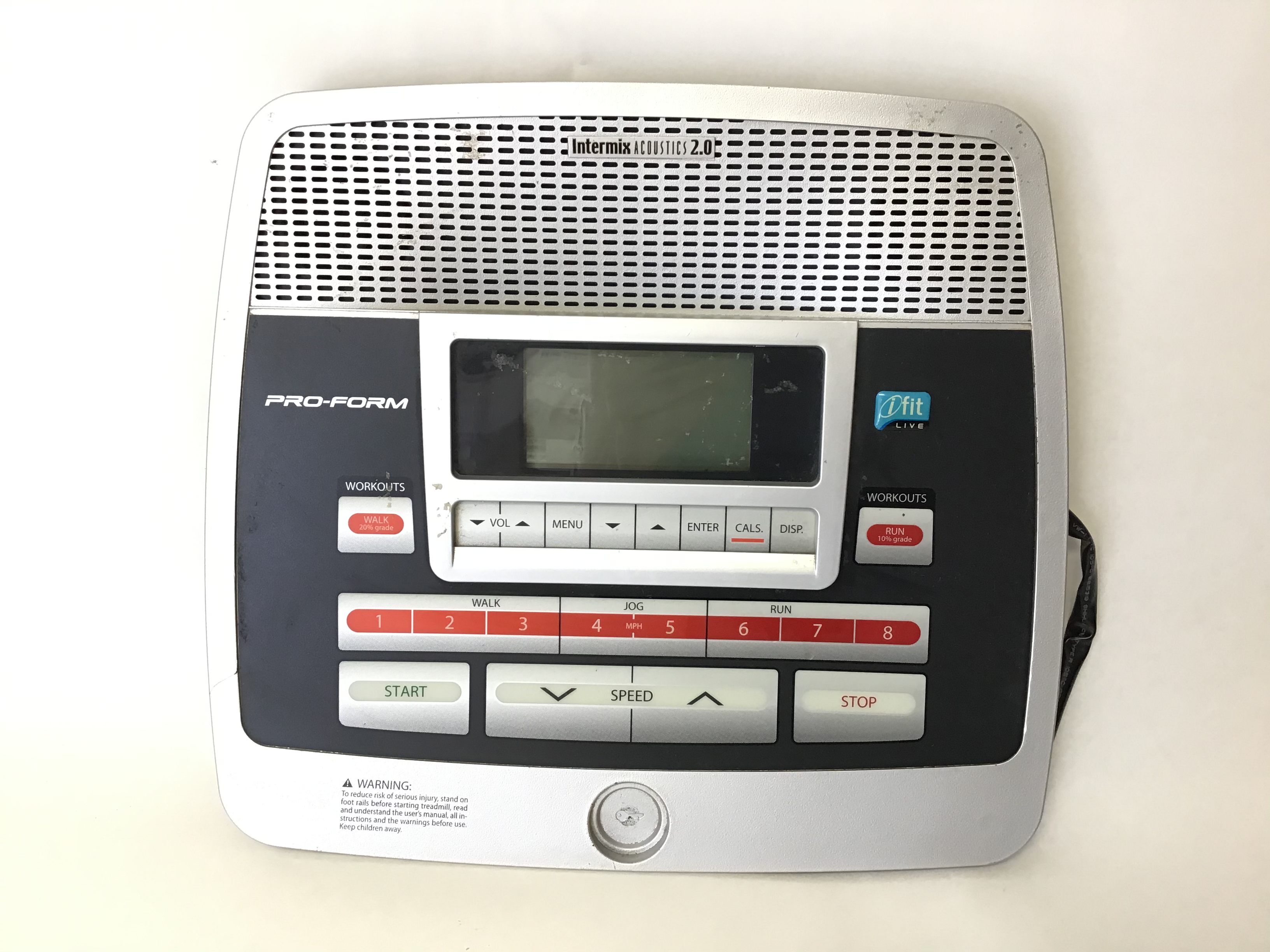

CONSOLE 155585 292593 78 CONSOLE Yes Model Compatibility List $263.99 / Each

7
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
MODULE HOUSING WIFI 119140 285985 79 MODULE HOUSING WIFI Yes Model Compatibility List $36.19 / Each

1
Ground Wire 4 Inch 100187 215822 80 Ground Wire 4 Inch Yes Model Compatibility List $2.09 / Each

4,5,6,7

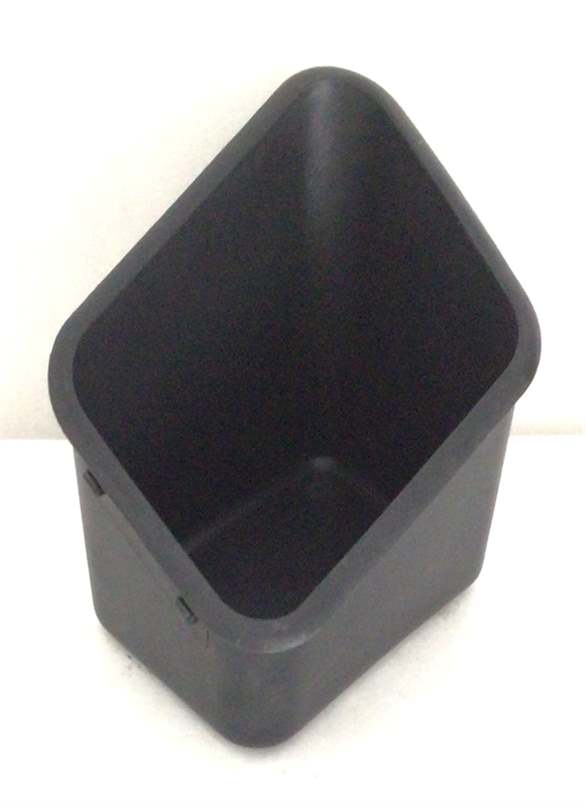

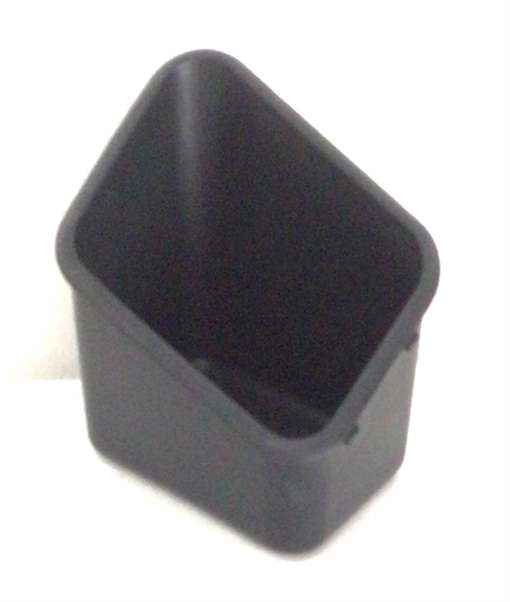

LEFT ACCESSORY TRAY 155586 291228 81 LEFT ACCESSORY TRAY Yes Model Compatibility List $14.26 / Each

4,5,6
RIGHT ACCESSORY TRAY 155587 291229 82 RIGHT ACCESSORY TRAY Yes Model Compatibility List $14.26 / Each

4,5,6
AUDIO WIRE,18 100197 215823 83 AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6

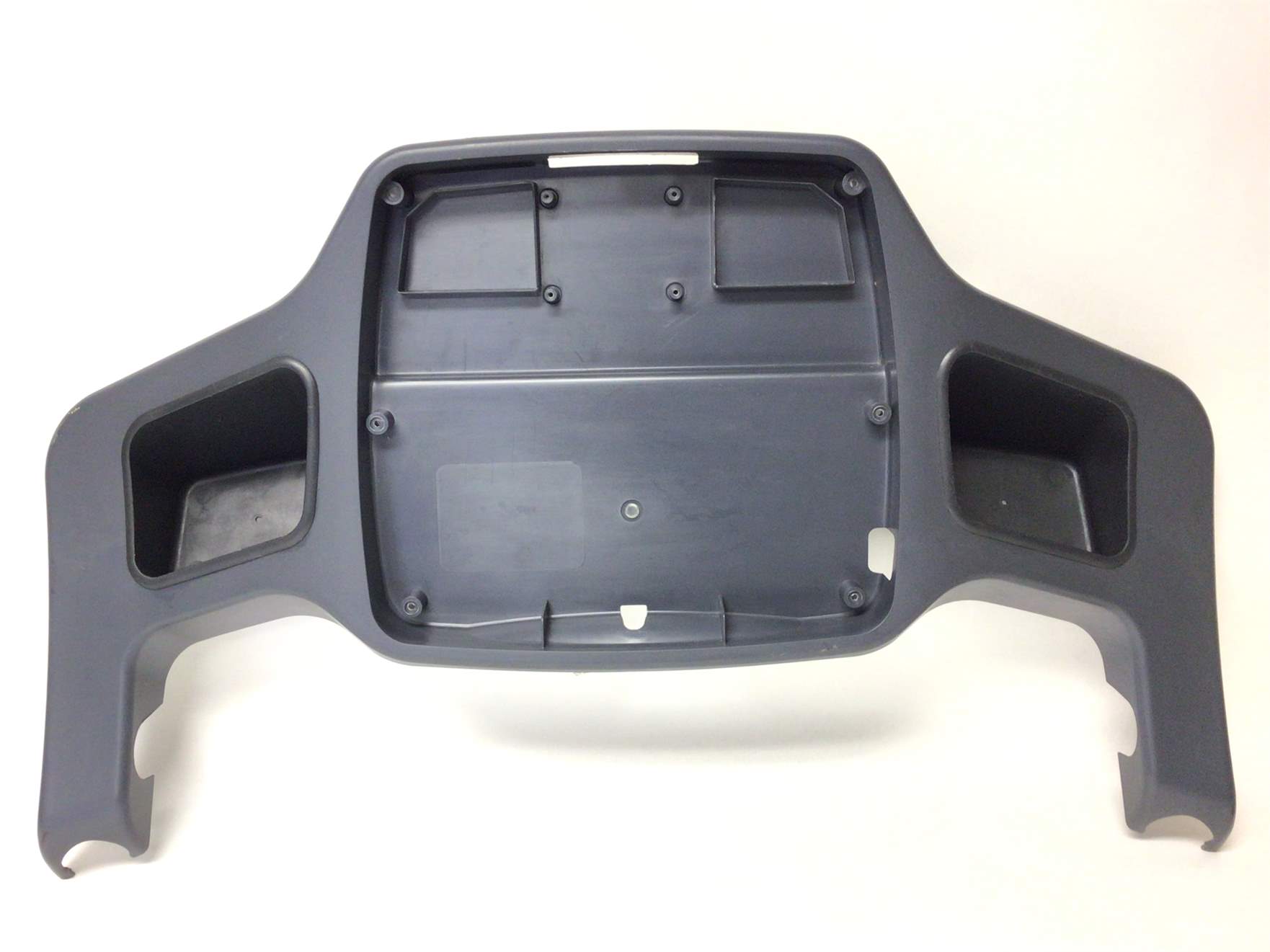

Console Base (Used) 1025992 291223 84 1 Console Base (Used) No Model Compatibility List $31.79 / Each

22,44,46
HANDRAIL CAP 117954 241683 85 HANDRAIL CAP Yes Model Compatibility List $4.88 / Each

3,9

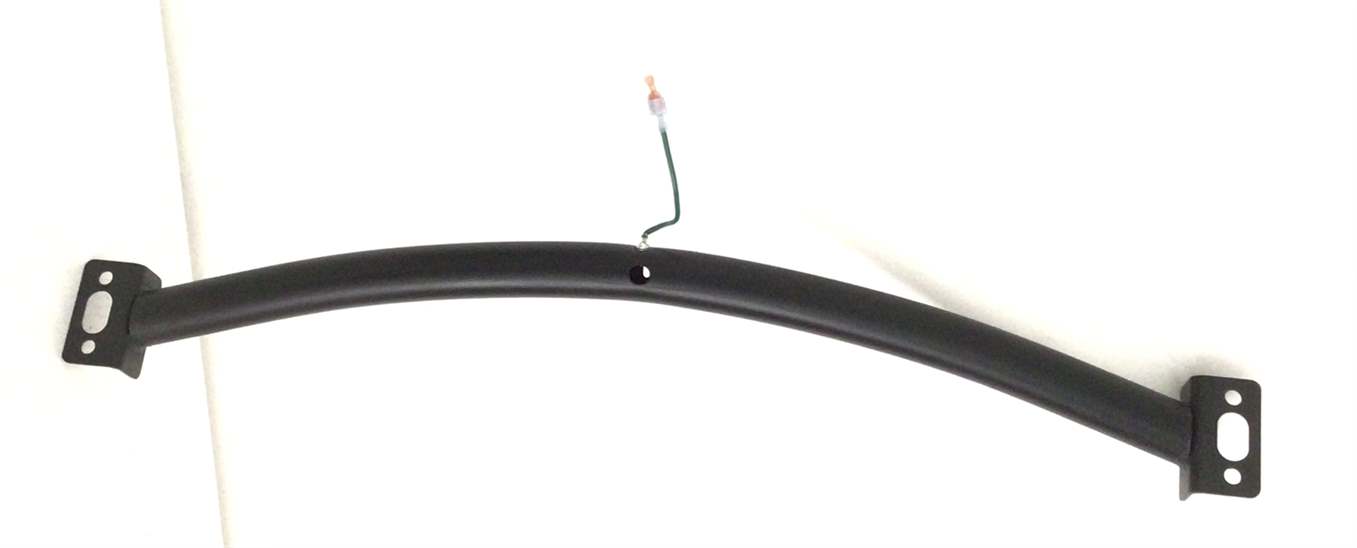

CROSSBAR 155588 292126 86 CROSSBAR Yes Model Compatibility List $43.88 / Each

1

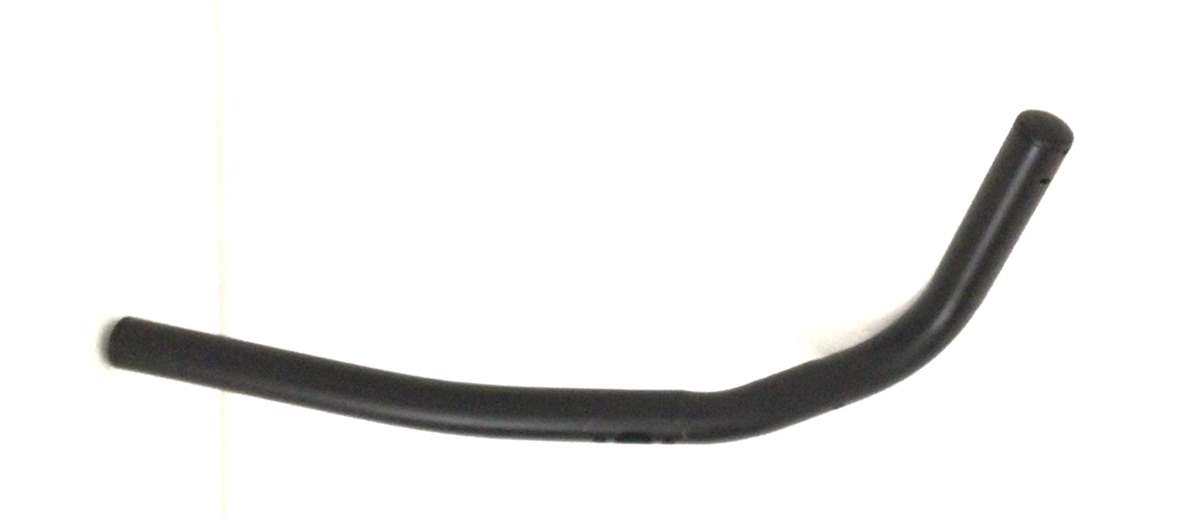

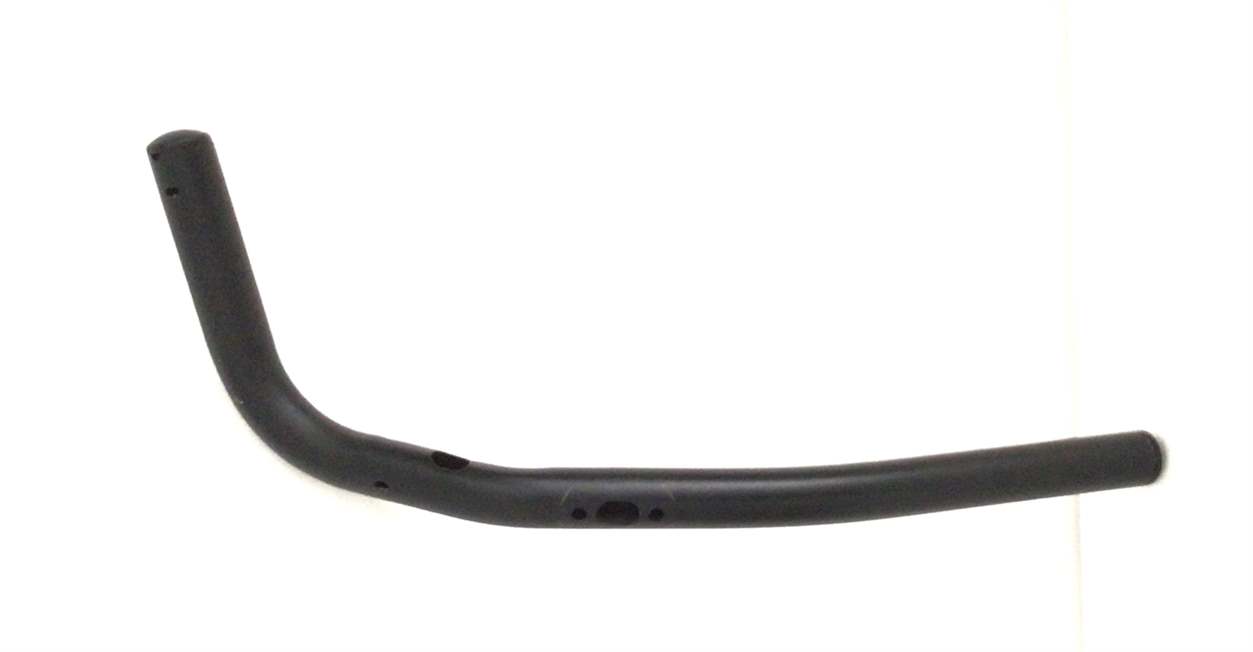

LEFT HANDRAIL 155589 292077 87 LEFT HANDRAIL Yes Model Compatibility List $50.12 / Each

9,3
RIGHT HANDRAIL (Used) 1030574 292079 88 1 RIGHT HANDRAIL (Used) No Model Compatibility List $21.59 / Each

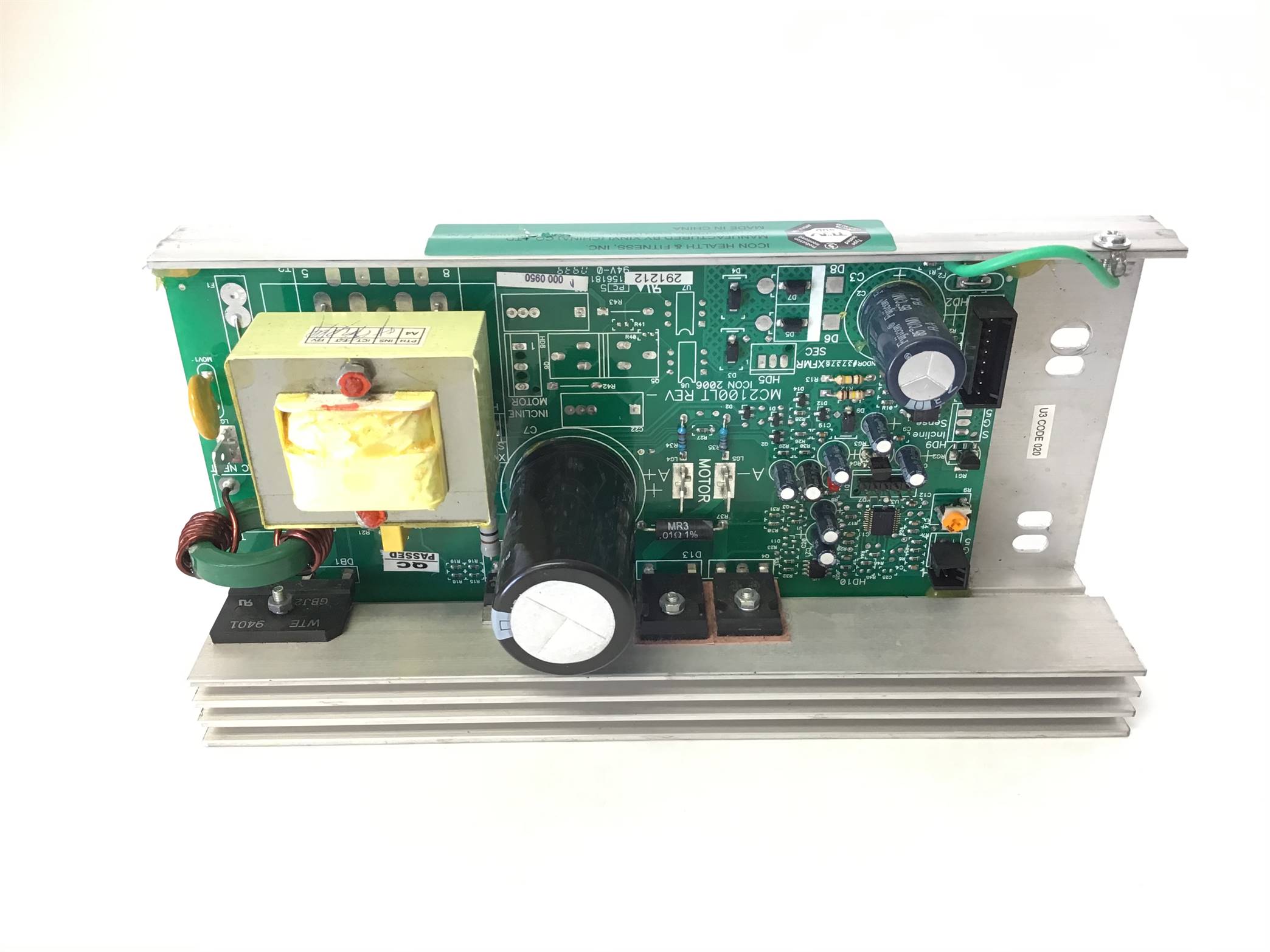

CONTROLLER MC2100LT-12NI 155590 292551 89 CONTROLLER MC2100LT-12NI Yes Model Compatibility List $149.45 / Each
7,8
155591 291505 90 LOWER CYLINDER CAP No Model Compatibility List $2.52 / Each

9

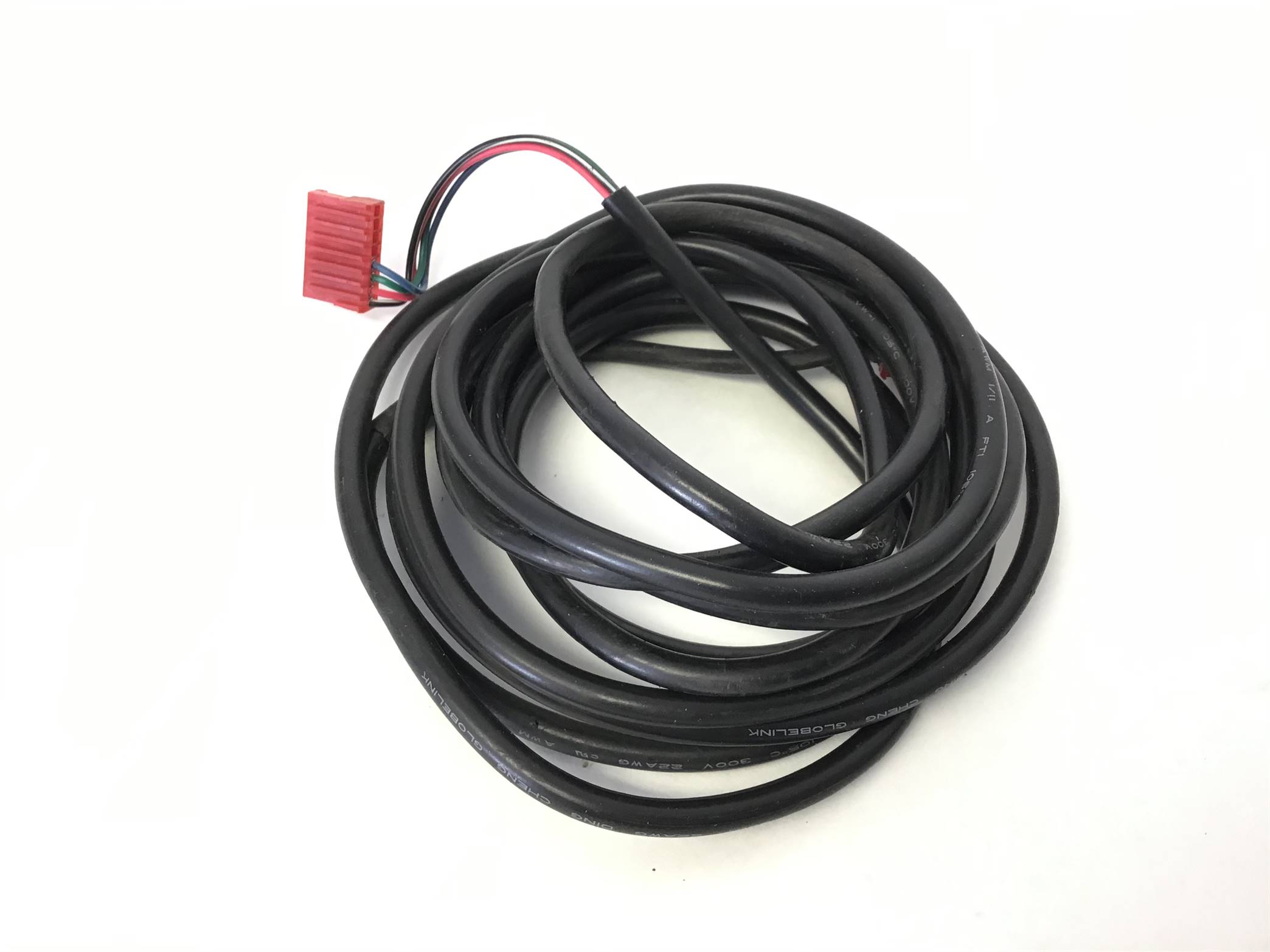

UPRIGHT WIRE 155592 292524 91 UPRIGHT WIRE Yes Model Compatibility List $75.99 / Each

4,5
M4 X 38MM SCREW 102048 013529 92 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

1
100023 236884 93 ROLLER SPACER No Model Compatibility List $0.89 / Each

2,8,3,4,5,6,45
155593 295151 94 PUSH NUT No Model Compatibility List $1.26 / Each

2
100602 166909 95 PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

1,3,7,12,13,14
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
Flat Washer 7/32 1010911 213894 129 1 Flat Washer 7/32" No Model Compatibility List $0.46 / Each

2,9,46
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,4,5,6
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
ROUND GROMMET 101035 129004 # ROUND GROMMET No Model Compatibility List $1.44 / Each

1
112926 135261 # 12" WHITE WIRE, M/F No Model Compatibility List $3.88 / Each

4,5,6
6 102279 198071 # 6" BLUE WIRE, 2F No Model Compatibility List $2.81 / Each

4,5,6
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

1,2,4,5,6
GREASE PACKET 118020 267676 # GREASE PACKET No Model Compatibility List $4.44 / Each

4,5,6
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

1,3,7
155600 292422 # HARDWARE KIT, NOTE: No Model Compatibility List $67.84 / Each
Out Of Stock 		1
155599 292424 # LITPAC, NOTE: No Model Compatibility List $95.94 / Each

4,5,6
155598 292425 # USER-S MANUAL No Model Compatibility List $9.16 / Each

1
155597 292434 # TECH SHEET No Model Compatibility List $1.11 / Each

1

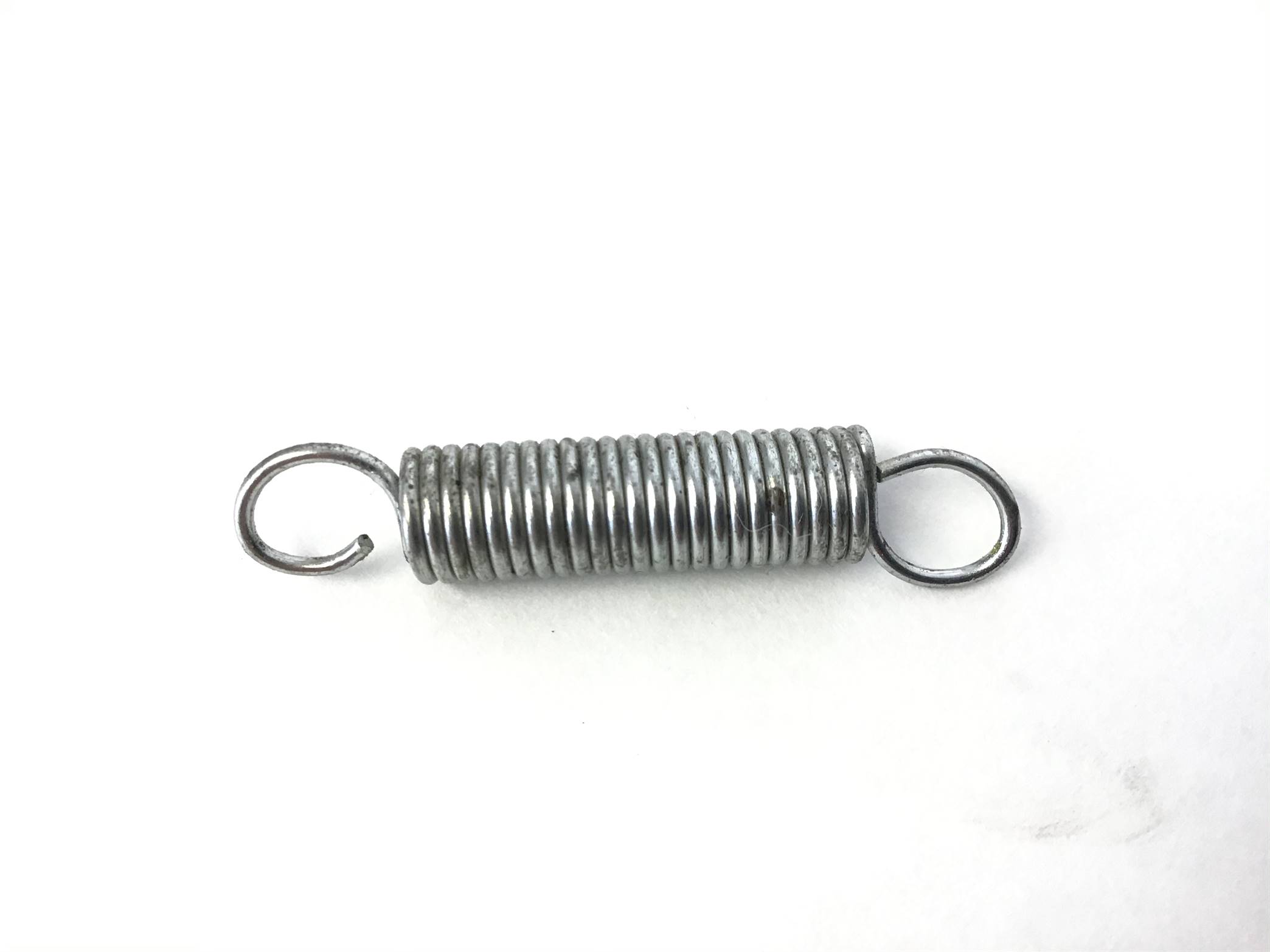

EXTENSION SPRING 155595 292437 # EXTENSION SPRING Yes Model Compatibility List $8.96 / Each

2
101518 298995 # WIRE, STATIC FILTER No Model Compatibility List $15.20 / Each

4,5,6
155596 299554 # RE-PROGRAMMING MODULE No Model Compatibility List $199.68 / Each

1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
IFIT WIFI ACCESSORY KIT 101226 EXIF12 # IFIT WIFI ACCESSORY KIT Yes Model Compatibility List $242.00 / Each

1

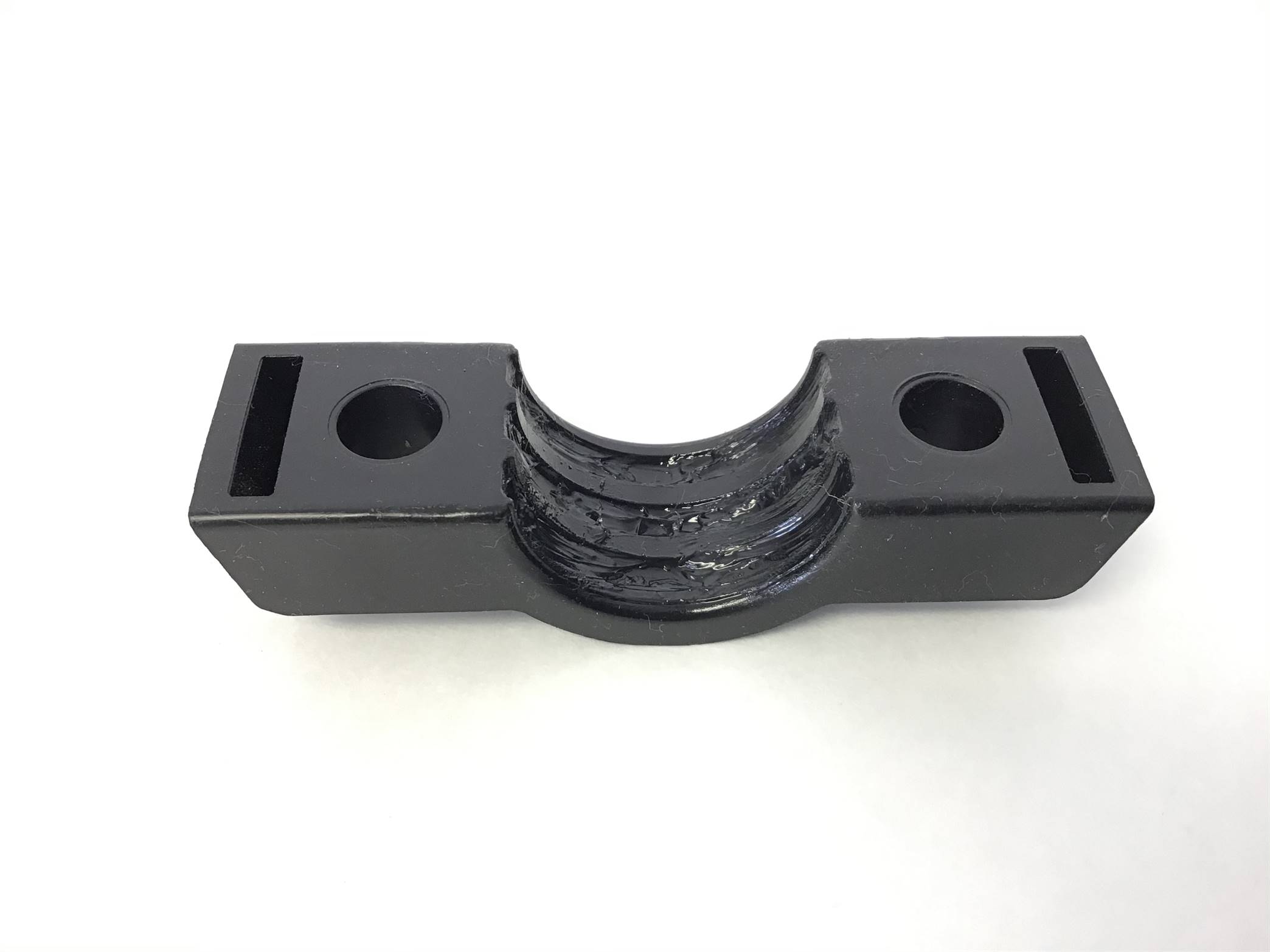

Incline Bottom Bracket (Used) 1017210 291685 # 1 Incline Bottom Bracket (Used) Yes Model Compatibility List $10.99 / Each

3

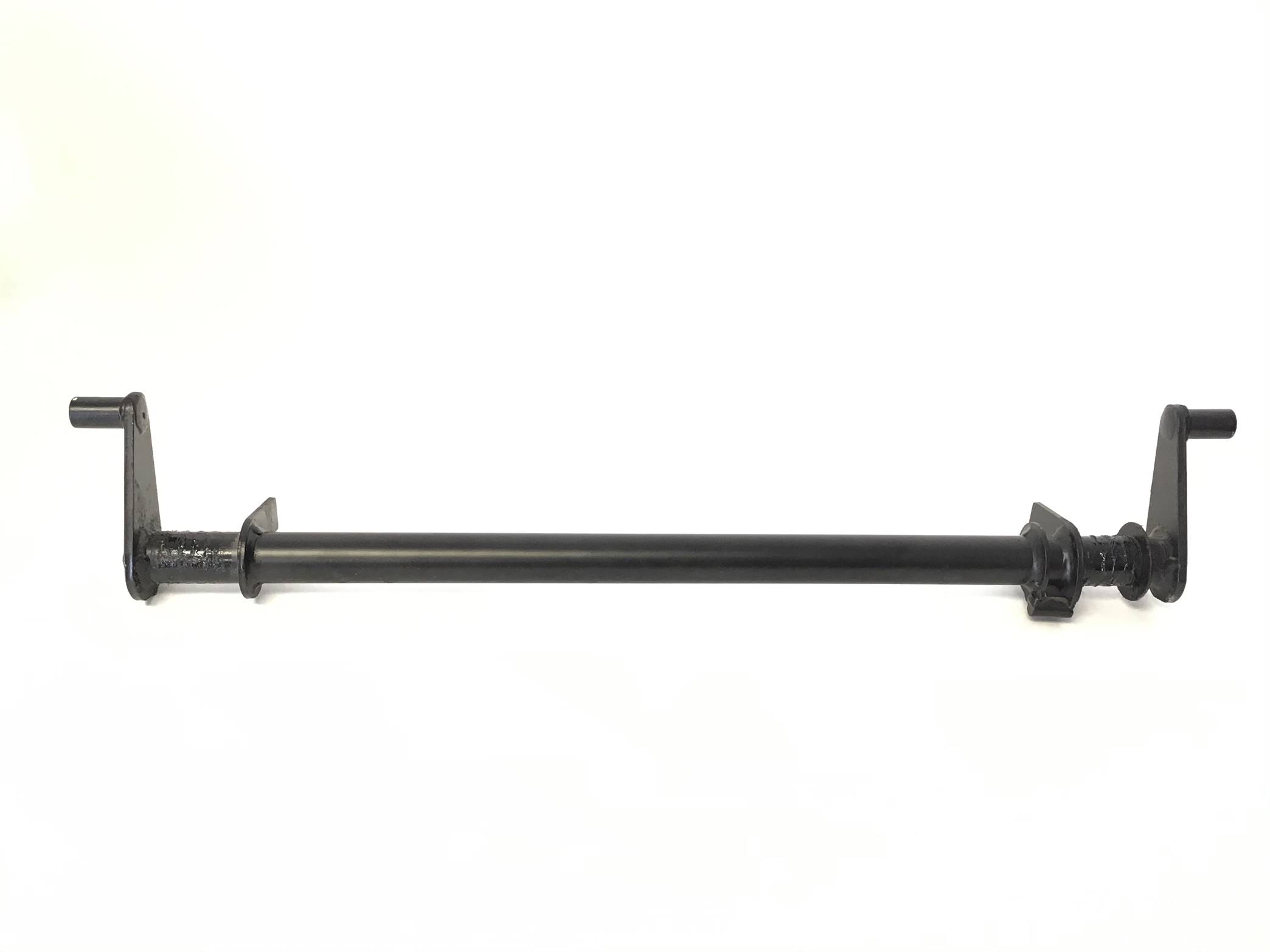

Incline Assembly (Used) 1017222 292084 # 1 Incline Assembly (Used) Yes Model Compatibility List $75.90 / Each
Out Of Stock 		3
Incline Latch (Used) 1017206 292423 # 1 Incline Latch (Used) Yes Model Compatibility List $16.49 / Each

3
Incline Catch (Used) 1017213 292099 # 1 Incline Catch (Used) Yes Model Compatibility List $16.49 / Each

3
Drive Motor Main Belt 1000142 292525 Drive Motor Main Belt Yes Model Compatibility List $24.99 / Each

15
1000142 292525 . Yes Model Compatibility List $24.99 / Each

15
Ifit WiFi Module Receiver 1000283 285985 Ifit WiFi Module Receiver Yes Model Compatibility List $39.99 / Each

1
Lift WiFi Module Receiver 1002625 285985 Lift WiFi Module Receiver Yes Model Compatibility List $35.99 / Each
1
