ProForm - ZE 6

Repair Parts for ProForm ZE 6 PFEL058133

Brand: ProForm

Category: Residential Ellipticals

Type: Elliptical

Model Name: ZE 6

Exploded Diagrams

Other Languages Available
loader

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Wire harness Power (Used) 1022840 290160 0 1 Wire harness Power (Used) Yes Model Compatibility List $20.55 / Each
Out Of Stock 		1,4
PEDAL ARM BUSHING 1003994 351156 0 1 PEDAL ARM BUSHING No Model Compatibility List $23.82 / Each

8,9,3
Small Pulley Spacer 1005193 306635 0 1 Small Pulley Spacer No Model Compatibility List $12.99 / Each

2,3,4,5,6,8
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $67.99 / Each

8
Adjuster Resistance Cable 1008346 321678 0 1 Adjuster Resistance Cable Yes Model Compatibility List $30.99 / Each

4,5,6,10
DC Power Jack Lower Wire Harness 1009933 290160 0 1 DC Power Jack Lower Wire Harness Yes Model Compatibility List $30.99 / Each

1,4
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $68.99 / Each

8
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Screw M4 X 42MM (New) 1011961 322839 Screw M4 X 42MM (New) Yes Model Compatibility List $12.99 / Each

2
Belt Adjustment Screw (New) 1011896 281149 Belt Adjustment Screw (New) Yes Model Compatibility List $15.99 / Each

2,15
Bolt M10 X 58MM (New) 1011921 310999 Bolt M10 X 58MM (New) Yes Model Compatibility List $18.99 / Each

2
148684 351743 2 REAR STABILIZER No Model Compatibility List $95.92 / Each

1
148685 351742 3 FRONT STABILIZER No Model Compatibility List $100.28 / Each

1
148705 355347 4 UPRIGHT No Model Compatibility List $237.56 / Each

3
130695 348194 5 ACCESSORY TRAY No Model Compatibility List $80.41 / Each

4,5,6
130696 348195 6 TRAY COVER No Model Compatibility List $48.25 / Each

9
130697 348201 7 TRAY INSERT No Model Compatibility List $36.19 / Each

1
148687 351807 8A CONSOLE No Model Compatibility List $241.38 / Each

7
115040 284963 9A LEFT SENSOR/WIRE No Model Compatibility List $48.75 / Each

4,5,6
115039 284964 9B RIGHT SENSOR/WIRE No Model Compatibility List $48.75 / Each

4,5,6
121005 351813 10 RAMP No Model Compatibility List $194.04 / Each

4,5,6
121006 347842 11A RIGHT TRACK No Model Compatibility List $110.56 / Each

15,3,4,5,6
109179 317273 11B TRACK FOAM TAPE No Model Compatibility List $9.83 / Each

15,3,4,5,6
148688 351815 12 REAR STABILIZER COVER No Model Compatibility List $48.25 / Each

9
148689 351818 13 RAMP COVER No Model Compatibility List $91.56 / Each

9,4,5,6
148690 351747 14 LEFT RAMP HANDLE INSERT No Model Compatibility List $21.54 / Each

4,5,6,11
148691 351748 15 RIGHT RAMP HANDLE INSERT No Model Compatibility List $21.54 / Each

4,5,6,11
148692 351750 16 BUTTON No Model Compatibility List $11.40 / Each

1
121012 348629 17 LEVER No Model Compatibility List $6.00 / Each

3
Transport Wheel 1010433 148803 17 1 Transport Wheel Yes Model Compatibility List $2.52 / Each

8,45
PIN SPRING 115895 317272 18 PIN SPRING Yes Model Compatibility List $2.32 / Each

2,12,13,14
121013 342130 19 PIN No Model Compatibility List $30.15 / Each

12,13,14
Pulley Assembly 1003102 277369 19 1 Pulley Assembly Yes Model Compatibility List $178.75 / Each

37
121014 346959 20 RAMP AXLE No Model Compatibility List $30.15 / Each

8,4,5,6
STABILIZER CAP 129986 348200 21 STABILIZER CAP Yes Model Compatibility List $12.66 / Each

9,46
FRONT WHEEL 100467 148803 22 FRONT WHEEL Yes Model Compatibility List $12.99 / Each

8,45
148693 351745 23 UPRIGHT COVER No Model Compatibility List $36.19 / Each

9,3
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
GRIP 109153 299478 24 GRIP Yes Model Compatibility List $40.95 / Each

11,1
148694 351812 25 RIGHT UPPER BODY ARM No Model Compatibility List $106.09 / Each

3
Motor Brake Tensioner (Used) 1000216 193223 25 1 Motor Brake Tensioner (Used) Yes Model Compatibility List $106.74 / Each

28
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
121018 351568 26 RIGHT UPPER BODY LEG No Model Compatibility List $116.59 / Each

1
M10 Locking Nut 1004782 275907 26B 1 M10 Locking Nut Yes Model Compatibility List $3.36 / Each

2
Locking Nut M10 1010497 275907 26B 1 Locking Nut M10 Yes Model Compatibility List $3.36 / Each

2
148695 351811 27 LEFT UPPER BODY ARM No Model Compatibility List $106.09 / Each

3
121020 351567 28 LEFT UPPER BODY LEG No Model Compatibility List $116.59 / Each

1
Eddy Mechanism 1003893 362822 28A 1 Eddy Mechanism Yes Model Compatibility List $99.00 / Each

8,1
Magnetic Resistance Eddy Brake Mechanism 1000561 362822 28A Magnetic Resistance Eddy Brake Mechanism Yes Model Compatibility List $190.01 / Each

8,1
148696 351749 29 DISC No Model Compatibility List $143.88 / Each

1
148697 351814 30 SHIELD COVER No Model Compatibility List $106.09 / Each

9,3
130713 348193 31 UPPER BODY COVER A No Model Compatibility List $24.79 / Each
Out Of Stock 		9
130714 348192 32 UPPER BODY COVER B No Model Compatibility List $22.89 / Each

9
121025 347841 33A LEFT TRACK No Model Compatibility List $110.56 / Each

15,3,4,5,6
SMALL PULLEY SPACER 101091 306635 34 SMALL PULLEY SPACER No Model Compatibility List $4.75 / Each

2,3,4,5,6,8
148698 351817 35 RIGHT SHIELD No Model Compatibility List $144.65 / Each

3
148699 351816 36 LEFT SHIELD No Model Compatibility List $144.65 / Each

3
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $7.79 / Each
Out Of Stock
148707 363767 37 RIGHT PEDAL ARM No Model Compatibility List $254.02 / Each

8,9,3
148708 363768 38 LEFT PEDAL ARM No Model Compatibility List $254.02 / Each

8,9,3
121030 354691 39 RIGHT ROLLER ARM No Model Compatibility List $158.76 / Each

8,3
121031 354689 40 LEFT ROLLER ARM No Model Compatibility List $158.76 / Each

8,3
Bearing Sealed 1003109 295804 40 1 Bearing Sealed Yes Model Compatibility List $40.21 / Each

1
130719 348199 41 RIGHT PEDAL ARM COVER A No Model Compatibility List $20.26 / Each

8,9,3
130720 348198 42 RIGHT PEDAL ARM COVER B No Model Compatibility List $19.00 / Each

8,9,3
130721 348197 43 LEFT PEDAL ARM COVER A No Model Compatibility List $20.26 / Each

8,9,3
130722 348196 44 LEFT PEDAL ARM COVER B No Model Compatibility List $19.00 / Each

8,9,3
148702 347915 45 RIGHT PEDAL No Model Compatibility List $114.82 / Each

8,9
115703 348190 47 PEDAL ARM ENDCAP No Model Compatibility List $4.80 / Each

8,9,3,4,5,6,46
ROLLER 100964 340773 48 ROLLER Yes Model Compatibility List $139.00 / Each

26
101859 121642 49 HANDLEBAR CAP No Model Compatibility List $0.96 / Each

9,11,46
121039 350999 50 CRANK ARM No Model Compatibility List $143.47 / Each

8,3
121040 348404 51 LARGE CRANK ARM SPACER No Model Compatibility List $7.19 / Each

2,8,3,4,5,6
PULLEY 101387 277369 52 PULLEY Yes Model Compatibility List $178.75 / Each

37
121041 347463 53 CRANK No Model Compatibility List $98.50 / Each

8
CRANK SPACER 121042 347329 54 CRANK SPACER Yes Model Compatibility List $2.30 / Each

2,3,4,5,6,8
FRAME BEARING 100955 295804 55 FRAME BEARING Yes Model Compatibility List $40.21 / Each

1
Sealed Bearing 100955 295804 55 1 Sealed Bearing Yes Model Compatibility List $40.21 / Each

1
LEVELING FOOT 101146 237631 56 LEVELING FOOT Yes Model Compatibility List $6.69 / Each

9,46
ROLLER ARM BEARING - BUSHING 101443 290729 57 ROLLER ARM BEARING - BUSHING Yes Model Compatibility List $31.01 / Each

3,8,45
PEDAL ARM CAP 120460 348389 58 PEDAL ARM CAP Yes Model Compatibility List $4.31 / Each

8,9,3,45
Wire harness Power (Used) 1022840 290160 58A 1 Wire harness Power (Used) Yes Model Compatibility List $20.55 / Each
Out Of Stock 		1,4
BASE PAD 100076 157600 59 BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
REED SWITCH/WIRE 101987 307218 60 REED SWITCH/WIRE Yes Model Compatibility List $26.60 / Each

4,5,6
Foot Leveler 1003996 237631 60 1 Foot Leveler Yes Model Compatibility List $6.69 / Each

9,46
RESISTANCE MOTOR 100647 193223 61 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
CLAMP 100954 282277 62 CLAMP Yes Model Compatibility List $2.32 / Each

2,4,5,6,47
121044 351572 63 RAMP HANDLE No Model Compatibility List $38.19 / Each

4,5,6,11
PEDAL ARM BUSHING 121045 351156 64 PEDAL ARM BUSHING No Model Compatibility List $15.20 / Each

8,9,3
LIFT BUSHING 101392 256295 65 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
IDLER 100939 363093 66 IDLER Yes Model Compatibility List $58.30 / Each

8
EDDY MECHANISM 115861 362822 67A EDDY MECHANISM Yes Model Compatibility List $99.00 / Each

8,1
RESISTANCE CABLE 101866 321678 67B RESISTANCE CABLE Yes Model Compatibility List $18.30 / Each

4,5,6,10
KEY 120477 352003 69 KEY Yes Model Compatibility List $3.83 / Each

9
M8 FLAT WASHER 109397 346533 70 M8 FLAT WASHER Yes Model Compatibility List $3.11 / Each

2,1
107581 302254 71 M6 X 15MM SCREW No Model Compatibility List $1.20 / Each

2
113433 237952 72 M4 ELECTRIC BKT GRND NUT No Model Compatibility List $0.26 / Each

2
120481 276108 73 M4 X 12MM SCREW No Model Compatibility List $9.62 / Each

2
M10 X 58MM BOLT 105104 310999 74 M10 X 58MM BOLT Yes Model Compatibility List $6.51 / Each

2
BELT ADJUSTMENT SCREW 101436 281149 75 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
PIVOT SCREW 101001 208163 76 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
IDLER SCREW 101010 281150 78 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
Idler Bolt 101010 281150 78 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

2,8
108800 204488 79 M8 X 12MM BUTTON BOLT Yes Model Compatibility List $2.61 / Each

2
101197 285643 80 RAMP BUSHING No Model Compatibility List $7.94 / Each

8,4,5,6
100945 143426 81 FRAME/UPRIGHT BUSHING No Model Compatibility List $6.89 / Each

8,3
121046 348397 82 BUTTON AXLE No Model Compatibility List $4.31 / Each

8
121047 348640 83 E-CLIP No Model Compatibility List $0.24 / Each

2,1
121048 348631 84 M4 X 20MM BOLT No Model Compatibility List $1.91 / Each

2
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

2,8
MOUNT 101022 286527 85B MOUNT Yes Model Compatibility List $1.91 / Each

2,1
ROLLER MAGNET 100081 113842 86 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
M8 X 16MM BUTTON SCREW 100673 214070 88 M8 X 16MM BUTTON SCREW No Model Compatibility List $1.06 / Each

2
M8 X 14MM SHOULDER SCREW 105123 347975 89 M8 X 14MM SHOULDER SCREW Yes Model Compatibility List $4.31 / Each

2
M6 X 34MM BUTTON BOLT 108958 246784 90 M6 X 34MM BUTTON BOLT Yes Model Compatibility List $0.25 / Each

2
121049 342082 91 M6 X 14MM SCREW No Model Compatibility List $2.22 / Each

2
M6 X 12MM SCREW 101027 197037 92 M6 X 12MM SCREW Yes Model Compatibility List $0.69 / Each

1,2,50
106038 206588 93 M6 X 63MM SCREW No Model Compatibility List $1.03 / Each

2
M4 X 42MM SCREW 109161 322839 94 M4 X 42MM SCREW Yes Model Compatibility List $1.17 / Each

2
M4 X 25MM SCREW 100788 224606 95 M4 X 25MM SCREW Yes Model Compatibility List $0.52 / Each

2
121051 348398 96 LEVER AXLE No Model Compatibility List $4.31 / Each

8,3
M4 X 16MM SCREW 100586 195562 97 M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
100793 213457 98 M4 X 12MM SCREW No Model Compatibility List $1.20 / Each

2,50
110704 248364 99 M4 X 12MM BRIGHT SCREW No Model Compatibility List $0.94 / Each

2
M4 X 10MM SCREW 100889 208320 100 M4 X 10MM SCREW Yes Model Compatibility List $0.32 / Each

2
M10 LOCKNUT 101008 275907 101 M10 LOCKNUT Yes Model Compatibility List $3.36 / Each

2
Locking Nut 101008 275907 101 1 Locking Nut Yes Model Compatibility List $3.36 / Each

2
# 100540 148710 102 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
M8 X 23MM WASHER 101007 331026 103 M8 X 23MM WASHER No Model Compatibility List $0.94 / Each

2,1
Washer M8 X 23MM 1003997 331026 103 1 Washer M8 X 23MM No Model Compatibility List $0.94 / Each

2,1
M10 X 115MM SCREW 121052 353576 104 M10 X 115MM SCREW No Model Compatibility List $10.89 / Each

2
M10 X 115MM SCREW 1003995 353576 104 1 M10 X 115MM SCREW No Model Compatibility List $10.89 / Each

2
116827 208583 105 M10 X 25MM BUTTON SCREW No Model Compatibility List $4.33 / Each

2
Screw M8 X 16MM 1003998 214070 105 1 Screw M8 X 16MM No Model Compatibility List $1.06 / Each

2
Axle Screw M10 X 19MM 1010514 248334 105 1 Axle Screw M10 X 19MM Yes Model Compatibility List $3.83 / Each

2
108950 244931 106 M10 X 60MM BUTTON BOLT No Model Compatibility List $11.36 / Each

2
M10 X 20MM PATCH SCREW 101417 248334 107 M10 X 20MM PATCH SCREW Yes Model Compatibility List $3.83 / Each

2
M8 X 38MM BOLT 105107 234732 108 M8 X 38MM BOLT Yes Model Compatibility List $6.66 / Each

2
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
101862 270524 109 M8 X 18MM BOLT No Model Compatibility List $3.70 / Each

2
M8 NUT 100030 256446 110A M8 NUT No Model Compatibility List $0.69 / Each

2
M8 LOCKNUT, DECK MTG 100099 333350 110B M8 LOCKNUT, DECK MTG Yes Model Compatibility List $1.44 / Each

2,3
M10 LARGE WASHER 106291 130286 111 M10 LARGE WASHER No Model Compatibility List $8.46 / Each

2
POWER RECEPTACLE/WIRE 101858 290160 112 POWER RECEPTACLE/WIRE Yes Model Compatibility List $23.31 / Each

1,4
DRIVE BELT 105114 175643 113 DRIVE BELT Yes Model Compatibility List $50.00 / Each

28

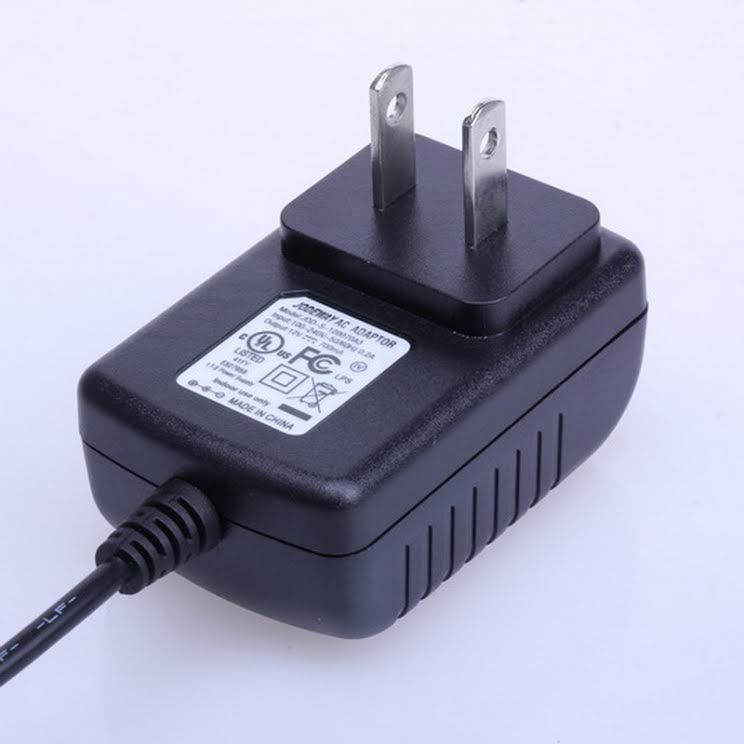

POWER ADAPTER 110342 337717 114 POWER ADAPTER Yes Model Compatibility List $21.95 / Each

6
140379 322078 115 LOWER WIRE No Model Compatibility List $66.34 / Each

4,5,6
148703 352100 116 UPPER WIRE No Model Compatibility List $48.25 / Each

4,5,6
Speed Sensor Clamp 1010437 282277 116 1 Speed Sensor Clamp Yes Model Compatibility List $2.32 / Each

4,5,6,2,47
Clamp 1011595 282277 116 1 Clamp Yes Model Compatibility List $2.32 / Each

4,5,6,2,47
PULSE WIRE 30 101186 260951 117 PULSE WIRE 30 Yes Model Compatibility List $22.35 / Each

1
Hand Sensor Wire Harness 101186 260951 117 1 Hand Sensor Wire Harness Yes Model Compatibility List $32.99 / Each

1
109120 224839 119 PULSE GRIP CAP No Model Compatibility List $1.40 / Each

9,12,13,14,11
AC Adapter Power Supply 1003670 337717 119 1 AC Adapter Power Supply Yes Model Compatibility List $21.95 / Each

6
AC Adapter Power Supply 1003505 337717 119 AC Adapter Power Supply Yes Model Compatibility List $21.95 / Each
Out Of Stock 		6
121055 358011 120 PLASTIC BUSHING No Model Compatibility List $17.16 / Each

8,9
Shoulder Screw M8 X 14MM 1011850 347975 122 1 Shoulder Screw M8 X 14MM Yes Model Compatibility List $4.31 / Each

2
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
Screw M4 X 10MM 1011835 208320 148 1 Screw M4 X 10MM Yes Model Compatibility List $0.32 / Each

2
Snap Fastener 1008634 286527 156A 1 Snap Fastener Yes Model Compatibility List $1.91 / Each

1,2
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,4,5,6
WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

1,2
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
105138 300789 # DECAL, GENERAL WARNING No Model Compatibility List $16.49 / Each

7,3,1
101067 304951 # 6MM ALLEN WRENCH No Model Compatibility List $7.85 / Each

2,1
101066 306510 # 5MM ALLEN WRENCH No Model Compatibility List $4.80 / Each

2,1
148709 363811 # USER-S MANUAL No Model Compatibility List $19.40 / Each

1
148710 387330 # INTERNATION HARDWARE KIT No Model Compatibility List $87.32 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
