Schwinn - 213

Repair Parts for Schwinn 213

Brand: Schwinn

Category: Residential Recumbent Bikes

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: 213

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1022458	18001	21	1	Screw M8-1.25X16mm (Used)	No	Model Compatibility List	$2.99 / Each	1
1022467	18061	38	1	Left Pedal Crank Arm (Used)	No	Model Compatibility List	$14.99 / Each	1

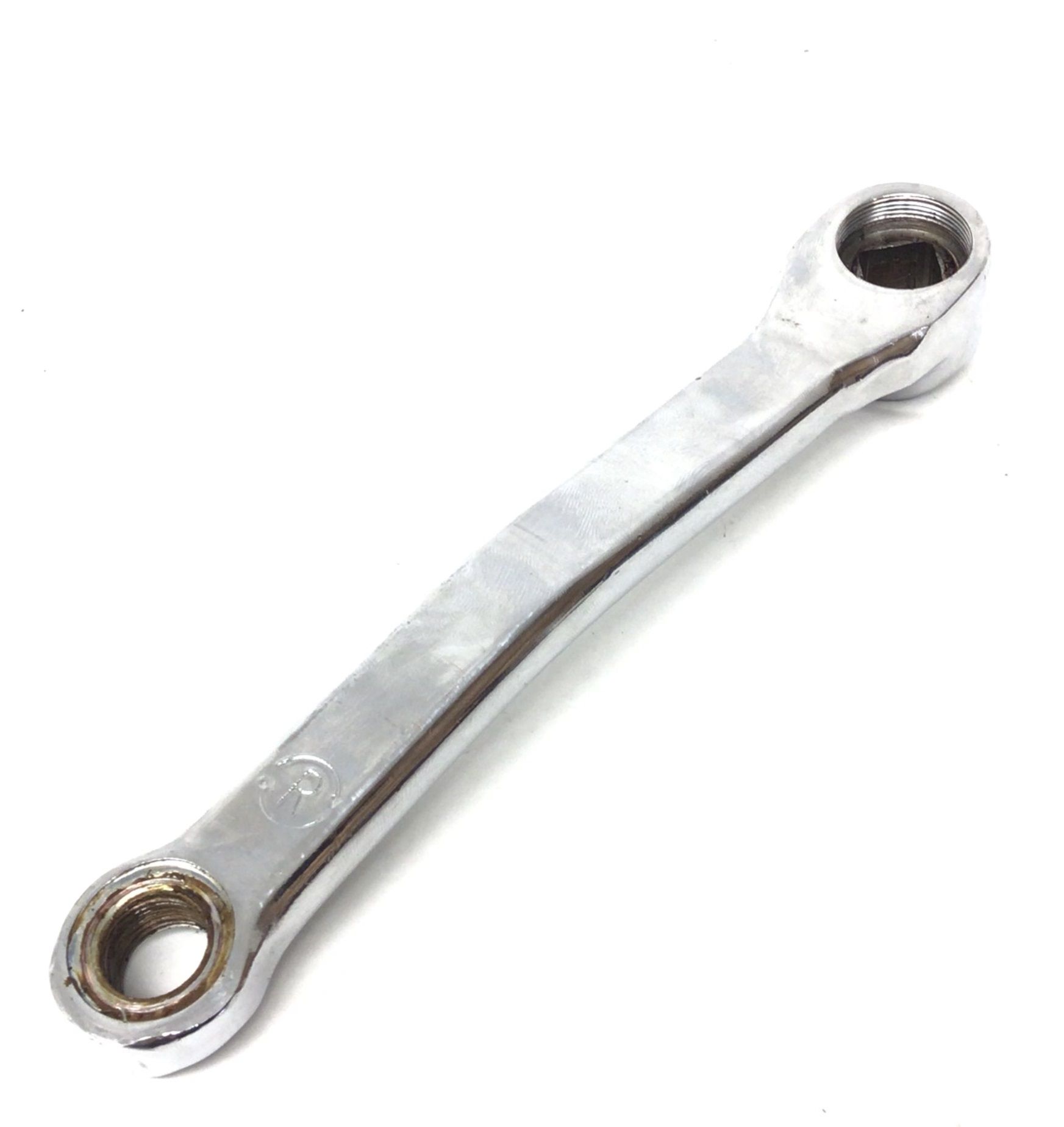

1022484	18061	33	1	Right Pedal Crank Arm (Used)	No	Model Compatibility List	$14.99 / Each	1
SCHRB370J6	18068	30	1	Belt Drive	Yes	Model Compatibility List	$34.99 / Each	1,23
1022456	18072	1	1	Chrome Buttonhead Screw M8-1.25X6mm (Used)	Yes	Model Compatibility List	$4.99 / Each	1
1022494	18086	43	1	Wire Harness HR Upper (Used)	No	Model Compatibility List	$14.99 / Each	1,19
1022435	18093	0	1	2 INCH COARSE THREAD SCREW (Used)	No	Model Compatibility List	$4.99 / Each	1
1022480	18089	0	1	Screw M8-1.25X90mm (Used)	No	Model Compatibility List	$9.99 / Each	1
1022434	18098	2	1	curved washer (Used)	No	Model Compatibility List	$2.99 / Each	1
1023774	18132	0	1	Pin Seat (Used)	No	Model Compatibility List	$4.75 / Each Out Of Stock	1
1023884	KK-2135	0	1	Motor Hood Shroud Cover (Used)	No	Model Compatibility List	$69.00 / Each	1,9
TLS220j8	KK-2134	0	1	Belt Drive 22"	Yes	Model Compatibility List	$29.99 / Each	1,23
1024405	KK-2130	0	1	Roller Front (Used)	No	Model Compatibility List	$59.00 / Each Out Of Stock	6
1030553	18039	0	1	Knob Seat Adjusting (Used)	Yes	Model Compatibility List	$29.00 / Each
1036791	004-3793			Main Wire Harness	No	Model Compatibility List	$19.99 / Each
1010009	set-pul-09			Seat Post Pull Pin	Yes	Model Compatibility List	$11.69 / Each Out Of Stock
1011028	lf-stab-28			Left Rear Stabilizer End Cap	Yes	Model Compatibility List	$15.99 / Each
1011012	rgt-stb-12			Right Rear Stabilizer End Cap	Yes	Model Compatibility List	$15.99 / Each Out Of Stock
1010006.	red-snsr-06			RPM Speed Sensor Reed Switch 2 Terminal Wire	Yes	Model Compatibility List	$12.99 / Each
1011031	pin-set-031			Seat Post Pull Pin	Yes	Model Compatibility List	$12.99 / Each Out Of Stock
1010007	arm-pir-007			Pedal Pair Crank Arm	Yes	Model Compatibility List	$14.99 / Each Out Of Stock
e514-lcrank	000-8621			Pedal crank arm (New)	Yes	Model Compatibility List	$39.00 / Each
e514rlcrank	000-8622			Pedal crank arm (New)	Yes	Model Compatibility List	$39.00 / Each
1037670	18132			Seat post pull pin	Yes	Model Compatibility List	$15.00 / Each	1
sch916nau	98148			Pedal Set (New)	Yes	Model Compatibility List	$59.00 / Each
1010018	adp-pwr-18			Power Supply AC Adapter	Yes	Model Compatibility List	$22.49 / Each Out Of Stock
1010002	strp-002-pdl			Pedal Pair With Straps 1/2"	Yes	Model Compatibility List	$19.99 / Each Out Of Stock
1010035	pdl-pair-35			Pedal Pair With Straps 9/16" (New)	No	Model Compatibility List	$49.99 / Each
1001504	pdlset-504			Pedal Pair Set without Strap 9/16 (Used)	Yes	Model Compatibility List	$14.99 / Each	1
1010008.	knob-008			Seat Back Adjusting Knob (Used)	Yes	Model Compatibility List	$5.93 / Each Out Of Stock	1
1009998.	bckpad-98			Back Seat Pad (Used)	Yes	Model Compatibility List	$37.26 / Each Out Of Stock	34
1011019	slidercp-019			Console Slider End Cap (Used)	Yes	Model Compatibility List	$7.19 / Each Out Of Stock	1
sch916naut	98148			Left & Right Foot Pedal Pair Set W/Straps (New)	Yes	Model Compatibility List	$79.00 / Each	1
