Schwinn - DX900 1994 - 1998

Repair Parts for Schwinn DX900 1994 - 1998

Brand: Schwinn

Category: Commercial Upright Bikes

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: DX900 1994 - 1998

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1020414	210P-HISPL	11	1	Half Inch Spindle Pedal Left (Used)	No	Model Compatibility List	$9.99 / Each Out Of Stock	1
1020401	210P-HISPR	11	1	Half Inch Spindle Pedal Right (Used)	No	Model Compatibility List	$9.99 / Each	1,8
pt205halfinch	210P-HIPPWS	11	1	Half Inch Pedal Pair With Straps	No	Model Compatibility List	$49.99 / Each	1,8

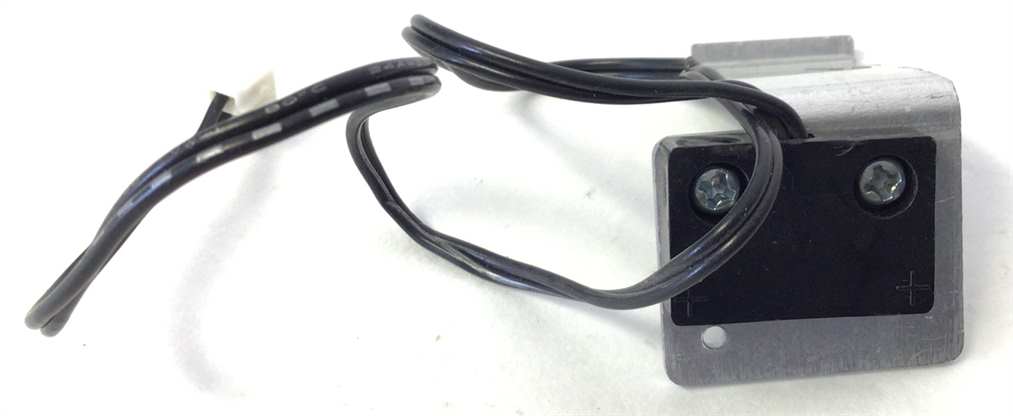

1020402	210P-RPMSRS	19	1	RPM Sensor Reed Switch (Used)	No	Model Compatibility List	$19.99 / Each Out Of Stock	4,7

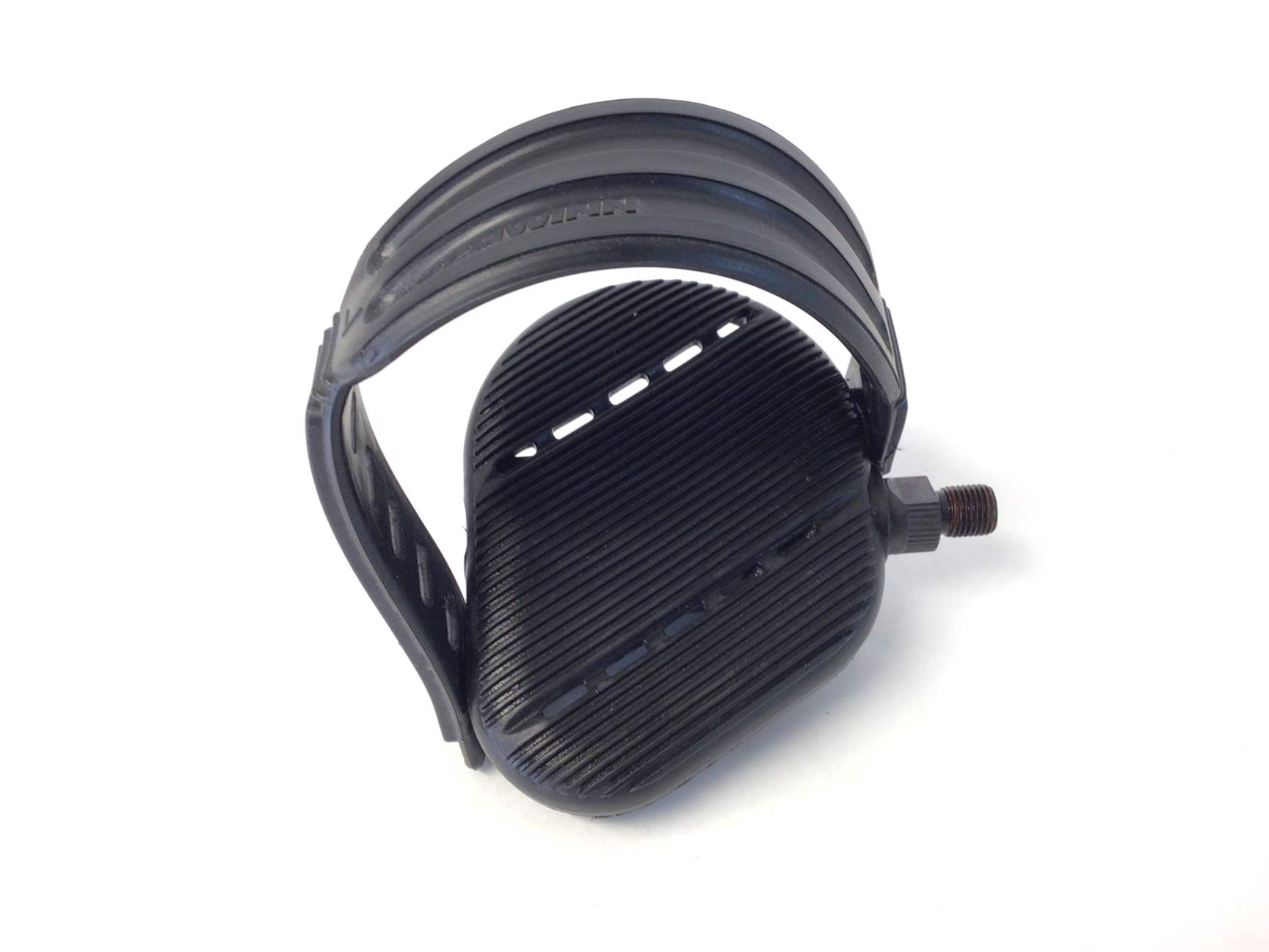

1025787	98156	0	1	Left Pedal (Used)	No	Model Compatibility List	$14.99 / Each Out Of Stock	1

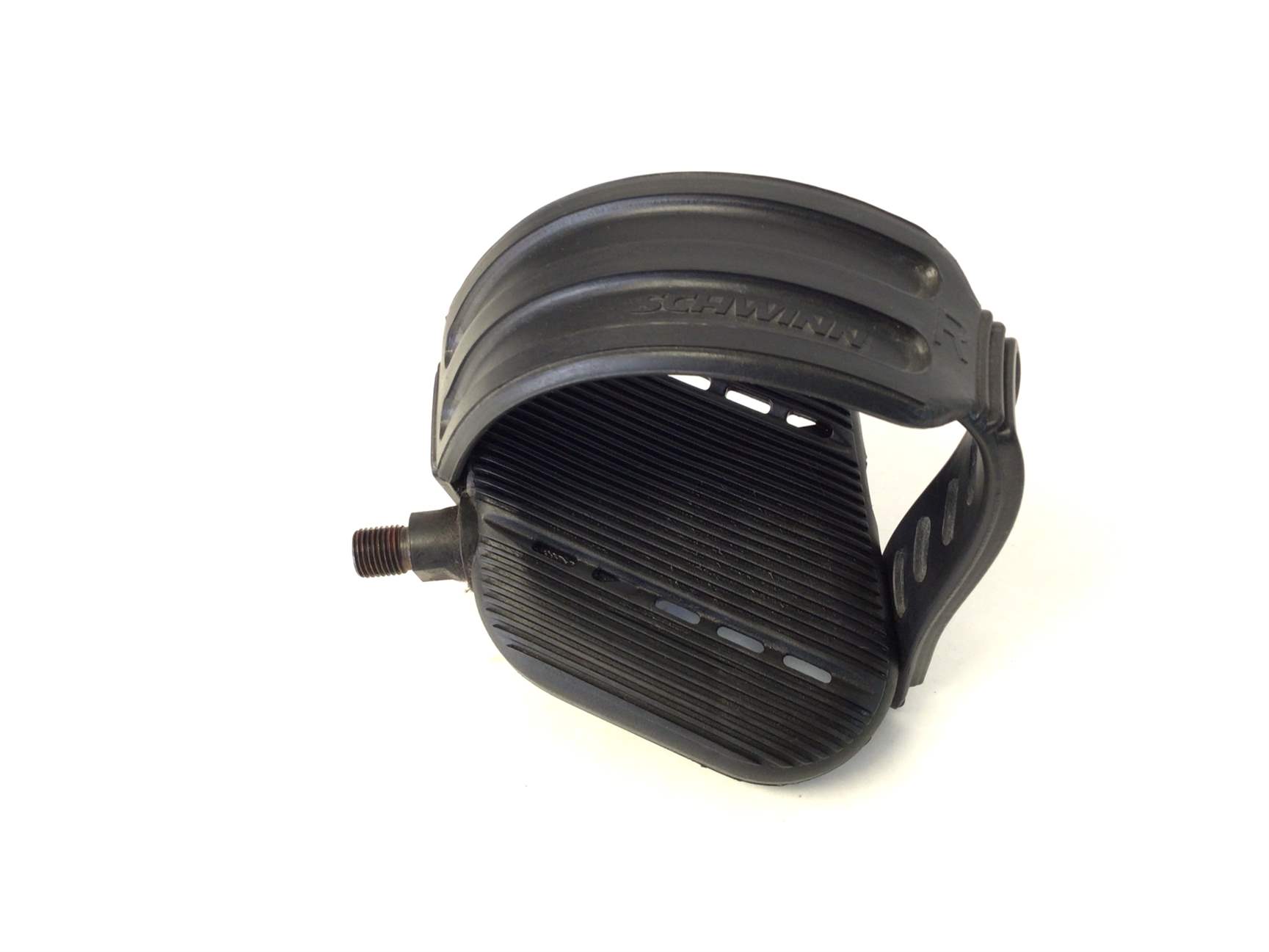

1025800	98156	0	1	Right Pedal (Used)	No	Model Compatibility List	$14.99 / Each Out Of Stock	1
1032371	84995	0	1	Foot, Leveler (Used)	No	Model Compatibility List	$5.00 / Each Out Of Stock
1032345	91652	0	1	Nut, Wing & Foot Leveler (Used)	No	Model Compatibility List	$6.99 / Each
1032318	92051	0	1	Knob, Seat Post (Used)	No	Model Compatibility List	$15.00 / Each
1035685	84995	19	2	Foot, Leveler	No	Model Compatibility List	$9.99 / Each
1036791	004-3793			Main Wire Harness	No	Model Compatibility List	$19.99 / Each
1037023	91909			Display Console Assembly	Yes	Model Compatibility List	$99.00 / Each Out Of Stock
1037033	91926			Handlebar Tensioner	Yes	Model Compatibility List	$16.48 / Each Out Of Stock

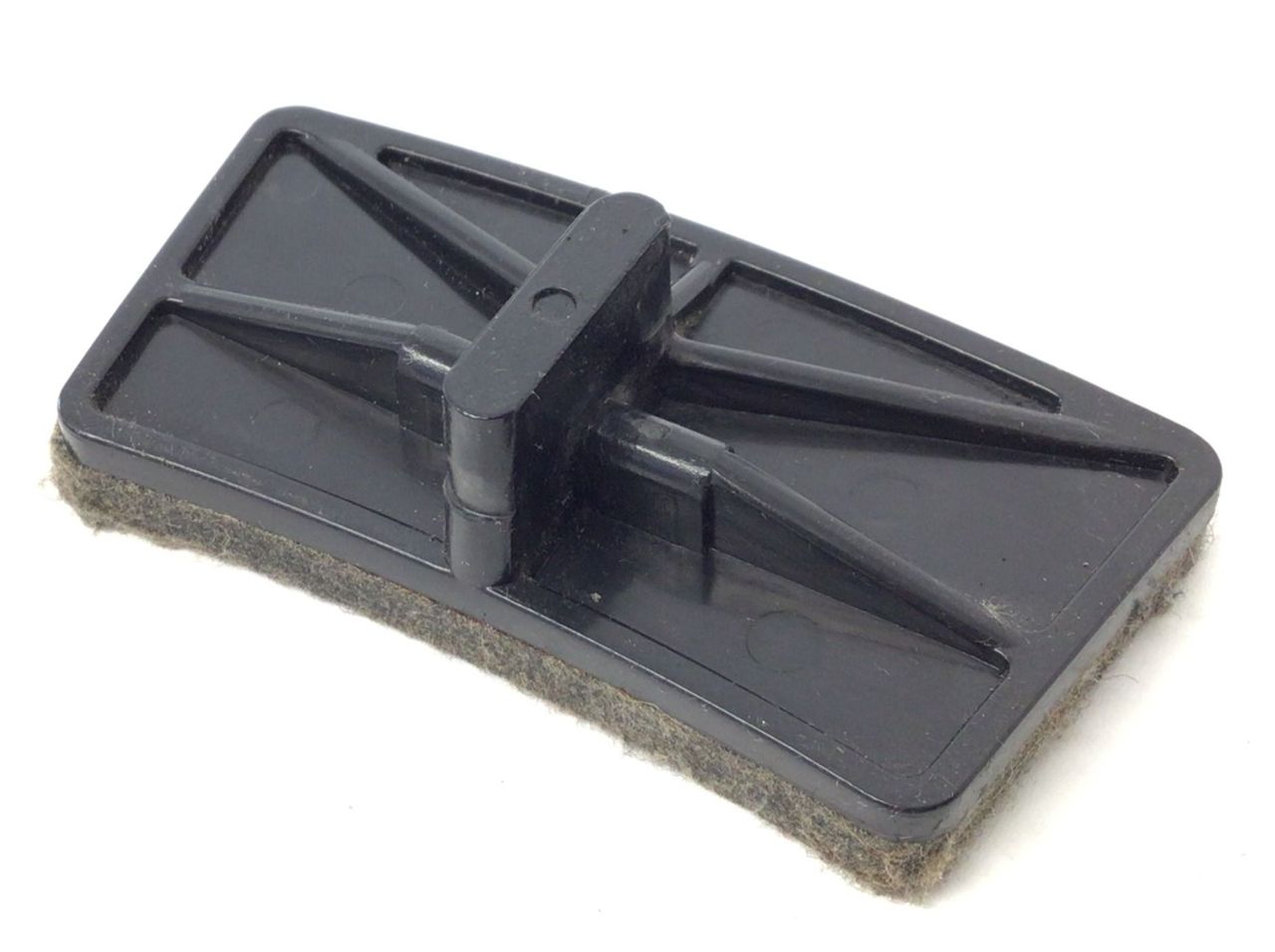

1037035	92874			Break Pad	Yes	Model Compatibility List	$8.98 / Each Out Of Stock
1037022	95422			Tension resistance brake assembly	Yes	Model Compatibility List	$29.98 / Each Out Of Stock
1037021	pd-lft-orgnl			Left Foot Pedal Original Pad	Yes	Model Compatibility List	$19.99 / Each Out Of Stock
1037034	srw-cp-34			Socket Cap Screw M10-1.5-218mm	Yes	Model Compatibility List	$12.99 / Each
1007064	str-pdl-64			Left Pedal With Strap	Yes	Model Compatibility List	$19.99 / Each Out Of Stock
1007065	rght-pdl-65			Right Pedal With Strap	Yes	Model Compatibility List	$19.99 / Each Out Of Stock
1011011	308036			RPM Speed Sensor Reed Switch	Yes	Model Compatibility List	$32.99 / Each	1

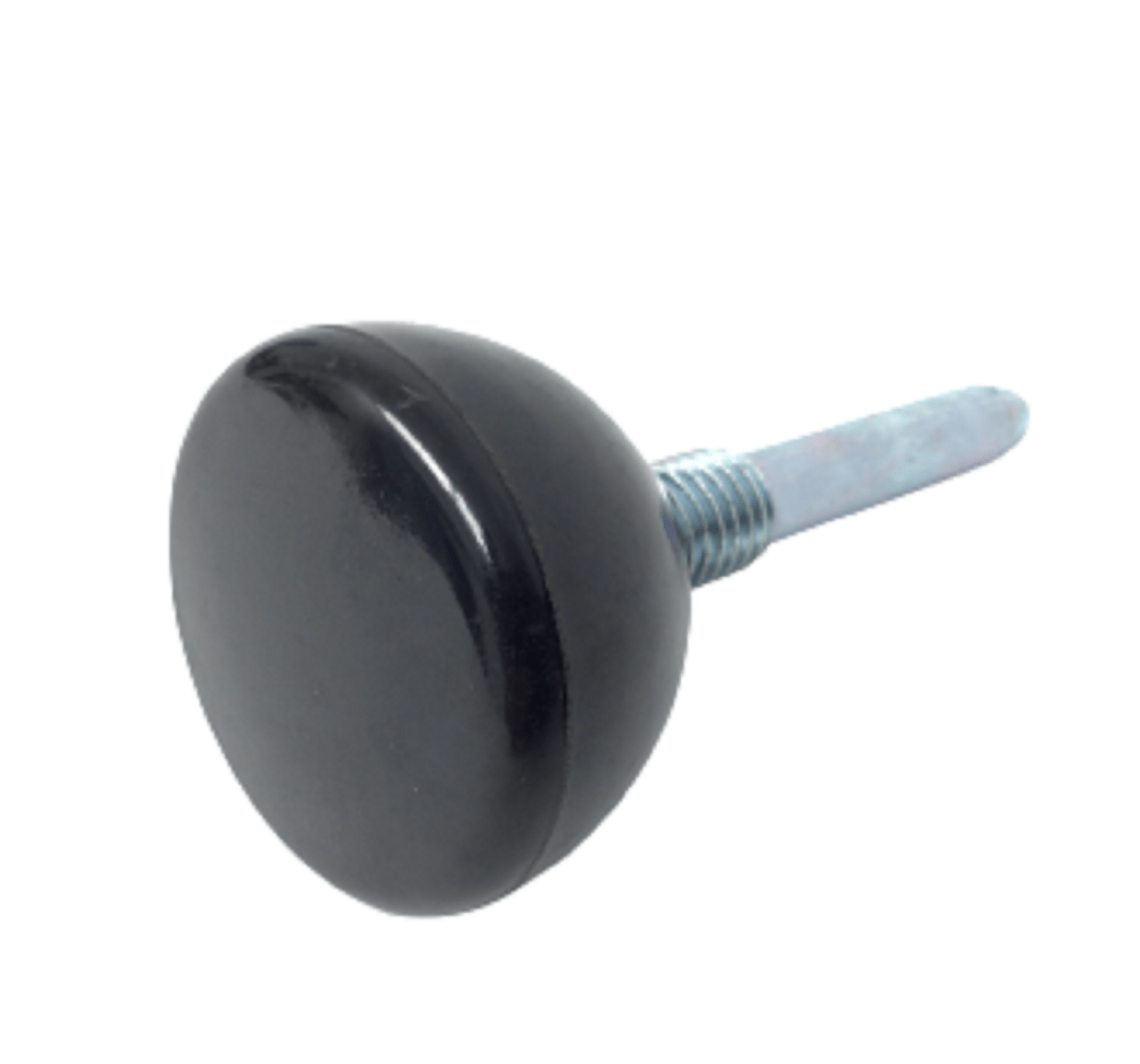

013947	92051			Seat Post Adjustment Knob (New)	Yes	Model Compatibility List	$39.99 / Each Out Of Stock

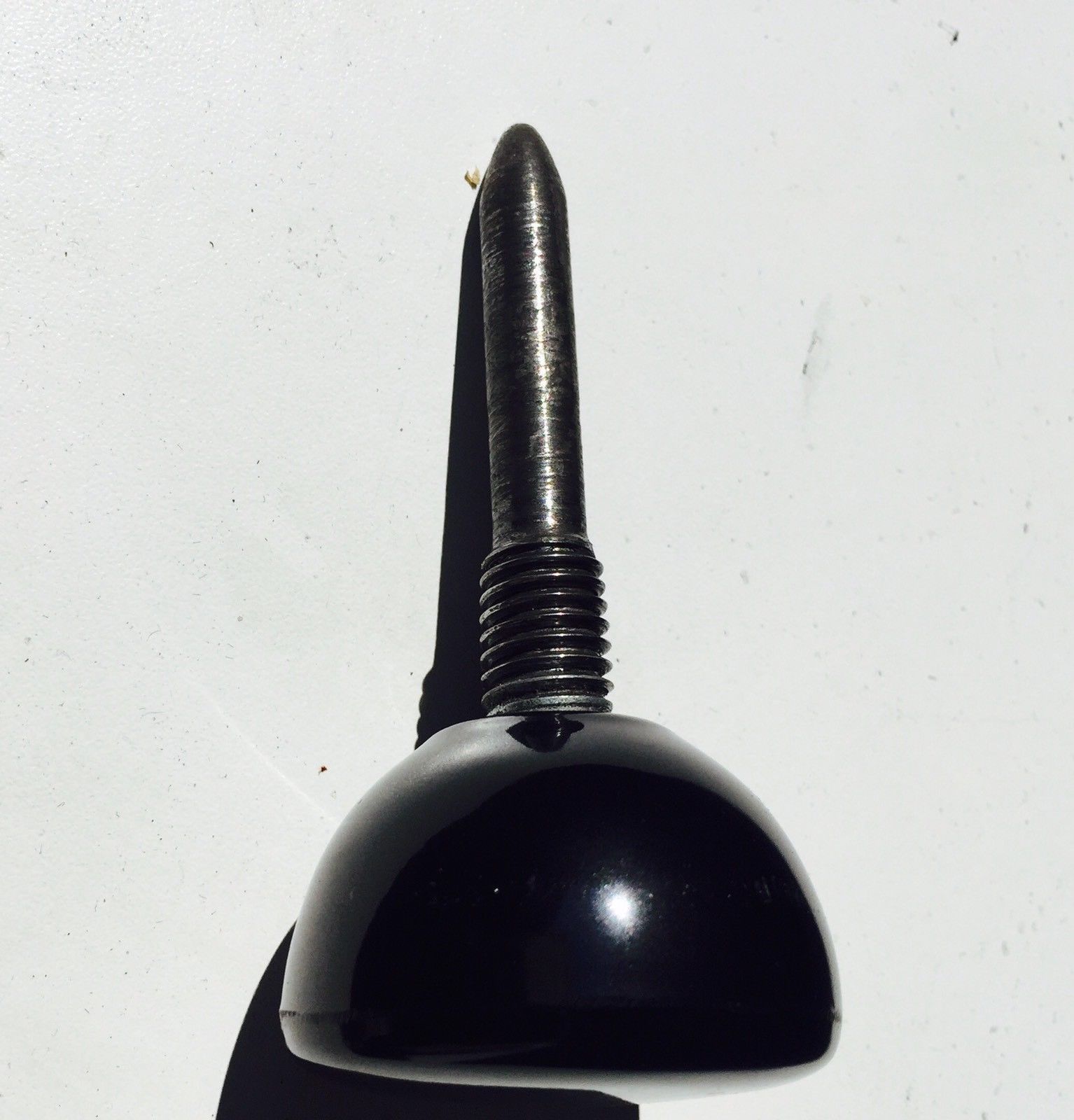

1000614	knb-14-seat			Seat Height Adjustment Post Knob (Used)	Yes	Model Compatibility List	$21.99 / Each

View Drawing
