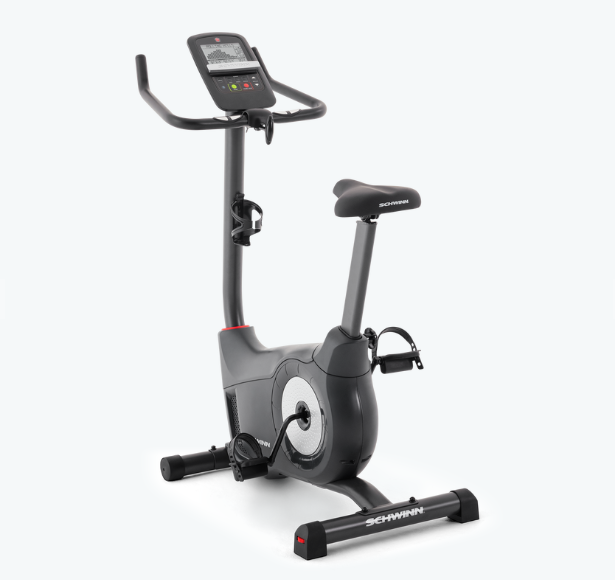

Schwinn - SCH 130 (510Ui) UPRIGHT BIKE - 2020

Repair Parts for Schwinn SCH 130 (510Ui) UPRIGHT BIKE 91155

Brand: Schwinn

Category: Upright

Type: Stationary Bikes

Model Name: SCH 130 (510Ui) UPRIGHT BIKE

Version: 2020

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735837 1000512091 MAIN SHROUD TOP, MY16 No Model Compatibility List $32.48 / Each

735839 1000511306 PEDAL ASSEMBLY, RIGHT, MY13(SMALL) No Model Compatibility List $12.98 / Each

735840 1000514154 POP PIN MECHANICAL ASSEMBLY No Model Compatibility List $8.10 / Each

735841 1000511236 J BELT 480J No Model Compatibility List $19.48 / Each

735843 1000511255 SERVICE KIT, MY13 BELT TENSION ASSY No Model Compatibility List $17.85 / Each

735844 1000511142 SEAT SLIDE BUSHING No Model Compatibility List $3.23 / Each

735845 1000511254 SERVICE KIT, MY13 FLYWHEEL No Model Compatibility List $103.98 / Each

735846 1000511206 SUB ASSY, ONE PIECE CRANK No Model Compatibility List $87.73 / Each

735848 1000511144 SUB ASSY, REAR STABILIZER No Model Compatibility List $34.10 / Each

735849 1000511201 SUB-ASSY FOOT HEIGHT ADJUSTMENT No Model Compatibility List $11.35 / Each

735850 1000511117 SUB ASSY, FRONT STABILIZER No Model Compatibility List $34.10 / Each

735851 1000511203 FRONT STABILIZER TRANSPORT WHEEL No Model Compatibility List $11.35 / Each

735852 1000511209 MAGNET BANK SCH-130/170 No Model Compatibility List $30.85 / Each

735853 1000511253 SERVICE KIT, MY13 SPEED SENSOR No Model Compatibility List $8.10 / Each

SERVICE KIT, SERVO MOTOR, UPRIGHT 735854 1000511555 SERVICE KIT, SERVO MOTOR, UPRIGHT No Model Compatibility List $55.23 / Each

735855 1000511239 RETURN SPRING No Model Compatibility List $1.60 / Each

735857 1000511305 PEDAL ASSEMBLY, LEFT, MY13 (SMALL) No Model Compatibility List $12.98 / Each

735858 1000511199 SUB ASSY, HANDLEBAR SCH-130 No Model Compatibility List $51.98 / Each

735859 1000511787 ADPTR 90-132VAC-9VDC 1500ma, 6 FT No Model Compatibility List $30.85 / Each

735860 1000511204 HANDLEBAR SHROUD TOP No Model Compatibility List $3.23 / Each

735861 1000511202 "T" HANDLE No Model Compatibility List $6.48 / Each

735862 1000511157 POWER PLUG No Model Compatibility List $6.48 / Each

735866 1000511149 SEAT ASSEMBLY No Model Compatibility List $32.48 / Each

735868 1000511237 WATER BOTTLE HOLDER No Model Compatibility List $6.48 / Each

735869 1000511200 SUB ASSY, SEAT POST SCH-130 No Model Compatibility List $29.23 / Each

735871 1000511147 MAST GASKET No Model Compatibility List $1.60 / Each

735917 1000511249 UPRIGHT BIKE SEAT ASSEMBLY Seat option No Model Compatibility List $40.60 / Each

736617 1000513358 SUB ASSY, CONSOLE, SCH MY20 BIKES No Model Compatibility List $272.98 / Each

736618 1000512093 MAIN SHROUD SEAT POST, MY16 No Model Compatibility List $8.10 / Each

736619 1000512097 ASSY SHROUD, DECAL (RH), MY16 No Model Compatibility List $58.48 / Each

736620 1000512096 ASSY SHROUD, DECAL (LH), MY16 No Model Compatibility List $60.10 / Each

736621 1000512191 HARDWARE CARD SCH UPRIGHTS MY16 No Model Compatibility List $17.85 / Each

736622 1000513360 CNSL MAST,UPRT,300LB GWL (MY20) No Model Compatibility List $61.73 / Each

736623 1000513361 CBL 130/510U MAST 2X6 MALE 1X12 FML No Model Compatibility List $25.98 / Each

View Drawing
