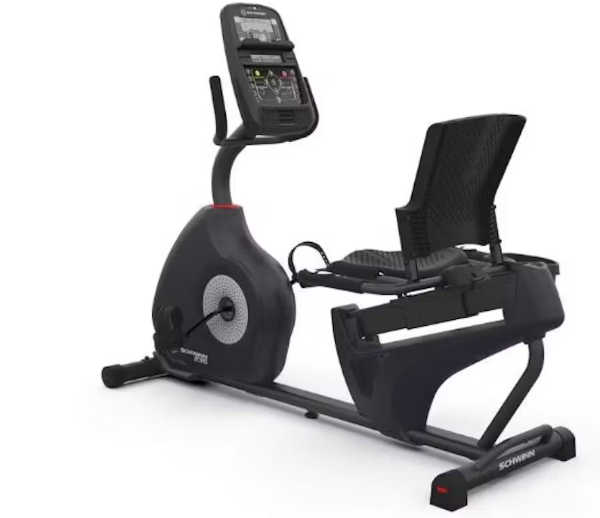

Schwinn - SCH 230 (510Ri) Recumbent Bike - 2016

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
test-johnson-multiple 1000512112 CONSOLE ASSEMBLY 30 SERIES (MY16) No Model Compatibility List $294.10 / Each
Out Of Stock
1
735839 1000511306 PEDAL ASSEMBLY, RIGHT, MY13(SMALL) No Model Compatibility List $12.98 / Each
Out Of Stock
735841 1000511236 J BELT 480J No Model Compatibility List $19.48 / Each
Out Of Stock
735846 1000511206 SUB ASSY, ONE PIECE CRANK No Model Compatibility List $87.73 / Each
Out Of Stock
735847 1000514244 MEDIA CBL 250 MM,STEREO 90 DEGREE No Model Compatibility List $4.85 / Each
Out Of Stock
735848 1000511144 SUB ASSY, REAR STABILIZER No Model Compatibility List $34.10 / Each
Out Of Stock
735849 1000511201 SUB-ASSY FOOT HEIGHT ADJUSTMENT No Model Compatibility List $11.35 / Each
Out Of Stock
735850 1000511117 SUB ASSY, FRONT STABILIZER No Model Compatibility List $34.10 / Each
Out Of Stock
735851 1000511203 FRONT STABILIZER TRANSPORT WHEEL No Model Compatibility List $11.35 / Each
Out Of Stock
735855 1000511239 RETURN SPRING No Model Compatibility List $1.60 / Each
Out Of Stock
735857 1000511305 PEDAL ASSEMBLY, LEFT, MY13 (SMALL) No Model Compatibility List $12.98 / Each
Out Of Stock
735859 1000511787 ADPTR 90-132VAC-9VDC 1500ma, 6 FT No Model Compatibility List $30.85 / Each
Out Of Stock
736057 1000511208 BELT TENSION SPRING No Model Compatibility List $1.60 / Each
Out Of Stock
736224 1000511403 SERVICE KIT, SHROUD HARDWARE No Model Compatibility List $3.23 / Each
Out Of Stock
736470 1000511269 SERVICE KIT, SERVO MOTOR, MY13 No Model Compatibility List $45.48 / Each
Out Of Stock
737734 1000511187 HANDLE SEAT ADJUST No Model Compatibility List $11.35 / Each
Out Of Stock
737735 1000511152 CUP HOLDER No Model Compatibility List $14.60 / Each
Out Of Stock
737738 1000511188 SUB-ASSY SEAT BACK MY13 No Model Compatibility List $53.60 / Each
Out Of Stock
737741 1000511303 CABLE, CONSOLE, MAST TO CONSOLE No Model Compatibility List $8.10 / Each
Out Of Stock
737742 1000511304 WIRE, MAST HR No Model Compatibility List $19.48 / Each
Out Of Stock
737750 1000511161 RECUMBENT MAIN SHROUD (MAST SHIM) No Model Compatibility List $1.60 / Each
Out Of Stock
737751 1000511192 SUB ASSY FLYWHEEL (MY13) No Model Compatibility List $103.98 / Each
Out Of Stock
737753 1000511207 TENSIONER ARM SUBASSEMBLY No Model Compatibility List $17.85 / Each
Out Of Stock
737756 1000511700 SERVICE KIT, MAGNET BANK ASSY No Model Compatibility List $32.48 / Each
Out Of Stock
737757 1000511554 SVC KIT, MY13 RECUM SPEED SENSOR No Model Compatibility List $9.73 / Each
Out Of Stock
737758 1000512109 CAP TOP, MAIN SHRD, MY16 RECUMBENT No Model Compatibility List $30.85 / Each
Out Of Stock
737764 1000512108 COVER SEAT HANDLE BOLTS, MY16 No Model Compatibility List $6.48 / Each
Out Of Stock
737821 1000511151 SEAT PLASTIC No Model Compatibility List $32.48 / Each
Out Of Stock
737822 1000511150 SUB-ASSEMBLY HANDLEBARS RECUMBENT No Model Compatibility List $66.60 / Each
Out Of Stock
737827 1000512103 ASSY REAR RECUM SHRD SCH230(LH)MY16 No Model Compatibility List $64.98 / Each
Out Of Stock
737828 1000512104 ASSY REAR SHRD RECUM SCH230(RH)MY16 No Model Compatibility List $63.35 / Each
Out Of Stock
737829 1000511164 RECUMB REAR SHRD REAR TOP CAP No Model Compatibility List $6.48 / Each
Out Of Stock
737830 1000511163 RECUMB REAR SHRD(FRNT TOP CAP GOOD) No Model Compatibility List $6.48 / Each
Out Of Stock
737832 1000512105 ASSY SEAT SLDR CAR SCH 230,MY16 No Model Compatibility List $76.35 / Each
Out Of Stock
737833 1000512298 SVC KIT, RECUMBENT FRAME HR CABLES No Model Compatibility List $29.23 / Each
Out Of Stock
737854 1000511189 SUB-ASSY HBARS SCH 230/270 MY13 No Model Compatibility List $56.85 / Each
Out Of Stock
737855 1000511324 SVC KIT, SHROUD/DECAL RECUMBENT, LH No Model Compatibility List $56.85 / Each
Out Of Stock
737856 1000511325 SVC KIT, SHROUD/DECAL RECUMBENT, RH No Model Compatibility List $55.23 / Each
Out Of Stock

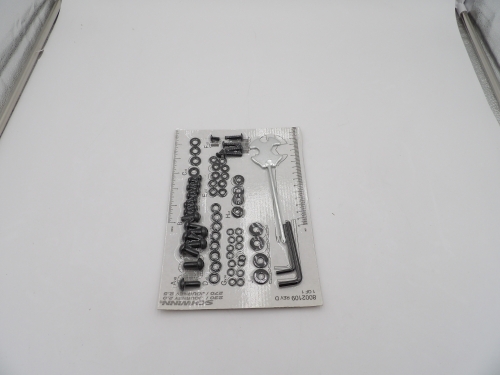

737857 1000511245 USER ASSY HRDW - SCH R230/270 No Model Compatibility List $24.35 / Each
Out Of Stock
View Drawing
