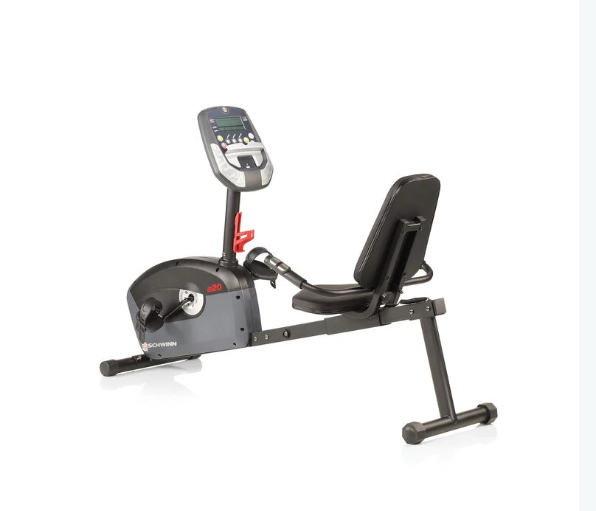

Schwinn - SCH A20 Recumbent Bike - 2013

Repair Parts for Schwinn SCH A20 Recumbent Bike 94236

Brand: Schwinn

Category: Recumbent

Type: Stationary Bikes

Model Name: SCH A20 Recumbent Bike

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
736290 42 ASSY, HEART RATE ARMBAND, BFX No Model Compatibility List $0.00 / Each
Out Of Stock
736361 1000511262 WATER BOTTLE HOLDER (RED) No Model Compatibility List $8.10 / Each

737702 1000514121 Transport Wheel Assembly No Model Compatibility List $6.48 / Each

737703 1000514122 End Cap No Model Compatibility List $6.48 / Each

737705 1000514115 Pedal Strap (pair) No Model Compatibility List $6.48 / Each

737706 1000511211 CONSOLE ASSY A-SERIES (2013) No Model Compatibility List $181.98 / Each

737707 1000514116 Crank Assembly No Model Compatibility List $66.60 / Each

737709 1000514117 6kg Flywheel Assembly No Model Compatibility List $152.73 / Each

737711 1000514119 Drive belt No Model Compatibility List $25.98 / Each

737712 1000514124 Brake cable No Model Compatibility List $9.73 / Each

737714 1000514172 Speed sensor No Model Compatibility List $4.85 / Each

737718 1000514132 Flywheel spacers No Model Compatibility List $3.23 / Each

737721 1000514155 Shroud Hardware No Model Compatibility List $1.60 / Each

737880 1000511216 ASSY SHROUD / LABEL LEFT A20 No Model Compatibility List $61.73 / Each

737881 1000511219 SEAT RAIL ASSY BLACK No Model Compatibility List $74.73 / Each

737882 1000514125 End Cap No Model Compatibility List $3.23 / Each

737883 1000514130 HR Wire Seat Rail No Model Compatibility List $12.98 / Each

737884 1000514173 Seat Adjustment Knob No Model Compatibility List $11.35 / Each

737885 1000510957 BACK PAD WITH LABELS No Model Compatibility List $50.35 / Each

737886 1000514170 SEAT PAD ASSY No Model Compatibility List $43.85 / Each

737887 1000511218 SEAT HANDLEBAR ASSY A20 No Model Compatibility List $51.98 / Each

737888 1000511220 A20 (2013) HARDWARE CARD No Model Compatibility List $38.98 / Each

737889 1000514126 Idler Wheel Assembly No Model Compatibility List $32.48 / Each

737890 1000514177 Brake assembly No Model Compatibility List $25.98 / Each

737891 1000514128 Brake assembly spring No Model Compatibility List $6.48 / Each

737892 1000514133 Speed Sensor Magnet No Model Compatibility List $1.60 / Each

737893 1000514129 Upper HR Wire No Model Compatibility List $6.48 / Each

737894 1000514169 Servo motor No Model Compatibility List $38.98 / Each

737895 1000514243 CENTER CAP RIGHT No Model Compatibility List $3.23 / Each

737896 1000511217 SEAT ASSY BLACK No Model Compatibility List $138.10 / Each

737897 1000510919 SLIDER TUBE END CAP No Model Compatibility List $0.00 / Each
Out Of Stock
737898 1000510941 GWL bikes and ellipticals 275lbs No Model Compatibility List $0.00 / Each
Out Of Stock
View Drawing
