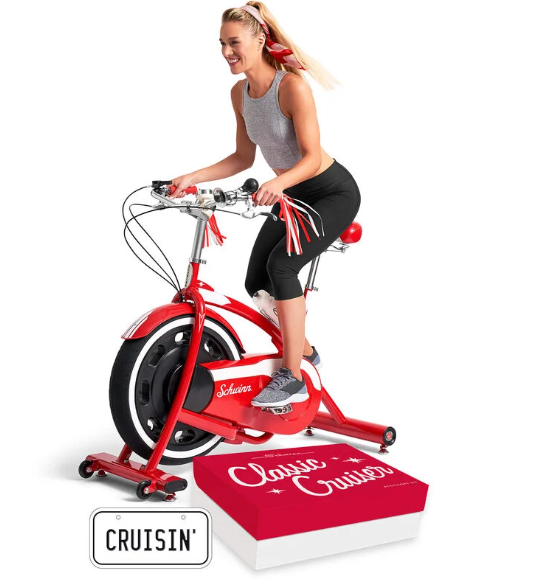

Schwinn - SCH CLASSIC CRUISER AND ACCESSORIES BOX - 2017

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735887 1000512717 ADPTR, 100-240VAC, 9VDC,1.5Ah,90DEG No Model Compatibility List $30.85 / Each

736074 1000511105 TOOL, CRANK PULLER No Model Compatibility List $32.48 / Each

736290 42 ASSY, HEART RATE ARMBAND, BFX No Model Compatibility List $0.00 / Each
Out Of Stock
736654 1000512718 SUB ASSY,ENG,SCH CLASSIC CRUISER No Model Compatibility List $32.48 / Each

736655 1000512740 PEDAL, LEFT, JX7000-50-07 No Model Compatibility List $17.85 / Each

736656 1000512739 PEDAL, RIGHT, JX7000-50-08 No Model Compatibility List $17.85 / Each

736657 1000512724 SUB ASSY M8 LEVEL FOOT,JX7000-14-08 No Model Compatibility List $4.85 / Each

736658 1000512716 HARDWARE CARD, SCH CLASSIC CRUISER No Model Compatibility List $3.23 / Each

736659 1000512715 DOCUMENT KIT, SCH CLASSIC CRUISER No Model Compatibility List $8.10 / Each

736660 1000512758 SUB ASSY, CNSL, SCH CLASSIC CRUISER No Model Compatibility List $212.85 / Each

736661 1000512748 TUBE CLAMP, OD40, JX7000-13 No Model Compatibility List $9.73 / Each

736662 1000512749 TUBE CLAMP, OD32, JX7000-12 No Model Compatibility List $8.10 / Each

736663 1000512719 ASSY, FRONT STABILIZER, JX7000-14 No Model Compatibility List $58.48 / Each

736664 1000512751 SPRING, BELT TENSION, JX7000-40-04 No Model Compatibility List $1.60 / Each

736665 1000512723 FLY WHL,SCH CLASSIC CRUISER No Model Compatibility List $113.73 / Each

736666 1000512742 TENSIONER ARM SUBASSY, JX7000-40 No Model Compatibility List $21.10 / Each

736667 1000512743 MAGNET BANK,SCH CLASSIC CRUISER No Model Compatibility List $30.85 / Each

736668 1000512827 SVC KIT, CHAIN COVER, LEFT, W/HDW No Model Compatibility List $63.35 / Each

736669 1000512828 SVC KIT, CHAIN COVER, RIGHT, W/HDW No Model Compatibility List $63.35 / Each

736670 1000512829 ELEC CNTRL,SCH CLASSIC CRUISER No Model Compatibility List $24.35 / Each

736671 1000512754 SPD SNSR, 550mm, CLASSIC CRUISER No Model Compatibility List $3.23 / Each

736672 1000512831 SVC KIT, CRANK PULLEY No Model Compatibility List $50.35 / Each

736673 1000512745 DECORATN CVR,FLYWL,LT,JX7000-60-05 No Model Compatibility List $68.23 / Each

736674 1000512720 ASSY, REAR STABILIZER, JX7000-15 No Model Compatibility List $58.48 / Each

736675 1000512746 DECORATN CVR,FLYWL,RT,JX7000-60-06 No Model Compatibility List $68.23 / Each

736676 1000512747 SUB ASSY,WHL CVR W/FENDER,JX7000-60 No Model Compatibility List $24.35 / Each

736677 1000512741 DECORATN CAP,BLT PLLY,JX7000-50-03 No Model Compatibility List $19.48 / Each

736678 1000512825 SVC KIT, CRANK, RIGHT W/NUT AND CAP No Model Compatibility List $14.60 / Each

736679 1000512826 SVC KIT, CRANK, LEFT W/NUT AND CAP No Model Compatibility List $14.60 / Each

736680 1000512750 J BELT, PJ1549 610J, JX7000-50-10 No Model Compatibility List $30.85 / Each

736681 1000512753 SCH BADGE,SCH CLASSIC CRUISER No Model Compatibility List $12.98 / Each

736682 1000512752 RETURN SPRING, JX7059-14 No Model Compatibility List $1.60 / Each

736683 1000512187 GWL, BIKE/ELLIPTICAL/MAX, 300LB No Model Compatibility List $1.60 / Each

736684 1000512830 SVC KIT, BOTTLE HOLDER HARDWARE No Model Compatibility List $3.23 / Each

736685 1000512721 SUB ASSY HANDLEBAR, JK7000-16 No Model Compatibility List $40.60 / Each

736686 1000512785 CNSL CBL TO CVT BRD,CLASSIC CRUISER No Model Compatibility List $11.35 / Each

736687 1000512757 SUB ASSY, TIMER, JX7000-16-11 No Model Compatibility List $34.10 / Each

736688 1000512760 BRAKE LEVER, RIGHT, JX7000-16-08 No Model Compatibility List $32.48 / Each

736689 1000512761 BRAKE LEVER, LEFT, JX7000-16-07 No Model Compatibility List $32.48 / Each

736690 1000512759 GRIP, HANDLEBAR, JX7000-16-05 No Model Compatibility List $8.10 / Each

736691 1000512762 THUMB SHIFTER, JX7000-16-06 No Model Compatibility List $24.35 / Each

736692 1000512744 DC POWER PLUG, 400MM, C005070460 No Model Compatibility List $30.85 / Each

736693 1000512755 TRANSPORT WHEEL, JX7000-14-05 No Model Compatibility List $4.85 / Each

736694 1000512756 WLDMT, HANDLEBAR STEM, JX7000-16-00 No Model Compatibility List $37.35 / Each

736695 1000512722 TUBE, SADDLE SUPPORT, JX7000-17-01 No Model Compatibility List $17.85 / Each

736696 1000512832 ASSY,SADDLE&TAGS,SCH CLASSIC CRUISE No Model Compatibility List $58.48 / Each

736697 1000512738 SUB ASSY MEDIA RACK, JX7000-22 No Model Compatibility List $17.85 / Each

View Drawing
