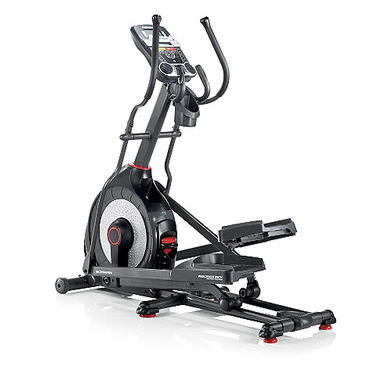

Schwinn - SCH Journey 4.0 Elliptical - 2016

Repair Parts for Schwinn SCH Journey 4.0 Elliptical 94242

Brand: Schwinn

Category: Traditional

Type: Elliptical

Model Name: SCH Journey 4.0 Elliptical

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735841 1000511236 J BELT 480J No Model Compatibility List $19.48 / Each

735847 1000514244 MEDIA CBL 250 MM,STEREO 90 DEGREE No Model Compatibility List $4.85 / Each

735855 1000511239 RETURN SPRING No Model Compatibility List $1.60 / Each

735859 1000511787 ADPTR 90-132VAC-9VDC 1500ma, 6 FT No Model Compatibility List $30.85 / Each

736271 1000415072 NUT-THIN M10 - 1.5 G2 BlkZ (902-4162) No Model Compatibility List $1.60 / Each

736290 42 ASSY, HEART RATE ARMBAND, BFX No Model Compatibility List $0.00 / Each
Out Of Stock
736383 1000511598 SILICONE LUBRCNT BTL,1 OZ. No Model Compatibility List $11.35 / Each

736438 1000512177 SVC KIT,SCH MY13 ELLIP PEDAL LNK,LT No Model Compatibility List $125.10 / Each

736440 1000511285 POWER WIRE - 12P No Model Compatibility List $21.10 / Each

736441 1000511124 ASSEMBLY HAND ADJUSTABLE FOOT No Model Compatibility List $6.48 / Each

736444 1000511139 SUB ASSY,CNSL MNT/STATIC HANDLEBARS No Model Compatibility List $76.35 / Each

736446 1000511123 SUB ASSY, FRONT STABILIZER No Model Compatibility List $55.23 / Each

736447 1000511268 SVC KIT,FRNT TRNSPRT WHL,MY13 ELLIP No Model Compatibility List $19.48 / Each

736448 1000511265 SERVICE KIT, REAR STEP, MY13 ELLIP No Model Compatibility List $16.23 / Each

736449 1000511267 SVC KIT, BOTTLE HOLDER, MY13 ELLIP No Model Compatibility List $17.85 / Each

736450 1000511140 ENDCAP REAR FOOT SUPPORT No Model Compatibility List $6.48 / Each

736451 1000511137 ENDCAP STATIC HANDLEBARS No Model Compatibility List $6.48 / Each

736452 1000511138 ENDCAP: STATIC TUBE No Model Compatibility List $1.60 / Each

736454 1000511136 MAST BOOT No Model Compatibility List $4.85 / Each

736456 1000511266 SVC KIT, REAR FLOOR CAP, MY13 ELLIP No Model Compatibility List $3.23 / Each

736458 1000511412 SERVICE KIT, ELLIPTICAL WHEEL No Model Compatibility List $40.60 / Each

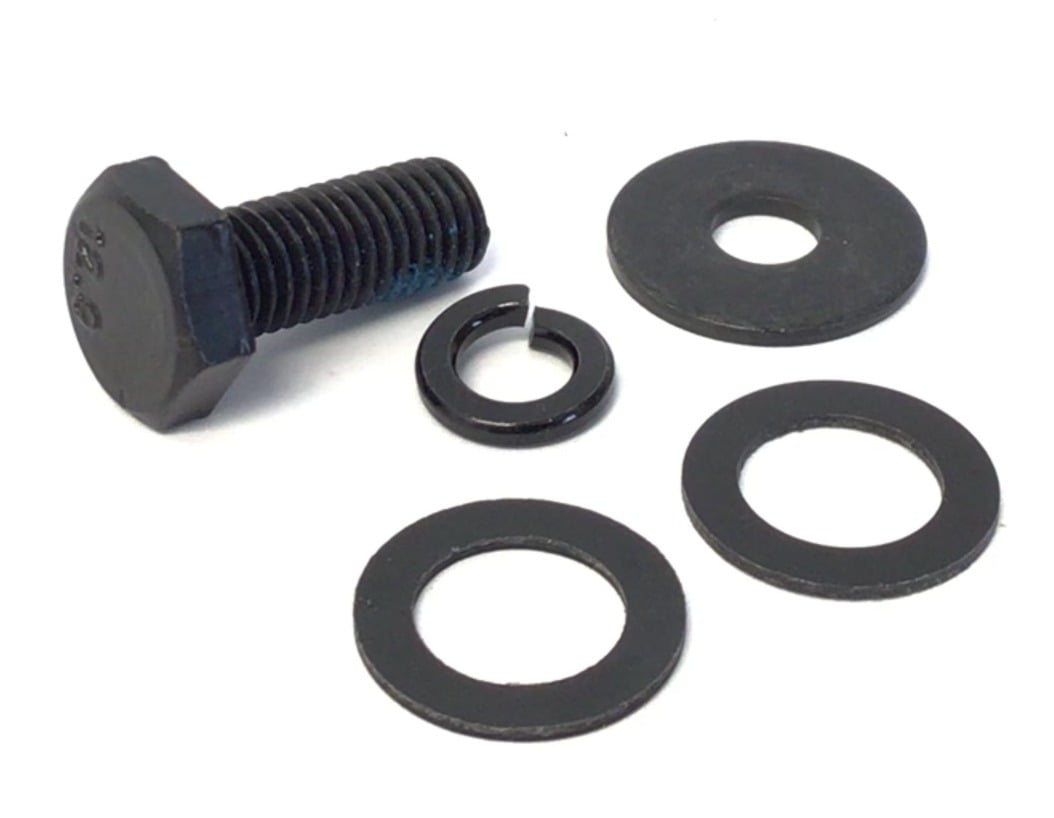

736459 1000511413 SVC KIT, ELLIPTICAL KNUCKLE HDW No Model Compatibility List $3.23 / Each

736460 1000511288 UPPER CONSOLE WIRE No Model Compatibility List $22.73 / Each

736464 1000511112 WELDMENT CRANK 10" (254.0) No Model Compatibility List $25.98 / Each

736465 1000511277 SUB ASSY, SHROUD MAIN (R) No Model Compatibility List $82.85 / Each

736466 1000511270 SVC KIT,EDDY BRAKE ASSY,MY13 ELLIP No Model Compatibility List $30.85 / Each

736467 1000511191 SUB-ASSY FLYWHEEL ELLIPTICAL No Model Compatibility List $112.10 / Each

736468 1000511271 SVC KIT, BELT TENSIONER, MY13 ELLIP No Model Compatibility List $24.35 / Each

736469 1000511129 SUB ASSY, CRANK SPINDLE W/ PULLEY No Model Compatibility List $73.10 / Each

736470 1000511269 SERVICE KIT, SERVO MOTOR, MY13 No Model Compatibility List $45.48 / Each

736472 1000511132 END CAP, DYNAMIC ARM No Model Compatibility List $6.48 / Each

736474 1000511276 SUB ASSY, SHROUD MAIN (L) No Model Compatibility List $79.60 / Each

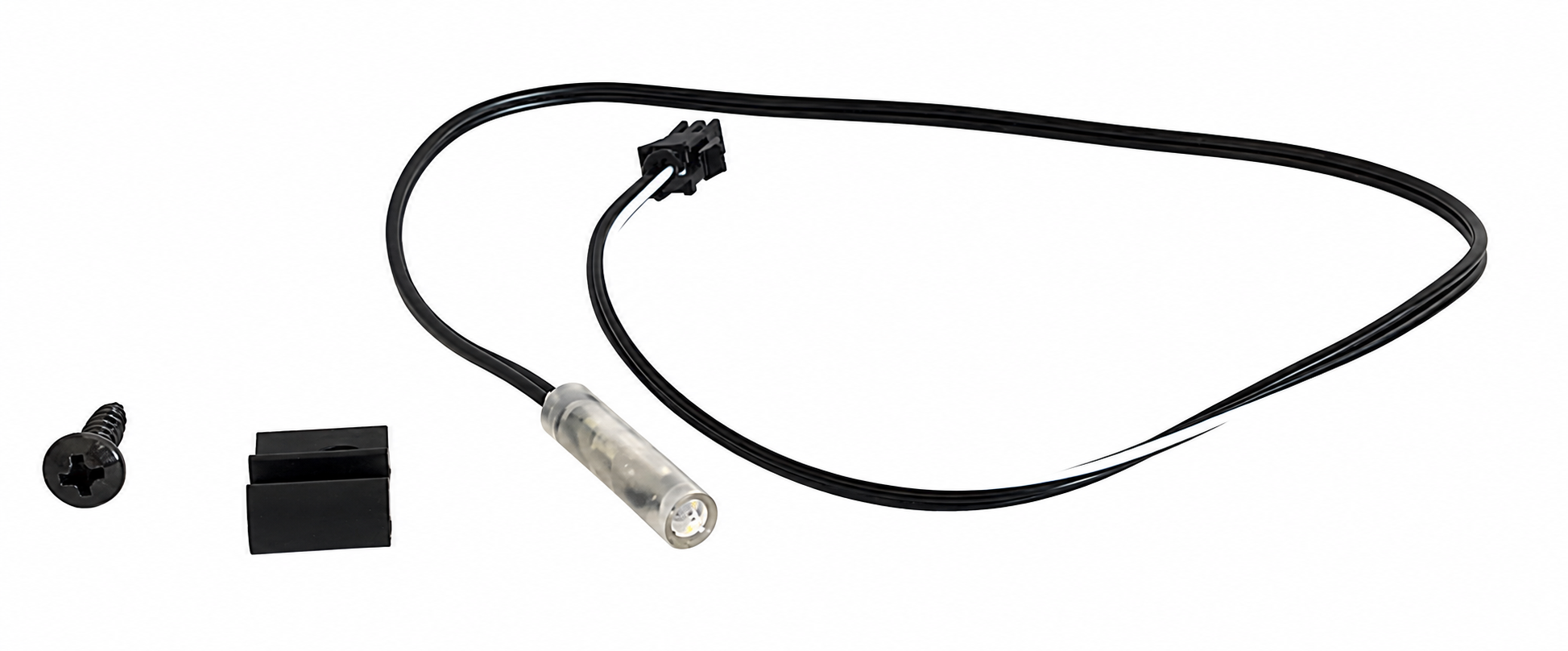

736477 1000511345 SVC KIT, SPEED SENSOR, MY''13 ELLIP No Model Compatibility List $8.10 / Each

736478 1000511273 MAIN SHROUD INSERTS No Model Compatibility List $1.60 / Each

736480 1000512176 SVC KIT,SCH MY13 ELLIP PEDAL LNK,RT No Model Compatibility List $125.10 / Each

736484 1000511612 SVC KIT, ELLIP ADJ RAMP/ARM HDW No Model Compatibility List $6.48 / Each

736485 1000511640 FLANGE NUT, M10X1.25, M, ClrZ No Model Compatibility List $3.23 / Each

736488 1000511125 SHAFT, HANDLEBAR CONNECTION No Model Compatibility List $24.35 / Each

736489 1000511344 SVC KIT, SHROUD HDW, MY''13 ELLIP No Model Compatibility List $1.60 / Each

736836 1000511121 SUB ASSY, LOWER BAR RIGHT No Model Compatibility List $34.10 / Each

736837 1000511120 SUB ASSY, LOWER BAR LEFT No Model Compatibility List $34.10 / Each

736838 1000512188 SUB ASSY,CNSL MAST,ELLIP,300lb GWL No Model Compatibility List $76.35 / Each

736839 1000511131 BUSHING, ARM PIVOT No Model Compatibility List $3.23 / Each

736840 1000512139 SHROUD, MAIN, TOP, MY16 No Model Compatibility List $43.85 / Each

736842 1000512144 SUB ASSY, RIGHT LEG, MY16 No Model Compatibility List $125.10 / Each

736843 1000512143 SUB ASSY, LEFT LEG, MY16 No Model Compatibility List $125.10 / Each

736844 1000511198 FOOT PAD, 10mm THK No Model Compatibility List $19.48 / Each

736845 1000511130 SUB ASSY, RATCHET HANDLE No Model Compatibility List $84.48 / Each

736846 1000512145 SUB ASSY, RAMP ADJUSTABLE (MY16) No Model Compatibility List $172.23 / Each

736847 1000511243 USER ASSY HRDW - SCH E430 No Model Compatibility List $32.48 / Each

736848 1000512141 CAP, CRANK COVER, SCH MY16 No Model Compatibility List $4.85 / Each

736849 1000512140 SHROUD, CRANK COVER, SCH MY16 No Model Compatibility List $32.48 / Each

736850 1000511272 SVC KIT,PLASTIC RATCHET,MY13 ELLIP No Model Compatibility List $19.48 / Each

736851 1000512142 SHROUD, MAIN, MANUAL CVR, SCH MY16 No Model Compatibility List $21.10 / Each

736852 1000511343 SVC KIT, PWR SUPPLY BKT, MY''13 430 No Model Compatibility List $8.10 / Each

736853 1000514179 DC POWER PLUG, 400MM No Model Compatibility List $8.10 / Each

736854 1000512129 SUB ASSY, DYNAMIC ARM RIGHT, MY16 No Model Compatibility List $42.23 / Each

736855 1000512128 SUB ASSY, DYNAMIC ARM LEFT, MY16 No Model Compatibility List $42.23 / Each

737413 1000511289 CBL ASSY,12-WIR,MAST-TO-SERVO,700mm No Model Compatibility List $16.23 / Each
