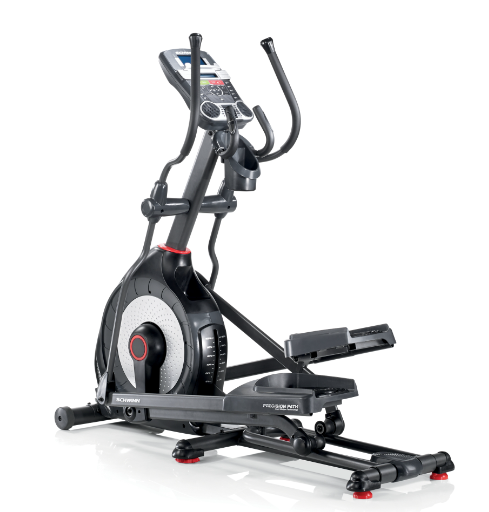

Schwinn - SCH JOURNEY 4.5 Elliptical - 2013

Repair Parts for Schwinn SCH JOURNEY 4.5 Elliptical 94243

Brand: Schwinn

Category: Traditional

Type: Elliptical

Model Name: SCH JOURNEY 4.5 Elliptical

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735841 1000511236 J BELT 480J No Model Compatibility List $19.48 / Each

735847 1000514244 MEDIA CBL 250 MM,STEREO 90 DEGREE No Model Compatibility List $4.85 / Each

735855 1000511239 RETURN SPRING No Model Compatibility List $1.60 / Each

736290 42 ASSY, HEART RATE ARMBAND, BFX No Model Compatibility List $0.00 / Each
Out Of Stock
736383 1000511598 SILICONE LUBRCNT BTL,1 OZ. No Model Compatibility List $11.35 / Each

736434 1000511248 ASSY CONSOLE MY13 70 SERIES-E No Model Compatibility List $281.10 / Each

736435 1000511195 SUB ASSY, DYNAMIC ARM LEFT No Model Compatibility List $30.85 / Each

736436 1000511247 SUB ASSY, LOWER BAR LEFT No Model Compatibility List $34.10 / Each

736437 1000511118 SUB ASSY, LEFT LEG No Model Compatibility List $133.23 / Each

736438 1000512177 SVC KIT,SCH MY13 ELLIP PEDAL LNK,LT No Model Compatibility List $125.10 / Each

736439 1000511122 SUB ASSY, RAMP ADJUSTABLE No Model Compatibility List $164.10 / Each

736440 1000511285 POWER WIRE - 12P No Model Compatibility List $21.10 / Each

736441 1000511124 ASSEMBLY HAND ADJUSTABLE FOOT No Model Compatibility List $6.48 / Each

736442 1000511346 SERVICE KIT, UPPER PIVOT SHROUD No Model Compatibility List $12.98 / Each

736443 1000514253 FOOT PEG BUSHING No Model Compatibility List $3.23 / Each

736444 1000511139 SUB ASSY,CNSL MNT/STATIC HANDLEBARS No Model Compatibility List $76.35 / Each

736445 1000511507 PWR CORD,18AWG 2000mm 120VAC DOM No Model Compatibility List $32.48 / Each

736446 1000511123 SUB ASSY, FRONT STABILIZER No Model Compatibility List $55.23 / Each

736447 1000511268 SVC KIT,FRNT TRNSPRT WHL,MY13 ELLIP No Model Compatibility List $19.48 / Each

736448 1000511265 SERVICE KIT, REAR STEP, MY13 ELLIP No Model Compatibility List $16.23 / Each

736449 1000511267 SVC KIT, BOTTLE HOLDER, MY13 ELLIP No Model Compatibility List $17.85 / Each

736450 1000511140 ENDCAP REAR FOOT SUPPORT No Model Compatibility List $6.48 / Each

736451 1000511137 ENDCAP STATIC HANDLEBARS No Model Compatibility List $6.48 / Each

736452 1000511138 ENDCAP: STATIC TUBE No Model Compatibility List $1.60 / Each

736453 1000511135 MAIN SHROUD TOP No Model Compatibility List $27.60 / Each

736454 1000511136 MAST BOOT No Model Compatibility List $4.85 / Each

736455 1000511196 SUB ASSY, DYNAMIC ARM RIGHT No Model Compatibility List $30.85 / Each

736456 1000511266 SVC KIT, REAR FLOOR CAP, MY13 ELLIP No Model Compatibility List $3.23 / Each

736457 1000511250 USER ASSY HRDW - SCH 470 No Model Compatibility List $27.60 / Each

736458 1000511412 SERVICE KIT, ELLIPTICAL WHEEL No Model Compatibility List $40.60 / Each

736459 1000511413 SVC KIT, ELLIPTICAL KNUCKLE HDW No Model Compatibility List $3.23 / Each

736460 1000511288 UPPER CONSOLE WIRE No Model Compatibility List $22.73 / Each

736461 1000511246 SUB ASSY, LOWER BAR RIGHT No Model Compatibility List $35.73 / Each

736462 1000511133 Crank cover cap No Model Compatibility List $6.48 / Each

736463 1000511134 CRANK COVER No Model Compatibility List $12.98 / Each

736464 1000511112 WELDMENT CRANK 10" (254.0) No Model Compatibility List $25.98 / Each

736465 1000511277 SUB ASSY, SHROUD MAIN (R) No Model Compatibility List $82.85 / Each

736466 1000511270 SVC KIT,EDDY BRAKE ASSY,MY13 ELLIP No Model Compatibility List $30.85 / Each

736467 1000511191 SUB-ASSY FLYWHEEL ELLIPTICAL No Model Compatibility List $112.10 / Each

736468 1000511271 SVC KIT, BELT TENSIONER, MY13 ELLIP No Model Compatibility List $24.35 / Each

736469 1000511129 SUB ASSY, CRANK SPINDLE W/ PULLEY No Model Compatibility List $73.10 / Each

736470 1000511269 SERVICE KIT, SERVO MOTOR, MY13 No Model Compatibility List $45.48 / Each

736471 1000511347 SERVICE KIT, MCB, 470 No Model Compatibility List $73.10 / Each

736472 1000511132 END CAP, DYNAMIC ARM No Model Compatibility List $6.48 / Each

736473 1000511284 ASSY MOTORIZED LIFT CVR / GRAPHICS No Model Compatibility List $16.23 / Each

736474 1000511276 SUB ASSY, SHROUD MAIN (L) No Model Compatibility List $79.60 / Each

736475 1000511126 WELDMENT POWERED RAMP ADJUSTER No Model Compatibility List $56.85 / Each

736476 1000511348 SERVICE KIT, LIFT MOTOR, 470 No Model Compatibility List $237.23 / Each

736477 1000511345 SVC KIT, SPEED SENSOR, MY''13 ELLIP No Model Compatibility List $8.10 / Each

736478 1000511273 MAIN SHROUD INSERTS No Model Compatibility List $1.60 / Each

736479 1000511128 SUB ASSY, INLET POWER SWITCH No Model Compatibility List $32.48 / Each

736480 1000512176 SVC KIT,SCH MY13 ELLIP PEDAL LNK,RT No Model Compatibility List $125.10 / Each

736481 1000511286 CNCTR WIRE POWER, 750mm, LIFT MTR No Model Compatibility List $9.73 / Each

736482 1000511287 WIRE BLK W/CNCTRS 850MM 24AWG No Model Compatibility List $9.73 / Each

736483 1000511290 WIRE, SERVO CONTROL No Model Compatibility List $3.23 / Each

736484 1000511612 SVC KIT, ELLIP ADJ RAMP/ARM HDW No Model Compatibility List $6.48 / Each

736485 1000511640 FLANGE NUT, M10X1.25, M, ClrZ No Model Compatibility List $3.23 / Each

736486 1000511119 SUB ASSY, RIGHT LEG No Model Compatibility List $133.23 / Each

736487 1000511241 SUB ASSY, CONSOLE MAST No Model Compatibility List $64.98 / Each

736488 1000511125 SHAFT, HANDLEBAR CONNECTION No Model Compatibility List $24.35 / Each

736489 1000511344 SVC KIT, SHROUD HDW, MY''13 ELLIP No Model Compatibility List $1.60 / Each
