Sole - AE95 - 2011 Series

Repair Parts for Sole AE95

Brand: Sole

Category: Residential Ellipticals

Type: Elliptical

Model Name: AE95

Serial Number Prefix: 595010

Version: 2011 Series

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Controller 189343 F110204 45 Controller Yes Model Compatibility List $42.00 / Each

7,8
212597 002779 45 Program button, plastic cover (10 Keys a set) No Model Compatibility List $0.00 / Each
Out Of Stock
192207 B030014-Q2 21 Adjusting Plate No Model Compatibility List $14.56 / Each

1
190953 B060015-Q2 22 Plate, Mounting No Model Compatibility List $13.97 / Each

2
190481 B130122-Q2 21 Bracket Cover No Model Compatibility List $10.93 / Each

2,9,3,4,5,6
190928 BB010023-Q2 1 Main Frame No Model Compatibility List $0.00 / Each
Out Of Stock 		3
209099 BB020043-Q2 12 MAST, CONSOLE AE35/AE55/AE95 No Model Compatibility List $0.00 / Each
Out Of Stock 		7
190143 BB040011-Q2 4 Crank Arm Left No Model Compatibility List $72.75 / Each

8,3
218097 BB070005-Q2 17 Pedal Adjustable No Model Compatibility List $61.24 / Each

8,9
190947 BB070009-Q2 3 Idler Wheel Assembly Yes Model Compatibility List $34.92 / Each

8
190950 BB070023 18 Locking Tube Assembly No Model Compatibility List $59.99 / Each

218108 BB070024-Q2 19 Assembly, Pedal Adjustment No Model Compatibility List $69.84 / Each

8,9
190949 BB070076-Q2 15 Incline Device No Model Compatibility List $34.92 / Each

10
190931 BB080004-Q2 3 Console Holder Assembly No Model Compatibility List $14.56 / Each

7
191031 C110001-Z3 182 Axle Stopper No Model Compatibility List $8.74 / Each

8
Controller, incline 190984 D020604 51 Incline Controller-(YJ-2001 L) Yes Model Compatibility List $178.50 / Each

7
Transformer 190985 D022035 43 Transformer Yes Model Compatibility List $74.99 / Each

6
211893 D022144 45 Cover, Console, Bottom No Model Compatibility List $34.92 / Each

7,9
212601 D022147 45 DISPLAY Key - plastic cover No Model Compatibility List $5.24 / Each

9
Wire Harness 190486 E010061 46 Wire Harness No Model Compatibility List $10.93 / Each

190977 E010081 52 Wire, Jumper, White No Model Compatibility List $8.74 / Each

900m/m Connecing Wire, Incline Motor Power Cord 190975 E011018 48 900m/m Connecing Wire Incline Motor Power Cord Yes Model Compatibility List $27.29 / Each

4
Wire harness 190196 E020105 47 Wire harness 850mm No Model Compatibility List $27.29 / Each

4,5,6
Wire harness 190211 E020351 50 Wire harness 1550mm Yes Model Compatibility List $31.79 / Each

4
850MM Connec 218088 E021001 49 850MM Connect Incline Motor Yes Model Compatibility List $31.24 / Each

4
190978 E040007 53 200m/m Ground Wire No Model Compatibility List $10.93 / Each

212600 E040021 45 FAN Key - plastic cover No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Wire harness 190210 E050104 61 Wire harness Yes Model Compatibility List $29.33 / Each

4,5,6
Module, AC 190205 F030053 51 Module AC Yes Model Compatibility List $37.49 / Each

6
190980 F030165 55 400m/m Sensor W/Cable Yes Model Compatibility List $29.10 / Each

4,5,6
Circuit board, Sound YJ-8510-3 190713 D020533 45 Circuit board, Sound YJ-8510-3 Yes Model Compatibility List $18.34 / Each

7
190450 F090204 35 850m/m_Handpulse W/Cable Assembly No Model Compatibility List $43.65 / Each

Switch, Membrane 190470 F090401 58 Switch Membrane No Model Compatibility List $36.04 / Each

4,5,6
Decal, Resistance, Level 190954 I080497-A2 32 Handgrip Label (INCLINE) No Model Compatibility List $15.43 / Each

3,7,10
191000 J010002-ZZ 103 Hex Head Bolt Yes Model Compatibility List $2.91 / Each

2
191005 J010505-Z1 109 Screw No Model Compatibility List $2.33 / Each

2
189565 J010509-Z1 108 Screw No Model Compatibility List $5.83 / Each

189931 J010510A-Z1 177 Bolt, Hex Head No Model Compatibility List $2.33 / Each

2
190998 J010520-ZR 124 Screw No Model Compatibility List $2.91 / Each

2
190999 J010525-Z9 126 Bolt No Model Compatibility List $2.91 / Each

2
191004 J011002-ZR 106 Bolt No Model Compatibility List $2.33 / Each

2
191002 J011006A-YD 105 Bolt No Model Compatibility List $2.91 / Each

190255 J011009-Z1 101 Screw No Model Compatibility List $2.91 / Each

191001 J011010A-YD 104 Bolt No Model Compatibility List $2.91 / Each

191003 J011021-Z1 130 Bolt No Model Compatibility List $2.91 / Each

2
210652 J013508-Z1 131 M10 ?40m/m_Hex Head Bolt No Model Compatibility List $2.33 / Each

2
191008 J020508A-Z1 114 Bolt No Model Compatibility List $2.91 / Each

2
191007 J031009D-Z4 110 Bolt No Model Compatibility List $2.91 / Each

190417 J033008G-Z7 111 M8 40m/m_Socket Head Cap Bolt No Model Compatibility List $2.74 / Each

2,9
191030 J080005-YH 183 Screw Set No Model Compatibility List $5.83 / Each

2
190400 J092001-Z1 117 Screw No Model Compatibility List $2.33 / Each

191009 J092001-Z9 116 Screw No Model Compatibility List $1.86 / Each

2
190350 J092003-Z1 115 Screw No Model Compatibility List $2.33 / Each

2
190996 J094502-Z1 174 M4 x 12m/m Phillips Head Screw No Model Compatibility List $0.00 / Each
Out Of Stock 		2
191013 J129031-Z1 138 Nut No Model Compatibility List $2.91 / Each

2
191027 J129272-YB 178 M8 x 6.3T Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
189815 J139011-Z1 134 Nut, Locking No Model Compatibility List $2.33 / Each

2
210952 J139012-Z1 191 3/8" ?11T_Nyloc Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
190404 J139062F-Z1 137 Nut Locking No Model Compatibility List $2.91 / Each

210985 J139262-Z4 189 M8 ?9T_Nyloc Nut No Model Compatibility List $2.33 / Each

2
210991 J139361F-Z1 155 M10 ?8T_Nyloc Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
190997 J139411-Z1 175 M4 x 5T Nyloc Nut No Model Compatibility List $0.00 / Each
Out Of Stock
190406 J160016-Z1 139 Nut No Model Compatibility List $2.91 / Each

2
189818 J210001-Z1 144 WASHER, FLAT 5/16 X 35 X 1.5T (PLATED) No Model Compatibility List $2.33 / Each

2
190425 J210010-Z1 157 Washer No Model Compatibility List $2.33 / Each

2
191016 J210012-Z1 147 Washer Flat No Model Compatibility List $2.91 / Each

2
191015 J210014-Z1 150 Washer, Flat No Model Compatibility List $2.33 / Each

2
190354 J210022-Z1 165 Washer Flat No Model Compatibility List $2.91 / Each

2
191017 J220004-Z1 181 Washer Curved No Model Compatibility List $2.74 / Each

2
190395 J250002-Z4 176 wave washer No Model Compatibility List $2.74 / Each

2
Washer, Wave 190357 J250002-Z4 176 Washer, Wave No Model Compatibility List $2.33 / Each

2
189821 J260003-Z1 155 Washer, Split No Model Compatibility List $2.33 / Each

2
211135 J260005-Z1 182 O5/16" ?1.5T_Split Washer No Model Compatibility List $0.00 / Each
Out Of Stock 		2
191019 J270002-Z1 151 Washer Star No Model Compatibility List $2.91 / Each

2
190401 J310001-Z4 130 025_C Ring (Blackfast) Yes Model Compatibility List $2.91 / Each

190995 J320009-Z1 163 7 x 7 x 25m/m Woodruff Key No Model Compatibility List $6.24 / Each

9
191020 J330007-Z1 160 Short Phillips Head Screw Driver No Model Compatibility List $2.33 / Each

2,10
199831 J330008-Z1 161 Phillips Head Screw Driver No Model Compatibility List $2.33 / Each

2,10
191323 J330025-Z1 159 Wrench No Model Compatibility List $8.74 / Each

2
191011 J352501-Z1 125 M6 x 10m/m Phillips Head Screw No Model Compatibility List $0.00 / Each
Out Of Stock 		2
191012 J377105-Z1 120 Screw No Model Compatibility List $2.33 / Each

190344 J396804-Z1 126 Screw No Model Compatibility List $2.80 / Each

2
191010 J396805-Z1 123 Screw No Model Compatibility List $2.91 / Each

2
190465 J552004-Z1 150 M5 20m/m_Flat Head Socket Screw No Model Compatibility List $2.74 / Each

2
191028 J562501-Z9 180 M6 x 10m/m Thumb Head Socket Screw No Model Compatibility List $2.74 / Each

2
211336 J590001-Z4 154 E12_E-Clip (Blackfast) No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
Bearing, Rod End 190307 K056001 27 Bearing Rod End Yes Model Compatibility List $28.74 / Each

8

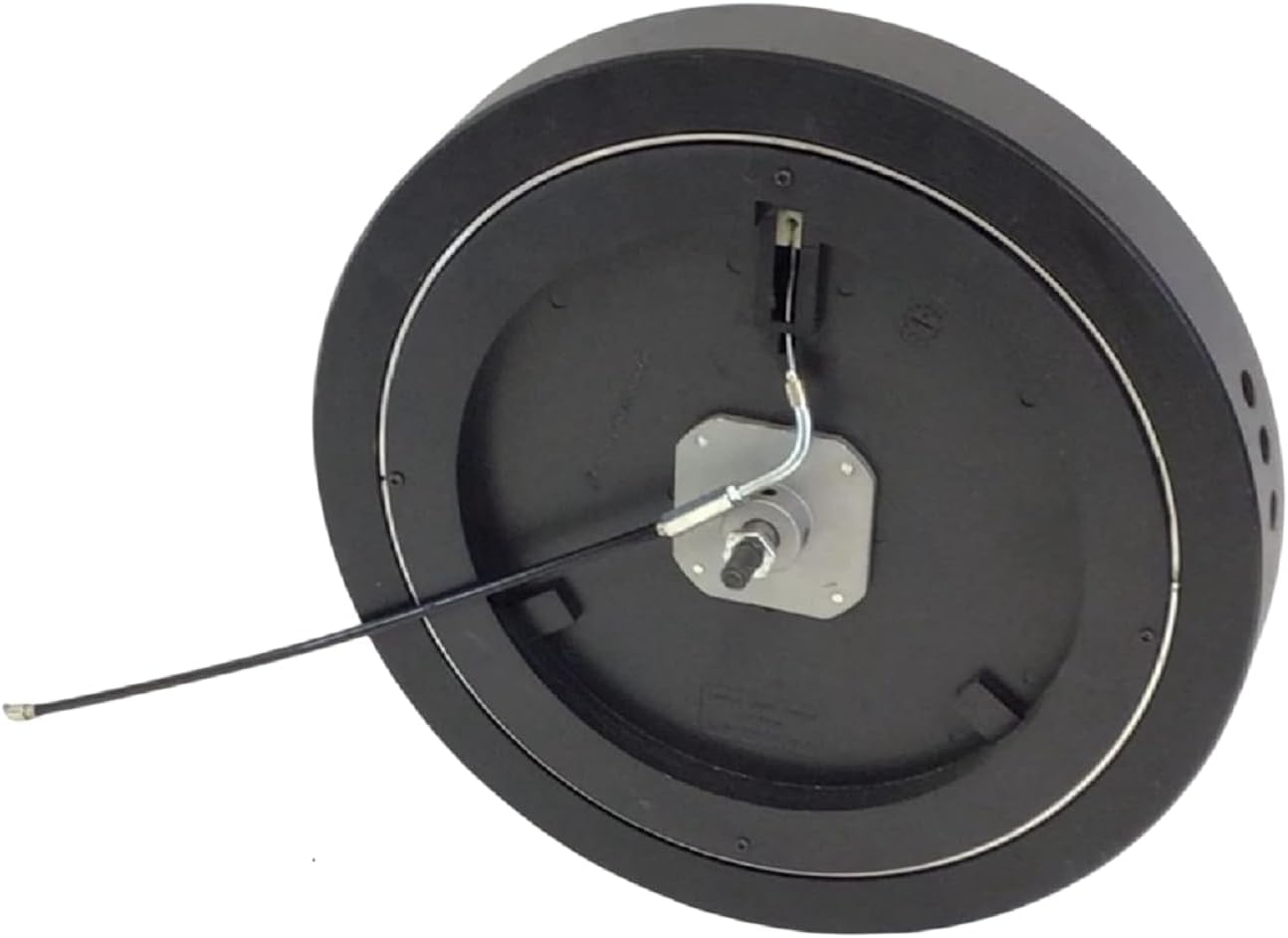

189590 K500029 28 Flywheel Brake 4 Magnet No Model Compatibility List $224.99 / Each

8
Rail, Aluminum 190194 M030005-Z0 23 Rail, Aluminum Yes Model Compatibility List $29.28 / Each
9
190913 N030001-A5 149 Pedal Cover (Bottom) No Model Compatibility List $21.83 / Each

1
212276 P020271 45 Key Water-resist Rubber No Model Compatibility List $14.56 / Each

9
Oval End Cap 191024 P040011-A1 172 Oval End Cap No Model Compatibility List $22.49 / Each

190461 P040035-A1 76 Pedal End Cover No Model Compatibility List $8.74 / Each

2,12,13,14
Cap, Wire 190163 P040036-A1 75 Cap Wire No Model Compatibility List $10.93 / Each

4,5,6,9
Round Cap 190986 P040050-A1 62 Round Cap No Model Compatibility List $12.49 / Each

9
Round Cap 190393 P040052-A1 80 Round Cap Yes Model Compatibility List $11.14 / Each

Transportation Wheel-062 190387 P050015-A1 56 Transportation Wheel-062 No Model Compatibility List $18.20 / Each

8
190335 P050038-A1 179 Wheel No Model Compatibility List $10.93 / Each

8
190981 P060022A-A1 98 Sensor Rack No Model Compatibility List $5.24 / Each

4,5,6
190162 P060029-A1 69 Bushing No Model Compatibility List $21.83 / Each

Cover, Left Pedal Arm 191252 P060080-A1 101 Cover Left Pedal Arm Yes Model Compatibility List $18.20 / Each

18
191232 P060162-A1 82 Wheel Slide Yes Model Compatibility List $31.24 / Each

9
Cover, Arm Right 218075 P060163-A1 102 Cover Arm Right Yes Model Compatibility List $18.20 / Each

9,3
199066 P060231-A1 90 O14?10?T_Bushing No Model Compatibility List $0.00 / Each
Out Of Stock 		8
Rubber Foot Pad 190920 P060252-A1 82 Rubber Foot Pad Yes Model Compatibility List $11.14 / Each

3
Button Head Plug-032(1.8T) 190392 P060253-A1 61 Button Head Plug-032(1.8T) Yes Model Compatibility List $13.93 / Each

9
190476 P060264-A1 83 Foot Pad No Model Compatibility List $12.49 / Each

190318 P060271 88 Isolator No Model Compatibility List $10.48 / Each

3
191186 P060272-A1 92 Washer No Model Compatibility List $18.20 / Each

2
Nylon Washer 190987 P060277 67 Nylon Washer No Model Compatibility List $12.49 / Each

212252 P060282-A1 93 Threaded Bushing No Model Compatibility List $5.24 / Each

8,12,13,14
190436 P060377 63 Washer Wave No Model Compatibility List $5.24 / Each

2,4,5,6
191029 P060490-A1 181 PVC Bushing-(018.8 x1Tx40L) No Model Compatibility List $1.86 / Each

8
189560 P100068-A1 96 Cover Upright No Model Compatibility List $37.49 / Each

9,3
212522 P110012-I5 75 DISK ROUND AE25/AE35/AE55/AE95 No Model Compatibility List $45.00 / Each

1
212524 P110013-LI 76 COVER ROUND DISK AE25/AE35/AE55/AE95 No Model Compatibility List $37.49 / Each

9
212548 P120007-A1 194 Foam Pedal Left No Model Compatibility List $17.46 / Each

8,9
212549 P120008-A1 195 Foam Pedal Right No Model Compatibility List $17.46 / Each

8,9
Bracket, Switch 190271 P161002 67 Bracket Switch No Model Compatibility List $13.93 / Each

4,5,9
Cover, Arm, Right 190212 P180001-A1 109 Cover Arm Right Yes Model Compatibility List $10.93 / Each

9,3
190214 P180002-A1 110 Cover Arm Left No Model Compatibility List $10.93 / Each

9,3
Cover 189218 P180003-A1 58 Cover No Model Compatibility List $10.93 / Each

9
Cover 190149 P180004-A1 112 Cover Yes Model Compatibility List $10.93 / Each

9
Cover, Handle Bar, Left 214233 P180007-A1 105 Cover Handle Bar Left Yes Model Compatibility List $18.20 / Each

9,11
Cover, Handle Bar, Left, Rear 214232 P180008-A1 106 Cover Handle Bar Left Rear Yes Model Compatibility List $18.20 / Each

9,11
212637 P180009-A1 107 COVER HANDLE BAR (R)VE35/VE55/VE95 Yes Model Compatibility List $16.24 / Each

9,11
Rear Handle Bar Cover (R) 212638 P180010-A1 108 Rear Handle Bar Cover (R) Yes Model Compatibility List $16.24 / Each

9,11
212669 P180077-A1 196 Console Chin Cover (Front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
212670 P180078-A1 197 Console Chin Cover (Rear) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
Stabilizer, Front 218076 P190001-A1 79 Stabilizer Front Yes Model Compatibility List $49.99 / Each

1
190993 P190006-A1 93 Middle Stabilizer Cover (L) Yes Model Compatibility List $27.29 / Each

9
190991 P190009-A1 113 Incline Bottom Cover Yes Model Compatibility List $58.20 / Each

9,10
Cover, Rear bar 190230 P190025-A1 92 Cover Rear bar Yes Model Compatibility List $37.49 / Each

190992 P190026-A1 90 Incline Cover Yes Model Compatibility List $29.10 / Each

9
212756 P210001A-A1 42 FOAM, HANDGRIP RIGHT 38 X 380L (AFTER SN:200007-1121;SN:300007-1360) XE200/300/WE95/XE295 No Model Compatibility List $21.83 / Each

11
199660 P210003 18 Pedal Adjustment Knob No Model Compatibility List $23.28 / Each

8,9
Bushing 213838 P270003 59 Bushing No Model Compatibility List $10.93 / Each

8
211895 P280021-A1 45 LENS, TRANSPARENT (9") AF83/AF85/AS77/ATT8/AE95 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
213345 RP100067C-A1 98 Side Case w/decal (R ) No Model Compatibility List $34.92 / Each

7,3
189275 RZ5YE12M-20A 45 Console, E95 No Model Compatibility List $345.60 / Each
Out Of Stock 		7
190194 27 2 Rail, Aluminum Yes Model Compatibility List $23.28 / Each
Out Of Stock 		9
190196 E020105 57 1 Wire harness 850mm No Model Compatibility List $27.29 / Each

4,5,6
190205 F030053 1 Module AC Yes Model Compatibility List $37.49 / Each

6
190136 45 11 Display Board, Lower Yes Model Compatibility List $104.76 / Each

1
190140 1 Hardware Yes Model Compatibility List $21.83 / Each

1
209675 45 10 DISPLAY, UPPER W/SCREEN (YJ-51700) AE95 Yes Model Compatibility List $116.40 / Each

1
210249 2 STICKER, POLY (CHAIN COVER) AE95 Yes Model Compatibility List $21.83 / Each

9
211890 45 1 COVER, TOP CONSOLE AE95 Yes Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
212599 45 46 Switch Key (7) - plastic cover Yes Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
212979 8 1 CONNECTING ARM ASSEMBLY (L) - W/PEDAL Yes Model Compatibility List $69.84 / Each

8,9,3
212981 9 1 Connecting Arm Assembly ( R ) (OLS SP #4088) w/Pedal Yes Model Compatibility List $69.84 / Each

8,9,3
213001 6 1 PEDAL ARM ASSEMBLY (L) Yes Model Compatibility List $81.48 / Each

8,9,3
213003 7 1 PEDAL ARM ASSEMBLY (R) Yes Model Compatibility List $88.46 / Each

8,9,3
213304 73 Pedal (L) w/foam Yes Model Compatibility List $23.28 / Each

8,9
213337 97 1 Side Case, Left Yes Model Compatibility List $25.61 / Each

1
216651 1 Console poly sticker Yes Model Compatibility List $13.97 / Each

7
217893 74 Pedal ( R) + Foam Yes Model Compatibility List $14.56 / Each

8,9
218065 2 1 Rail Base Assembly Yes Model Compatibility List $293.76 / Each

9,3
218117 2 OVERLAY Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
Cover, stabilizer, middle, right 013186 P190007-A1 0 1 Right Middle Stabilizer Cover Yes Model Compatibility List $19.99 / Each

9
400m/m Sensor W/Cable 1033508 F030165 0 1 400m/m Sensor W/Cable (Used) Yes Model Compatibility List $15.52 / Each

4,5,6
Cover, Upright 1032827 P100068-A1 0 1 Cover, Upright (Used) No Model Compatibility List $24.00 / Each

9,3
Belt, Drive 1002105 N010002 Main Drive Belt Yes Model Compatibility List $24.99 / Each

15
Pulley Drive Belt 50 (New) SIP500J8 N010002 Pulley Drive Belt 50 (New) Yes Model Compatibility List $29.99 / Each

23
Incline Controller Board With Transformer (Refurbished) 1005853 incln-trnsfr-53 Incline Controller Board With Transformer (Refurbished) Yes Model Compatibility List $99.00 / Each
Out Of Stock 		48
Wireless Heart Rate Chest Strap HR Pulse (New) 1002927 hrpluse-927 Wireless Heart Rate Chest Strap HR Pulse (New) Yes Model Compatibility List $69.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
