Sole - AE98 - 2011 Series

Repair Parts for Sole AE98

Brand: Sole

Category: Residential Ellipticals

Type: Elliptical

Model Name: AE98

Serial Number Prefix: 598010

Version: 2011 Series

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
190953 B060015-Q2 22 Plate, Mounting No Model Compatibility List $13.97 / Each

2
209028 B130063-Q2 20 Cover Holder(B) No Model Compatibility List $5.24 / Each

9
212609 B130091-Z3 19 Key Board Cover No Model Compatibility List $6.98 / Each

9
212607 B130092-Z3 40 Function Key - plastic cover No Model Compatibility List $12.23 / Each

9
209076 B140004-Q2 22 Slide Wheel Cover No Model Compatibility List $36.38 / Each

8,9
209077 B140005-Q2 23 Incline Cover (Old SP # 004445) No Model Compatibility List $101.85 / Each

9,10
209078 B140006-Q2 24 Rear Bar Cover No Model Compatibility List $72.75 / Each

9
209088 BB010020-Q2 1 Main Frame No Model Compatibility List $0.00 / Each
Out Of Stock 		3
190143 BB040011-Q2 4 Crank Arm Left No Model Compatibility List $72.75 / Each

8,3
209195 BB070010-Q2 3 Idler Bracket No Model Compatibility List $34.92 / Each

2,8,3,4,5,6
190950 BB070023 18 Locking Tube Assembly No Model Compatibility List $59.99 / Each

190932 BB070056-Z1 5 Bushing No Model Compatibility List $34.92 / Each

8
209300 C110001-Z1 179 Axle Stopper No Model Compatibility List $8.74 / Each

8
209632 D020609 54 Incline Controller-(YJ-2003L) No Model Compatibility List $116.40 / Each

7,8,10
211893 D022144 45 Cover, Console, Bottom No Model Compatibility List $34.92 / Each

7,9
190959 D022146 40 Deflector Fan Grill No Model Compatibility List $14.56 / Each

8,9
212601 D022147 45 DISPLAY Key - plastic cover No Model Compatibility List $5.24 / Each

9
209686 D022148 55 Incline Adaptor-(YN10233/120V) No Model Compatibility List $45.55 / Each

10
Wire Harness 190486 E010061 46 Wire Harness No Model Compatibility List $10.93 / Each

190977 E010081 52 Wire, Jumper, White No Model Compatibility List $8.74 / Each

209807 E011002 51 1000m/m_Wire Brake Coil Harness No Model Compatibility List $8.74 / Each

8,4,5,6
900m/m Connecing Wire, Incline Motor Power Cord 190975 E011018 48 900m/m Connecing Wire Incline Motor Power Cord Yes Model Compatibility List $27.29 / Each

4
209862 E020255 42 700m/m_Computer Cable No Model Compatibility List $14.56 / Each

4,5,6
209868 E020331 45 1550m/m_Computer Cable No Model Compatibility List $21.83 / Each

4,5,6
850MM Connec 218088 E021001 49 850MM Connect Incline Motor Yes Model Compatibility List $31.24 / Each

4
190968 E030049 40 Mesh speaker (R) No Model Compatibility List $14.56 / Each

1
190978 E040007 53 200m/m Ground Wire No Model Compatibility List $10.93 / Each

212600 E040021 45 FAN Key - plastic cover No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
209928 E040022 175 1400m/m_Ground Wire No Model Compatibility List $5.24 / Each

4
Module, AC 190205 F030053 51 Module AC Yes Model Compatibility List $37.49 / Each

6
Sensor 190141 F030193 50 500mm Reed Switch Speed Sensor Yes Model Compatibility List $24.99 / Each

1
212275 F040004 40 Fan Assembly No Model Compatibility List $99.99 / Each

1
190450 F090204 35 850m/m_Handpulse W/Cable Assembly No Model Compatibility List $43.65 / Each

210049 F090225 56 Handpulse Assembly (Top + Bottom) No Model Compatibility List $16.01 / Each

12,13,14
210061 F090354 49 No Longer Available Controller No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,4,5,6
191000 J010002-ZZ 103 Hex Head Bolt Yes Model Compatibility List $2.91 / Each

2
210573 J010503-ZR 100 5/16" ?15m/m_Hex Head Bolt No Model Compatibility List $0.00 / Each
Out Of Stock 		2
210575 J010504-Z9 102 Fastener No Model Compatibility List $2.74 / Each

191005 J010505-Z1 109 Screw No Model Compatibility List $2.33 / Each

2
189565 J010509-Z1 108 Screw No Model Compatibility List $5.83 / Each

210602 J011002-Z9 116 3/8" ?3/4"_Hex Head Bolt No Model Compatibility List $0.00 / Each
Out Of Stock 		2
191002 J011006A-YD 105 Bolt No Model Compatibility List $2.91 / Each

190255 J011009-Z1 101 Screw No Model Compatibility List $2.91 / Each

210625 J011010A-ZS 119 3/8" ?2-1/2--_Hex Head Bolt No Model Compatibility List $2.33 / Each

2
191008 J020508A-Z1 114 Bolt No Model Compatibility List $2.91 / Each

2
191007 J031009D-Z4 110 Bolt No Model Compatibility List $2.91 / Each

210801 J033008G-Z4 121 M8 ?40m/m_Socket Head Cap Bolt (Blackfast) No Model Compatibility List $2.33 / Each

2,9,4,5,6
191030 J080005-YH 183 Screw Set No Model Compatibility List $5.83 / Each

2
210889 J083012-Z1 124 M8 ?170m/m_J Bolt No Model Compatibility List $5.24 / Each

2
190400 J092001-Z1 117 Screw No Model Compatibility List $2.33 / Each

191009 J092001-Z9 116 Screw No Model Compatibility List $1.86 / Each

2
190350 J092003-Z1 115 Screw No Model Compatibility List $2.33 / Each

2
190996 J094502-Z1 174 M4 x 12m/m Phillips Head Screw No Model Compatibility List $0.00 / Each
Out Of Stock 		2
191027 J129272-YB 178 M8 x 6.3T Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
189815 J139011-Z1 134 Nut, Locking No Model Compatibility List $2.33 / Each

2
191678 J139012-Z7 146 Nut, Nyloc No Model Compatibility List $2.33 / Each

2
190404 J139062F-Z1 137 Nut Locking No Model Compatibility List $2.91 / Each

190997 J139411-Z1 175 M4 x 5T Nyloc Nut No Model Compatibility List $0.00 / Each
Out Of Stock
189818 J210001-Z1 144 WASHER, FLAT 5/16 X 35 X 1.5T (PLATED) No Model Compatibility List $2.33 / Each

2
190425 J210010-Z1 157 Washer No Model Compatibility List $2.33 / Each

2
191015 J210014-Z1 150 Washer, Flat No Model Compatibility List $2.33 / Each

2
190418 J210017-Z1 153 Washer No Model Compatibility List $1.86 / Each

2
190354 J210022-Z1 165 Washer Flat No Model Compatibility List $2.91 / Each

2
191017 J220004-Z1 181 Washer Curved No Model Compatibility List $2.74 / Each

2
190395 J250002-Z4 176 wave washer No Model Compatibility List $2.74 / Each

2
Washer, Wave 190357 J250002-Z4 176 Washer, Wave No Model Compatibility List $2.33 / Each

2
189821 J260003-Z1 155 Washer, Split No Model Compatibility List $2.33 / Each

2
191018 J260007-Z1 158 Washer Split No Model Compatibility List $2.91 / Each

2
191019 J270002-Z1 151 Washer Star No Model Compatibility List $2.91 / Each

2
190401 J310001-Z4 130 025_C Ring (Blackfast) Yes Model Compatibility List $2.91 / Each

211165 J320002-Z1 110 7 7 25m/m_Woodruff Key No Model Compatibility List $17.46 / Each

9
191020 J330007-Z1 160 Short Phillips Head Screw Driver No Model Compatibility List $2.33 / Each

2,10
199831 J330008-Z1 161 Phillips Head Screw Driver No Model Compatibility List $2.33 / Each

2,10
191323 J330025-Z1 159 Wrench No Model Compatibility List $8.74 / Each

2
191011 J352501-Z1 125 M6 x 10m/m Phillips Head Screw No Model Compatibility List $0.00 / Each
Out Of Stock 		2
191012 J377105-Z1 120 Screw No Model Compatibility List $2.33 / Each

190344 J396804-Z1 126 Screw No Model Compatibility List $2.80 / Each

2
191010 J396805-Z1 123 Screw No Model Compatibility List $2.91 / Each

2
191028 J562501-Z9 180 M6 x 10m/m Thumb Head Socket Screw No Model Compatibility List $2.74 / Each

2
Rod End Bearing 211528 K056001-A4 34 Rod End Bearing No Model Compatibility List $23.28 / Each

3
Bearing 211530 K056003-A1 33 Bearing No Model Compatibility List $6.98 / Each

1
6005_Bearing (DO NOT USE...ORDER PART # K056005) 211537 K056005-A1 31 6005_Bearing (DO NOT USE...ORDER PART # K056005) No Model Compatibility List $17.46 / Each

1
Bearing 211539 K056203-A1 32 Idler Bearings (6203 RS TMT) No Model Compatibility List $11.99 / Each

1,8
211594 K500030 28 Brake Resistance No Model Compatibility List $311.25 / Each

8,10
211650 M030003-Z9 35 Rail,Aluminum No Model Compatibility List $23.28 / Each

9
209898 P020265A-JQ 40 300m/m_HR monitor module W/Cable No Model Compatibility List $8.74 / Each

4,5,6,12,13,14
212276 P020271 45 Key Water-resist Rubber No Model Compatibility List $14.56 / Each

9
Oval End Cap 191024 P040011-A1 172 Oval End Cap No Model Compatibility List $22.49 / Each

190461 P040035-A1 76 Pedal End Cover No Model Compatibility List $8.74 / Each

2,12,13,14
Round Cap 190986 P040050-A1 62 Round Cap No Model Compatibility List $12.49 / Each

9
Round Cap 190393 P040052-A1 80 Round Cap Yes Model Compatibility List $11.14 / Each

Transportation Wheel-062 190387 P050015-A1 56 Transportation Wheel-062 No Model Compatibility List $18.20 / Each

8
213269 P050030 63.1 Slide Wheel , Urethane-O72 (black) No Model Compatibility List $31.43 / Each

8,4,5,6
190335 P050038-A1 179 Wheel No Model Compatibility List $10.93 / Each

8
190162 P060029-A1 69 Bushing No Model Compatibility List $21.83 / Each

190390 P060047-A1 80 Pedal, Left No Model Compatibility List $34.92 / Each

8,9
Cover, Left Pedal Arm 191252 P060080-A1 101 Cover Left Pedal Arm Yes Model Compatibility List $18.20 / Each

18
Cover, Arm Right 218075 P060163-A1 102 Cover Arm Right Yes Model Compatibility List $18.20 / Each

9,3
190391 P060170-A1 81 PEDAL (R) E/VE/WE25/35/55/75,EL/FE44/FE46 No Model Compatibility List $34.92 / Each

31
Rubber Foot Pad 190920 P060252-A1 82 Rubber Foot Pad Yes Model Compatibility List $11.14 / Each

3
Button Head Plug-032(1.8T) 190392 P060253-A1 61 Button Head Plug-032(1.8T) Yes Model Compatibility List $13.93 / Each

9
190476 P060264-A1 83 Foot Pad No Model Compatibility List $12.49 / Each

Nylon Washer 190987 P060277 67 Nylon Washer No Model Compatibility List $12.49 / Each

190436 P060377 63 Washer Wave No Model Compatibility List $5.24 / Each

2,4,5,6
212303 P060568-A1 178 PVC Bushing No Model Compatibility List $0.00 / Each
Out Of Stock 		8
212522 P110012-I5 75 DISK ROUND AE25/AE35/AE55/AE95 No Model Compatibility List $45.00 / Each

1
212524 P110013-LI 76 COVER ROUND DISK AE25/AE35/AE55/AE95 No Model Compatibility List $37.49 / Each

9
Cover, Arm, Right 190212 P180001-A1 109 Cover Arm Right Yes Model Compatibility List $10.93 / Each

9,3
190214 P180002-A1 110 Cover Arm Left No Model Compatibility List $10.93 / Each

9,3
Cover 189218 P180003-A1 58 Cover No Model Compatibility List $10.93 / Each

9
Cover 190149 P180004-A1 112 Cover Yes Model Compatibility List $10.93 / Each

9
Cover, Handle Bar, Left 214233 P180007-A1 105 Cover Handle Bar Left Yes Model Compatibility List $18.20 / Each

9,11
Cover, Handle Bar, Left, Rear 214232 P180008-A1 106 Cover Handle Bar Left Rear Yes Model Compatibility List $18.20 / Each

9,11
212637 P180009-A1 107 COVER HANDLE BAR (R)VE35/VE55/VE95 Yes Model Compatibility List $16.24 / Each

9,11
Rear Handle Bar Cover (R) 212638 P180010-A1 108 Rear Handle Bar Cover (R) Yes Model Compatibility List $16.24 / Each

9,11
212669 P180077-A1 196 Console Chin Cover (Front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
212670 P180078-A1 197 Console Chin Cover (Rear) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
Stabilizer, Front 218076 P190001-A1 79 Stabilizer Front Yes Model Compatibility List $49.99 / Each

1
190993 P190006-A1 93 Middle Stabilizer Cover (L) Yes Model Compatibility List $27.29 / Each

9
190991 P190009-A1 113 Incline Bottom Cover Yes Model Compatibility List $58.20 / Each

9,10
189916 P210001-A1 60 Cover, Handlebar Axle Inner No Model Compatibility List $21.83 / Each

8,9,11
213857 P250001-A1 35 6.5" Water-resist Rubber-(143 x94 x1.5T) No Model Compatibility List $14.56 / Each

1
211967 P250002-A1 35 Console Bottom Cover No Model Compatibility List $34.92 / Each

7,9
212828 P270033 80 Bushing No Model Compatibility List $8.74 / Each

8
212829 P270034 78 Bushing No Model Compatibility List $18.91 / Each

8
211895 P280021-A1 45 LENS, TRANSPARENT (9") AF83/AF85/AS77/ATT8/AE95 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
212960 RBB030024-Q2 2 Rear Rail Assembly No Model Compatibility List $282.32 / Each

9
213026 RBB050086-Q2 6 Pedal Arm (L) Assembly No Model Compatibility List $181.88 / Each

8,9,3

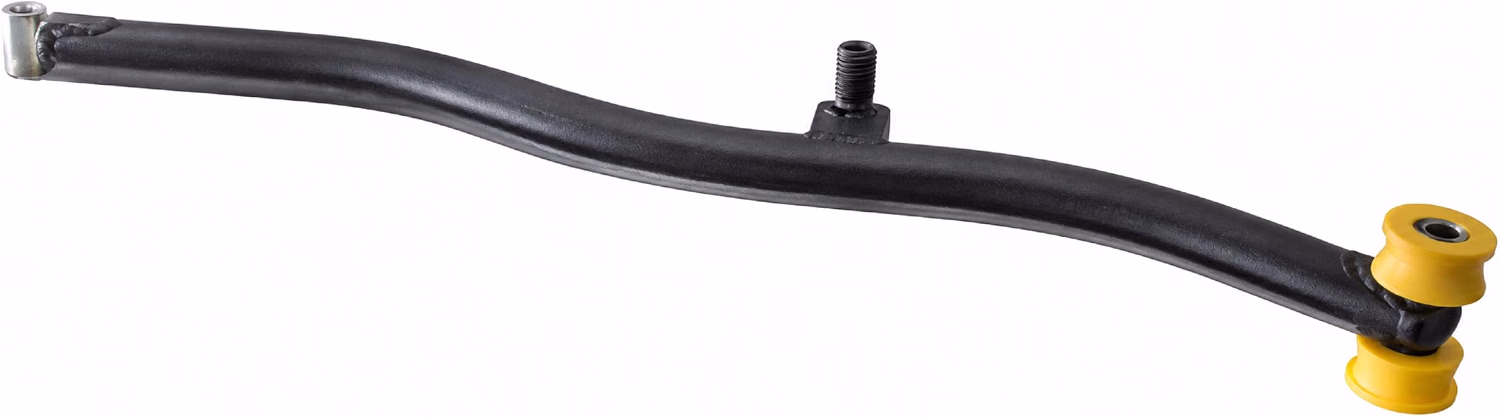

213027 RBB050087-Q2 7 Pedal Arm (R) Assembly No Model Compatibility List $249.99 / Each

8,9,3
213096 RBB060061-Q2 10 SWING ARM ASSEMBLY (L) E98 No Model Compatibility List $46.56 / Each

3
213097 RBB060062-Q2 11 SWING ARM ASSEMBLY (R) E98 (OLD SP # 004444) No Model Compatibility List $46.56 / Each

3
213121 RBB070076-Q2 14 Incline Device Assembly No Model Compatibility List $34.92 / Each

10
213346 RP100067D-A1 85 Side Case (R) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
216604 RP100068-A1 72 Console Mast Cover + sticker No Model Compatibility List $14.56 / Each

7,9
209927 RZ5YE210-20 40 250m/m_Ground Wire No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
190205 F030053 1 Module AC Yes Model Compatibility List $37.49 / Each

6
210262 2 SIDE BOBBLE LABEL Yes Model Compatibility List $14.56 / Each

1
210400 4 Sole E20 sticker on the mast cover Yes Model Compatibility List $14.56 / Each

9
210403 3 Sole E98 sticker on the mast cover Yes Model Compatibility List $6.98 / Each

9
211422 1 Hardware Kit Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
212936 12 1 Console Mast Assembly Yes Model Compatibility List $58.20 / Each

7
212983 8 1 CONNECTING ARM ASSEMBLY (L) E98 Yes Model Compatibility List $87.30 / Each

3
212985 9 1 CONNECTING ARM ASSEMBLY (R) E98 Yes Model Compatibility List $87.30 / Each

3
213338 84 1 Side Case (L) Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
218116 1 Console Bobble Label Yes Model Compatibility List $0.00 / Each
Out Of Stock 		7
Cover, stabilizer, middle, right 013186 P190007-A1 0 1 Right Middle Stabilizer Cover Yes Model Compatibility List $19.99 / Each

9
Belt, Drive 1002105 N010002 Main Drive Belt Yes Model Compatibility List $24.99 / Each

15
Pulley Drive Belt 50 (New) SIP500J8 N010002 Pulley Drive Belt 50 (New) Yes Model Compatibility List $29.99 / Each

23
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
