Sole - AF85 - 2011 Series

Repair Parts for Sole AF85

Brand: Sole

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: AF85

Serial Number Prefix: 585810

Version: 2011 Series

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Rope steel spring 189155 K010003 27 Rope steel spring No Model Compatibility List $13.93 / Each

3
206672 021991 172 WASHER, FLAT 3/16 X 10 X 1 AF83/AF85/XG200 No Model Compatibility List $0.00 / Each
Out Of Stock
189117 022649 7 Cable, locking No Model Compatibility List $58.20 / Each

Grip pulse Full assembly 189149 RP060062-A1 39 Grip pulse Full assembly Yes Model Compatibility List $44.10 / Each

1
Motor, Incline 188886 022696 35 Motor, Incline Yes Model Compatibility List $276.48 / Each

190183 022945 95 Strap, HR No Model Compatibility List $41.90 / Each

189829 022979 63 Screw No Model Compatibility List $2.33 / Each

189235 023095 19 Shock, 27.5" No Model Compatibility List $34.92 / Each

189137 023126 119 Screw No Model Compatibility List $1.75 / Each

WASHER NYLON 189938 023128 111 WASHER NYLON Yes Model Compatibility List $2.33 / Each

189554 E040025 51 Wire Harness, Ground No Model Compatibility List $8.74 / Each

4,5,6
189826 030057 52 SCREW, TAPPING No Model Compatibility List $2.33 / Each

189870 003057 52~10 Console PCB No Model Compatibility List $87.30 / Each

205082 P170034-AC-BG 147 ANCHOR, SPEAKER FT94/FT96/TR250/TR350/TR450/TR550/ATT8 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
189105 003143 112 Washer, Concave No Model Compatibility List $2.33 / Each

189752 003160 3 Bracket, Incline No Model Compatibility List $174.60 / Each

Motor, Drive 189181 G020036 34 Motor, Drive Yes Model Compatibility List $418.80 / Each

10
189029 003237 21 Roller, Front No Model Compatibility List $116.40 / Each

189076 003248 52 Console, AF80 No Model Compatibility List $460.80 / Each

189703 P170038-A1 52~34 Key, Start No Model Compatibility List $8.74 / Each

9
189613 003250 52~35 Key, Stop No Model Compatibility List $14.56 / Each

189698 003254 52~7 Button Low No Model Compatibility List $23.28 / Each

189683 P170033-A1 52~36 Button TPR No Model Compatibility List $17.46 / Each

1
189726 P170030-AC-AQ 52~3 Key, Incline No Model Compatibility List $8.74 / Each

9,10
189876 003270 52~8 Keypad Rubber No Model Compatibility List $14.56 / Each

203719 003271 52~33 LENS, FACE PLATE (RED) AF80/AF83/AF85/AS77/ATT8 No Model Compatibility List $0.00 / Each
Out Of Stock
203737 003273 52~40 RUBBER GASKET, 7.5" WATER RESISTANT AF65/AF80/AE55 No Model Compatibility List $0.00 / Each
Out Of Stock
203658 003299 6 SUPPORT, CONSOLE VF80/VF83/VF85/WF80/WF83/WF85 No Model Compatibility List $0.00 / Each
Out Of Stock
189725 003303 153 Logo, Cover, Right No Model Compatibility List $34.92 / Each

189079 003316 68 Base, Rear, Adjustment, Left No Model Compatibility List $21.83 / Each

189069 003317 69 Base, Rear, Adjustment, Right No Model Compatibility List $21.83 / Each

189136 003318 32 Cover, top No Model Compatibility List $34.92 / Each

189330 003319 33 Cover, Bottom No Model Compatibility List $46.56 / Each

218070 003360 53 Cover, Motor No Model Compatibility List $69.84 / Each

189696 003372 61 Cover, Base- Left No Model Compatibility List $34.92 / Each

189937 003373 62 BASE COVER-RIGHT No Model Compatibility List $34.92 / Each

189384 AA020010-Q2 2 FRAME BASE No Model Compatibility List $174.60 / Each

3
190259 E090001 109 Wire harness, Audio No Model Compatibility List $14.63 / Each

M8_Nyloc Nut 190548 J139261-Z7 138 M8_Nyloc Nut No Model Compatibility List $1.20 / Each

2
189183 004371 23 Deck No Model Compatibility List $174.60 / Each

Screw 213832 J031018A-Y2 82 Screw Yes Model Compatibility List $6.92 / Each

2

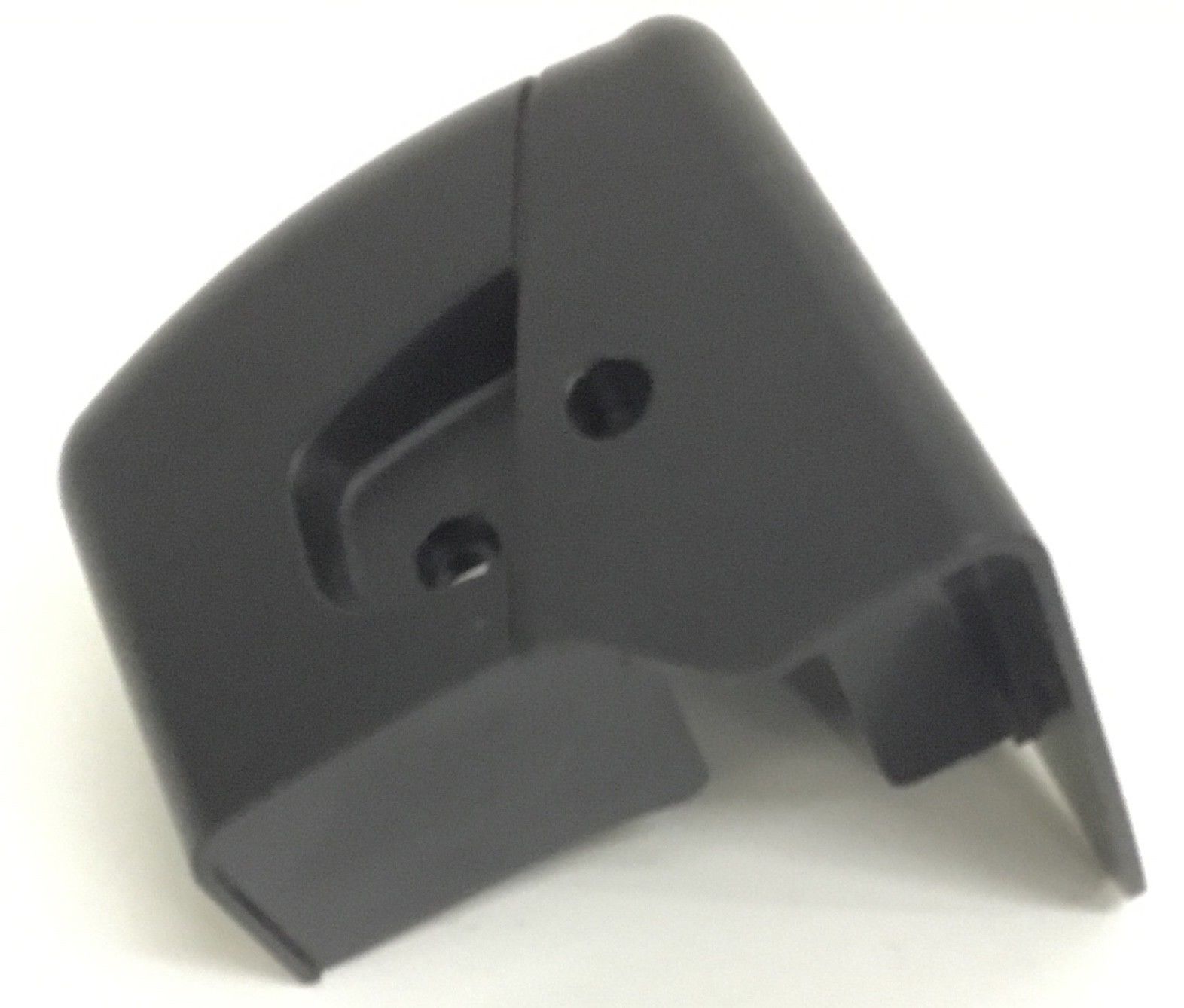

Rail, Foot Cap, Left 189572 000603 59 Rail, Foot Cap, Left Yes Model Compatibility List $8.74 / Each

189648 000604 60 Rail, Foot Cap, Right No Model Compatibility List $0.00 / Each
Out Of Stock
189748 000061 85 Bolt No Model Compatibility List $2.33 / Each

191225 006148 110 Washer No Model Compatibility List $2.33 / Each

Screw Self Tapping 189663 J514502-ZQ 121 Screw Self Tapping No Model Compatibility List $2.91 / Each

2,12,13,14
190549 J210008-Z7 105 25 x 10 x 1.5T _Flat Washer No Model Compatibility List $1.20 / Each

2
189470 000077 76 Washer, Flat No Model Compatibility List $2.33 / Each

190764 N030001-A5 101 Water bottle No Model Compatibility List $14.56 / Each

1
189152 000089 131 Wrench, Allen No Model Compatibility List $2.33 / Each

Screw 213832 J031018A-Y2 82 1 Screw Yes Model Compatibility List $6.92 / Each

2
Shock Cylinder-(GS22D700U1K2-30) 1200-N 000421 K060015 19 1 Shock Cylinder-(GS22D700U1K2-30) 1200-N Yes Model Compatibility List $118.50 / Each

3
000508 P060404-A1 111 O6 xc3x97 O23 xc3x97 O13 xc3x97 5.5T xc3x97 3.0T_Nylon Dished Washer No Model Compatibility List $2.91 / Each

Foot Rail Cap (L) 000461 P080007B-A1 59 Foot Rail Cap (L) Yes Model Compatibility List $10.93 / Each

000435 P090046-A1 32 COVER TOP FRAME (1060 X 725MM) AF85 No Model Compatibility List $49.99 / Each

000436 P090047-A1 33 COVER BOTTOM FRAME (810 X 725MM) AF85 No Model Compatibility List $49.99 / Each

000531 PP010085A-A1 139 Front Motor Cover (P010085A-A1) No Model Compatibility List $31.24 / Each

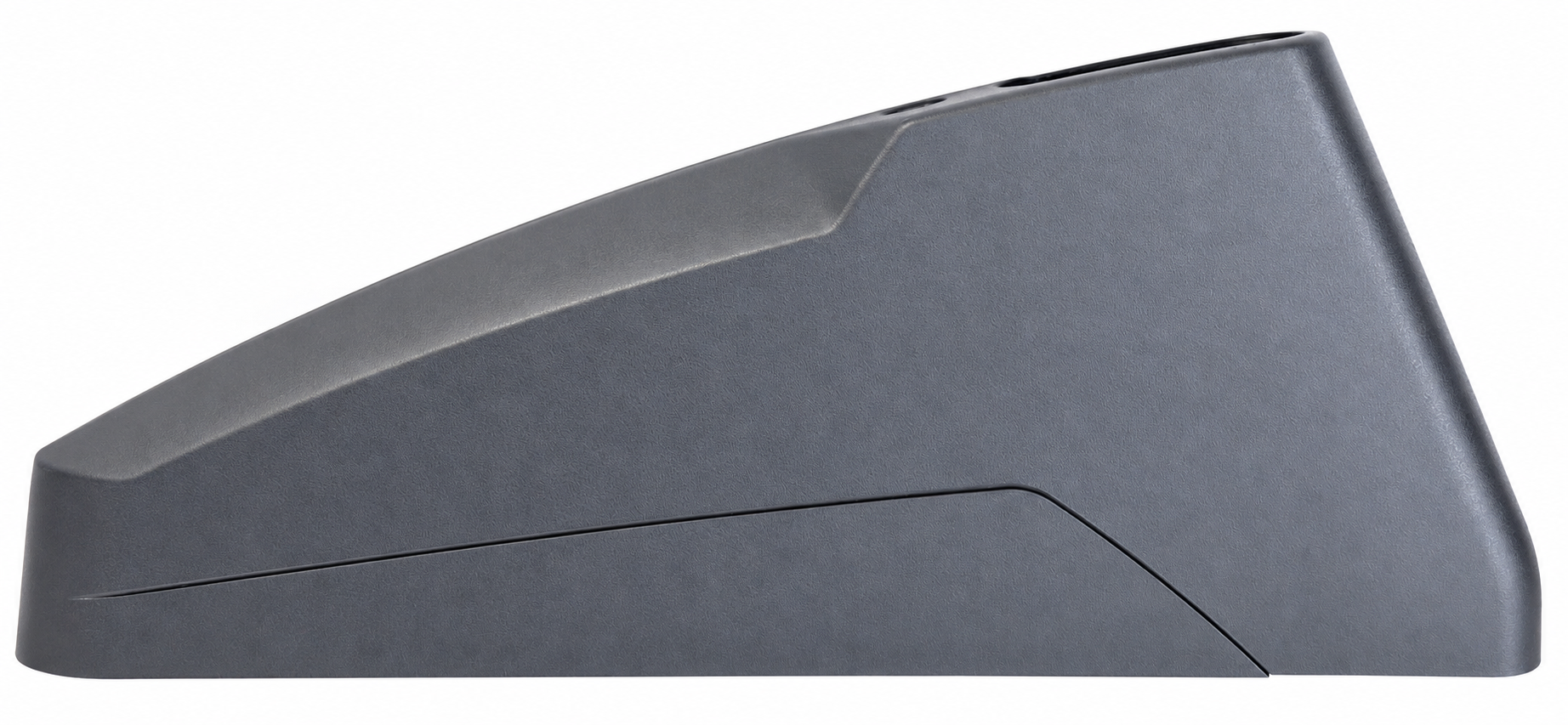

000463 PP140019-A1 61 Frame Base Cover (L) (P140019-A1) No Model Compatibility List $49.49 / Each

000464 PP140020-A1 62 Frame Base Cover (R) (P140020-A1) No Model Compatibility List $46.24 / Each

Lower Incline Screw - Hex Head 000311 J011503-Z7 81 1 Lower Incline Screw - Hex Head Yes Model Compatibility List $7.20 / Each
2
Beverage Holder Cup Tray 000354 PP220013-I1 150 1 Beverage Holder Cup Tray Yes Model Compatibility List $59.99 / Each

9
Handpulse Endcap 1017545 P060065-A1 039~05 2 Handpulse Endcap Yes Model Compatibility List $8.39 / Each

9
Y10TH9G MOTOR, 3.0HP YC - 650MM WIRE WF80/WF83/AF80/XT385 (SUB G020022A OR G020037) 000363 G020022 34 1 Y10TH9G MOTOR, 3.0HP YC - 650MM WIRE WF80/WF83/AF80/XT385 (SUB G020022A OR G020037) Yes Model Compatibility List $418.80 / Each

1,10
FAN FOR 3.0 YC Drive MOTOR 1017789 F099051 1 FAN FOR 3.0 YC Drive MOTOR No Model Compatibility List $29.99 / Each

9
3.5 HP Drive Motor (Used) 1023310 G020022A 0 1 3.5 HP Drive Motor (Used) No Model Compatibility List $249.00 / Each

1,10
COVER TOP MOTOR AF85/AS77 (Used) 1023883 p010083-a1 52-16 1 COVER TOP MOTOR AF85/AS77 (Used) No Model Compatibility List $69.00 / Each
Out Of Stock 		1
Top (Large) Belt Cover (Used) 1024548 000969 32 1 Top (Large) Belt Cover (Used) No Model Compatibility List $39.99 / Each
Out Of Stock 		1
Siderail Guide Washer Concave (Used) 1024650 003143 0 1 Siderail Guide Washer Concave (Used) No Model Compatibility List $4.99 / Each

1
Logo Cover Right (Used) 1024628 003308 162 1 Logo Cover Right (Used) No Model Compatibility List $29.10 / Each

1
Logo Cover Left (Used) 1024602 003305 154 1 Logo Cover Left (Used) No Model Compatibility List $29.10 / Each

1
Circuit Breaker (Used) 1024600 022448 41 1 Circuit Breaker (Used) No Model Compatibility List $18.19 / Each

1
Console hand Sensor Cable Wire Only (Used) 1024601 022672 0 1 Console hand Sensor Cable Wire Only (Used) Yes Model Compatibility List $4.99 / Each

1
Beverage Holder Cup Tray 000354 003234 0 1 Beverage Holder Cup Tray No Model Compatibility List $69.99 / Each

400m/m Audio Cable 190259 E090001 153 1 400m/m Audio Cable No Model Compatibility List $23.28 / Each

Handrail Support (Used) 1027272 003156 15 1 Handrail Support (Used) No Model Compatibility List $39.00 / Each
Out Of Stock 		1
Board Only No Button (Used) 1027516 N110007A 54 1 Board Only No Button (Used) Yes Model Compatibility List $8.99 / Each
Out Of Stock 		1
Connecting Top Cover Left (Used) 1030614 P070101-A1 137 1 Connecting Top Cover Left (Used) No Model Compatibility List $10.00 / Each

Connecting Bottom Cover Left (Used) 1030615 P070102-A1 138 1 Connecting Bottom Cover Left (Used) No Model Compatibility List $10.00 / Each

Connecting Top Cover Right (Used) 1030616 P070103 -A1 139 1 Connecting Top Cover Right (Used) No Model Compatibility List $10.00 / Each

Connecting Bottom Cover Right (Used) 1029399 P070104-A1 140 1 Connecting Bottom Cover Right (Used) No Model Compatibility List $10.00 / Each

4000104 RAA060001B-Q2 Outer & Inner Slide Assembly (955m/m cable) No Model Compatibility List $46.24 / Each

4000105 K140043-Z3 Rear Roller(580L) Yes Model Compatibility List $149.99 / Each

4000205 G020022A MOTOR 3.5HP YC - 650MM WIRE 4000 RPM WF85 No Model Compatibility List $375.00 / Each

1,10
4000222 J352001 M5 0.8 - 10m/m_Phillips Head Screw No Model Compatibility List $2.75 / Each

Trapezoidal Safety Key 1003561 N100013-A5 Trapezoidal Safety Key Yes Model Compatibility List $21.99 / Each

1
Handlebar Incline Adjustment Switch 1001183 022559 or N110002A Handlebar Incline Adjustment Switch Yes Model Compatibility List $19.99 / Each

Handlebar Speed Adjustment Switch Wire Harness 1001184 022559 or N110007A Handlebar Speed Adjustment Switch Wire Harness Yes Model Compatibility List $19.99 / Each
Out Of Stock
Right Angle Power Supply Cord 1001371 E060001 Right Angle Power Supply Cord Yes Model Compatibility List $24.99 / Each

Lower Controller Control Board 1001474 D020054 or D020054R Lower Controller Control Board Yes Model Compatibility List $189.00 / Each
Out Of Stock
Lower Controller Control Board 1002232 D020054 Lower Controller Control Board Yes Model Compatibility List $329.00 / Each

7,8
Incline Elevation Motor 1001182 G110003 Incline Elevation Motor Yes Model Compatibility List $99.00 / Each

10
Drive Motor Belt 1001452 N010001 Drive Motor Belt Yes Model Compatibility List $29.99 / Each

15
Incline Lift Elevation Motor 1001254 022696 Incline Lift Elevation Motor Yes Model Compatibility List $119.00 / Each

Ground Wire Harness 41 Inch 000555 (Used) 1038292 E040005 Ground Wire Harness 41 Inch 000555 (Used) Yes Model Compatibility List $5.00 / Each

Ground Wire Harness 17-1-2 Inch (Used) 1038311 E040010 Ground Wire Harness 17-1-2 Inch (Used) Yes Model Compatibility List $5.00 / Each

View Drawing
