Sole - LCB

Repair Parts for Sole LCB 522116

Brand: Sole

Category: Commercial Recumbent Bikes

Type: Stationary Bikes

Model Name: LCB

Serial Number Prefix: 522116

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
190408 010098 71 Washer, Flat No Model Compatibility List $2.33 / Each

213498 J547003 65 SCREW, TAPPING 3 X 10M/M No Model Compatibility List $2.33 / Each

2,12,13,14
189410 000179 18 Wheel, Transport No Model Compatibility List $8.74 / Each

190402 000196 66 C Ring (Blackfast) No Model Compatibility List $2.33 / Each

Front Roller W/Pulley-O58.5×610L 202479 K140017-Z9 22 Front Roller W/Pulley-O58.5×610L Yes Model Compatibility List $154.80 / Each

8
212042 002016 49 Plug, Button Head No Model Compatibility List $8.74 / Each

191286 002018 42 Wire, Handpulse Coiled No Model Compatibility List $14.56 / Each

218068 002019 96 Cover No Model Compatibility List $0.86 / Each

189964 002033 21 Controller No Model Compatibility List $230.40 / Each

209986 002036 23 300m/m_Sensor W/Cable No Model Compatibility List $17.46 / Each

191192 002040 16L Arm, Crank, Left No Model Compatibility List $27.94 / Each

189951 002041 51R Arm, Crank, Set No Model Compatibility List $27.94 / Each

218067 002050 67 Retainer No Model Compatibility List $3.89 / Each

189997 002052 83 M10x1.0_Nut No Model Compatibility List $0.00 / Each
Out Of Stock
189949 002063 8 Plate No Model Compatibility List $21.83 / Each

191038 002065 19 Seat No Model Compatibility List $40.74 / Each

189970 002068 29 8C,24AWG,BLACK,2100mm_Computer Cable No Model Compatibility List $0.00 / Each
Out Of Stock
189971 002069 30 Wire Brake Coil Harness No Model Compatibility List $14.56 / Each

189990 002083 87 J-Bolt No Model Compatibility List $14.56 / Each

191046 002092 7 Sliding Seat Mount No Model Compatibility List $34.92 / Each

212229 002114 105 Handle Bar Cover No Model Compatibility List $5.24 / Each

191064 002117 11 Axle No Model Compatibility List $23.28 / Each

189972 002119 31 AC/Generator Marness No Model Compatibility List $0.00 / Each
Out Of Stock
190358 002120 26 Heart Rate Assembly No Model Compatibility List $14.56 / Each

189047 002123 20 Brake Assembly No Model Compatibility List $145.50 / Each

212054 002175 114 Slide Spacer No Model Compatibility List $4.66 / Each

203240 002180 107 SPATIAL WRAP, CENTER 40X80 XBU75/CU800 No Model Compatibility List $0.00 / Each
Out Of Stock
190380 021987 18 Idler Bearings No Model Compatibility List $14.56 / Each

191088 002200 86 Brake Tension Knob XBU55(551111) No Model Compatibility List $14.56 / Each

189700 002207 106 Knob, Seat No Model Compatibility List $17.46 / Each

203319 002291 102 WASHER, FLAT 5/16 X 16 X 1T SB440R/SB540R/MB880/SB700 No Model Compatibility List $0.00 / Each
Out Of Stock

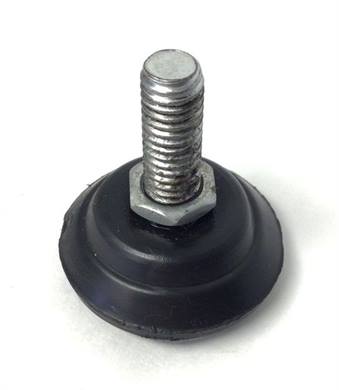

190204 022943 35 Foot No Model Compatibility List $13.97 / Each

9
190424 022975 73 Washer, Flat No Model Compatibility List $2.33 / Each

190420 023091 93 Phillips Head Screw Driver No Model Compatibility List $5.24 / Each

218119 002401 9 Idler Wheel Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
191263 002408 6 Slider No Model Compatibility List $58.20 / Each

211619 002696 24 FOAM, HANDGRIP 1 X 285L X 5T B94/CU800/LCB No Model Compatibility List $21.83 / Each

203494 002703 79 NUMBER NOT USED/USE #030098 NUT, NYLOC 1/4" X 8T XBR55(2011) No Model Compatibility List $0.00 / Each
Out Of Stock
203500 002711 92 WRENCH, 13MM/15MM CU800 No Model Compatibility List $0.00 / Each
Out Of Stock
203504 002715 45 PEDAL, 90% (L) SOLE LOGO (NO PADDING) (DO NOT USE...ORDER PART #N150024-A1) No Model Compatibility List $0.00 / Each
Out Of Stock
203505 002716 46 PEDAL, 90% (R) SOLE LOGO (NO PADDING) LCB No Model Compatibility List $0.00 / Each
Out Of Stock
191044 002732 7 STABILIZER, REAR ALCR/R92/B94 No Model Compatibility List $14.98 / Each

189530 002733 2 Upright, Console No Model Compatibility List $34.92 / Each

189533 002734 3 Handlebar No Model Compatibility List $49.66 / Each

189549 002738 38 Cover, Mast No Model Compatibility List $11.86 / Each

189568 002739 32 Cover No Model Compatibility List $11.00 / Each

189370 002740 37 Cover No Model Compatibility List $13.44 / Each

203529 002760 34 CONSOLE ASSEMBLY ALCB No Model Compatibility List $0.00 / Each
Out Of Stock
189695 002761 34 Cover, Bottom No Model Compatibility List $34.92 / Each

203532 002763 36 COVER, CHAIN (L) ALCB No Model Compatibility List $0.00 / Each
Out Of Stock
203533 002764 37 COVER, CHAIN (R) ALCB No Model Compatibility List $0.00 / Each
Out Of Stock
203535 002767 159 COVER, ON/OFF SWITCH ALCR/ALCB No Model Compatibility List $0.00 / Each
Out Of Stock
218118 002768 28 Handpulse w/Cable Red No Model Compatibility List $0.00 / Each
Out Of Stock
210571 030018 51 SCREW, HEX HEAD 5/16 X 5/8 XU875/XBU75/XBR95(2011) No Model Compatibility List $2.33 / Each

190337 030036 100 Wrench No Model Compatibility List $8.74 / Each

190223 030037 58 Screw No Model Compatibility List $3.49 / Each

191078 030038 56 Phillips Head Screw No Model Compatibility List $2.33 / Each

211136 030042 76 1/4"_Split Washer No Model Compatibility List $2.33 / Each

189826 030057 52 SCREW, TAPPING No Model Compatibility List $2.33 / Each

203903 004318 63 SCREW, TAPPING 3.5 X 16MM AE25/AE95/AS77 No Model Compatibility List $0.00 / Each
Out Of Stock
300m/m_Sound Board W/Cable (Red) (YJ-8510-2) 203908 004329 45 300m/m_Sound Board W/Cable (Red) (YJ-8510-2) No Model Compatibility List $0.00 / Each
Out Of Stock
203953 004434 32 WIRE, GROUND 1400MM E98/ALCB No Model Compatibility List $0.00 / Each
Out Of Stock
203960 004448 34 HEART RATE RECEIVER (4600) E98 No Model Compatibility List $0.00 / Each
Out Of Stock
204307 006389 103 WASHER, SPLIT M8 (5/16 X 1.5T) E-GLIDE/E-RYDE/XG200 No Model Compatibility List $0.00 / Each
Out Of Stock
189071 007186 108 Screw, hex head No Model Compatibility List $5.24 / Each

204932 007526 50 BOLT, HEX HEAD 3/8 X 2 (3/8 -16 X 2) CT800 No Model Compatibility List $0.00 / Each
Out Of Stock
190320 000076 70 Washer No Model Compatibility List $2.90 / Each

189470 000077 76 Washer, Flat No Model Compatibility List $2.33 / Each

203837 000807 30 COVER, TOP CONSOLE VE35 No Model Compatibility List $0.00 / Each
Out Of Stock
205173 008215 13 BRACKET, CHAIN COVER CU800 No Model Compatibility List $0.00 / Each
Out Of Stock
190415 000839 62 Screw No Model Compatibility List $2.33 / Each

189468 000086 106 Screw, Button Head Socket No Model Compatibility List $2.33 / Each

189832 000087 83 WASHER, CURVE No Model Compatibility List $2.33 / Each

190382 000908 15 Pulley, Drive No Model Compatibility List $34.86 / Each

208984 B060054-Q2 131 Rear Stabilizer Attaching Plate No Model Compatibility List $8.74 / Each

4,5,6
209004 B100200-Q2 13 Chain Cover Bracket-(91?5?6?T) No Model Compatibility List $8.74 / Each

2,9,3,4,5,6
212609 B130091-Z3 19 Key Board Cover No Model Compatibility List $6.98 / Each

9
212607 B130092-Z3 40 Function Key - plastic cover No Model Compatibility List $12.23 / Each

9
209377 CC020018-Q2 2 CONSOLE MAST No Model Compatibility List $34.92 / Each

7
213157 CC030034-Q2 3.1 Handle Bar, Seat No Model Compatibility List $34.92 / Each

12,13,14,11
209447 CC050010-Q2 7 Rear Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
209453 CC060010-Q2 9 Idler Wheel Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		8
189948 CC060029-Z3 7 Mount No Model Compatibility List $13.97 / Each

2
201050 CC060030-Z2 6 Seat Slider No Model Compatibility List $58.20 / Each

12,13,14
196489 D020532 45 Fan Assembly No Model Compatibility List $23.28 / Each

8
191231 D020533 52 Key OCB Yes Model Compatibility List $145.50 / Each

7
Display console Console Assembly 213461 RZ8YB006A-20 19 Display console Console Assembly Yes Model Compatibility List $480.80 / Each

7
209811 E011008 31 Generator Wire Harness No Model Compatibility List $21.83 / Each

4,5,6
209813 E011019 30 200m/m_Wire Brake Coil Harness No Model Compatibility List $14.56 / Each

8,4,5,6
209844 E020116 29 2100m/m_Computer Cable No Model Compatibility List $8.74 / Each

4,5,6
190968 E030049 40 Mesh speaker (R) No Model Compatibility List $14.56 / Each

1
212600 E040021 45 FAN Key - plastic cover No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
209928 E040022 175 1400m/m_Ground Wire No Model Compatibility List $5.24 / Each

4
212610 E060503 19 Key Fast Board (R) No Model Compatibility List $23.74 / Each

9
500mm Reed Switch Speed Sensor 190141 F030193 50 500mm Reed Switch Speed Sensor Yes Model Compatibility List $24.99 / Each

1
212275 F040004 40 Fan Assembly No Model Compatibility List $99.99 / Each

1
800m/m_Handpulse W/Cable Assembly 210053 F090238 26 800m/m_Handpulse W/Cable Assembly Yes Model Compatibility List $9.98 / Each

4,11
210056 F090244 28 800m/m_Handpulse W/Cable Assembly No Model Compatibility List $13.97 / Each

4,5,6,12,13,14
210059 F090351 43 Generator/Brake Controller Yes Model Compatibility List $224.99 / Each

7,8
HR monitor module 212611 F110204 19 Key Fast Board (L) Yes Model Compatibility List $20.74 / Each

7,8
1/4 210562 J010002-ZH 66 1/4" -20 x 3/4"_Hex Head Bolt No Model Compatibility List $3.99 / Each

2
190394 J010503-Z1 68 Bolt No Model Compatibility List $2.74 / Each

189565 J010509-Z1 108 Screw No Model Compatibility List $5.83 / Each

190255 J011009-Z1 101 Screw No Model Compatibility List $2.91 / Each

210961 J139061-Z1 91 5/16" 6T_Nyloc Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
210982 J139261-Z4 88 M8 7T_Nyloc Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
211005 J149002-Y3 78 3/8" 7T CAP Nut BLACK No Model Compatibility List $0.00 / Each
Out Of Stock 		2,9,4,5,6
191339 J160003B-Z4 108 Nut Crank No Model Compatibility List $5.10 / Each

2,8
211057 J210021-Z1 102 O8 16 1.0T_Flat Washer No Model Compatibility List $2.74 / Each

2
191018 J260007-Z1 158 Washer Split No Model Compatibility List $2.91 / Each

2
191154 J330006-ZA 92 Wrench No Model Compatibility List $5.24 / Each

2
199831 J330008-Z1 161 Phillips Head Screw Driver No Model Compatibility List $2.33 / Each

2,10
211270 J386904-Z1 68 4 12m/m_Sheet Metal Screw No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3
191010 J396805-Z1 123 Screw No Model Compatibility List $2.91 / Each

2
211307 J517003-Z1 65 O3 10m/m_Tapping Screw No Model Compatibility List $0.00 / Each
Out Of Stock
211533 K056004-A1 52 6004_Bearing (SAME AS K056004C) No Model Compatibility List $13.97 / Each

1
Bearing 211539 K056203-A1 32 Idler Bearings (6203 RS TMT) No Model Compatibility List $11.99 / Each

1,8
Generator/Brake 214251 K500022 55 Generator/Brake Yes Model Compatibility List $523.50 / Each

8
211621 L110013-A1 24 O1" 285L 5T_Handgrip Foam XBU55(551111) No Model Compatibility List $21.83 / Each

11
211753 N150024-A1 45 Pedal, Left No Model Compatibility List $23.28 / Each

8,9
211754 N150025-A1 46 Pedal, Right No Model Compatibility List $23.28 / Each

8,9
210028 P020325A-A1 45 250M/M SPEAKER W/CABLE No Model Compatibility List $13.97 / Each

4,5,6
212055 P040048-A1 107 Center Spatial Wrap No Model Compatibility List $0.00 / Each
Out Of Stock 		1
212605 P060183-A1 19 Key Foam No Model Compatibility List $14.56 / Each

9
212612 P060223-A1 19 Key Fast Board (L) No Model Compatibility List $8.74 / Each

198234 P060267-A1 106 Locking Knob No Model Compatibility List $12.49 / Each

1
Knob 189947 P060403 86 Knob Yes Model Compatibility List $24.96 / Each

1
212613 P060529-LY 19 Key Fast Board (R) No Model Compatibility List $8.74 / Each

9
212329 P070048-A1 42 Handgrip Side Cap (Top) No Model Compatibility List $8.74 / Each

9,11
212333 P070049-A1 43 Handgrip Side Cap (Bottom) No Model Compatibility List $8.74 / Each

9,11
194094 P100063-JH 36 Chain Cover (L) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
213333 P100064-JH 37.1 Chain Cover (R) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
190229 P100065-A1 38 Cover, Upright No Model Compatibility List $21.83 / Each

9,3
190215 P190004-A1 32 Stabilizer Front No Model Compatibility List $43.65 / Each

1
190168 P190005A-A1 37 Cover No Model Compatibility List $116.40 / Each

9
213857 P250001-A1 35 6.5" Water-resist Rubber-(143 x94 x1.5T) No Model Compatibility List $14.56 / Each

1
211967 P250002-A1 35 Console Bottom Cover No Model Compatibility List $34.92 / Each

7,9
212826 P270030-A1 124 COVER, ON/OFF SWITCH ALCR/ALCB No Model Compatibility List $23.28 / Each

9,4,5,6
213132 RC140010-YC 11.1 Crank Axle No Model Compatibility List $37.25 / Each

8
209399 RCC030034-Q2 3 SEAT HANDLEBAR No Model Compatibility List $23.28 / Each

12,13,14,11
200426 RCC050010-Q2 5.1 Rear Stabilizer No Model Compatibility List $34.92 / Each

1
213330 RP100063A-JH 36.1 Chain Cover (L) No Model Compatibility List $46.56 / Each

9
190204 37 4 Foot Yes Model Compatibility List $13.97 / Each

9
Generator/Brake 214251 K500022 55 1 Generator/Brake Yes Model Compatibility List $523.50 / Each

8
1900m/m Main Upright Wire Harness - Computer Cable 1018512 E022510-01 23 1 1900m/m Main Upright Wire Harness - Computer Cable No Model Compatibility List $19.99 / Each
Out Of Stock 		4
1400m/m_Ground Wire 1018509 E040022 40 1 1400m/m_Ground Wire No Model Compatibility List $9.99 / Each

4
Display Console - Used 1018508 RZ7YB0120-21 34 1 Display Console - Used Yes Model Compatibility List $279.00 / Each

7
[C] O35 × 10m/m_Rubber Foot Assembly (includes hardware) 1018614 RP060256-A1 86 2 [C] O35 × 10m/m_Rubber Foot Assembly (includes hardware) Yes Model Compatibility List $9.99 / Each
3
1018997 1018997 LCB-genwire 0 1 1018997 No Model Compatibility List $8.99 / Each
Out Of Stock 		4
Power Entry Wire Harness 1018079 LCB-POW 0 1 Power Entry Wire Harness No Model Compatibility List $14.99 / Each
Out Of Stock 		4
Pulley, Drive LCNLCR-Pulley P060090-A1 20 1 Drive Pulley 000908 Yes Model Compatibility List $69.00 / Each
8
9/16 LCNLCR-lp N150022-A1 116 1 9/16" Pedal Left Yes Model Compatibility List $25.99 / Each
8
300m/m_Sensor W/Cable 1021070 F030158 46 1 300m/m_Speed RPM Sensor W/Cable No Model Compatibility List $19.99 / Each

4
4000001 K056203 6203_Bearing No Model Compatibility List $16.24 / Each

8
Pulley, Drive 4000002 P060090-A1 O330_Drive Pulley (P060090-A1) Yes Model Compatibility List $43.74 / Each

8
4000006 J210008-Z1 3/8" 25mm 2T_Flat Washer No Model Compatibility List $2.74 / Each

4000024 P050004-A1 Transportation Wheel-O82O1435mm Yes Model Compatibility List $16.24 / Each

8
4000031 RP060256-A1 O35 10m/m_Rubber Foot Assembly Yes Model Compatibility List $14.99 / Each

3
4000032 P050014-A1 Transportation Wheel-(54) No Model Compatibility List $8.74 / Each

8
4000033 P040016-A1 25.4 2.0T_Button Head Plug No Model Compatibility List $8.74 / Each

4000034 P280033-A1 Crank Arm End Cap-M221.0 / 23 No Model Compatibility List $8.74 / Each

4000035 PP190005A-A1 Rear Stabilizer Cover (P190005A-A1) No Model Compatibility List $33.74 / Each

4000036 PP060145-A1 Beverage Holder(R) (P060145-A1) No Model Compatibility List $24.99 / Each

4000037 PP060146-A1 Beverage Holder(L) (P060146-A1) No Model Compatibility List $31.24 / Each

4000038 K030001-Z3 Crank Arm (L)-6-1/2(34B)9/16 Yes Model Compatibility List $33.74 / Each

1
4000039 K030002-Z3 Crank Arm (R)-6-1/2(34B)9/16 Yes Model Compatibility List $37.49 / Each

1
4000040 J220003-Z1 5/16" 19 1.5T_Curved Washer No Model Compatibility List $2.74 / Each

4000041 J310004-Z4 20_C Ring (Blackfast) No Model Compatibility List $2.49 / Each

4000042 J010502-Z1 5/16 X 3/4 Hex Head Bolt No Model Compatibility List $2.74 / Each

4000043 J092503-Z1 M6 15m/m_Phillips Head Screw No Model Compatibility List $2.74 / Each

4000044 J386905-Z1 4 16m/m_Sheet Metal Screw No Model Compatibility List $2.74 / Each

4000045 J020507AB-Z1 5/16" 1-3/4"_Button Head Socket Bolt No Model Compatibility List $2.74 / Each

4000047 P060191-A1 Handle Bar Cover No Model Compatibility List $27.49 / Each

4000048 BB080004-Q13 Console Holder Assembly No Model Compatibility List $24.99 / Each

4000050 J602501-Y2 M6 10L_Flat Phillips Head Screw No Model Compatibility List $2.74 / Each

4000051 P060409 O15 O6 4T_Nylon Washer No Model Compatibility List $2.74 / Each

4000052 P060629-A1 Rubber Pad No Model Compatibility List $3.74 / Each

4000080 F030158 300m/m_Sensor W/Cable No Model Compatibility List $31.24 / Each

4
4000108 N120021 Seat-(IF QTY. IS 0 ORDER N120021) No Model Compatibility List $74.99 / Each

4000110 F090207 800m/m_Handpulse W/Cable Assembly No Model Compatibility List $16.24 / Each

4000111 N150020-A1 Pedal w/ Strap (L) No Model Compatibility List $37.49 / Each

4000112 RZ8YB0120-21 Console Assembly No Model Compatibility List $498.75 / Each

4000113 K500006 BRAKE INDUCTION XR425/XBR25/XBR55/XBR25(2011)/XBR55(2011)/B94/XBU55 Yes Model Compatibility List $437.49 / Each

36
4000114 J260006-Z1 1/4"_Split Washer No Model Compatibility List $2.74 / Each

4000115 F080107 Power Adaptor No Model Compatibility List $62.49 / Each

4000116 J99C0026-03 Guest Assembly Screws No Model Compatibility List $37.49 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
