Spirit - XBR55

Repair Parts for Spirit XBR55 551112

Brand: Spirit

Category: Residential Recumbent Bikes

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

551112

Model Name: XBR55

Serial Number Prefix: 551112

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

XBR55 – 551112.pdf

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1026728	6835527-1	0	1	Belt Drive (Used)	No	Model Compatibility List	$29.99 / Each	23
1026684	6835554	0	1	Belt Drive 47 1/2-5.68" (Used)	No	Model Compatibility List	$29.99 / Each Out Of Stock	23
1026710	P060145-UK	38	1	Right Beverage Cup Holder (Used)	No	Model Compatibility List	$29.00 / Each Out Of Stock	1
4000001	K056203			6203_Bearing	No	Model Compatibility List	$16.24 / Each	8
4000006	J210008-Z1			3/8" 25mm 2T_Flat Washer	No	Model Compatibility List	$2.74 / Each
4000033	P040016-A1			25.4 2.0T_Button Head Plug	No	Model Compatibility List	$8.74 / Each
4000034	P280033-A1			Crank Arm End Cap-M221.0 / 23	No	Model Compatibility List	$8.74 / Each
4000036	PP060145-A1			Beverage Holder(R) (P060145-A1)	No	Model Compatibility List	$24.99 / Each
4000037	PP060146-A1			Beverage Holder(L) (P060146-A1)	No	Model Compatibility List	$31.24 / Each
4000038	K030001-Z3			Crank Arm (L)-6-1/2(34B)9/16	Yes	Model Compatibility List	$33.74 / Each	1
4000039	K030002-Z3			Crank Arm (R)-6-1/2(34B)9/16	Yes	Model Compatibility List	$37.49 / Each	1
4000040	J220003-Z1			5/16" 19 1.5T_Curved Washer	No	Model Compatibility List	$2.74 / Each
4000041	J310004-Z4			20_C Ring (Blackfast)	No	Model Compatibility List	$2.49 / Each
4000043	J092503-Z1			M6 15m/m_Phillips Head Screw	No	Model Compatibility List	$2.74 / Each
4000044	J386905-Z1			4 16m/m_Sheet Metal Screw	No	Model Compatibility List	$2.74 / Each
4000045	J020507AB-Z1			5/16" 1-3/4"_Button Head Socket Bolt	No	Model Compatibility List	$2.74 / Each
4000046	F080045			Power Adaptor-(INPUTAC120V/60HZ/27WOUTPUT DC12V/1.5A +2.0DC)	No	Model Compatibility List	$48.74 / Each
4000047	P060191-A1			Handle Bar Cover	No	Model Compatibility List	$27.49 / Each
4000052	P060629-A1			Rubber Pad	No	Model Compatibility List	$3.74 / Each
4000120	F080062			Power Adaptor	No	Model Compatibility List	$31.24 / Each
4000231	N070001			Mesh Seat Back	No	Model Compatibility List	$43.74 / Each	1
4000232	RC140025-YC			Crank Axle Assembly	No	Model Compatibility List	$99.99 / Each
4000233	N010009			Drive Belt (1126-J) (6 rib)	No	Model Compatibility List	$49.99 / Each
4000235	K070001			Gas Cylinder	Yes	Model Compatibility List	$112.49 / Each	1
1033884	XBR55-OMB	0	1	OWNER-S MANUAL Book (Used)	No	Model Compatibility List	$20.00 / Each
1002143	P060256-A1			Leveler Leveling Foot Feet	Yes	Model Compatibility List	$16.99 / Each	3

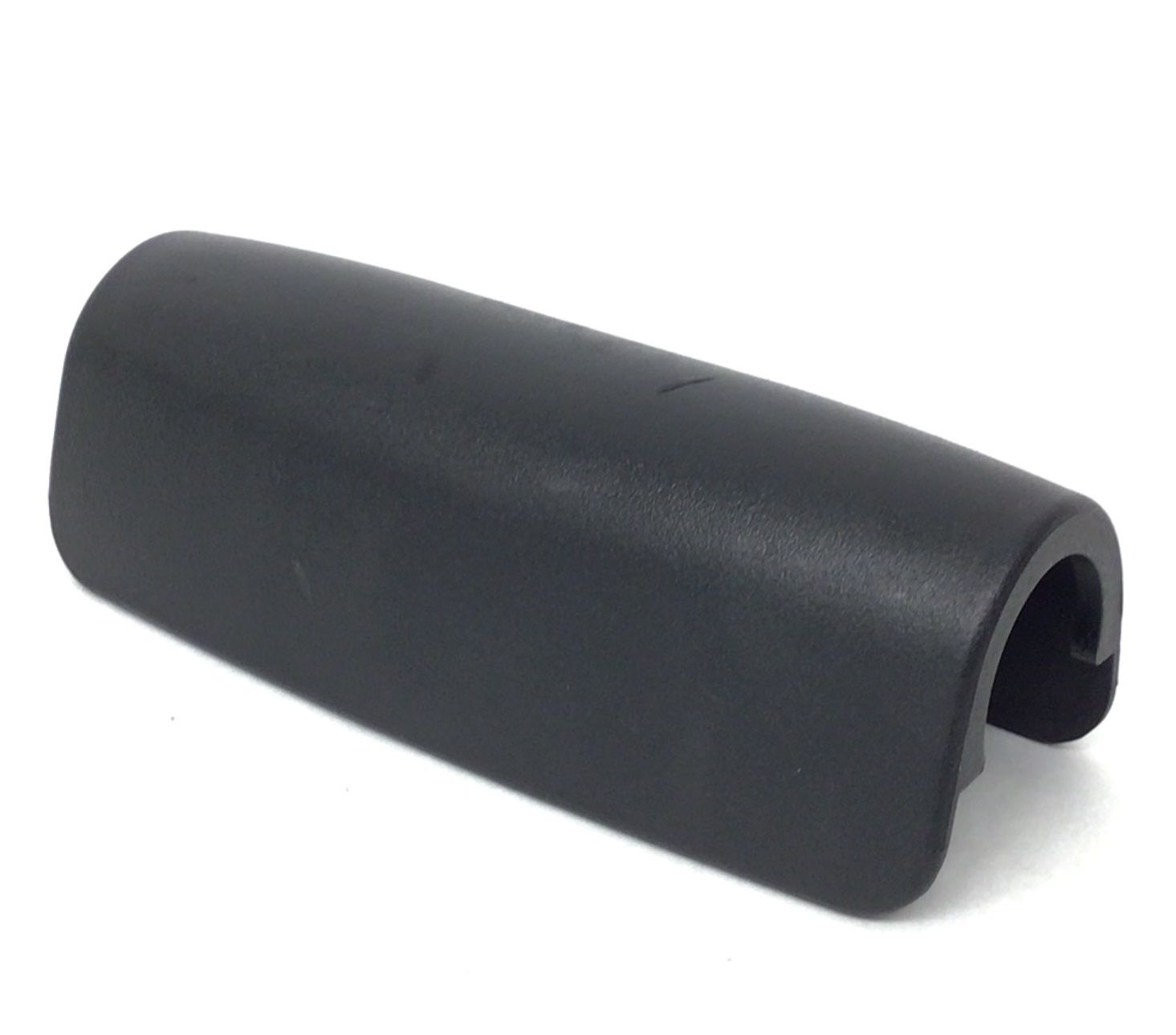

1037594	002114			Handlebar Center Cover	Yes	Model Compatibility List	$9.99 / Each

View Drawing
