Star Trac - E Series TBT - Generation 1

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Nyloc Hex Nut (Used) 1022389 110-1830 0 1 Nyloc Hex Nut (Used) No Model Compatibility List $2.04 / Each

1
1022442 140-0039 0 1 Foot Adjustable With Nut (Used) No Model Compatibility List $30.54 / Each

1
Phone Jack Assy C-Safe NR-BK (Used) 1022415 721-0033 0 1 Phone Jack Assy C-Safe NR-BK (Used) No Model Compatibility List $13.99 / Each

1
Pulse Heart Rate Top (Used) 1024292 020-6555 0 1 Pulse Heart Rate Top (Used) No Model Compatibility List $14.99 / Each

1
Console Display Fan and Duct Funnel Air Guide (Used) 1024279 718-1122-KT 0 1 Console Display Fan and Duct Funnel Air Guide (Used) No Model Compatibility List $24.99 / Each

1
Phone Jack Assy C-Safe NR-BK (Used) 1024320 721-0033 0 1 Phone Jack Assy C-Safe NR-BK (Used) No Model Compatibility List $13.99 / Each

1
Controller (Used) 1024266 721-1176 0 1 Controller (Used) Yes Model Compatibility List $322.18 / Each

1
Phone Jack Assy C-Safe NR-BK (Used) 1024738 721-0033 0 1 Phone Jack Assy C-Safe NR-BK (Used) No Model Compatibility List $13.99 / Each

1
Cap Disk El6200 (Used) 1025060 020-6659 0 1 Cap Disk El6200 (Used) No Model Compatibility List $5.79 / Each

1
Belt Drive ST580J10 130-1732 0 1 Belt Drive Yes Model Compatibility List $39.99 / Each

1
Inline Connector Jack RJ45 (Used) 1025087 240-6846 0 1 Inline Connector Jack RJ45 (Used) No Model Compatibility List $6.99 / Each

1
CABLE COAX M-M ST/TBT (Used) 1025048 718-5126 0 1 CABLE COAX M-M ST/TBT (Used) No Model Compatibility List $50.91 / Each

1
CABLE POWER VLAD TBT (Used) 1025088 718-5127 0 1 CABLE POWER VLAD TBT (Used) No Model Compatibility List $86.54 / Each

1
Harness Assy Comm 61006200 (Used) 1025101 721-0119 0 1 Harness Assy Comm 61006200 (Used) Yes Model Compatibility List $27.14 / Each

1
ASSY HARNESS CSAFE EL6200 (Used) 1025047 721-0120 0 1 ASSY HARNESS CSAFE EL6200 (Used) Yes Model Compatibility List $19.10 / Each

1
UB Electronic Assy (Used) 1025061 721-1044 0 1 UB Electronic Assy (Used) No Model Compatibility List $99.00 / Each

1
Assy Harness Ub Interface (Used) 1025074 721-1049 0 1 Assy Harness Ub Interface (Used) No Model Compatibility List $16.19 / Each

1
Wire Harness Brake (Used) 1025102 721-1083 0 1 Wire Harness Brake (Used) Yes Model Compatibility List $27.14 / Each

1
ASSY DISP ELEC IPOD CUP E-TBT (Used) 1025075 721-1168 0 1 ASSY DISP ELEC IPOD CUP E-TBT (Used) No Model Compatibility List $667.99 / Each
Out Of Stock
1
Incline Mount Pin (Used) 1025384 020-6288 0 1 Incline Mount Pin (Used) No Model Compatibility List $8.99 / Each

14
Wheel Axle Bolt Locknut 1/2-13 x 5/16 Inches (Used) 1025411 110-1823 17 2 Wheel Axle Bolt Locknut 1/2-13 x 5/16 Inches (Used) No Model Compatibility List $2.99 / Each

2
Harness Ground Strap (Used) 1025370 715-3676 0 1 Harness Ground Strap (Used) No Model Compatibility List $7.84 / Each

4,5
Front Roller Socket Cap Screw 5/16-18x2 Inches (Used) 1025424 ST-FRSCS516-18x2 0 1 Front Roller Socket Cap Screw 5/16-18x2 Inches (Used) No Model Compatibility List $7.99 / Each

2
Incline Shoulder Bolt - 5/15-18-2 Inches (Used) 1025371 ST-ISB516-18x2 0 1 Incline Shoulder Bolt - 5/15-18-2 Inches (Used) No Model Compatibility List $9.99 / Each

2
Stabilizer Foot Insert Threaded Pivot (Used) 1025423 ST-SFITP 0 1 Stabilizer Foot Insert Threaded Pivot (Used) No Model Compatibility List $9.99 / Each

1,2
Transport Wheel Bolt Chrome Button Screw - 1/2-15-2.80 Inches (Used) 1025397 ST-TWBCBS 0 2 Transport Wheel Bolt Chrome Button Screw - 1/2-15-2.80 Inches (Used) No Model Compatibility List $8.99 / Each

2
Pulley Drive Belt 1009171 130-1732 0 1 Pulley Drive Belt Yes Model Compatibility List $65.99 / Each

1
Phone Jack Assembly (Used) 1009404 740-6207 0 1 Phone Jack Assembly (Used) No Model Compatibility List $16.99 / Each

Wire Harness Sensor (Used) 1009456 715-3407 0 1 Wire Harness Sensor (Used) No Model Compatibility List $29.99 / Each

Controller without Back Plate (Used) 1030375 721-1045 0 1 Controller without Back Plate (Used) No Model Compatibility List $149.00 / Each

Screw M8-1.25mm (Used) 1031164 740-7183 0 1 Screw M8-1.25mm (Used) No Model Compatibility List $5.00 / Each

Leveling Adjustable Foot Leveler (Used) 1009236 ST-LAFL 0 1 Leveling Adjustable Foot Leveler (Used) No Model Compatibility List $17.99 / Each

Center cover shroud.(Used) 1036018 020-6633 Center cover shroud.(Used) No Model Compatibility List $22.48 / Each
Out Of Stock
Bracket, Shroud-1, El6200 1036134 020-6818 Bracket, Shroud-1, El6200 Yes Model Compatibility List $9.99 / Each

Bracket, Shroud-4, El6200 (Used) 1036111 020-6821 Bracket, Shroud-4, El6200 (Used) Yes Model Compatibility List $9.99 / Each

Washer 1036110 120-0510 Washer Yes Model Compatibility List $3.00 / Each

WHEEL, 4.0 IN.OD X 0.625 IN. BORE OF (Used) 1036124 130-1736 WHEEL, 4.0 IN.OD X 0.625 IN. BORE OF (Used) Yes Model Compatibility List $10.00 / Each

Cap, Upper Crank, El6200 (Used) 1036107 140-3300 Cap, Upper Crank, El6200 (Used) Yes Model Compatibility List $9.99 / Each

Cap, Leg Axle Housing, El6200 (Used) 1036121 140-3301 Cap, Leg Axle Housing, El6200 (Used) Yes Model Compatibility List $8.99 / Each

SPRING, DIE, 665LB/IN, 1ODX.5 IN. used 1036125 140-3418 SPRING, DIE, 665LB/IN, 1ODX.5 IN. used Yes Model Compatibility List $20.00 / Each

Assy, Disc Cap, El6200 (Used) 1036136 721-1081 Assy, Disc Cap, El6200 (Used) Yes Model Compatibility List $10.00 / Each

Upper disc shroud cover 1037444 020-6743 Upper disc shroud cover Yes Model Compatibility List $22.50 / Each

Upper cran arm 1037432 721-0109 Upper cran arm Yes Model Compatibility List $148.50 / Each

Rod Axle Transport 1037442 721-1085 Rod Axle Transport Yes Model Compatibility List $103.50 / Each

Upper pulley assembly 1037431 721-1100 Upper pulley assembly Yes Model Compatibility List $148.50 / Each
Out Of Stock
Lower pulley assembly 1037430 721-1101 Lower pulley assembly Yes Model Compatibility List $141.00 / Each

Pillow Block Shaft Bearing Race 1037443 721-1100 Pillow Block Shaft Bearing Race Yes Model Compatibility List $43.50 / Each

Incline Lift Elevation Motor 1009152 lft-mtr-52 Incline Lift Elevation Motor Yes Model Compatibility List $92.99 / Each

Cogged Belt 40.23MM 1009172 130-1748 Cogged Belt 40.23MM Yes Model Compatibility List $211.99 / Each

Left Pedal With Base 1009715 pdl-bs-715 Left Pedal With Base Yes Model Compatibility List $407.99 / Each

Left Pedal without Base 1009717 lft-pdl-17 Left Pedal without Base Yes Model Compatibility List $111.99 / Each

Magnetic Brake Generator 1009720 gen-mag-720 Magnetic Brake Generator Yes Model Compatibility List $249.00 / Each

Motor Controller Board 1009163-R 020-6797 Motor Controller Board Yes Model Compatibility List $308.99 / Each

Shaft Pedal Pivot 1009161 piv-shf-61 Shaft Pedal Pivot Yes Model Compatibility List $20.99 / Each

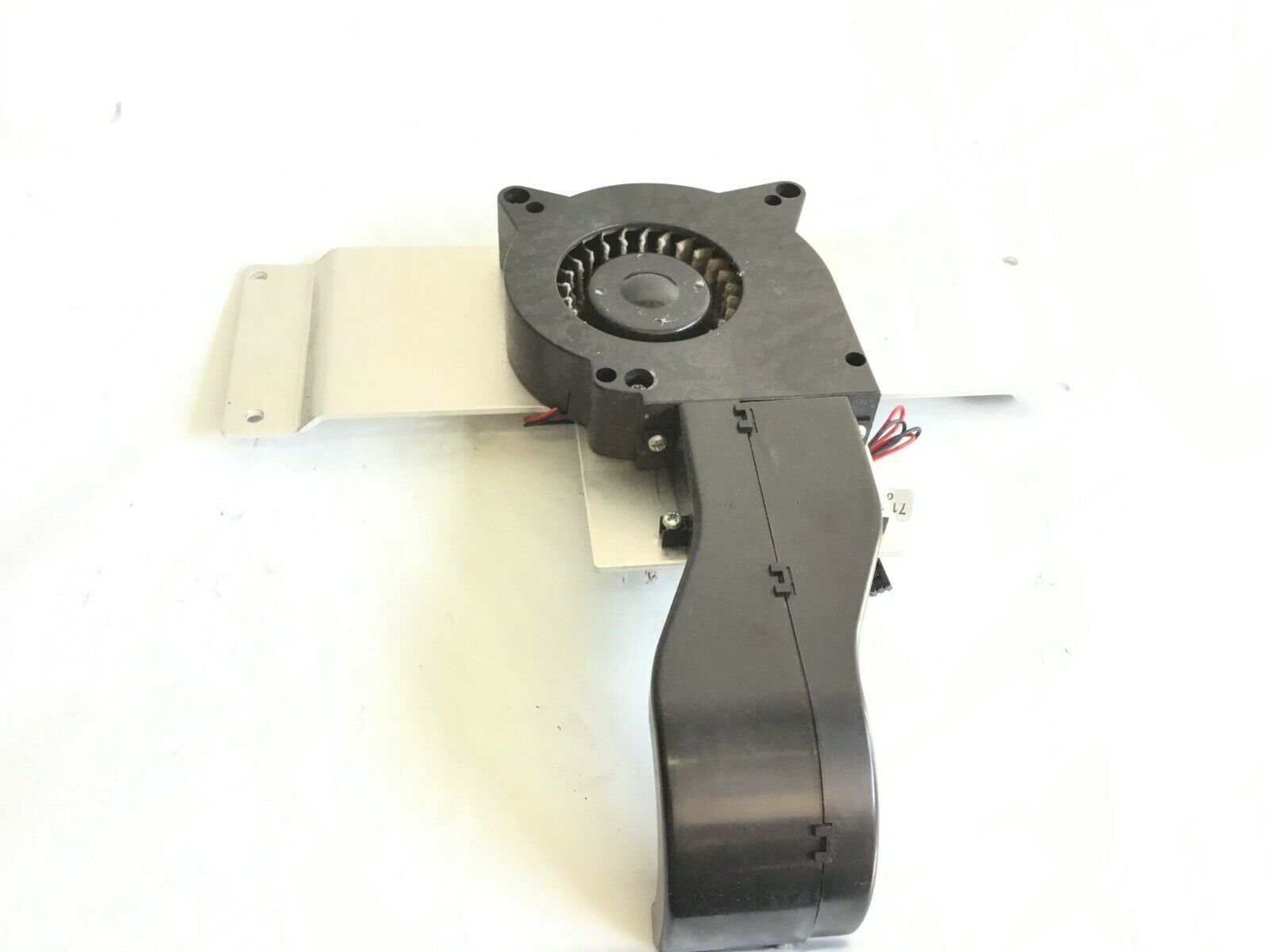

Recumbent Bike Fan Kit Assy 1009094 718-1122 Recumbent Bike Fan Kit Assy Yes Model Compatibility List $60.99 / Each

Motor Controller Lower Board ASM-BCE3U 1013944 ASR-BCG2U-2B Motor Controller Lower Board ASM-BCE3U Yes Model Compatibility List $193.99 / Each

Climber 6 v volt Battery (New) LF-1H83-TFIF btry-vlt-83 Climber 6 v volt Battery (New) Yes Model Compatibility List $49.99 / Each
Out Of Stock
Buspo Rear Leveling Foot Leveler 1014527 140-3200 Buspo Rear Leveling Foot Leveler Yes Model Compatibility List $22.99 / Each

Seat Support Plate Carriage with Wheel 1037909 sup-09-seat Seat Support Plate Carriage with Wheel Yes Model Compatibility List $99.00 / Each

Right Pedal With Base 1009174 721-1096-02 Right Pedal With Base Yes Model Compatibility List $154.99 / Each
Out Of Stock
Right Pedal without Base 1009716 rght-16-bse Right Pedal without Base Yes Model Compatibility List $111.99 / Each
Out Of Stock
Upright Stepper Bottom Cover Assembly 1016596 020-7054 Upright Stepper Bottom Cover Assembly Yes Model Compatibility List $42.99 / Each

Upright Stepper Plastic Rear Top 1016471 020-7053 Upright Stepper Plastic Rear Top Yes Model Compatibility List $28.99 / Each

HR Hand Sensor Bottom 1016074 020-6556 or 020-6549 HR Hand Sensor Bottom Yes Model Compatibility List $14.99 / Each

Right guard bracket 1037855 020-6678-02 Right guard bracket Yes Model Compatibility List $99.00 / Each
Out Of Stock
UPPER SHROUD MOUNT BRACKET 1037874 020-6764 UPPER SHROUD MOUNT BRACKET Yes Model Compatibility List $29.00 / Each
Out Of Stock
CROSS SUPPORT BCS VLAD 1037860 020-7101 CROSS SUPPORT BCS VLAD Yes Model Compatibility List $7.50 / Each
Out Of Stock
HOUSING 15 IN. TV BACK 1037872 020-7103 HOUSING 15 IN. TV BACK Yes Model Compatibility List $20.00 / Each
Out Of Stock
Heart rate grip wire harness 1037856 721-0069 Heart rate grip wire harness Yes Model Compatibility List $15.00 / Each
Out Of Stock
Pillowblock Assembly 1037859 721-1062 Pillowblock Assembly Yes Model Compatibility List $99.00 / Each
Out Of Stock
Platform 1037852 721-1106 Platform Yes Model Compatibility List $50.00 / Each

Lower linkage kit 1037851 721-1130 Lower linkage kit Yes Model Compatibility List $49.00 / Each
Out Of Stock
HR Grip 1037850 800-3904 HR Grip Yes Model Compatibility List $13.00 / Each
Out Of Stock
Audio Wire Harness 3.5mm stereo 1037854 hrns-54-wire Audio Wire Harness 3.5mm stereo Yes Model Compatibility List $5.99 / Each
Out Of Stock
Bracket 1037873 78-brck-3 Bracket Yes Model Compatibility List $9.99 / Each
Out Of Stock
Bracket 1037861 brckt-61 Bracket Yes Model Compatibility List $9.99 / Each
Out Of Stock
Frame Bracket Circular Recessed 1037858 recs-58-frme Frame Bracket Circular Recessed Yes Model Compatibility List $9.99 / Each
Out Of Stock
Pivot Tube Extrusion 1037857 ext-tube-57 Pivot Tube Extrusion Yes Model Compatibility List $49.00 / Each
Out Of Stock
PVS LCD Replacement 1037871 71-lcd-repl PVS LCD Replacement Yes Model Compatibility List $139.00 / Each
Out Of Stock
Wire Harness w Inline Flter 1037853 filt-53-hrns Wire Harness w Inline Flter Yes Model Compatibility List $19.00 / Each
Out Of Stock
Spinner Pop Pin Assembly (Used) 1039032 718-5749 & 740-7667 Spinner Pop Pin Assembly (Used) Yes Model Compatibility List $15.00 / Each

1
trimline-treadmill-replacement-display-console-overlay-electronic-circuit-board 1001763 E-UB - 1 trimline-treadmill-replacement-display-console-overlay-electronic-circuit-board Yes Model Compatibility List $149.00 / Each

51
Top Hand Sensor 1016067 020-6555 Top Hand Sensor Yes Model Compatibility List $19.99 / Each

1
Generator Brake Assembly 1002383 E-RB S-RBX Generator Brake Assembly Yes Model Compatibility List $329.00 / Each

1,36
