Tempo - 612T - 2012

Repair Parts for Tempo 612T TM451

Brand: Tempo

Category: Folding

Type: Folding Treadmill

Model Name: 612T

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
H 700004 000006-AC H06 Transport Wheel;Share D 90;BlackTM44 No Model Compatibility List $3.82 / Each

4,5,6,8
700402 001251-F B39 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700746 002124-B P13 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701375 004425-B B23 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

R 701445 004488-00 R06 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
M 701449 004493-00 M17 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

N 701574 004608-00 N54 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701577 004612-00 P18 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 Z15 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701588 004618-00 Q12 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701592 004620-AB P20 Screw;Phillip;BH;Tapped;4x12L;BED(Black No Model Compatibility List $2.00 / Each

2,4,5,6
701595 004620-AF Q16 Screw;Umbrella Cross Tapped;4x12L;Gap No Model Compatibility List $2.00 / Each

701597 004621-00 Q19 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701605 004627-00 B36 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

B 701633 004654-00 B25 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
701680 004714-00 Z10 SCREW;BH;M6X1.0PX15L;;HS;;BZN;; No Model Compatibility List $1.85 / Each

K 701713 004730-00 K14 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

701781 004796-00 Z09 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701866 004889-00 Q23 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 K15 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

H 701913 004942-00 H09 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

701961 005004-00 Z12 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

701964 005005-00 Z07 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702092 005125-00 H10 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

Z 702136 005165-00 Z06 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

702140 005170-A Z11 Washer;Arc;6.2x14.0x1.2T No Model Compatibility List $2.00 / Each

2
702145 005177-00 P17 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

702160 005196-00 K19 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702450 007490-C P11 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

P 703925 019455-B P06 Cable;Socket to MCB;330L;16AWG;Black No Model Compatibility List $1.90 / Each

4,5,6
M 704010 020100-AB M10 Screw;Hex Socket;Round;5/16--18UNCx14L;A No Model Compatibility List $2.00 / Each

B 704047 020132-00 B24 Screw;Hex Socket;Sink;M8x1.25Px30L; No Model Compatibility List $2.00 / Each

704080 020197-A N19 Screw;Phillip;BH;Tapped;2x6L No Model Compatibility List $1.85 / Each

2
704117 020270-00 Z13 Screw;BH;M8X1.25PX55L-25L;;HS;;BZN;;P-T No Model Compatibility List $2.00 / Each

2
R 704175 020425-00 R07 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

H 704290 022260-C H08 Screw;Special;45#;Adhere; No Model Compatibility List $1.85 / Each

2
705076 035692-00 M14 Screw;Hex;M6x1.0Px30L No Model Compatibility List $4.00 / Each

2
P 705211 039124-B P02 Power Cord; 16AWG 2M Yes Model Compatibility List $57.49 / Each

4,5,6
A 705241 039296-A AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
A 705242 039346-A AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
Q 705257 039399-AA Q09 Access Panel;Console Cable No Model Compatibility List $9.57 / Each

7,4,5,6
P 705308 040695-A P01 Power Switch Yes Model Compatibility List $28.73 / Each

705313 040816-A N20 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

705323 040839-00 Z08 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

M 705329 048036-A M23 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

K 705382 049024-BA K33 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

B 705514 049800-B B33 Belt Guide Yes Model Compatibility List $1.90 / Each

15
K 705779 056233-AA K13 Mobile Wheel;Base Frame Yes Model Compatibility List $9.57 / Each

8,3
K 705813 056299-BA K16 Leveler;Foot Pad;;Gray;NON-ROHS;TM234-K16C No Model Compatibility List $1.90 / Each

9,3,12,13,14
Q 705834 056330-BA Q08 End Cap;Base Frame No Model Compatibility List $3.82 / Each

9,3
K 705958 057013-A K18 Swivel Axle No Model Compatibility List $3.82 / Each

8
Q 706200 060221-00 Q20 Screw;Phillip;BH;M5x0.8Px20L;Gap; No Model Compatibility List $2.00 / Each

2
Q 706314 061172-A Q07 Lock Latch;Deck No Model Compatibility List $11.18 / Each

3
6 706600 063739-Z 6 Drive Motor Set;1.5HP/90V Yes Model Compatibility List $383.27 / Each

10
P 706800 065712-A P15 Screw;;Umbrella Cross;M5x0.8Px25L; No Model Compatibility List $1.85 / Each

N 708101 1000099709 N63 Pulse Receiver;Finger No Model Compatibility List $34.16 / Each

12,13,14
N 708580 1000103649 N70 Reed Switch Yes Model Compatibility List $18.72 / Each

4,5,6
708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $40.14 / Each

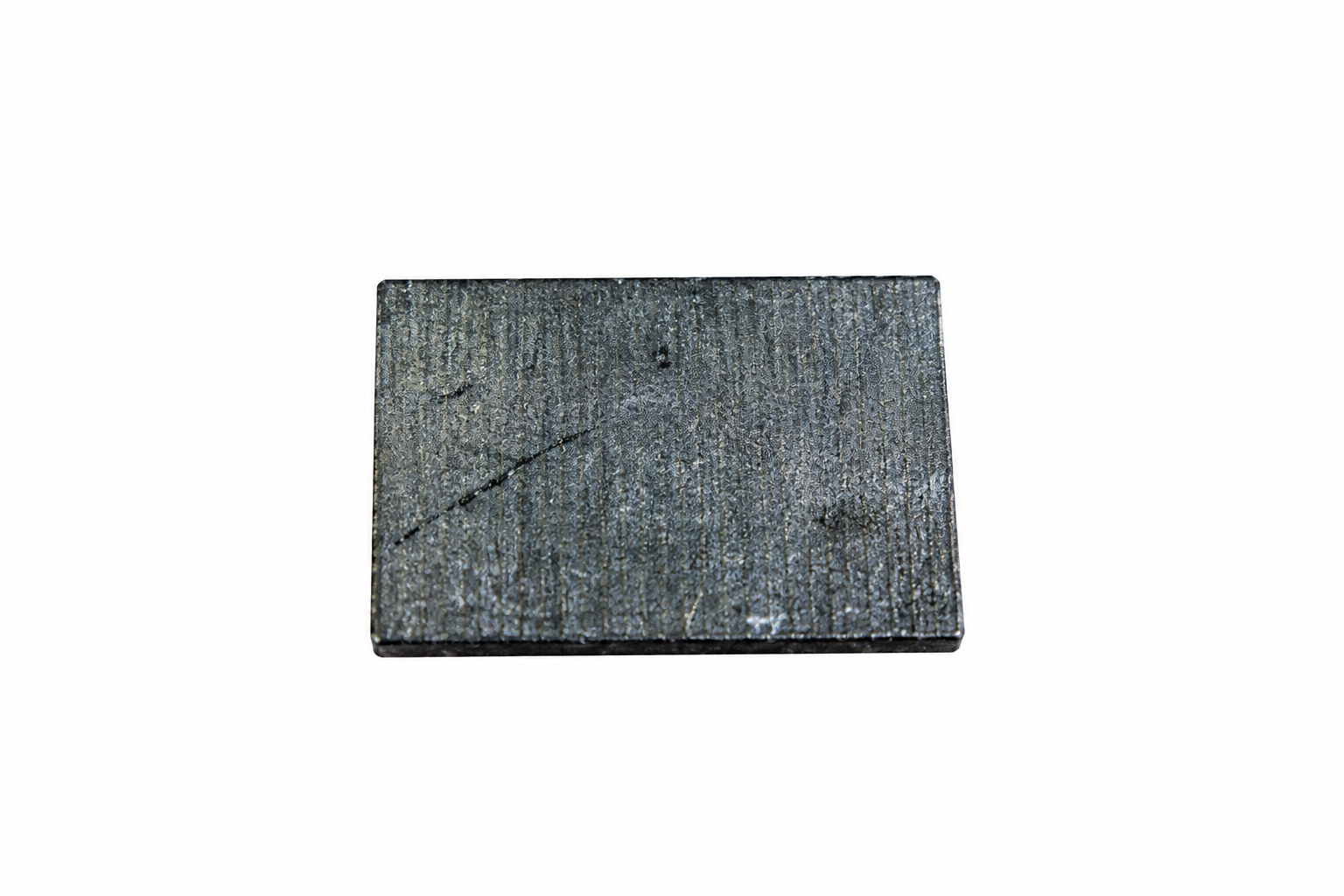

N 708733 1000105188 N90 Absorption Plate;;15X15;TM616 No Model Compatibility List $1.90 / Each

R 708922 1000107269 R04 Drive Belt;Poly-V;180-J5 Yes Model Compatibility List $57.49 / Each

15,10
709344 1000113376 Q06 Cap;Frame;PP(BL);TM397 No Model Compatibility List $1.90 / Each

9,3
709345 1000113378 B27 Running Deck;1114x608x15;TM397 No Model Compatibility List $249.13 / Each

3
709346 1000113379 AH1 Elevation Frame Set No Model Compatibility List $112.89 / Each

3,10
709347 1000113385 AC1 Console Mast Set;Right No Model Compatibility List $197.03 / Each

7
709348 1000113390 AC2 Console Mast Set;left No Model Compatibility List $197.03 / Each

7
709349 1000113394 1 Handle Set;Left;Semi-Assy;TM397-1US No Model Compatibility List $143.73 / Each

11
709350 1000113397 G03 Foam;Arm;31.8x3.0tx305L;conformPAHs,REC No Model Compatibility List $4.03 / Each

3
709351 1000113398 AN2 Pin sheath;Panting;;TM397 No Model Compatibility List $24.99 / Each

12,13,14
709352 1000113400 2 Handle Set;Right;Semi-Assy;TM397-1US No Model Compatibility List $143.73 / Each

11
709353 1000113409 AM1 Mounting Bracket;Motor No Model Compatibility List $37.10 / Each

2,3,4,5,6,10
N 709357 1000113418 N60 Upper Control Board;715T;HBPAS101;TM397 Yes Model Compatibility List $270.95 / Each

7
709358 1000113422 AN1 Console Frame Set No Model Compatibility List $217.67 / Each

7,3
709359 1000113427 P03 Console Cable;1650L;25430101-09x2;TM397 No Model Compatibility List $38.32 / Each

7,4,5,6
709361 1000113430 Q02 Cover;Motor;D;TM397 No Model Compatibility List $24.47 / Each

9,10
709364 1000113435 R02 Running Belt;458x2515x1.4T;TM397 No Model Compatibility List $191.62 / Each

15
709372 1000113668 H07 Spring;Ext;65MN;ZNC;TM397 No Model Compatibility List $3.69 / Each

2
709383 1000113925 Q13 Foam;Adhesive;20x150x2.0t;BL;TM397 No Model Compatibility List $1.90 / Each

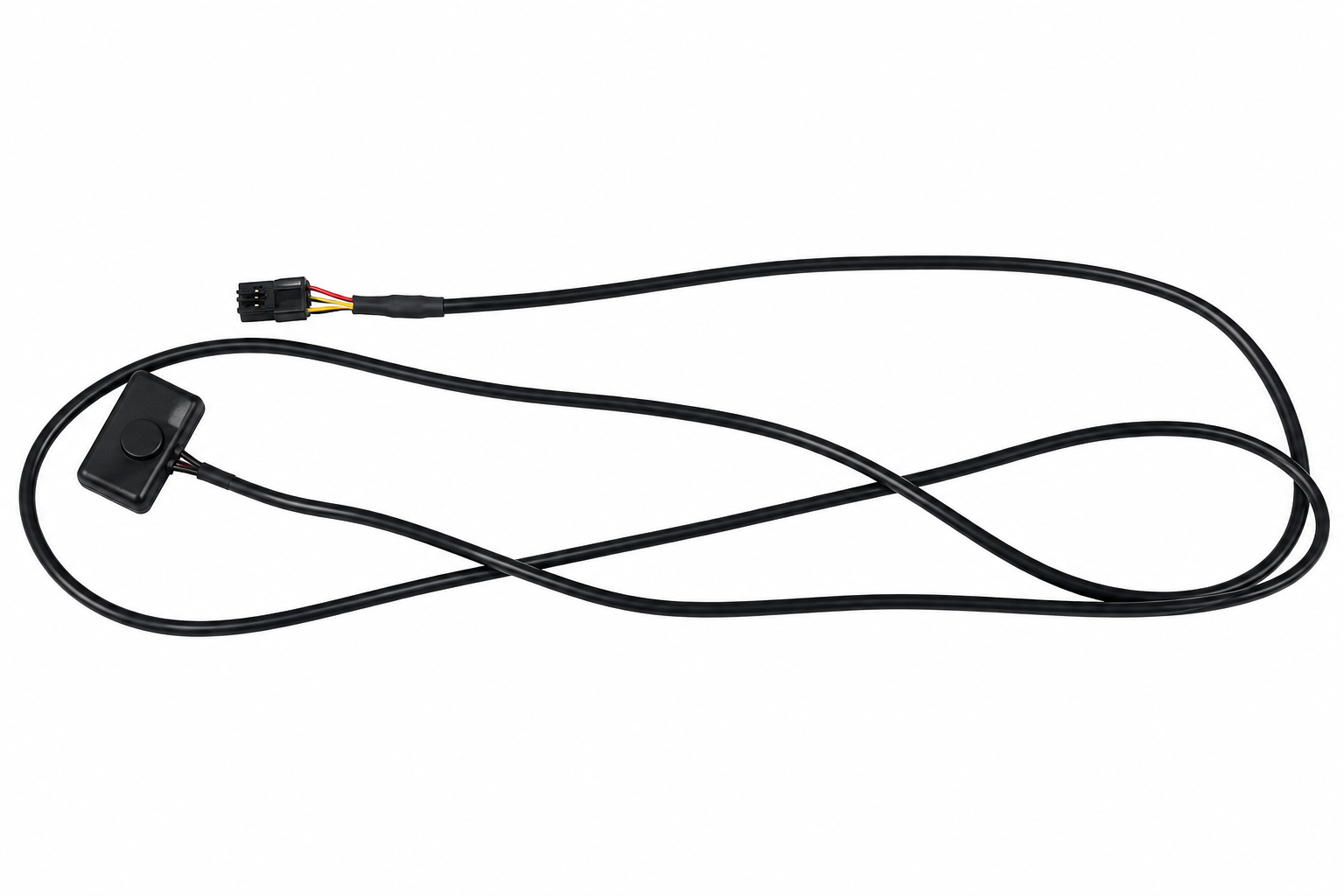

P 709474 1000200540 P14 Speed Sensor Wire;1000mm(CKM 25430101-03) Yes Model Compatibility List $28.73 / Each

709477 1000200554 Not Shown Hardware Pack No Model Compatibility List $32.89 / Each

4,5,6
P 709807 1000203404 P04 Motor Control Board;1.5-2.0HP;110V;MLH0913;DC;HC;NA; Yes Model Compatibility List $383.27 / Each

710246 1000207803 M20 Rubber;Elastomer;Motor;TM397-1US No Model Compatibility List $3.09 / Each

10
710643 1000211507 B10 Fixing Plate;Power;;;;;PAT;;; No Model Compatibility List $23.32 / Each

3,4,5,6
712538 1000229412 Not Shown DOCUMENTATION;MANUAL;ASSEMBLY/MANIPULATE No Model Compatibility List $15.31 / Each

3
712539 1000229418 Q01 MOTOR COVER;U;HIPS;Q520-7-3;;;TM451-1US; No Model Compatibility List $68.98 / Each

9,10
712540 1000229419 V01 DECORATED LABEL;MOTOR COVER;;;;TM451-1US No Model Compatibility List $9.57 / Each

9,10
712541 1000229420 8 SIDE RAIL SET;SA;;TM451-1US;;; No Model Compatibility List $24.83 / Each

9
712542 1000229424 Q04 END CAP;R-REAR;ABS;Q520-7-3;;;TM451-1US; No Model Compatibility List $9.57 / Each

9
712543 1000229425 V03 SPEC LABEL;END CAP;;;RIGHT;TM451-1US; No Model Compatibility List $1.77 / Each

9
712544 1000229427 Q05 END CAP;L-REAR;ABS;Q520-7-3;;;TM451-1US; No Model Compatibility List $9.57 / Each

9
712545 1000229428 V02 SPEC LABEL;END CAP;;;LEFT;TM451-1US; No Model Compatibility List $1.77 / Each

9
712546 1000229429 V05 SPEC LABEL;CONSOLE;;;;TM451-1US; No Model Compatibility List $3.82 / Each

7
712547 1000229439 AK1 BASE FRAME SET;PAINTED;LM445;;TM451-1US No Model Compatibility List $214.71 / Each

3
712548 1000229442 N02 CONSOLE BOARD;;HIPS;Q716-2-4;;;TM451-1US No Model Compatibility List $26.60 / Each

7
712549 1000229445 N03 CONSOLE COVER;U;HIPS;Q520-7-3;;;TM451-1U No Model Compatibility List $54.99 / Each

7,9
712553 1000229475 N61 OVERLAY;U;ENGLISH;612T;TM451-N61; No Model Compatibility List $38.32 / Each

1
712554 1000229476 N62 OVERLAY;D;ENGLISH;612T;TM451-N62; No Model Compatibility List $57.49 / Each

1
712618 1000229911 V07 CONSOLE STICKER;FRENCH OVERLAY;;;DOWN;TM No Model Compatibility List $9.57 / Each

7
712620 1000229913 V06 CONSOLE STICKER;FRENCH OVERLAY;;;UP;TM45 No Model Compatibility List $9.57 / Each

7
712817 1000230899 3 CONSOLE SET;SA;;TM451-1US;;; No Model Compatibility List $383.27 / Each

7
N 721965 1000386873 Not Shown Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $7.64 / Each

728977 N/A ABS Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,,1,,1
729119 Part of Kit 1 or 2 G01 Arm Rest;Painting;DM362; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 M03 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729197 Part of Kit 8 Q03 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
P 1020937 002124-B P13 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

P 040695-A 040695-A P01 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

P 1000730 040695-A P01 1 Power Switch Yes Model Compatibility List $31.99 / Each

P 1002652 003346-00 P12 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Screw w/Arc & Spring Washer 1009021 004738-00 Screw w/Arc & Spring Washer Yes Model Compatibility List $17.99 / Each

P 1009798 003346-00 P12 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

K 976932 004926-00 K15 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

H 917260 004942-00 H09 Black Nylon Nut (New) No Model Compatibility List $12.99 / Each

N 911958 004608-00 N54 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

Q 957090 004621-00 Q19 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
