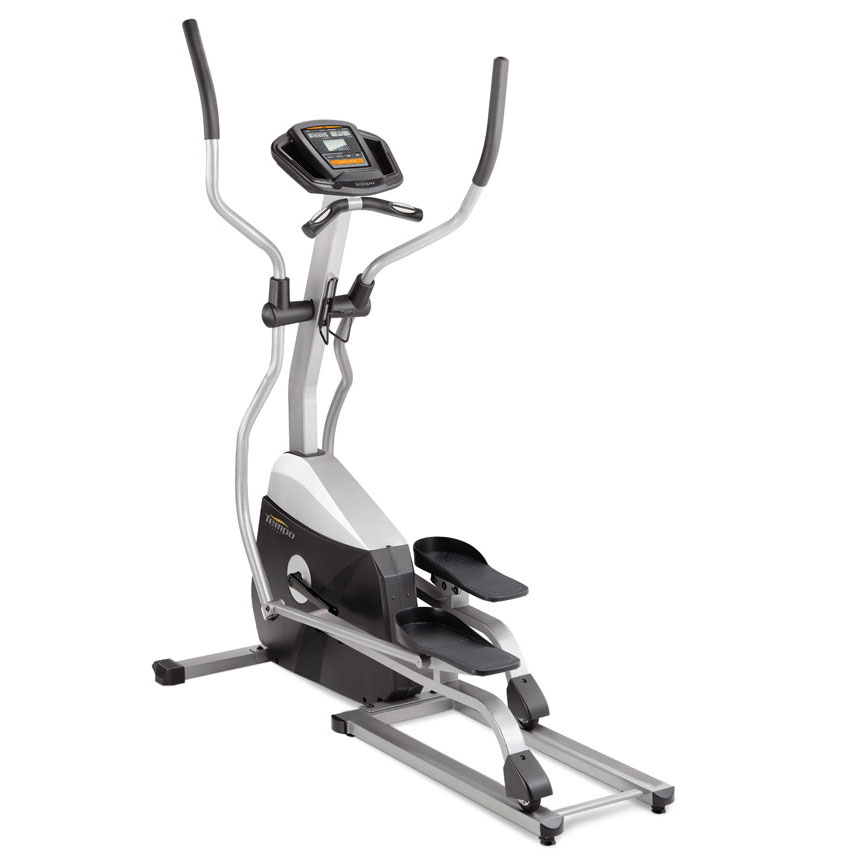

Tempo - 615E - 2008-2009

Repair Parts for Tempo 615E EP157B

Brand: Tempo

Category: Traditional

Type: Elliptical

Model Name: 615E

Version: 2008-2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700065 000241-EA G16 Cover;Handlebar;Front Left or Rear Right Yes Model Compatibility List $8.40 / Each

9,11
G 700066 000242-DA G17 Cover;Handlebar;Front Right or Rear Left Yes Model Compatibility List $8.40 / Each

9,11
G 700202 000631-AA G15 Foam Grip;Handlebar;31.8X3.0TX329.5L No Model Compatibility List $3.82 / Each

11
C 700257 000798-A C11 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
R 700298 000891-A R07 Drive Belt;Poly-V;390-J5 Yes Model Compatibility List $57.49 / Each

23
Z 700415 001293-00 Z14 Screw Sleeve;AF001(M8)(>TS) Yes Model Compatibility List $7.20 / Each

2,3
P 700770 002231-B P04 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R17 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 P05 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
E 701089 003709-00 E13 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
E 701153 004071-00 E18 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

R 701159 004077-A2 R02 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

701305 004366-AB H17 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
701308 004369-00 C10 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

Z 701336 004386-00 Z05 Screw;Phillip;BH;M5x0.8Px10L;BED; No Model Compatibility List $1.79 / Each

2
701338 004387-AC N08 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
701613 004632-00 Q08 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701649 004687-C R11 Bolt;Eye Hook;1/4"-20UNCx35L No Model Compatibility List $2.00 / Each

701699 004724-00 Z06 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701713 004730-00 Z04 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

701717 004737-00 Z13 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
E 701728 004751-00 E16 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701756 004778-AB Z03 Screw;Hex Socket;Umbrella;M8x1.25Px75L No Model Compatibility List $2.00 / Each

2
C 701796 004811-A C08 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G18 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
701848 004865-00 P06 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701869 004891-00 R18 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701893 004925-00 E14 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 Z12 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R15 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701927 004964-00 R03 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 F08 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701964 005005-00 Z07 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

C 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 G12 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J04 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
E 702046 005075-00 E23 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

C 702078 005110-00 C06 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702161 005198-00 Z11 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G10 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

702178 005220-00 H22 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702180 005222-00 J03 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702186 005229-00 C07 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702217 005330-00 Q06 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702240 005365-00 R06 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702259 005395-00 Z27 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A Z26 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

Z 702264 005412-00 Z28 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

R 702512 008394-00 R12 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

Z 702571 008692-D Z10 Inner Bushing;Lower Link Arm No Model Compatibility List $1.90 / Each

8,3
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
H 703587 015589-AN H21 Connecting Plate;Footpad No Model Compatibility List $3.54 / Each

9,3,12,13,14
Z 703968 020019-00 Z01 Screw;Phillip;BH;M6x1.0Px16L No Model Compatibility List $2.00 / Each

2
S 704076 020190-A S03 Screw;Phillip;BH;Tapped;4x0.7Px10L No Model Compatibility List $1.85 / Each

2
P 704087 020210-00 P07 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
E 704114 020266-00 E20 Screw;Hex Socket;BH;M8x1.25Px45L No Model Compatibility List $2.00 / Each

704115 020267-00 Z09 Screw;Hex Socket;BH;M8x1.25Px50L(Tooth10 No Model Compatibility List $2.00 / Each

2
704226 020656-X Z25 Wrench;Open-Type;13#17# No Model Compatibility List $3.69 / Each

2
Q 704298 022352-B Q09 Grommet;Console Mast Boot No Model Compatibility List $1.90 / Each

7,2
E 705788 056253-AA E06 Cover;Pedal Arm;Left/Right No Model Compatibility List $9.57 / Each

8,9,3
Q 705810 056295-AA Q05 Console Mast Boot No Model Compatibility List $3.82 / Each

7
F 705811 056297-AA F06 Leveler No Model Compatibility List $3.82 / Each

3
L 705814 056300-AA L02 End Cap;Front Stabilizer;Left Yes Model Compatibility List $3.82 / Each

9
F 705836 056334-AA F04 End Cap,Side Rail;Left/Right No Model Compatibility List $3.82 / Each

9
F 705837 056335-AA F05 End Cap;Rear Frame;Back;Left/Right No Model Compatibility List $3.82 / Each

9,3,4,5,6
H 705878 056406-AA H18 Footpad;Right Yes Model Compatibility List $39.99 / Each

9,3,12,13,14
H 705879 056407-AA H19 Footpad;Left Yes Model Compatibility List $39.99 / Each

9,3,12,13,14
P 705896 056442-A P03 Console Cable;Mast;1450 No Model Compatibility List $25.64 / Each

4,5,6,7
P 705917 056531-A P08 Pulse Sensor Set;750;600 No Model Compatibility List $35.46 / Each

12,13,14
S 705922 056540-A S02 Tension Cable No Model Compatibility List $9.10 / Each

4,5,6
H 705962 057061-A H10 Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
E 705963 057062-A E19 Bushing;Pedal Arm No Model Compatibility List $4.00 / Each

8,9,3
Q 706022 058192-AAX Q10 Cover;Crank Arm;Left/Right No Model Compatibility List $9.57 / Each

8,9,3
Q 706024 058193-AAX Q03 Top Main Cover No Model Compatibility List $63.80 / Each

9
P 706239 060478-C P01 Bracket;Speed Sensor No Model Compatibility List $3.82 / Each

2,3,4,5,6
Q 706242 060501-BAX Q01 Side Cover;Left No Model Compatibility List $61.52 / Each

9
Q 706243 060502-BAX Q02 Side Cover;Right No Model Compatibility List $61.52 / Each

9
P 706547 063264-A P25 Wire;Pulse Sensor ;110+2.5-2P;500mm No Model Compatibility List $3.54 / Each

4,5,6,12,13,14
A 706658 064311-ZL AG4 Lower Handlebar Set;Left No Model Compatibility List $125.01 / Each

11
L 706659 064313-Z L01 Front Stabilizer Set No Model Compatibility List $60.84 / Each

1
A 706660 064314-ZR AG3 Lower Handlebar Set;Right No Model Compatibility List $134.99 / Each

11
A 706661 064315-ZL AH2 Lower Link Arm Set;Left No Model Compatibility List $185.69 / Each

3
A 706662 064315-ZR AH1 Lower Link Arm Set;Right No Model Compatibility List $185.69 / Each

3
A 706664 064317-Z AE3 Pivot Tube Set No Model Compatibility List $29.30 / Each

8,3
R 706665 064318-Z R01 Pedal Axle Set Yes Model Compatibility List $90.51 / Each

8,9
A 706666 064319-Z AF1 Base Frame;Rear No Model Compatibility List $243.20 / Each

3
A 706672 064324-ZL AG2 Upper Handlebar Set;Left No Model Compatibility List $70.72 / Each

11
A 706673 064324-ZR AG1 Upper Handlebar Set;Right No Model Compatibility List $70.72 / Each

11
A 706794 065602-AX AZ1 Hardware Pack No Model Compatibility List $44.95 / Each

4,5,6
J 706835 066034-AA J05 Crank Cover;Small No Model Compatibility List $3.82 / Each

8,9
E 707039 068845-Z E09 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
707124 1000090369 AE1 Pedal Arm,L/R No Model Compatibility List $182.88 / Each

8,9,3
A 707238 1000091510 AJ1 Crank Arm No Model Compatibility List $57.49 / Each

8,3
A 707289 1000091728 AG5 Swivel Bracket;Lower Handlebar No Model Compatibility List $70.95 / Each

2,3,4,5,6,11
709055 1000108777 Z02 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

710392 1000210058 KIT French Console Overlay No Model Compatibility List $41.42 / Each

7
G 725255 103295 G13 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
725259 103299 E12 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Cover; Roller Wheel 725683 074754 E07 Cover; Roller Wheel No Model Compatibility List $9.57 / Each
Out Of Stock
Inside ECB Controller;6.5KG;EP197 725868 077377 R10 Inside ECB Controller;6.5KG;EP197 No Model Compatibility List $172.46 / Each

725921 078369 AN1 Console Set-615E No Model Compatibility List $574.91 / Each

726920 086017 AC5 Console Mast Set No Model Compatibility List $304.30 / Each

P 1004184 003478-A2 P05 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Screw w/Arc & Spring Washer 1009021 004738-00 Screw w/Arc & Spring Washer Yes Model Compatibility List $17.99 / Each

Z 976932 004926-00 Z12 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q06 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
