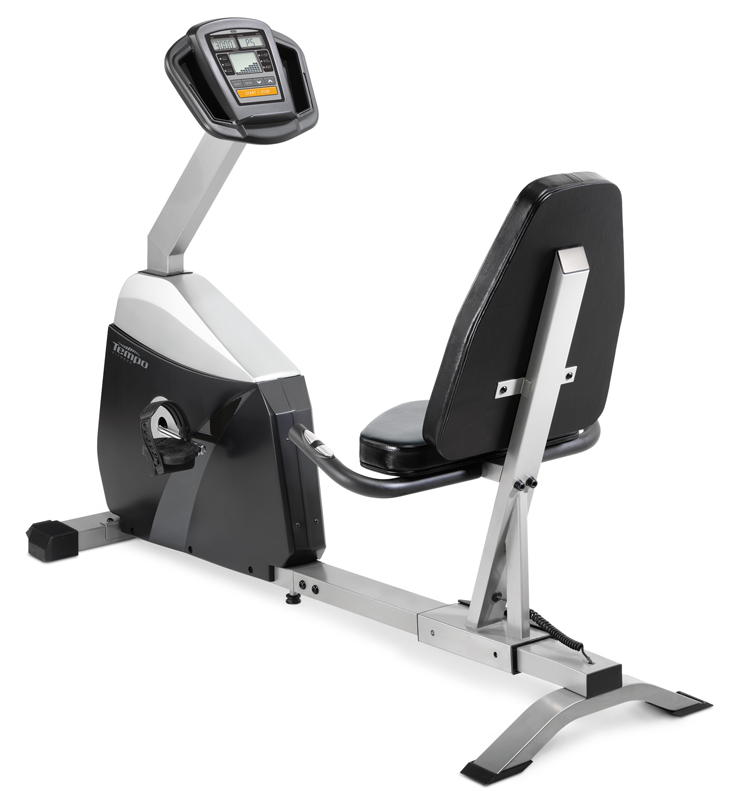

Tempo - 920B - 2007

Repair Parts for Tempo 920B RB114B

Brand: Tempo

Category: Upright

Type: Stationary Bikes

Model Name: 920B

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
706827 065951-Z AD1 Frame, Seat Back; No Model Compatibility List $223.47 / Each

3,4,5,6,12,13,14
706125 059289-AA AF1 Rear Base Frame; No Model Compatibility List $190.48 / Each

3
706826 065950-Z AG1 Hand Grip Set, with Grip Pulse; No Model Compatibility List $120.95 / Each

12,13,14,11
706825 065949-Z AL1 Front Stabilizer Set; No Model Compatibility List $83.90 / Each

1
706749 065142-Z AU1 Tension Wheel Set; No Model Compatibility List $23.63 / Each

8
B 700135 000491-B B19 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
700132 000485-00 B20 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
706121 059168-B D08 Handle for Seat Adjustment; No Model Compatibility List $21.94 / Each

12,13,14,11
706101 059074-A D09 Plastic Cap (Bolt Cover); No Model Compatibility List $1.77 / Each

2,9
706103 059079-BA D10 Sleeve, Base Frame; No Model Compatibility List $3.54 / Each

3
706100 059073-AA D11 End Cap, Seat and Handlebar Frame; No Model Compatibility List $3.54 / Each

9,3,12,13,14,11
706104 059082-B D12 Cover for Frame/Locking Set; No Model Compatibility List $8.87 / Each

9,3
706105 059083-AA D13 Seat Bottom; No Model Compatibility List $59.10 / Each

12,13,14
706106 059084-AA D14 Seat Back; No Model Compatibility List $32.89 / Each

4,5,6,12,13,14
D 705687 055155-B D17 Locking Pad No Model Compatibility List $3.82 / Each

12,13,14
D 702747 009486-00 D18 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D19 Cam No Model Compatibility List $9.75 / Each

1
702025 005058-00 D20 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

D 702234 005359-00 D21 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

701305 004366-AB D24 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
706102 059078-AA F03 End Cap;Rear Frame No Model Compatibility List $8.87 / Each

9,3
F 700252 000782-B F04 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
F 701281 004350-00 F05 Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $2.00 / Each

G 700299 000893-B G05 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
706495 062772-AA G07 Foam grip- Handle Bar; No Model Compatibility List $3.54 / Each

11
702259 005395-00 KIT Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

704226 020656-X KIT Wrench;Open-Type;13#17# No Model Compatibility List $3.69 / Each

2
706123 059277-A KIT Hardware Pack No Model Compatibility List $22.98 / Each

4,5,6
706127 059291-AA L02 Rear Stabilizer; No Model Compatibility List $107.43 / Each

1
706097 059070-AA L03 End Cap, Rear Stabilizer, Left; No Model Compatibility List $3.54 / Each

9
706099 059072-AA L04 End Cap, Rear Stabilizer, Right; No Model Compatibility List $3.54 / Each

9
706098 059071-AA L05 End Cap, Front Stabilizer; No Model Compatibility List $9.57 / Each

9
701939 004975-00 L07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701308 004369-00 N08 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

703940 019766-A N15 Pulse Grip Set No Model Compatibility List $28.21 / Each

12,13,14,11
N 704091 020214-A N16 Screw;Phillip;Round;3x18L No Model Compatibility List $1.85 / Each

2
P 706120 059153-B P01 Bracket;Speed Sensor No Model Compatibility List $1.77 / Each

2,3,4,5,6
706107 059089-A P02 Console Cable; No Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P03 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
701605 004627-00 P04 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701050 003478-A2 P05 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
P 1004184 003478-A2 P05 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
701579 004613-00 P06 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

706108 059090-C P17 Pulse Wire, Mast; No Model Compatibility List $8.87 / Each

4,5,6,12,13,14
706109 059091-B P18 Pulse Wire, Base Frame; No Model Compatibility List $14.17 / Each

3,4,5,6,12,13,14
706110 059092-A P19 Coiled Pulse Cable - Base to Seat Frame; No Model Compatibility List $14.69 / Each

3,4,5,6,12,13,14
706111 059093-B P20 Pulse Wire, Seat Frame; No Model Compatibility List $13.31 / Each

3,4,5,6,12,13,14
Q 706243 060502-BAX Q01 Side Cover;Right No Model Compatibility List $61.52 / Each

9
Q 706242 060501-BAX Q02 Side Cover;Left No Model Compatibility List $61.52 / Each

9
Q 706024 058193-AAX Q03 Top Main Cover No Model Compatibility List $63.80 / Each

9
Q 706022 058192-AAX Q04 Cover;Crank Arm;Left/Right No Model Compatibility List $9.57 / Each

8,9,3
Q 705810 056295-AA Q05 Console Mast Boot No Model Compatibility List $3.82 / Each

7
702217 005330-00 Q06 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Q 957398 005330-00 Q06 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

702483 007964-00 Q07 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
701586 004617-00 Q08 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

Q 704298 022352-B Q09 Grommet;Console Mast Boot No Model Compatibility List $1.90 / Each

7,2
R 706113 059102-BX R01 Drive Axle Set(w/ECB) No Model Compatibility List $191.62 / Each

8,10
R 700298 000891-A R02 Drive Belt;Poly-V;390-J5 Yes Model Compatibility List $31.99 / Each

23
701869 004891-00 R03 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
S 706116 059105-A S02 Tension Cable No Model Compatibility List $9.41 / Each

4,5,6
S 701294 004359-00 S03 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

706747 065140-Z T01 Pedal Axle and Crank Assembly; No Model Compatibility List $75.58 / Each

8,9,3
T 703447 014708-A T03 T04 T05 T06 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
T 701042 003413-00 T10 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
T 701112 003879-00 T11 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
U 701158 004075-A3 U04 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
702236 005361-00 U05 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
U 702227 005352-00 U06 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

702275 005438-00 U08 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
U 704180 020438-00 U09 Washer;Flat;6.2x19x2.0T No Model Compatibility List $1.79 / Each

2
U 703969 020024-00 U10 Screw;Phillip;BH;M6x1.0Px12L;BED;Adhere; No Model Compatibility List $2.00 / Each

Z 704114 020266-00 Z01 Screw;Hex Socket;BH;M8x1.25Px45L No Model Compatibility List $2.00 / Each

702076 005109-00 Z02 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
701699 004724-00 Z04 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701779 004795-00 Z08 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
Z 704192 020465-A Z09 Washer;Flat;10.2x25x2.0T No Model Compatibility List $2.00 / Each

Z 701982 005017-AC Z10 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701717 004737-00 Z11 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
701964 005005-00 Z13 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

701897 004926-00 Z14 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

Z 976932 004926-00 Z14 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

701731 004757-00 Z15 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

Z 702011 005047-00 Z16 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
