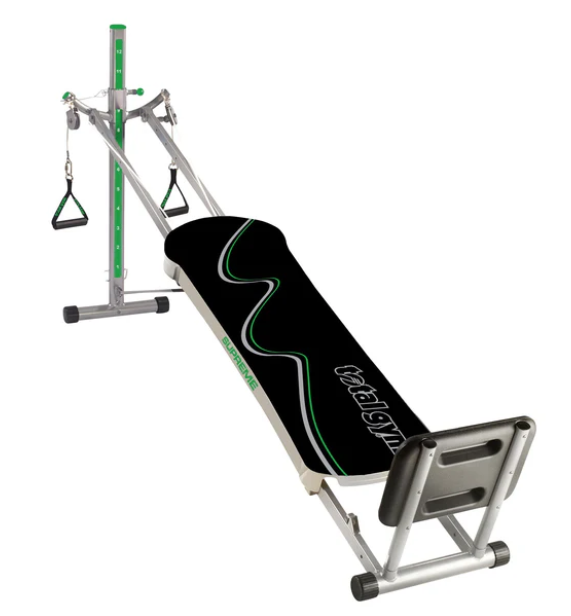

Total Gym - Total Gym Supreme

Repair Parts for Total Gym Total Gym Supreme

Brand: Total Gym

Category: Functional Trainer

Type: Strength Systems

Model Name: Total Gym Supreme

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Glide board left under Cover (Used) 1038815 left-cvr-15 Glide board left under Cover (Used) Yes Model Compatibility List $9.99 / Each

44
Glide board Right under Cover (Used) 1038818 rght-18-cvr Glide board Right under Cover (Used) Yes Model Compatibility List $9.99 / Each

44
GlideBoard Back Pad (Used) 1038832 bord-832 GlideBoard Back Pad (Used) Yes Model Compatibility List $99.00 / Each
Out Of Stock 		1
Lower Front Cover (Used) 1038817 lwr-frnt-17 Lower Front Cover (Used) Yes Model Compatibility List $25.00 / Each

44
Pulley Guide (Used) 1038829 829-pully Pulley Guide (Used) Yes Model Compatibility List $20.00 / Each

37
Pulley Guide with D Ring (Used) 1038830 rng-30-puly Pulley Guide with D Ring (Used) Yes Model Compatibility List $20.00 / Each

37
Pully (Used) 1038822 822-puly Pully (Used) Yes Model Compatibility List $29.00 / Each

37
Rope 7.5FT Cable (Used) 1038831 ft-cble-7 Rope 7.5FT Cable (Used) Yes Model Compatibility List $39.00 / Each

5
Wheel Kit (Used) 1038820 RP102WK Wheel Kit (Used) Yes Model Compatibility List $29.99 / Each

1
Set Pin Spring Loaded (Used) 1038821 RR106SB Set Pin Spring Loaded (Used) Yes Model Compatibility List $25.00 / Each

1
Green Pop Pin Adjust (Used) 1038819 RSUPAP Green Pop Pin Adjust (Used) Yes Model Compatibility List $29.00 / Each

1
Safety Pin(attached to lanyard) Used 1038828 sfty-828 Safety Pin(attached to lanyard) Used Yes Model Compatibility List $15.00 / Each

1
Squat stand Pad Bottom (Used) 1038816 pad-816-stnd Squat stand Pad Bottom (Used) Yes Model Compatibility List $69.00 / Each

1
Tube Cap Foot Base (Used) 1038823 823-cap Tube Cap Foot Base (Used) Yes Model Compatibility List $11.99 / Each

1
Ab Crunch Board Right Pad (Used) 1038891 rght-pad-91 Ab Crunch Board Right Pad (Used) Yes Model Compatibility List $26.00 / Each

1
Ab Crunch Pad left (Used) 1038890 lft-pad-90 Ab Crunch Pad left (Used) Yes Model Compatibility List $26.00 / Each

1
Handle Nylon Stirup w Grip (Used) 1038896 hndl-896 Handle Nylon Stirup w Grip (Used) Yes Model Compatibility List $19.99 / Each

1
Hitch Pin Short (Used) 1038895 pin-895 Hitch Pin Short (Used) Yes Model Compatibility List $14.99 / Each

14
Leg Pull Pulley Rope (Used) 1038906 rope-906 Leg Pull Pulley Rope (Used) Yes Model Compatibility List $26.00 / Each
Out Of Stock 		37
Long Hitch Pin (Used) 1038900 long-P-00 Long Hitch Pin (Used) Yes Model Compatibility List $19.99 / Each

14
Pull Down Single Rope with Snap Hook Torso Rotate (Used) 1038899 pul-rope-99 Pull Down Single Rope with Snap Hook Torso Rotate (Used) Yes Model Compatibility List $20.00 / Each

1
Pull-Up Bar Handle w pulley Housing (Used) 1038892 bar-hndl-92 Pull-Up Bar Handle w pulley Housing (Used) Yes Model Compatibility List $34.99 / Each

1
Pulley (Used) 1038908 908-puly Pulley (Used) Yes Model Compatibility List $14.99 / Each

37
Quicklink Threaded Ring (Used) 1038901 ring-901 Quicklink Threaded Ring (Used) Yes Model Compatibility List $5.99 / Each

1
D-Ring (Used) 1038910 R19-9D D-Ring (Used) Yes Model Compatibility List $8.00 / Each
Out Of Stock 		1
U Bracket (Used) 1038913 R19-9E U Bracket (Used) Yes Model Compatibility List $12.99 / Each

1
Foot Harness Buckle (Used) 1038909 R19-9G Foot Harness Buckle (Used) Yes Model Compatibility List $9.00 / Each

1
Crunch Left Handle Bar Grip Set (Used) 1038911 RABCS Crunch Left Handle Bar Grip Set (Used) Yes Model Compatibility List $29.00 / Each

1
Crunch Right Handle Bar Grip Set (Used) 1038912 RABCS Crunch Right Handle Bar Grip Set (Used) Yes Model Compatibility List $29.00 / Each

1
Leg Pulley System (Used) 1038907 RLPAR1 Leg Pulley System (Used) Yes Model Compatibility List $14.99 / Each

37
Safety Hitch C Pin (Used) 1038914 cpin-914 Safety Hitch C Pin (Used) Yes Model Compatibility List $14.99 / Each

14
Squat stand Pad Bottom (Used) 1038893 pad-893 Squat stand Pad Bottom (Used) Yes Model Compatibility List $39.00 / Each

1
Squat Stand Toe Bar (Used) 1038894 bar-squt-94 Squat Stand Toe Bar (Used) Yes Model Compatibility List $19.00 / Each

1
Tri-Grip Shaper Handle Bar Left (Used) 1038897 tri-lft-97 Tri-Grip Shaper Handle Bar Left (Used) Yes Model Compatibility List $29.00 / Each
Out Of Stock 		1
Tri-Grip Shaper Handle Bar Right 1038898 tri-rght-98 Tri-Grip Shaper Handle Bar Right Yes Model Compatibility List $29.00 / Each

1
View Drawing
