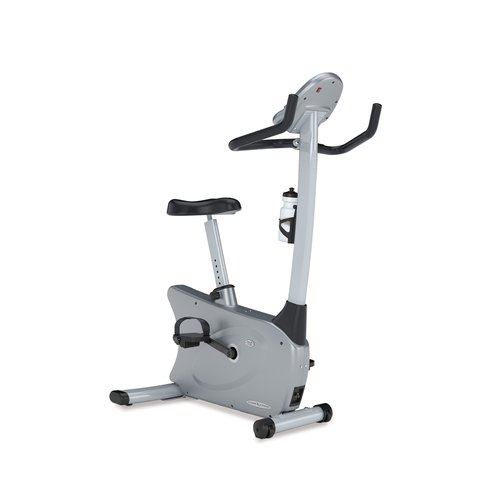

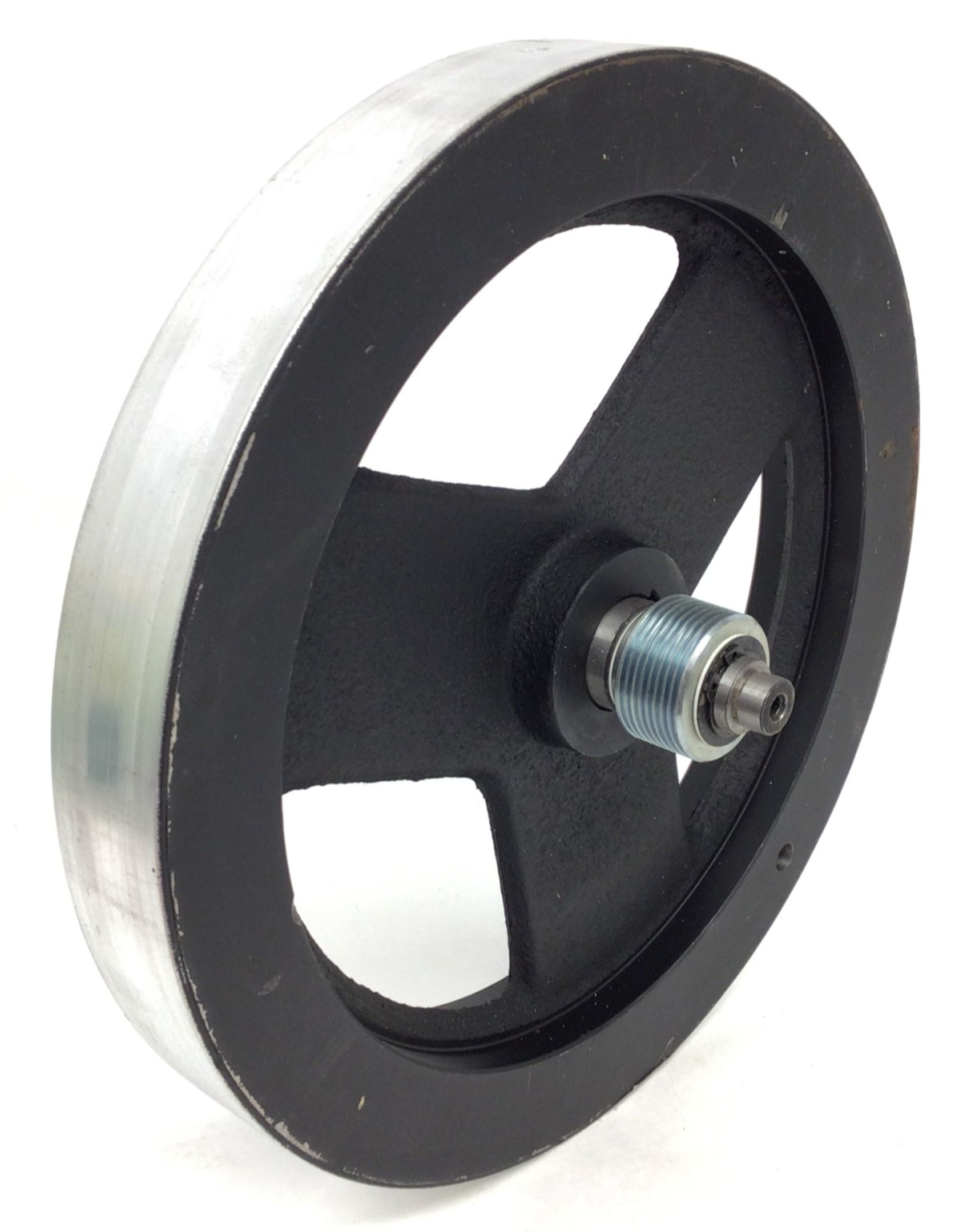

Vision Fitness - E1500 - 2009

Repair Parts for Vision Fitness E1500 CB143,RB130

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E1500

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 F03 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C06 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C05 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700300 000894-00 G11 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
Q 700376 001161-C Q04 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
700793 002329-B P16 Pulse Grip Wire No Model Compatibility List $9.57 / Each

4,5,6,12,13,14,11
T 701150 004062-BX T03 Crank;;Right;SS41;noROHS;;;CB01;CB01-086B; Yes Model Compatibility List $19.34 / Each

8
R 701229 004203-A R02 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
C 701401 004454-00 C07 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

C 701449 004493-00 C08 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701597 004621-00 Q10 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
L 701602 004626-00 L06 Screw;Phillip;BH;Tapped;4x10L;BED; No Model Compatibility List $2.00 / Each

701696 004721-Z F09 BOLT BH M8X25 No Model Compatibility List $1.85 / Each

2
701842 004859-AC G10 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $2.00 / Each

701893 004925-00 U10 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

T 701923 004956-00 T06 Nut;Hex;M20X1.0P;SS41;BOX No Model Compatibility List $4.00 / Each

2
R 701931 004968-00 R03 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
701934 004972-00 F07 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 L08 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 F10 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB L10 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

U 702067 005096-Z U11 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
R 702122 005146-AB R04 Washer;Flat;10.5x20.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

702217 005330-00 Q06 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

U 702227 005352-00 U07 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

702236 005361-00 U06 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
U 702274 005437-00 U08 Spring;Tension Assembly;16x2x65Lx25N Yes Model Compatibility List $2.00 / Each

2,3
702782 009672-00 D04 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
702831 011179-00 U12 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
H 702857 012847-00 H01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
T 703415 014411-AA T04 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T05 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
L 704001 020090-00 L09 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

704073 020185-00 P11 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

F 704120 020283-00 F11 Screw;Hex Socket;BH;M8x1.25Px70L-20L;Partial No Model Compatibility List $2.00 / Each

2
Q 704273 022177-A Q07 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

705277 040419-B DAX Inside ECB Controller;CB120;CB120-R01B No Model Compatibility List $153.30 / Each

7,8
705291 040637-C P02 Console Cable;1300mm Yes Model Compatibility List $76.65 / Each

7,4,5,6
P 705307 040690-A P08 Pulse Sensor Set;Single Yes Model Compatibility List $38.32 / Each

12,13,14
705320 040829-00 C12 Set Screw;M8x1.25x10L No Model Compatibility List $2.00 / Each

2
705366 048968-BX Q03 BOOT CONSOLE MAST No Model Compatibility List $13.10 / Each

7
F 705394 049051-AA F05 End Cap;Stabilizer Yes Model Compatibility List $12.17 / Each

9
705517 049827-A P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
705700 055204-A F06 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

706375 061533-B D05 SLEEVE SEAT POST No Model Compatibility List $3.82 / Each

3,12,13,14
706400 061791-Z PAX PEDAL AXLE ASSEMBLY No Model Compatibility List $102.80 / Each

8,9,3
706401 061793-Z AU1 IDLER ASSEMBLY Yes Model Compatibility List $27.95 / Each

8,3
P 706799 065640-A P17 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

707094 1000090311 Q08 SCREW BH 4x15L TAPPED NICKEL No Model Compatibility List $2.00 / Each

C 707139 1000090447 C13 Washer;Split;8.2X13.5X2.0T;65MN;NKL; No Model Compatibility List $2.00 / Each

2
707152 1000090507 V05 DECAL MODEL E15009 No Model Compatibility List $8.87 / Each

7,3
707154 1000090513 L11 WASHER ARC 8.2X18X1.5 CHM No Model Compatibility List $2.00 / Each

2
707165 1000090876 NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $1.85 / Each

12,13,14
T 707246 1000091600 T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $62.69 / Each

3,8
707247 1000091602 AF1 Stabilizer;Rear No Model Compatibility List $253.08 / Each

1
707248 1000091603 Q01 COVER SIDE ASSEMBLY LEFT No Model Compatibility List $126.28 / Each

9,3
707249 1000091604 Q02 COVER SIDE ASSEMBLY RIGHT No Model Compatibility List $126.28 / Each

9,3
707250 1000091605 AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $370.84 / Each

7,3
707251 1000091606 AG1 HANDLEBAR ASSEMBLY No Model Compatibility List $284.83 / Each

3,11
708141 1000100444 D06 Upright Saddle No Model Compatibility List $93.37 / Each

3
709103 1000109595 T18 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
709802 1000203355 NOT SHOWN Premier Console Set Serial Number EP249 No Model Compatibility List $1.30 / Each

7
N 710395 1000210076 NOT SHOWN Deluxe Console Set Serial Number RB144 - D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $1038.70 / Each

7
710736 1000212939 L07 Front Stabilizer Kit No Model Compatibility List $0.00 / Each
Out Of Stock 		1
712903 1000231413 AL1 WHEEL SET;SA;;RB153-1US-F;;; No Model Compatibility List $9.57 / Each

8
725006 100888 AD1 SEAT POST ASSEMBLY No Model Compatibility List $159.25 / Each

3,12,13,14
725009 100902 NOT SHOWN MANUAL ASSEMBLY E15009 No Model Compatibility List $11.08 / Each

3
725244 103241 NOT SHOWN MANUAL OWNER BIKE/ELLIPTICAL No Model Compatibility List $11.96 / Each

1
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
725598 073994 H02 Tension Cable; Steel Rope No Model Compatibility List $9.31 / Each

Power Adaptor; 120V/50HZ 12V/1A 726269 081149 P10 Power Adaptor; 120V/50HZ 12V/1A Yes Model Compatibility List $80.29 / Each
Out Of Stock
Display Console - Used Only 1003376 1000109336 # 1 Display Console - Used Only Yes Model Compatibility List $180.70 / Each
Out Of Stock 		7
H 1003402 012847-00 H01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
T 1037441 1000109595 T18 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
Q 957398 005330-00 Q06 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 957090 004621-00 Q10 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
