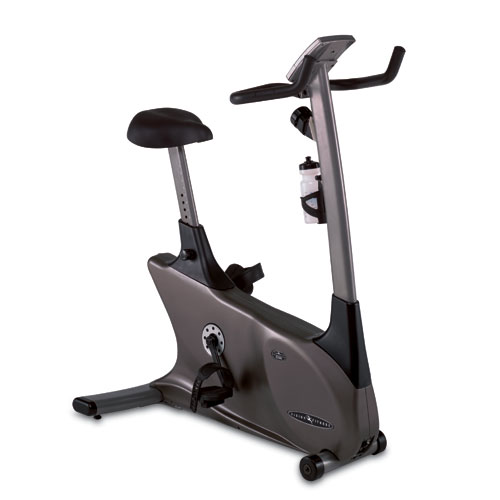

Vision Fitness - E3000 - 2001

Repair Parts for Vision Fitness E3000 MCB28

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MCB28

Model Name: E3000

Version: 2001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17398.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700038	000164-C	Q04		Boot;Seat Post	No	Model Compatibility List	$1.90 / Each	12,13,14
700132	000485-00	J03/J04		Leveler;Rubber;W3/8-16UNC	Yes	Model Compatibility List	$9.09 / Each	3
700262	000808-B	C06		Water Bottle	No	Model Compatibility List	$9.88 / Each	1
700300	000894-00	G04		End Cap;Handlebar;25.4x2.3t;Back	No	Model Compatibility List	$1.90 / Each	9,4,5,6,11
700306	000924-F	J07		End Cap;Rear Stabilizer	No	Model Compatibility List	$9.57 / Each	9
700333	000993-E	D05		Sleeve;Seat Post	No	Model Compatibility List	$3.82 / Each	3,12,13,14
700375	001160-A	Q05		Plate;Power Socket	No	Model Compatibility List	$3.82 / Each	3,4,5,6
700768	002229-00	P01		Speed Sensor Wire;480(OKI+SM-2Y);RB18	Yes	Model Compatibility List	$8.06 / Each	4,5,6
701042	003413-00	T06		Magnet;Crank Wheel;15x7t	No	Model Compatibility List	$4.00 / Each	8
701120	003904-00	R02		Pulley;ECB Flywheel;J840	No	Model Compatibility List	$17.58 / Each	8
701132	003979-B	U06		Spring;Idler	Yes	Model Compatibility List	$6.60 / Each	2,8
701144	004033-00	T05		STRAP PEDAL PAIR	No	Model Compatibility List	$40.14 / Each	8,9
701159	004077-A2	R06		Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701174	004096-00	R07		BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA;	No	Model Compatibility List	$26.49 / Each
701226	004200-00	R13		Drive Belt;Poly-V;440-J5	No	Model Compatibility List	$54.73 / Each	15,10
701316	004372-00	N20		Screw;Phillip;BH;M5x0.8Px12L;Gap	No	Model Compatibility List	$2.00 / Each
701318	004374-00	P03		Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701343	004389-00	C09		Screw;Phillip;BH;M5x0.8Px16L;BED;	No	Model Compatibility List	$2.00 / Each	2
701585	004616-00	Q07		Screw;Umbrella Cross Tapped;4x12L	No	Model Compatibility List	$2.00 / Each
701699	004724-00	C08		Bolt;M8x1.25Px15L	Yes	Model Compatibility List	$2.00 / Each
701718	004739-00	J11		Bolt;M8x1.25Px65L(20L)	No	Model Compatibility List	$2.00 / Each	2
701841	004859-00	J06		Screw;Umbrella Hex Scoket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
701850	004868-Z	Q12		SCREW FH M4X12	No	Model Compatibility List	$1.79 / Each	2
702132	005158-A	J12		Washer;Flat;8x16x1.5T;Black Zinc	No	Model Compatibility List	$1.79 / Each	2,4,5,6
702217	005330-00	B27		Tinnamen Nut	Yes	Model Compatibility List	$1.59 / Each
702358	006421-E	NOT SHOWN		Decal;Crank Cover;T=0.3mm;RB41	No	Model Compatibility List	$3.64 / Each	7,8,9,3
702511	008393-00	P03		Bracket;Speed Sensor	No	Model Compatibility List	$1.90 / Each	2,3,4,5,6
702782	009672-00	D04		Seat Pull Pin Assembly	Yes	Model Compatibility List	$13.47 / Each	3,12,13,14
702867	012932-Z	AD1		SEAT POST SET	No	Model Compatibility List	$170.40 / Each	12,13,14
703985	020061-00	R10		Screw;Hex Socket;Round;M5x0.08Px18L	No	Model Compatibility List	$2.00 / Each	2
704338	023065-Z	AU1		Idler Assembly	Yes	Model Compatibility List	$67.96 / Each	8,3
704625	024569-A	T07		Pedal Set Assembly;9/16	Yes	Model Compatibility List	$72.98 / Each	31
704901	025883-Z	AR1		DRIVE AXLE ASSEMBLY	No	Model Compatibility List	$451.33 / Each	8,3,10
704902	025884-Z	R05		HOUSING BEARING FIXED ASSEMBLY	No	Model Compatibility List	$19.58 / Each	8,3
704903	025887-Z	S01		TENSION KNOB	No	Model Compatibility List	$41.05 / Each	1
704907	025989-Z	T05		CRANK ASSEMBLY w/2 BEARINGS	No	Model Compatibility List	$171.94 / Each	8,3
705700	055204-A	J10		Screw;SelfTapping;4x10L	No	Model Compatibility List	$2.00 / Each
707037	068824-Z	Q06		Crank Cover	No	Model Compatibility List	$9.57 / Each	8,9
707100	1000090320	S22		SCREW;FH;M5X0.8PX15L;;PH;G8.8;BZN;;	No	Model Compatibility List	$0.60 / Each	2
708141	1000100444	D06		Upright Saddle	No	Model Compatibility List	$93.37 / Each	3
709103	1000109595	T04		Crank Arm Cover;Round;Plastic;Black	Yes	Model Compatibility List	$3.82 / Each	8,9,3,4,5,6
725261	103326	T09		SCREW FHM8x1.0Px20 SERRATED	No	Model Compatibility List	$2.00 / Each	2
014721A	014721-A	0	1	Pedal Pair Set 9/16" Spindle Quick Adjust Upgrade	Yes	Model Compatibility List	$59.99 / Each	1
1004805	014724-A	T04	1	Foot Pedal Set w/Strap 1/2”	Yes	Model Compatibility List	$56.99 / Each	8,9
701174	004096-00	R07		Bearing, Clutching	No	Model Compatibility List	$20.72 / Each
1037441	1000109595	T04		Crank arm cover	Yes	Model Compatibility List	$10.00 / Each	8,9,3,4,5,6
957398	005330-00	B27		Gear Rower Retainer Clip (New)	Yes	Model Compatibility List	$11.99 / Each
986316	004616-00	Q07		Umbrella Cross Tapped Screw 4x12L (New)	No	Model Compatibility List	$12.00 / Each Out Of Stock
986204	004374-00	P03		Button Head Phillip Screw (New)	No	Model Compatibility List	$12.99 / Each Out Of Stock

View Drawing
