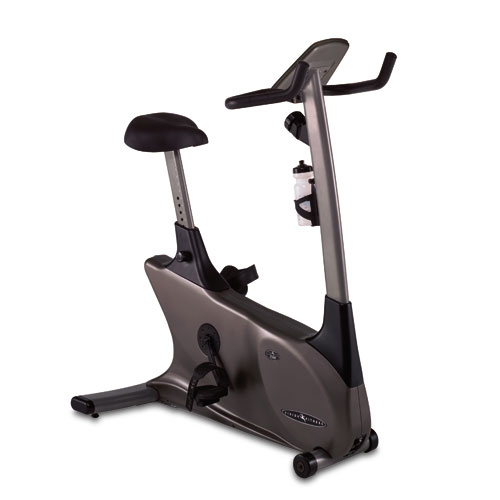

Vision Fitness - E3000 - 2002-2003

Repair Parts for Vision Fitness E3000 MCB35

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3000

Version: 2002-2003

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700038 000164-C Q04 Boot;Seat Post No Model Compatibility List $1.90 / Each

12,13,14
700132 000485-00 J03/J04 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C07 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C06 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700300 000894-00 G04 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
700306 000924-F J07 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
700325 000974-B D07 Cover;Seat Knob No Model Compatibility List $0.57 / Each

9,12,13,14
D 700333 000993-E D05 Sleeve;Seat Post No Model Compatibility List $3.82 / Each

3,12,13,14
700375 001160-A Q05 Plate;Power Socket No Model Compatibility List $3.82 / Each

3,4,5,6
700861 002558-A P01 Speed Sensor Wire;1625mm Yes Model Compatibility List $9.57 / Each

4,5,6
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
T 701112 003879-00 T03 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
R 701120 003904-00 R02 Pulley;ECB Flywheel;J840 No Model Compatibility List $17.58 / Each

8
701144 004033-00 T05 STRAP PEDAL PAIR No Model Compatibility List $40.14 / Each

8,9
R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701227 004201-00 R12 Drive Belt;Poly-V;430-J5 No Model Compatibility List $57.49 / Each

15,10
Q 701294 004359-00 Q15 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

S 701312 004370-00 S13 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

N 701316 004372-00 N20 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701343 004389-00 C09 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
U 701403 004457-00 U07 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
J 701583 004615-00 J08 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 Q07 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701627 004648-00 P05 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

701699 004724-00 C08 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

J 701718 004739-00 J11 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
J 701841 004859-00 J06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701964 005005-00 J10 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

S 702050 005078-00 S21 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702217 005330-00 B27 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
702782 009672-00 D04 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
702866 012931-ZL Q02 COVER SIDE LEFT No Model Compatibility List $67.70 / Each

9
702867 012932-Z AD1 SEAT POST SET No Model Compatibility List $170.40 / Each

12,13,14
702868 012933-Z AU1 IDLER ASSEMBLY No Model Compatibility List $52.55 / Each

8,3
R 704150 020340-00 R11 SCREW;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $3.64 / Each

704902 025884-Z R05 HOUSING BEARING FIXED ASSEMBLY No Model Compatibility List $19.58 / Each

8,3
707100 1000090320 S22 SCREW;FH;M5X0.8PX15L;;PH;G8.8;BZN;; No Model Compatibility List $0.60 / Each

2
708141 1000100444 D06 Upright Saddle No Model Compatibility List $93.37 / Each

3
T 1004805 014724-A T04 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

8,9
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

B 957398 005330-00 B27 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

S 941989 004370-00 S13 Screw (New) No Model Compatibility List $12.00 / Each

Q 986316 004616-00 Q07 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
View Drawing
