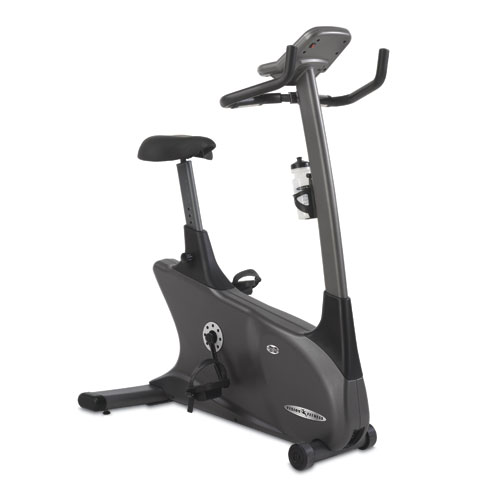

Vision Fitness - E3100 - 2007

Repair Parts for Vision Fitness E3100 CB125

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3100

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700038 000164-C Q04 Boot;Seat Post No Model Compatibility List $1.90 / Each

12,13,14
700132 000485-00 J03/J04 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C07 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C06 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700300 000894-00 G04 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
700325 000974-B D07 Cover;Seat Knob No Model Compatibility List $0.57 / Each

9,12,13,14
D 700333 000993-E D05 Sleeve;Seat Post No Model Compatibility List $3.82 / Each

3,12,13,14
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
700780 002264-B P01 Speed Sensor Wire;700mm Yes Model Compatibility List $9.57 / Each

4,5,6
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 P09 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
701154 004072-A2 R17 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
T 701159 004077-A2 T09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701227 004201-00 R12 Drive Belt;Poly-V;430-J5 No Model Compatibility List $57.49 / Each

15,10
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701343 004389-00 J08 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
J 701583 004615-00 J08 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 Q07 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701605 004627-00 P05 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701627 004648-00 P08 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

701699 004724-00 C08 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701737 004762-00 J14 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
J 701841 004859-00 J06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
C 701937 004973-00 C10 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 J07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

J 701941 004976-00 J11 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701964 005005-00 J10 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

C 701978 005015-00 C12 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702158 005194-00 R08 Washer;Teflon;20.2X30.0X1.0T No Model Compatibility List $0.49 / Each

2
702217 005330-00 B24 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

U 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

U 702277 005444-00 U05 Spring;Idler;2.0x16.0x103.0Lx26N No Model Compatibility List $3.35 / Each

2,8
702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702782 009672-00 D04 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
702861 012913-ZL T02 Crank Set;Left No Model Compatibility List $57.49 / Each

8
702862 012913-ZR T03 Crank Set;Right No Model Compatibility List $57.49 / Each

8
702868 012933-Z AU1 IDLER ASSEMBLY No Model Compatibility List $52.55 / Each

8,3
703403 014245-A NOT SHOWN Hardware Pack;Pink No Model Compatibility List $9.28 / Each

4,5,6,12,13,14
T 703415 014411-AA T05 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
703752 015997-Z AN2 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
704118 020274-Z L05 Screw;Hex Socket;BH;M8x1.25Px19L No Model Compatibility List $1.07 / Each

2
J 705394 049051-AA J09 End Cap;Stabilizer Yes Model Compatibility List $12.17 / Each

9
705510 049675-AX NOT SHOWN MANUAL OWNERS R2050/R2150/E3100 No Model Compatibility List $3.82 / Each

1
706656 064235-A V04 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
706810 065761-Z PAX PEDAL AXLE ASSEMBLY No Model Compatibility List $89.00 / Each

8,9,3
708141 1000100444 D06 Upright Saddle No Model Compatibility List $93.37 / Each

3
708434 1000102838 AG1 HANDLEBAR ASSEMBLY No Model Compatibility List $279.06 / Each

3,11
709103 1000109595 T11 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

728840 097929 P02 Console Cable;1520(150.80.80); No Model Compatibility List $45.42 / Each

Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

R 1000484 004157-00 R07 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
T 1004805 014724-A T04 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

8,9
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

P 1004184 003478-A2 P09 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
AC Adapter Power Supply Cord 1002436 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $69.99 / Each
Out Of Stock
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

T 1037441 1000109595 T11 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
B 957398 005330-00 B24 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q07 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
