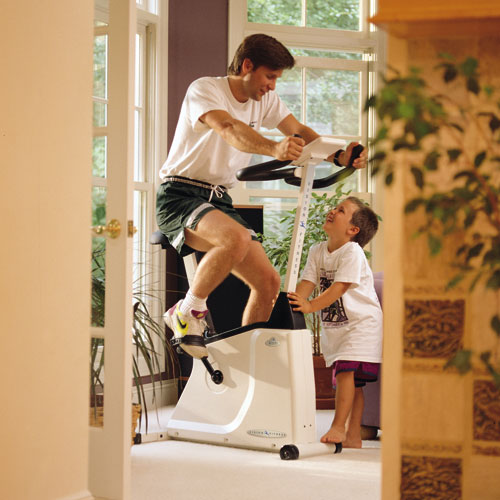

Vision Fitness - E3100 - 1998-2000

Repair Parts for Vision Fitness E3100 FC03

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3100

Version: 1998-2000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 J03/J04 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
J 700136 000496-00 J02 END CAP REAR FOOT Yes Model Compatibility List $7.54 / Each

3,9
700218 000700-Z G04 GRIP HANDLEBAR FOAM No Model Compatibility List $14.12 / Each

11
G 700300 000894-00 G04 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
700325 000974-B D07 Cover;Seat Knob No Model Compatibility List $0.57 / Each

9,12,13,14
700332 000989-00 D05 Sleeve;Seat Tube No Model Compatibility List $3.64 / Each

3,12,13,14
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701144 004033-00 T05 STRAP PEDAL PAIR No Model Compatibility List $40.14 / Each

8,9
R 701202 004157-00 R07 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

23
S 701303 004365-00 S12 Screw;Phillip;BH;M5x0.8Px50L;;Zn-BL No Model Compatibility List $1.79 / Each

2
N 701316 004372-00 N17 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701319 004374-ZAC N06 Screw;BH;M5X0.8X10 No Model Compatibility List $2.00 / Each

2
701585 004616-00 Q07 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

J 701698 004723-00 J07 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702217 005330-00 B24 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

P 702511 008393-00 P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702782 009672-00 D04 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
702859 012910-Z R01 Pedal Axle Set No Model Compatibility List $124.07 / Each

8,9
U 703809 017657-00 U06 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

R 703985 020061-00 R23 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
703988 020067-00 S20 Screw;Hex Socket;M6x1.0Px30L No Model Compatibility List $1.09 / Each

704086 020208-00 Q10 Screw;Round;4X12L;TC;PH;;;;POT No Model Compatibility List $1.56 / Each

2
704112 020264-Z G05 Screw;Hex Socket;BH;M8x1.25Px1-1/4"L No Model Compatibility List $1.85 / Each

2
A 704338 023065-Z AU1 Idler Assembly Yes Model Compatibility List $67.96 / Each

8,3
T 704625 024569-A T17 Pedal Set Assembly;9/16 Yes Model Compatibility List $72.98 / Each

31
C 707151 1000090498 C07 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2
708141 1000100444 D06 Upright Saddle No Model Compatibility List $93.37 / Each

3
709103 1000109595 T11 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
709275 1000111719 R02 Flywheel Set No Model Compatibility List $306.62 / Each

8
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

729325 ZMS1000080 P01 RPM SENSOR W/WIRE FOR INDEXED CONSOLE 14 No Model Compatibility List $10.35 / Each

7,4,5,6
Seat Frame End Cap (Used) 1015108 001404-C # 1 Seat Frame End Cap (Used) Yes Model Compatibility List $19.49 / Each

9
T 014721A 014721-A T17 1 Pedal Pair Set 9/16" Spindle Quick Adjust Upgrade Yes Model Compatibility List $59.99 / Each

1
R 1000484 004157-00 R07 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
T 1004805 014724-A T04 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

8,9
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
AC Adapter Power Supply Cord 1002436 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $69.99 / Each
Out Of Stock
Seat post cover 1037389 001563-00 Seat post cover Yes Model Compatibility List $15.00 / Each

T 1037441 1000109595 T11 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
B 957398 005330-00 B24 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q07 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
View Drawing
