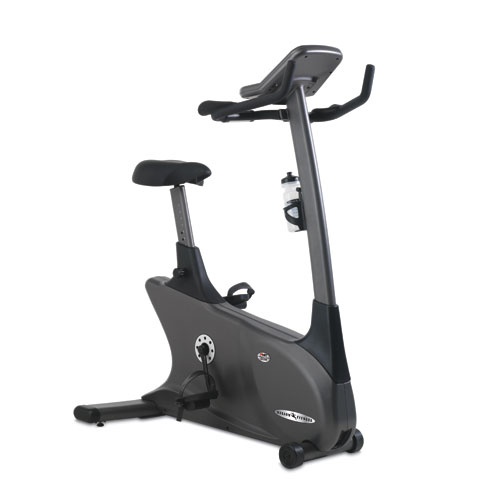

Vision Fitness - E3200HRT - 2007

Repair Parts for Vision Fitness E3200HRT CB127

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3200HRT

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700038 000164-C Q04 Boot;Seat Post No Model Compatibility List $1.90 / Each

12,13,14
700132 000485-00 J04 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C07 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C06 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700300 000894-00 G03 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
700306 000924-F J07 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
700325 000974-B D07 Cover;Seat Knob No Model Compatibility List $0.57 / Each

9,12,13,14
D 700333 000993-E D05 Sleeve;Seat Post No Model Compatibility List $3.82 / Each

3,12,13,14
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
700725 002043-A P02 Console Wire Set;1370(JXT/XHP-10+SMR-3V- Yes Model Compatibility List $76.65 / Each

7,4,5,6
700775 002252-A P03 Speed Sensor Wire;600(Magnet Reed Tube+SMP-02V No Model Compatibility List $9.54 / Each

8,3,4,5,6
700793 002329-B P16 Pulse Grip Wire No Model Compatibility List $9.57 / Each

4,5,6,12,13,14,11
R 701042 003413-00 R03 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701052 003499-D2 P05 Power Adapter;9V/1.5A Yes Model Compatibility List $76.65 / Each

4,5,6
R 701120 003904-00 R10 Pulley;ECB Flywheel;J840 No Model Compatibility List $17.58 / Each

8
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
701154 004072-A2 R17 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
T 701159 004077-A2 T09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701174 004096-00 R18 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701210 004168-00 R07 Drive Belt;Poly-V;440-J8 No Model Compatibility List $54.73 / Each

15,10
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701300 004364-00 P08 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

N 701316 004372-00 N14 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701343 004389-00 C09 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
C 701449 004493-00 C11 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

J 701583 004615-00 J08 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 Q10 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701690 004719-00 G07 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701737 004762-00 J13 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
J 701841 004859-00 J10 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701964 005005-00 J12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

G 701978 005015-00 G08 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702158 005194-00 R08 Washer;Teflon;20.2X30.0X1.0T No Model Compatibility List $0.49 / Each

2
702178 005220-00 T12 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702217 005330-00 B27 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702226 005351-00 R21 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

T 702240 005365-00 T10 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702783 009677-00 D04 Seat Pull Pin Assembly No Model Compatibility List $9.10 / Each

3,12,13,14
702859 012910-Z PAX Pedal Axle Set No Model Compatibility List $124.07 / Each

8,9
702861 012913-ZL T02 Crank Set;Left No Model Compatibility List $57.49 / Each

8
702862 012913-ZR T03 Crank Set;Right No Model Compatibility List $57.49 / Each

8
703403 014245-A NOT SHOWN Hardware Pack;Pink No Model Compatibility List $9.28 / Each

4,5,6,12,13,14
T 703415 014411-AA T19 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
E 703436 014658-00 ECB ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each

10
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
703752 015997-Z AN2 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
U 703809 017657-00 U10 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

R 703985 020061-00 R23 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
704109 020256-AC R22 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

704118 020274-Z L05 Screw;Hex Socket;BH;M8x1.25Px19L No Model Compatibility List $1.07 / Each

2
706656 064235-A V07 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
706815 065813-Z AD1 POST SEAT ASSEMBLY - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $72.80 / Each

3,12,13,14
707037 068824-Z Q06 Crank Cover No Model Compatibility List $9.57 / Each

8,9
708141 1000100444 D06 Upright Saddle No Model Compatibility List $93.37 / Each

3
Q 708563 1000103438 Q10 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

709103 1000109595 T11 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
709275 1000111719 DAX Flywheel Set No Model Compatibility List $306.62 / Each

8
709276 1000111722 AU1 Tension Wheel Set;CB142 No Model Compatibility List $57.49 / Each

8
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726386 081538 NOT SHOWN Owners Manual No Model Compatibility List $9.57 / Each

Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

Display Console (Used) 1000431 019704-A AN1 1 Display Console (Used) Yes Model Compatibility List $183.99 / Each
Out Of Stock 		51
E 1000478 014658-00 ECB 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
Main Drive Belt 1000484 004157-00 0 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

Display Console (Used) 1032451 062084-ax AN1 1 Display Console (Used) No Model Compatibility List $249.00 / Each
Out Of Stock
AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
AC Adapter Power Supply Cord 1002436 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $69.99 / Each
Out Of Stock
E 1001818 014658-00 ECB Magnetic Brake Yes Model Compatibility List $59.99 / Each

10
R 701174 004096-00 R18 Bearing, Clutching No Model Compatibility List $20.72 / Each

T 1037441 1000109595 T11 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
B 957398 005330-00 B27 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q10 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
