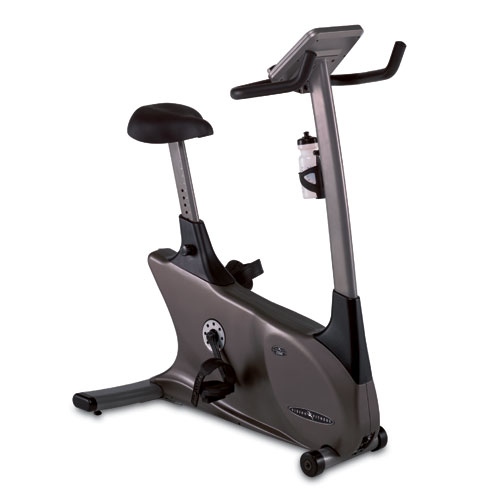

Vision Fitness - E3200HRT - 2001

Repair Parts for Vision Fitness E3200HRT CB26

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3200HRT

Version: 2001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700038 000164-C Q04 Boot;Seat Post No Model Compatibility List $1.90 / Each

12,13,14
700132 000485-00 J04 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C07 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C06 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700300 000894-00 G03 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
700306 000924-F J07 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
D 700333 000993-E D05 Sleeve;Seat Post No Model Compatibility List $3.82 / Each

3,12,13,14
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
700575 001697-F D06 Seat Pad No Model Compatibility List $60.79 / Each

12,13,14
700775 002252-A P03 Speed Sensor Wire;600(Magnet Reed Tube+SMP-02V No Model Compatibility List $9.54 / Each

8,3,4,5,6
N 701008 003307-00 NOT SHOWN Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

R 701042 003413-00 R03 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 P01 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
R 701120 003904-00 R10 Pulley;ECB Flywheel;J840 No Model Compatibility List $17.58 / Each

8
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
701144 004033-00 T18 STRAP PEDAL PAIR No Model Compatibility List $40.14 / Each

8,9
701154 004072-A2 R17 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
T 701159 004077-A2 T09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

R 701174 004096-00 R18 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701210 004168-00 R07 Drive Belt;Poly-V;440-J8 No Model Compatibility List $54.73 / Each

15,10
N 701316 004372-00 N14 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

J 701583 004615-00 J08 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 Q10 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701591 004620-00 P17 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701627 004648-00 P14 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

701699 004724-00 C09 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

J 701718 004739-00 J13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
J 701841 004859-00 J10 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701964 005005-00 J12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701989 005027-00 R09 Washer;Flat;20X30X0.6T No Model Compatibility List $0.36 / Each

2
L 702004 005042-00 L06 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
702040 005070-00 S05 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R25 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
702178 005220-00 T12 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702217 005330-00 B27 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

T 702240 005365-00 T10 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702358 006421-E NOT SHOWN Decal;Crank Cover;T=0.3mm;RB41 No Model Compatibility List $3.64 / Each

7,8,9,3
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702782 009672-00 D04 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
702859 012910-Z PAX Pedal Axle Set No Model Compatibility List $124.07 / Each

8,9
702861 012913-ZL T02 Crank Set;Left No Model Compatibility List $57.49 / Each

8
702862 012913-ZR T03 Crank Set;Right No Model Compatibility List $57.49 / Each

8
702867 012932-Z AD1 SEAT POST SET No Model Compatibility List $170.40 / Each

12,13,14
E 703436 014658-00 ECB ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each

10
U 703809 017657-00 U10 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

R 703985 020061-00 R23 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
703988 020067-00 S02 Screw;Hex Socket;M6x1.0Px30L No Model Compatibility List $1.09 / Each

704109 020256-AC R22 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

T 704210 020482-00 T19 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
A 704338 023065-Z AU1 Idler Assembly Yes Model Compatibility List $67.96 / Each

8,3
T 704625 024569-A T17 Pedal Set Assembly;9/16 Yes Model Compatibility List $72.98 / Each

31
707037 068824-Z Q06 Crank Cover No Model Compatibility List $9.57 / Each

8,9
709103 1000109595 T11 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
709275 1000111719 DAX Flywheel Set No Model Compatibility List $306.62 / Each

8
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

ff-1001 Switch 1018915 003329-00 0 1 ff-1001 Switch Yes Model Compatibility List $19.49 / Each
Out Of Stock 		6
Power Entry Jack Kit (Used) 1018917 058591-Z 0 1 Power Entry Jack Kit (Used) Yes Model Compatibility List $12.99 / Each
Out Of Stock 		6
T 014721A 014721-A T17 1 Pedal Pair Set 9/16" Spindle Quick Adjust Upgrade Yes Model Compatibility List $59.99 / Each

1
Display Console (Used) 1000431 019704-A AN1 1 Display Console (Used) Yes Model Compatibility List $183.99 / Each
Out Of Stock 		51
E 1000478 014658-00 ECB 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
Main Drive Belt 1000484 004157-00 0 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

P 1004184 003478-A2 P01 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
AC Adapter Power Supply Cord 1002436 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $69.99 / Each
Out Of Stock
E 1001818 014658-00 ECB Magnetic Brake Yes Model Compatibility List $59.99 / Each

10
R 701174 004096-00 R18 Bearing, Clutching No Model Compatibility List $20.72 / Each

T 1037441 1000109595 T11 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
P 911968 004620-00 P17 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Display Console (Used) 1037967 019704-A Display Console (Used) Yes Model Compatibility List $199.00 / Each
Out Of Stock 		51
B 957398 005330-00 B27 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q10 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
N 971749 003307-00 NOT SHOWN Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

View Drawing
