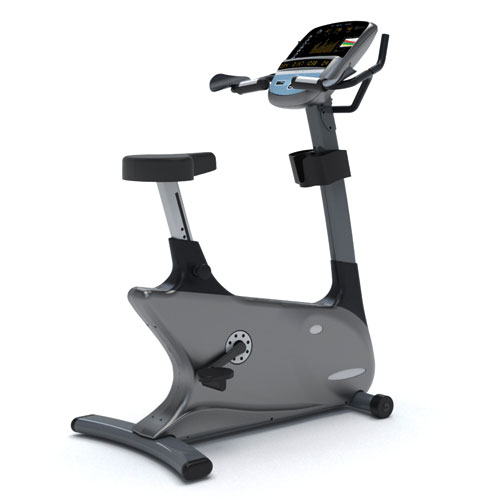

Vision Fitness - E3700B - N/A

Repair Parts for Vision Fitness E3700B E3700B

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3700B

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700055 000208-C Q03 Boot;Console Mast No Model Compatibility List $18.41 / Each

7
700132 000485-00 J06 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700259 000802-AA C12 Water Bottle Holder Yes Model Compatibility List $22.78 / Each

1
700262 000808-B C11 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J09 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

D 700574 001694-E D05 Seat Pad Yes Model Compatibility List $73.71 / Each

12,13,14
700719 002024-E P01 Console Cable;1750L No Model Compatibility List $91.23 / Each

7,4,5,6
P 700791 002320-B P07 WIRE SENSOR Yes Model Compatibility List $9.10 / Each

4,5,6
P 701066 003556-D P04 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
701111 003876-HX R03 PULLEY POLY V No Model Compatibility List $41.08 / Each

8
R 701158 004075-A3 R08 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
T 701159 004077-A2 T08 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

U 701162 004079-A3 U04 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

U 701165 004081-A2 U06 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701171 004091-00 R10 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $30.89 / Each

8
701195 004146-00 R20 Drive Belt;Poly-V;380-J6 No Model Compatibility List $54.73 / Each

15,10
701208 004164-00 R19 Drive Belt;Poly-V;460-J8 No Model Compatibility List $54.73 / Each

15,10
701265 004326-00 S14 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
B 701273 004337-00 B43 Screw;Round;PH;M5X0.8PX50L No Model Compatibility List $1.66 / Each

2
J 701583 004615-00 J10 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701597 004621-00 Q08 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701605 004627-00 N21 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

S 701644 004678-00 S02 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

G 701667 004700-AB G11 Screw;Hex Socket;TH;M8X1.25PX15L;Chromed No Model Compatibility List $1.79 / Each

R 701811 004828-AA R17 Screw;Hex Socket;BH;M6x1.0Px16L;Adhere No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N59 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
S 701870 004892-00 S09 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
B 701891 004924-00 B42 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

S 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

T 701923 004956-00 T05 Nut;Hex;M20X1.0P;SS41;BOX No Model Compatibility List $4.00 / Each

2
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
701934 004972-00 J11 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C21 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 J07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 J12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

S 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702188 005231-A L05 Washer;Wavy;16.2x28.7x1.5Tx1.5H No Model Compatibility List $1.79 / Each

2,4,5,6
702217 005330-00 B41 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702227 005352-00 R12 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

U 702230 005355-00 U05 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

702231 005356-00 R11 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

T 702240 005365-00 T09 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

R 702242 005367-00 R14 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

N 702471 007806-D N22 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
U 702516 008418-00 U14 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
702568 008686-B L02 Axle;Transport Wheel No Model Compatibility List $16.09 / Each

8
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
S 703368 013783-AB S08 Lower Control Board;700 Series Yes Model Compatibility List $389.77 / Each

703404 014252-B NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $13.70 / Each

1
T 703415 014411-AA T18 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
703752 015997-Z HPS Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
704109 020256-AC S12 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

704289 022259-A Q21 Screw;TRH;4X6L;SM;PH;;BZN;;FLT No Model Compatibility List $2.00 / Each

2
D 705003 028999-BA D04 Seat Sleeve No Model Compatibility List $10.63 / Each

3,12,13,14
705764 056077-BA AD1 Seat Post No Model Compatibility List $133.85 / Each

12,13,14
706656 064235-A V14 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
N 706799 065640-A N58 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

J 706806 065753-A J13 Screw;Hex Socket;BH;M10x1.5Px65L(Tooth25 No Model Compatibility List $4.00 / Each

2
706996 068163-AA D12 PULL PIN No Model Compatibility List $9.10 / Each

12,13,14
707007 068312-Z AG1 HANDLEBAR ASSEMBLY No Model Compatibility List $553.59 / Each

3,11
707009 068314-Z PAX Pedal Axle Set No Model Compatibility List $145.76 / Each

8,9
707022 068478-ZL T03 Crank Set;Left No Model Compatibility List $28.70 / Each

8
707023 068478-ZR T04 Crank Set;Right No Model Compatibility List $28.70 / Each

8
707037 068824-Z Q06 Crank Cover No Model Compatibility List $9.57 / Each

8,9
709103 1000109595 T10 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
715361 1000324409 AD3 Adjustment Pin Assembly;Semi-Assy;;M16;; No Model Compatibility List $26.08 / Each

3,12,13,14
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
725313 069803 V04 DECAL MODEL E3700HRT No Model Compatibility List $8.42 / Each

725338 070150 NOT SHOWN MANUAL ASSEMBLY 3700HRT No Model Compatibility List $3.35 / Each

725339 070151 NOT SHOWN OWNERS MANUAL R2700HRT/R2750HRT/E3700HRT No Model Compatibility List $13.26 / Each

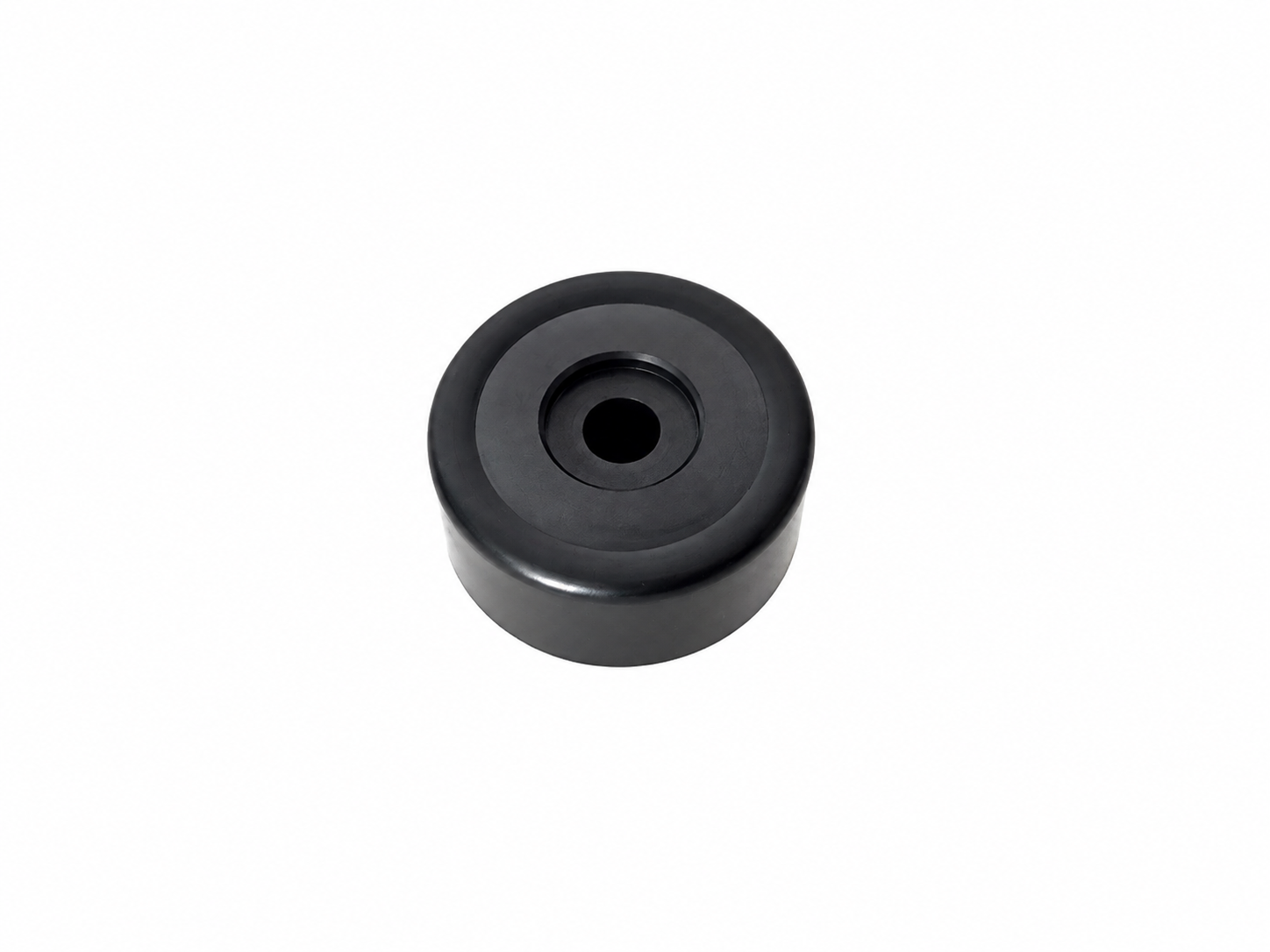

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726218 080761 R02 DRIVE AXLE ASSEMBLY No Model Compatibility List $617.32 / Each

726220 080766 Q02 COVER SIDE ASSEMBLY LEFT No Model Compatibility List $151.29 / Each

726221 080767 Q01 COVER SIDE ASSEMBLY RIGHT No Model Compatibility List $151.29 / Each

726416 081713 G21 Washer;Flat;10.3X20X1.0T No Model Compatibility List $1.79 / Each

727811 091142 AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock
727812 091155 10 Console Set;H001S001;6R;US;U70; No Model Compatibility List $1.30 / Each

728577 095381 AU1 Idler Set;KM;U70;CB68B-AU3 No Model Compatibility List $136.86 / Each

728994 Order AU1 U17 Tube No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

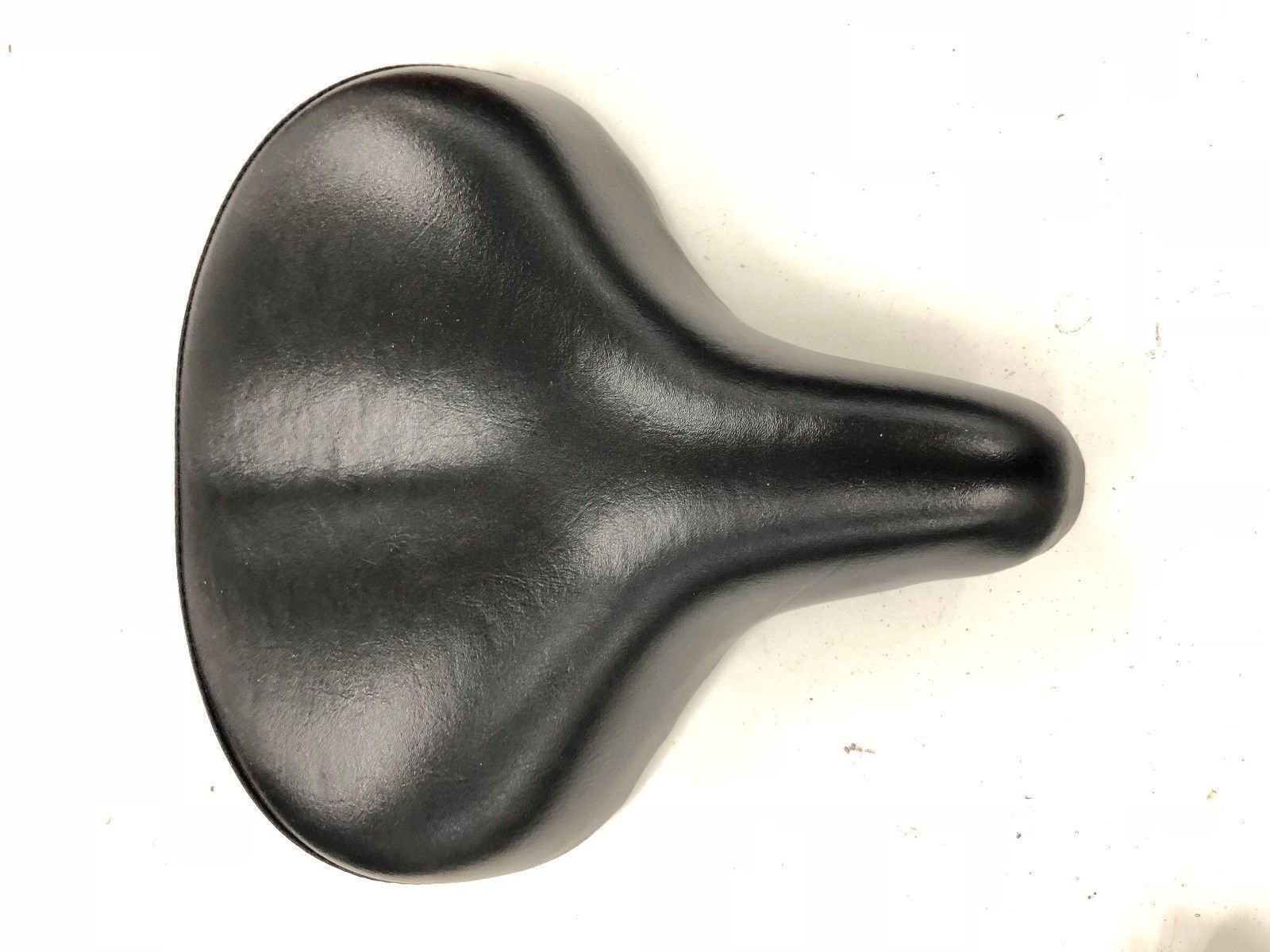

D 1000476 001694-E D05 Bottom Seat Pad Yes Model Compatibility List $29.99 / Each
Out Of Stock 		12,13,14
T 1037441 1000109595 T10 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
B 957398 005330-00 B41 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 957090 004621-00 Q08 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
