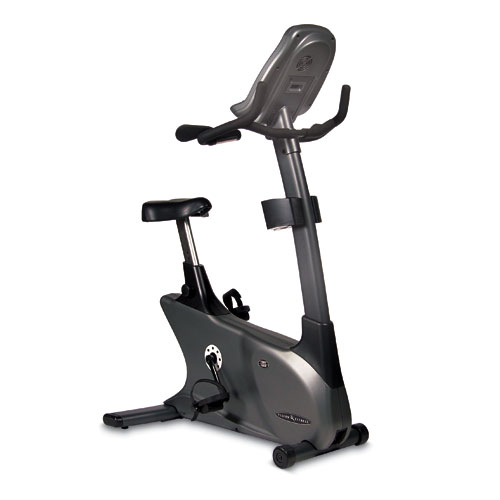

Vision Fitness - E3800HRT - 2007

Repair Parts for Vision Fitness E3800HRT VCB0058

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E3800HRT

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700055 000208-C Q03 Boot;Console Mast No Model Compatibility List $18.41 / Each

7
700132 000485-00 J06 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700259 000802-AA C22 Water Bottle Holder Yes Model Compatibility List $22.78 / Each

1
700262 000808-B C21 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J09 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

D 700574 001694-E D18 Seat Pad Yes Model Compatibility List $73.71 / Each

12,13,14
P 700791 002320-B P07 WIRE SENSOR Yes Model Compatibility List $9.10 / Each

4,5,6
P 701066 003556-D P04 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
701110 003876-H R03 PULLEY POLY V No Model Compatibility List $38.04 / Each

8
R 701158 004075-A3 R08 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
T 701159 004077-A2 T08 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

U 701162 004079-A3 U04 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

U 701165 004081-A2 U06 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701171 004091-00 R10 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $30.89 / Each

8
701195 004146-00 R20 Drive Belt;Poly-V;380-J6 No Model Compatibility List $54.73 / Each

15,10
701208 004164-00 R19 Drive Belt;Poly-V;460-J8 No Model Compatibility List $54.73 / Each

15,10
701265 004326-00 S14 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
C 701267 004328-00 C31 Screw;Round;PH; M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
B 701273 004337-00 B53 Screw;Round;PH;M5X0.8PX50L No Model Compatibility List $1.66 / Each

2
N 701342 004388-00 N62 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

U 701403 004457-00 U13 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
J 701583 004615-00 J10 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701597 004621-00 Q14 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
G 701667 004700-AB G11 Screw;Hex Socket;TH;M8X1.25PX15L;Chromed No Model Compatibility List $1.79 / Each

R 701811 004828-AA R17 Screw;Hex Socket;BH;M6x1.0Px16L;Adhere No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N59 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
S 701870 004892-00 S09 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
B 701891 004924-00 B52 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 D19 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

T 701923 004956-00 T05 Nut;Hex;M20X1.0P;SS41;BOX No Model Compatibility List $4.00 / Each

2
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
701934 004972-00 J11 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C32 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 J07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 J12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

S 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L05 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702180 005222-00 L07 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 T33 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 B51 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702227 005352-00 R12 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

U 702230 005355-00 U05 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

702231 005356-00 R11 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

T 702240 005365-00 T09 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

R 702242 005367-00 R14 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
U 702516 008418-00 U14 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
702569 008686-BX L02 Axle;Wheel;;SS41;15.86;;;;CB58 No Model Compatibility List $15.00 / Each

8
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
703404 014252-B NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $13.70 / Each

1
T 703415 014411-AA T14 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
703752 015997-Z N21 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
704109 020256-AC S12 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

704289 022259-A Q10 Screw;TRH;4X6L;SM;PH;;BZN;;FLT No Model Compatibility List $2.00 / Each

2
D 705003 028999-BA D17 Seat Sleeve No Model Compatibility List $10.63 / Each

3,12,13,14
705764 056077-BA AD1 Seat Post No Model Compatibility List $133.85 / Each

12,13,14
705766 056103-A NOT SHOWN MANUAL OWNER E3800HRT No Model Compatibility List $15.52 / Each

7,12,13,14
706139 059524-B P21 WIRE CONSOLE 8 PIN No Model Compatibility List $24.34 / Each

7,4,5,6,12,13,14
706140 059527-CB S08 Motor Control Board No Model Compatibility List $638.79 / Each

7,10
706246 060510-AA AN1 Console Set;Bike 800 Series No Model Compatibility List $1095.09 / Each

7
706656 064235-A V07 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
N 706799 065640-A N58 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

J 706806 065753-A J13 Screw;Hex Socket;BH;M10x1.5Px65L(Tooth25 No Model Compatibility List $4.00 / Each

2
T 706838 066044-A T32 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
707006 068309-Z AC1 MAST CONSOLE No Model Compatibility List $365.04 / Each

7
707007 068312-Z AG1 HANDLEBAR ASSEMBLY No Model Compatibility List $553.59 / Each

3,11
707009 068314-Z PAX Pedal Axle Set No Model Compatibility List $145.76 / Each

8,9
707022 068478-ZL T03 Crank Set;Left No Model Compatibility List $28.70 / Each

8
707023 068478-ZR T04 Crank Set;Right No Model Compatibility List $28.70 / Each

8
707037 068824-Z Q06 Crank Cover No Model Compatibility List $9.57 / Each

8,9
709103 1000109595 T10 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
P 713881 1000309219 P20 Battery WP1.2-12;12V 1.2Ah; Yes Model Compatibility List $72.98 / Each

715361 1000324409 AD3 Adjustment Pin Assembly;Semi-Assy;;M16;; No Model Compatibility List $26.08 / Each

3,12,13,14
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726218 080761 R02 DRIVE AXLE ASSEMBLY No Model Compatibility List $617.32 / Each

727520 089753 PAX Pedal Axle Set No Model Compatibility List $206.00 / Each

727521 089754 T03 Crank Set;Left No Model Compatibility List $69.86 / Each

727522 089755 T04 Crank Set;Right No Model Compatibility List $69.86 / Each

ADAPTER AC-DC 800 SERIES 24V/1A 728380 094446 P35 ADAPTER AC-DC 800 SERIES 24V/1A No Model Compatibility List $72.98 / Each

728577 095381 AU1 Idler Set;KM;U70;CB68B-AU3 No Model Compatibility List $136.86 / Each

728994 Order AU1 U17 Tube No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

D 1000476 001694-E D18 Bottom Seat Pad Yes Model Compatibility List $29.99 / Each
Out Of Stock 		12,13,14
T 1037441 1000109595 T10 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
D 976932 004926-00 D19 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B51 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 957090 004621-00 Q14 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
