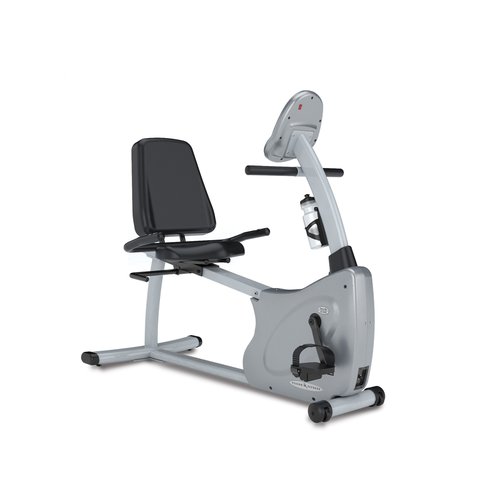

Vision Fitness - R1500 - 2009

Repair Parts for Vision Fitness R1500 RB133,RB130

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R1500

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 F06 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700252 000782-B F16 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
C 700255 000787-00 C08 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C07 Water Bottle No Model Compatibility List $9.88 / Each

1
F 700273 000840-H F14 SLEEVE SEAT No Model Compatibility List $3.82 / Each

3,12,13,14
G 700300 000894-00 G03 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
D 700301 000901-00 D21 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
T 700360 001130-00 T16 Cover;Crank Arm No Model Compatibility List $1.90 / Each

Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
F 700392 001201-A F15 End Cap;Seat Rail No Model Compatibility List $3.82 / Each

9,12,13,14
P 700406 001263-A P13 Sleeve;Grommet No Model Compatibility List $1.90 / Each

2,3
D 700466 001437-00 D10 Clamp Block Nylon No Model Compatibility List $3.82 / Each

4,5,6
700590 001715-C D12 PAD SEAT No Model Compatibility List $53.56 / Each

12,13,14
700637 001747-B D13 PAD SEAT BACK Yes Model Compatibility List $96.38 / Each
Out Of Stock 		4,5,6,12,13,14
P 700770 002231-B P02 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
700796 002352-B P19 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
700797 002356-B P21 WIRE PULSE CON 1200 No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
T 701042 003413-00 T13 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701088 003706-00 P14 Grommet;Heart Rate Wires No Model Compatibility List $1.90 / Each

2,4,5,6,12,13,14
T 701150 004062-BX T03 Crank;;Right;SS41;noROHS;;;CB01;CB01-086B; Yes Model Compatibility List $19.34 / Each

8
T 701159 004077-A2 T09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

R 701229 004203-A R04 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
701338 004387-AC F17 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
G 701449 004493-00 G05 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701585 004616-00 S03 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701586 004617-00 Q06 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

L 701589 004619-00 L05 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701605 004627-00 C10 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701627 004648-00 P08 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

F 701700 004724-AC F21 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
F 701708 004727-AC F13 Screw;Umbrella Hex Scoket;M8x1.25Px30L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701816 004837-00 D19 Set Screw;M8x1,25Px8.2L No Model Compatibility List $2.00 / Each

2
701934 004972-00 F05 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C06 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 F19 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 G06 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB F20 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

D 702021 005056-00 D15 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702140 005170-A D18 Washer;Arc;6.2x14.0x1.2T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

D 702234 005359-00 D16 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

P 702511 008393-00 P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
D 702747 009486-00 D08 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D09 Cam No Model Compatibility List $9.75 / Each

1
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
T 703415 014411-AA T23 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T05 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
704156 020354-A D17 Screw;Oval;M6X1.0PX35L-23L;;HS;;;;BP;P-T No Model Compatibility List $2.00 / Each

2
Q 704273 022177-A Q08 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

D 705276 040418-CX DAX DRIVE AXLE ASSEMBLY No Model Compatibility List $246.06 / Each

8,3,10
P 705287 040619-A P20 WIRE PULSE SM560 No Model Compatibility List $25.56 / Each

4,5

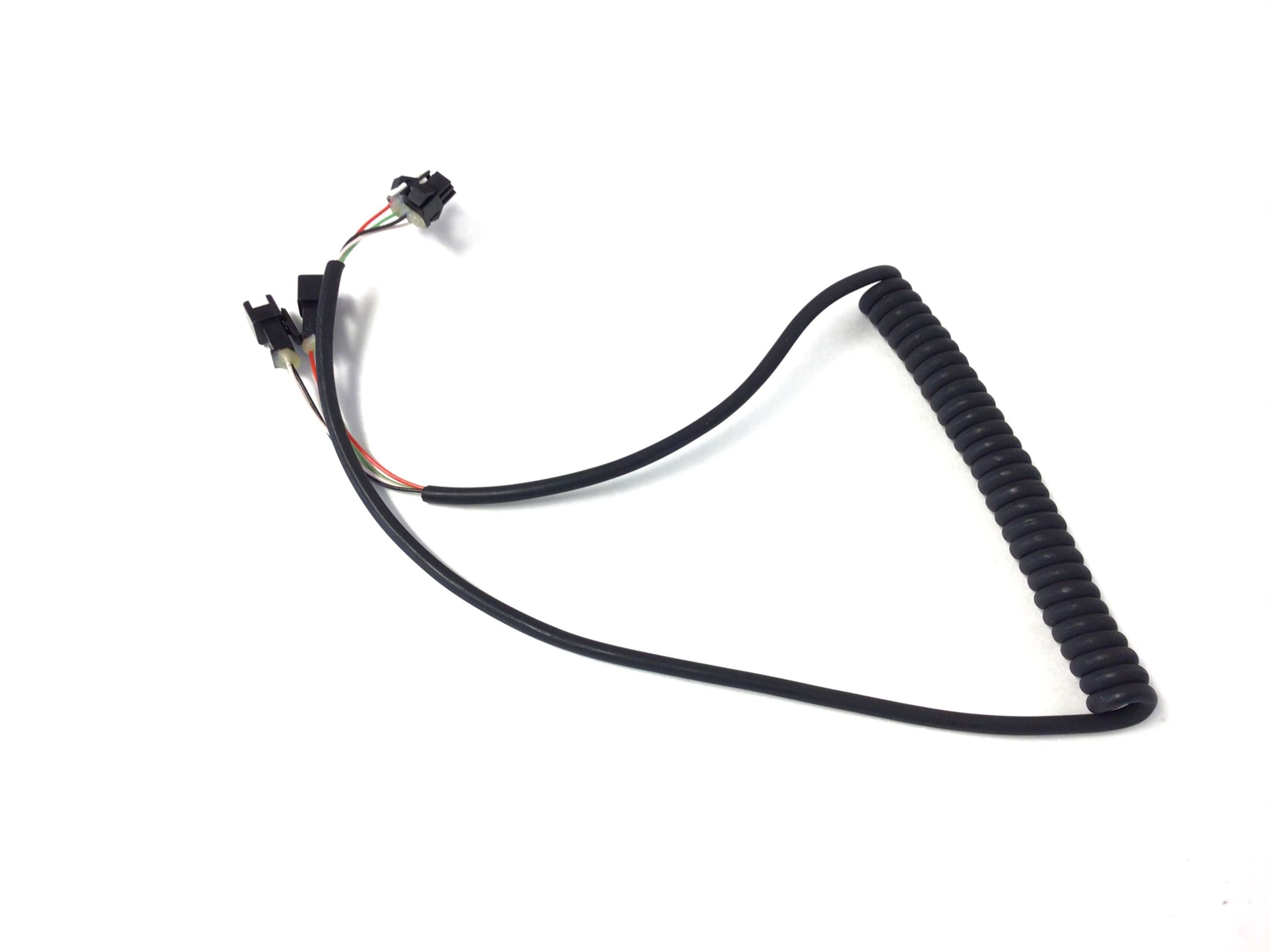

705290 040636-A P01 Console Cable;1300mm - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $76.65 / Each

7,4,5,6
P 705307 040690-A P06 Pulse Sensor Set;Single Yes Model Compatibility List $38.32 / Each

12,13,14
705320 040829-00 C12 Set Screw;M8x1.25x10L No Model Compatibility List $2.00 / Each

2
F 705394 049051-AA F04 End Cap;Stabilizer Yes Model Compatibility List $12.17 / Each

9
705431 049151-AA Q03 COVER CONSOLE MAST No Model Compatibility List $11.73 / Each

7,9
705624 052183-AAX AF2 Guide Rail;Seat Assembly No Model Compatibility List $82.81 / Each

9,3,12,13,14
D 705718 055339-B D07 Seat Hand Lever;Includes Grip No Model Compatibility List $15.29 / Each

3,12,13,14,11
706234 060366-BX V07 DECAL CRANK No Model Compatibility List $3.82 / Each

7,8,3
P 706389 061773-Z PAX PEDAL AXLE ASSEMBLY No Model Compatibility List $120.04 / Each

8,9
706390 061775-Z AD1 FRAME SLIDE SEAT ASSEMBLY No Model Compatibility List $200.20 / Each

3,12,13,14
706391 061776-Z AU1 IDLER ASSEMBLY No Model Compatibility List $34.16 / Each

8,3
706490 062767-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $9.28 / Each

1
706491 062768-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $3.69 / Each

1
P 706799 065640-A P17 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

707071 1000090021 NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $19.86 / Each

4,5,6
707089 1000090302 AG1 Handlebar Set;Seat Assembly No Model Compatibility List $191.80 / Each

3,12,13,14,11
707090 1000090303 AF1 STABILIZER REAR ASSEMBLY No Model Compatibility List $396.50 / Each

3
707091 1000090304 AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $317.38 / Each

7,3
707108 1000090331 V01 DECAL MODEL R1500 No Model Compatibility List $14.79 / Each

7,3
707109 1000090332 V02 DECAL VF No Model Compatibility List $36.84 / Each

7,3
707132 1000090389 Q02 COVER SIDE ASSEMBLY RIGHT No Model Compatibility List $119.89 / Each

9,3
707133 1000090390 Q01 COVER SIDE ASSEMBLY LEFT No Model Compatibility List $119.89 / Each

9,3
707229 1000091344 C14 Screw;BH;M8X1.25PX15L;;HS;G8.8;NKL;;BP No Model Compatibility List $2.00 / Each

2
T 707246 1000091600 T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $62.69 / Each

3,8
S 707374 1000092348 S02 Steel Rope No Model Compatibility List $13.26 / Each

709802 1000203355 NOT SHOWN Premier Console Set Serial Number EP249 No Model Compatibility List $1.30 / Each

7
N 710395 1000210076 NOT SHOWN Deluxe Console Set Serial Number RB144 - D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $1038.70 / Each

7
725013 100933 AB2 FRAME MAIN No Model Compatibility List $225.94 / Each

3
725150 102207 NOT SHOWN MANUAL ASSEMBLY R15009 No Model Compatibility List $11.08 / Each

3
725244 103241 NOT SHOWN MANUAL OWNER BIKE/ELLIPTICAL No Model Compatibility List $11.96 / Each

1
T 725261 103326 T14 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
726075 079756 L01 WHEEL MOBILE ASSEMBLY No Model Compatibility List $12.19 / Each

Power Adaptor; 120V/50HZ 12V/1A 726269 081149 P10 Power Adaptor; 120V/50HZ 12V/1A Yes Model Compatibility List $80.29 / Each
Out Of Stock
Display Console - Used Only 1003376 1000109336 # 1 Display Console - Used Only Yes Model Compatibility List $180.70 / Each
Out Of Stock 		7
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Q 957398 005330-00 Q07 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

S 986316 004616-00 S03 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
View Drawing
