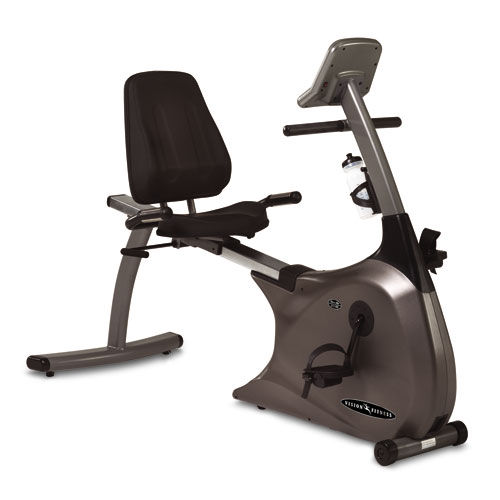

Vision Fitness - R2100 - 2006

Repair Parts for Vision Fitness R2100 RB105

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2100

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 F06 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
J 700135 000491-B J06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
J 700136 000496-00 J04 END CAP REAR FOOT Yes Model Compatibility List $7.54 / Each

3,9
C 700255 000787-00 C11 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C10 Water Bottle No Model Compatibility List $9.88 / Each

1
F 700273 000840-H F14 SLEEVE SEAT No Model Compatibility List $3.82 / Each

3,12,13,14
C 700299 000893-B C16 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
D 700301 000901-00 D21 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
700306 000924-F F04 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
F 700392 001201-A F15 End Cap;Seat Rail No Model Compatibility List $3.82 / Each

9,12,13,14
D 700466 001437-00 D10 Clamp Block Nylon No Model Compatibility List $3.82 / Each

4,5,6
D 700481 001469-00 D11 Plate Protection Sliding No Model Compatibility List $1.90 / Each

3
700590 001715-C D12 PAD SEAT No Model Compatibility List $53.56 / Each

12,13,14
700637 001747-B D13 PAD SEAT BACK Yes Model Compatibility List $96.38 / Each
Out Of Stock 		4,5,6,12,13,14
700775 002252-A P02 Speed Sensor Wire;600(Magnet Reed Tube+SMP-02V No Model Compatibility List $9.54 / Each

8,3,4,5,6
700796 002352-B P19 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 P10 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
T 701112 003879-00 T03 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
R 701120 003904-00 R02 Pulley;ECB Flywheel;J840 No Model Compatibility List $17.58 / Each

8
T 701146 004050-A T05 Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

701154 004072-A2 R06 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
U 701159 004077-A2 U03 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

T 701160 004078-A2 T11 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701227 004201-00 R12 Drive Belt;Poly-V;430-J5 No Model Compatibility List $57.49 / Each

15,10
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701308 004369-00 C14 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

N 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701319 004374-ZAC P06 Screw;BH;M5X0.8X10 No Model Compatibility List $2.00 / Each

2
R 701403 004457-00 R16 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
G 701449 004493-00 G13 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

F 701583 004615-00 F08 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 Q06 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701591 004620-00 Q07 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701812 004829-00 R11 Screw;M5x0.8Px15L No Model Compatibility List $0.34 / Each

2
701816 004837-00 D19 Set Screw;M8x1,25Px8.2L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701964 005005-00 F09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

T 701988 005026-00 T07 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702021 005056-00 D15 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
R 702067 005096-Z R10 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702140 005170-A D18 Washer;Arc;6.2x14.0x1.2T No Model Compatibility List $2.00 / Each

2
702150 005185-00 R08 Washer;Teflon;20.3x40x1.0T No Model Compatibility List $2.05 / Each

2
702217 005330-00 B25 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

D 702234 005359-00 D16 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

U 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

U 702277 005444-00 U05 Spring;Idler;2.0x16.0x103.0Lx26N No Model Compatibility List $3.35 / Each

2,8
702313 005968-B V04 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
D 702747 009486-00 D08 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D09 Cam No Model Compatibility List $9.75 / Each

1
T 703415 014411-AA T05 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703449 014724-A T04 Pedal Set;With Strap Yes Model Compatibility List $72.98 / Each

8,9
D 703750 015992-Z D07 Seat Roller Set Yes Model Compatibility List $34.74 / Each

8,12,13,14
703752 015997-Z AN2 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
703758 016020-ZL Q01 COVER SIDE ASSEMBLY LEFT No Model Compatibility List $97.01 / Each

9,3
703759 016020-ZR Q02 COVER SIDE ASSEMBLY RIGHT No Model Compatibility List $106.68 / Each

9,3
703760 016021-Z AG1 HANDLEBAR SEAT ASSEMBLY No Model Compatibility List $137.51 / Each

3,12,13,14,11
703988 020067-00 S24 Screw;Hex Socket;M6x1.0Px30L No Model Compatibility List $1.09 / Each

704086 020208-00 H07 Screw;Round;4X12L;TC;PH;;;;POT No Model Compatibility List $1.56 / Each

2
704118 020274-Z L05 Screw;Hex Socket;BH;M8x1.25Px19L No Model Compatibility List $1.07 / Each

2
704156 020354-A D17 Screw;Oval;M6X1.0PX35L-23L;;HS;;;;BP;P-T No Model Compatibility List $2.00 / Each

2
D 704293 022297-00 D07 Pressing Shaft No Model Compatibility List $8.87 / Each

3
707949 1000097219 AF2 RAIL SLIDE ASSEMBLY No Model Compatibility List $430.66 / Each

9,3
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726827 085363 H10 Washer;Flat;8.2X16.0X1.6T;Zinc No Model Compatibility List $1.79 / Each

729325 ZMS1000080 P01 RPM SENSOR W/WIRE FOR INDEXED CONSOLE 14 No Model Compatibility List $10.35 / Each

7,4,5,6
729326 ZMS1000087 H11 BOLT BH M8X60 PARTIAL No Model Compatibility List $9.28 / Each

2
729327 ZMS1000088 R23 SEATROLLER ACORN NUT No Model Compatibility List $1.77 / Each

2,8,4,5,6,12,13,14
729392 ZMS1000426 G12 WASHER LK 6X10X1.5 No Model Compatibility List $1.85 / Each

2
Seat Frame End Cap (Used) 1015108 001404-C # 1 Seat Frame End Cap (Used) Yes Model Compatibility List $19.49 / Each

9
R 1000484 004157-00 R08 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
T 1004805 014724-A T04 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

8,9
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

P 1004184 003478-A2 P10 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
AC Adapter Power Supply Cord 1002436 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $69.99 / Each
Out Of Stock
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

Q 911968 004620-00 Q07 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B25 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q06 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
