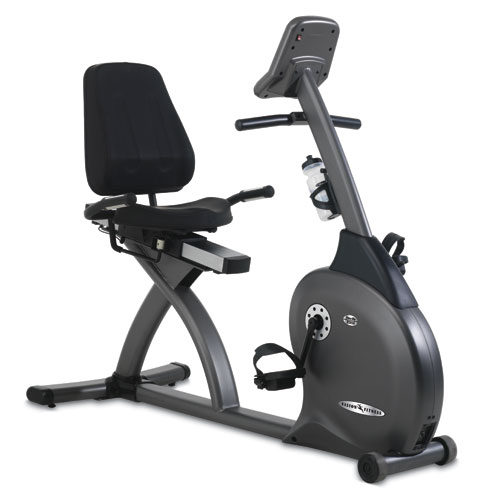

Vision Fitness - R2150 - 2007

Repair Parts for Vision Fitness R2150 RB111

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2150

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 F05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C08 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C10 Water Bottle No Model Compatibility List $9.88 / Each

1
C 700299 000893-B C15 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
D 700301 000901-00 D21 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
700306 000924-F F12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
P 700357 001126-C P18 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

P 700358 001127-C P17 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

Q 700376 001161-C Q09 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
P 700406 001263-A P15 Sleeve;Grommet No Model Compatibility List $1.90 / Each

2,3
700544 001576-AA Q05 Boot;Console Mast No Model Compatibility List $19.71 / Each

7
700566 001670-00 P14 GROMMET HRT WIRES No Model Compatibility List $1.90 / Each

7,2,4,5,6,12,13,14
700725 002043-A P04 Console Wire Set;1370(JXT/XHP-10+SMR-3V- Yes Model Compatibility List $76.65 / Each

7,4,5,6
700775 002252-A P01 Speed Sensor Wire;600(Magnet Reed Tube+SMP-02V No Model Compatibility List $9.54 / Each

8,3,4,5,6
700796 002352-B P10 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
700801 002360-B P12 WIRE HAND PULSE Yes Model Compatibility List $14.95 / Each

4,5,6,12,13,14
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701202 004157-00 R06 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

23
701275 004339-00 P19 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701308 004369-00 C09 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

N 701316 004372-00 N07 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701338 004387-AC U08 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
Q 701401 004454-00 Q10 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

R 701403 004457-00 R14 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
D 701449 004493-00 D41 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

Q 701583 004615-00 Q18 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 F17 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701591 004620-00 Q12 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701627 004648-00 P07 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

L 701698 004723-00 L05 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
H 701706 004727-00 H05 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
F 701718 004739-00 F13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
C 701730 004756-00 C11 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.79 / Each

701816 004837-00 C13 Set Screw;M8x1,25Px8.2L No Model Compatibility List $2.00 / Each

2
F 701841 004859-00 F10 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P20 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701934 004972-00 F16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C04 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 F15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 H06 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
T 702027 005059-00 T25 WASHER;Flat;12.5x19.0x1.0T;Black Zinc No Model Compatibility List $3.64 / Each

R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702140 005170-A D30 Washer;Arc;6.2x14.0x1.2T No Model Compatibility List $2.00 / Each

2
T 702177 005219-00 T19 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

D 702234 005359-00 D02 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

U 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

P 702489 008021-C P02 Fix Plate;Speed Sensor No Model Compatibility List $3.82 / Each

3
U 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
D 702747 009486-00 D17 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D18 Cam No Model Compatibility List $9.75 / Each

1
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
T 703415 014411-AA T23 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
E 703436 014658-00 ECB ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each

10
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
P 703745 015971-Z PAX Pedal Axle Set Yes Model Compatibility List $164.79 / Each

8,9
A 703746 015974-Z AU1 IDLER ASSEMBLY Yes Model Compatibility List $55.77 / Each

3,8
703747 015987-ZL T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $57.49 / Each

8,3
T 703748 015987-ZR T03 CRANK ASSEMBLY RIGHT Yes Model Compatibility List $57.49 / Each
Out Of Stock 		3,8
D 703751 015994-Z DAX Drive Axle Set Yes Model Compatibility List $315.54 / Each

8,10
703752 015997-Z HPS Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
U 703809 017657-00 U05 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

R 703985 020061-00 R15 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
703987 020066-Z R17 SCREW HEX M6X1X12 No Model Compatibility List $1.79 / Each

2
P 704072 020184-00 P08 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

704156 020354-A D19 Screw;Oval;M6X1.0PX35L-23L;;HS;;;;BP;P-T No Model Compatibility List $2.00 / Each

2
705288 040620-A P11 WIRE HRT SEAT RAIL No Model Compatibility List $23.69 / Each

7,9,4,5,6,12,13,14
705398 049056-AA D11 BUSHING ADJ PLATE GUIDE RAIL No Model Compatibility List $3.82 / Each

8,9,3
705424 049131-A H09 END CAP GUIDERAIL No Model Compatibility List $3.82 / Each

9
705439 049170-BA D26 PAD SEAT Yes Model Compatibility List $112.68 / Each

12,13,14
705440 049173-B D13 PAD BACK SEAT Yes Model Compatibility List $112.68 / Each

4,5,6,12,13,14
705482 049281-00 B35 SCREW BH M5X15 No Model Compatibility List $1.33 / Each

2
705510 049675-AX NOT SHOWN MANUAL OWNERS R2050/R2150/E3100 No Model Compatibility List $3.82 / Each

1
705639 052308-B AH1 RAIL SEAT No Model Compatibility List $75.76 / Each

9,12,13,14
D 706247 060514-A D43 Screw;Hex Socket;Umbrella;;;M8x20(12Clas No Model Compatibility List $0.36 / Each

2
D 706248 060516-A D29 Fix Plate;Handlebar;BL;RB110 No Model Compatibility List $9.57 / Each

3,11
706553 063393-AA Q15 COVER STABILIZER REAR RIGHT No Model Compatibility List $9.57 / Each

9
706554 063394-AA Q16 COVER STABILIZER REAR LEFT No Model Compatibility List $9.57 / Each

9
706625 063901-Z AD1 FRAME SEAT SLIDE ASSEMBLY No Model Compatibility List $306.44 / Each
Out Of Stock 		3,12,13,14
706629 063947-Z AD2 Handlebar Seat Assembly Yes Model Compatibility List $145.68 / Each

3,12,13,14,11
706656 064235-A V02 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
S 706697 064639-A S02 Cable Brake No Model Compatibility List $11.18 / Each

8,4,5,6
706836 066038-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $12.87 / Each

4,5,6
707037 068824-Z Q08 Crank Cover No Model Compatibility List $9.57 / Each

8,9
D 708419 1000102774 D42 Screw;Settle;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

Power Adaptor; 120V/50HZ 12V/1A 726269 081149 P10 Power Adaptor; 120V/50HZ 12V/1A Yes Model Compatibility List $80.29 / Each
Out Of Stock
727876 091775 NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $4.00 / Each

Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

729106 Part of hardware pack 066038-A H11 STOPPER GUIDE RAIL No Model Compatibility List $0.00 / Each
Out Of Stock 		9
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

E 1000478 014658-00 ECB 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
R 1000484 004157-00 R06 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
E 1001818 014658-00 ECB Magnetic Brake Yes Model Compatibility List $59.99 / Each

10
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

T 1037441 1000109595 T04 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
Q 911968 004620-00 Q12 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

F 986316 004616-00 F17 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
S 957090 004621-00 S03 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
